Description

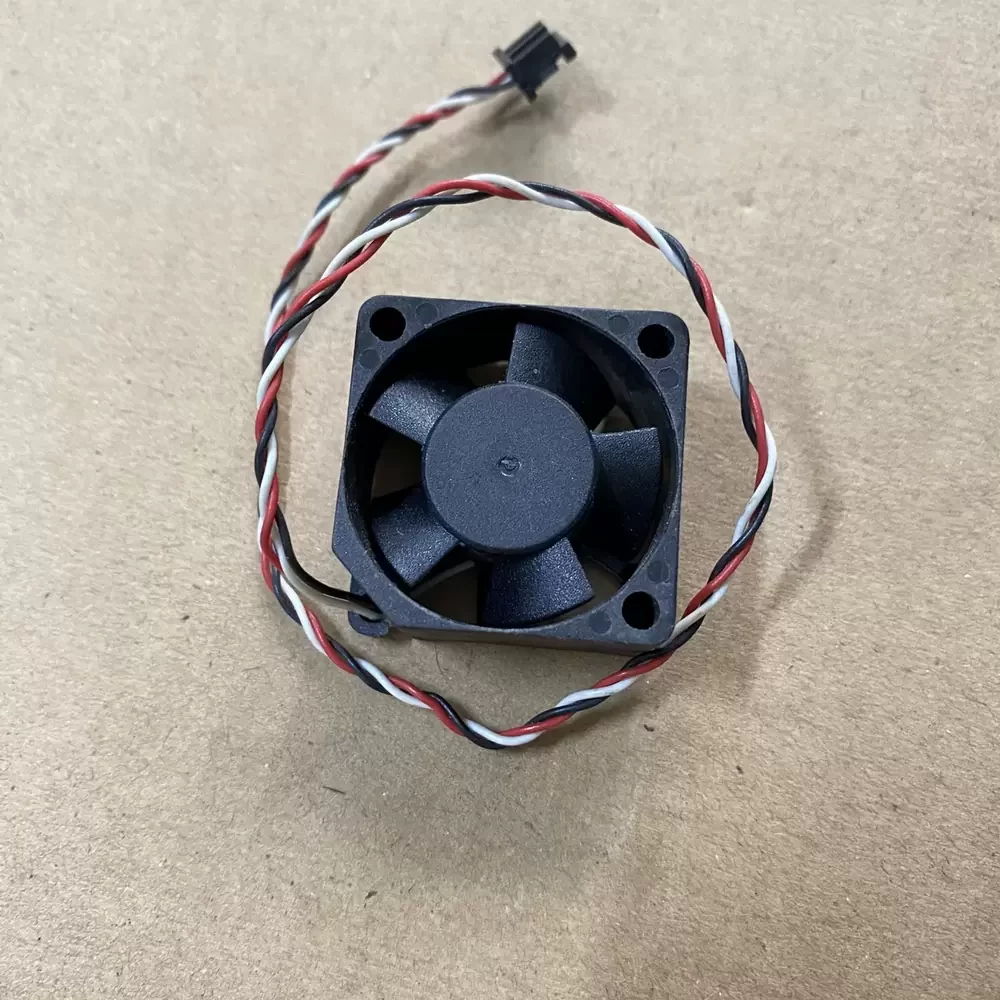

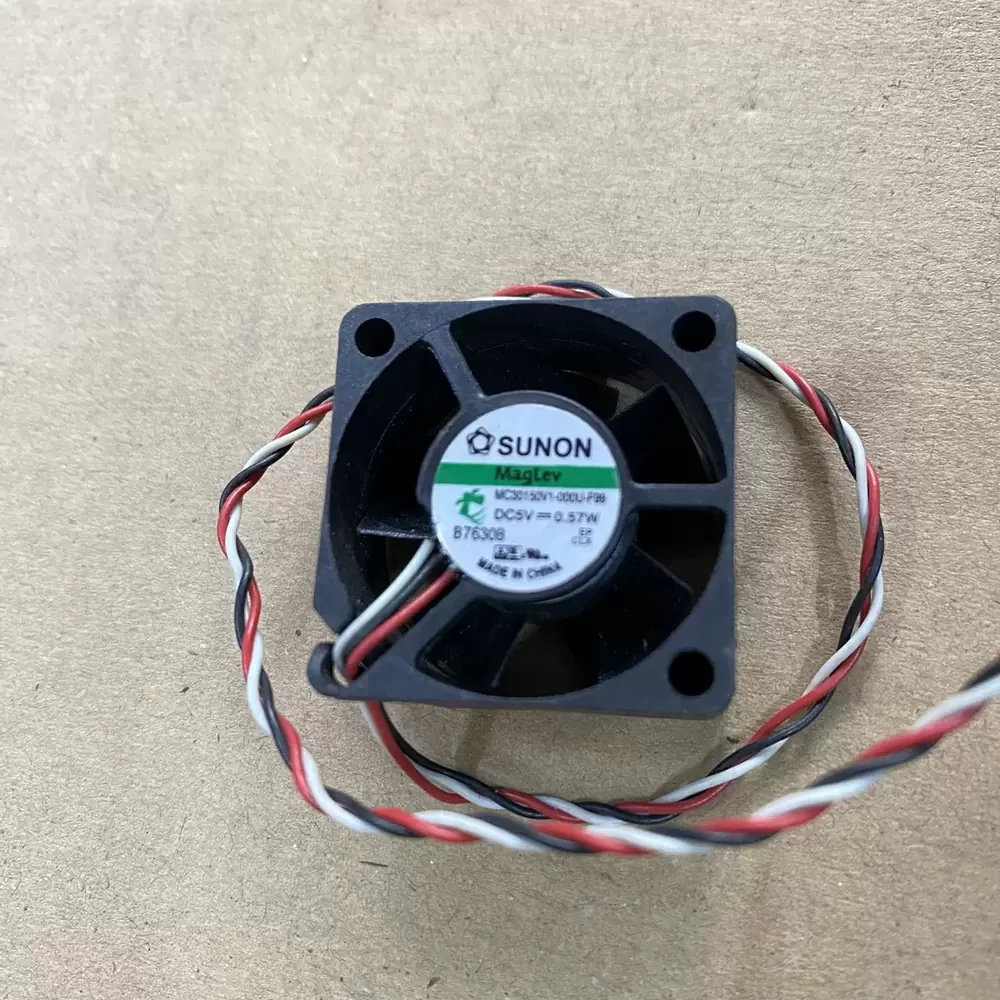

The SUNON MC30150V1-000U-F99 is a high-precision Axial Fan engineered with the proprietary MagLev motor system to minimize thermal impedance and mechanical friction. This 30mm cooling solution utilizes a VAPO bearing architecture to ensure superior structural rigidity and long-term rotational stability. Designed for low-voltage DC environments, the fan incorporates an optimized impeller geometry to maximize static pressure while maintaining a compact footprint. Its advanced electromagnetic design reduces vibration and acoustic resonance, making it ideal for sensitive electronic deployments requiring consistent airflow and high reliability in constrained spaces.
Model Number: MC30150V1-000U-F99
Brand: SUNON
Product Type: Axial Fan
Rated Voltage: 5VDC
Voltage Range: 4.25 – 6.0 VDC
Rated Current: 0.114 A
Power: 0.57 W
Rated Speed: 9500 RPM
Bearing Type: VAPO / MagLev
Max. Air Flow: 6.0 CFM (10.2 m³/h / 0.17 m³/min)
Max. Static Pressure: 5.59 mmH₂O (54.8 Pa / 0.22 inH₂O)
Dimensions: 30x30x15mm
Weight: 10.5g
Life Expectancy: 60,000 Hours at 40C
Speed Control: Tachometer (F-Signal)
Noise Level: 23.0 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 3 Lead Wires (Red/Black/Yellow)
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Insulation Class: Class A
Protection Features: Auto Restart, Polarity Protection
Certifications: CE, TUV, UL, CUR
The MC30150V1-000U-F99 is specifically designed for integration into compact electronic devices such as handheld medical instruments, micro-projectors, and portable networking hardware. Given its high rotational speed and specialized MagLev bearing, the MC30150V1-000U-F99 excels in cooling high-density PCB components and small-form-factor server modules where traditional mechanical wear must be minimized. Its three-wire configuration allows for precise system monitoring in mission-critical industrial automation and telecommunications equipment.
