Description

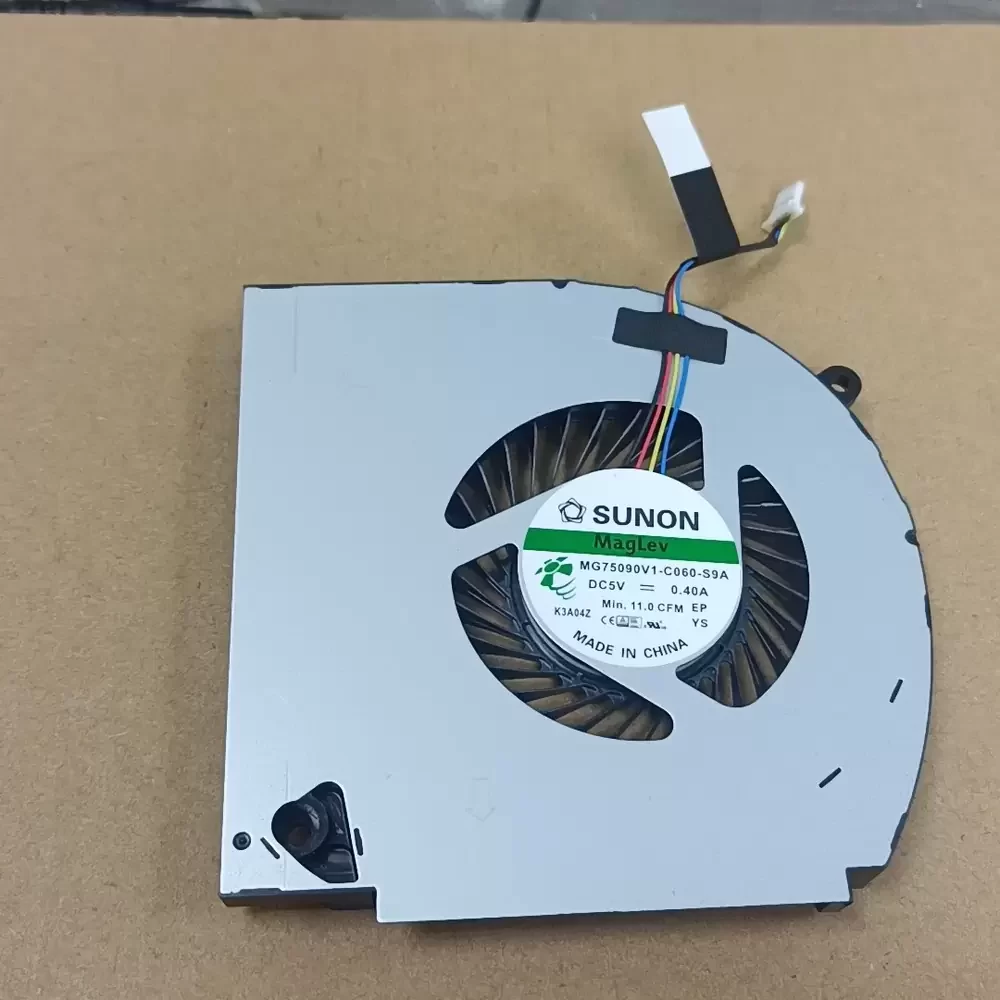

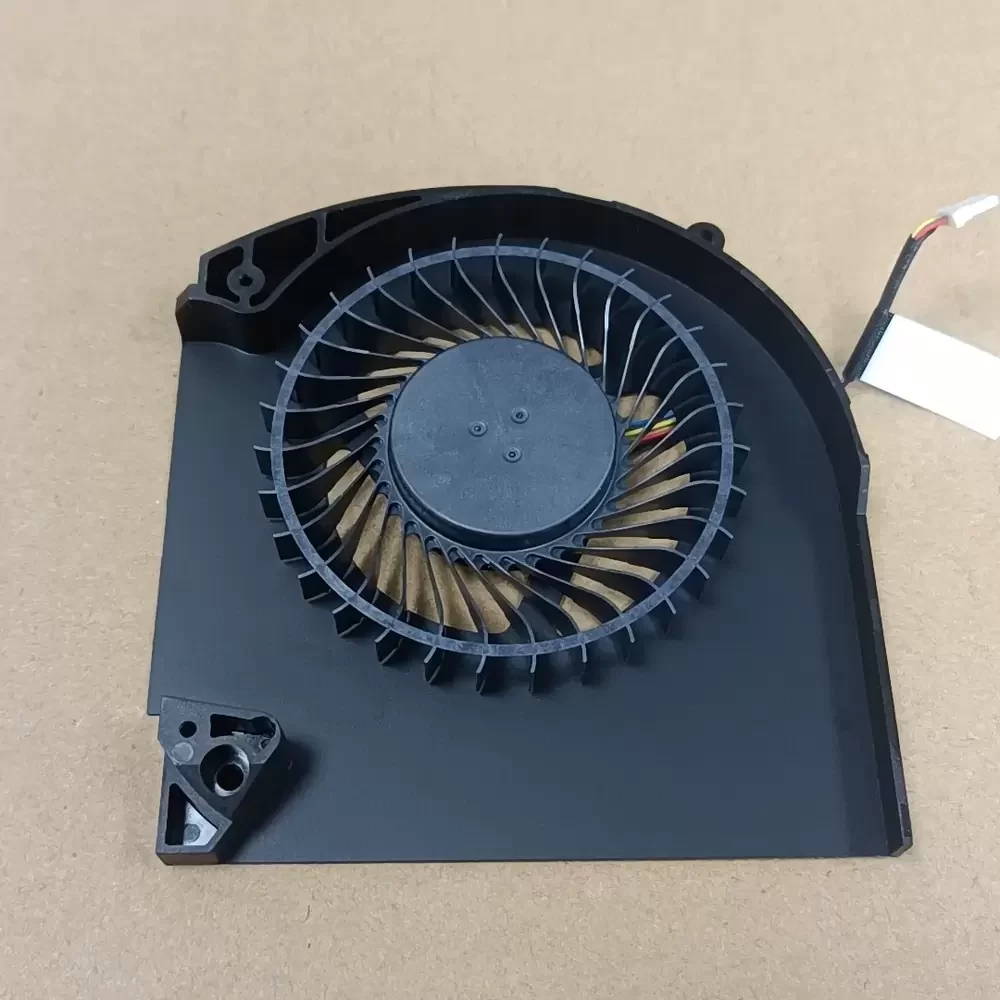

SUNON MG75090V1-C060-S9A is a 5VDC 75mm Blower optimized for high-density thermal management in gaming laptops. Utilizing SUNON proprietary MagLev motor technology, this unit eliminates mechanical contact between the shaft and bearing, significantly reducing thermal impedance and structural rigidity issues common in standard sleeve designs. The aerodynamic centrifugal impeller is engineered for high static pressure, essential for pushing air through dense copper heat pipe fins. Operating at 0.40A with a rated airflow of 11.0CFM, it provides a reliable cooling solution for high-performance hardware. This DC brushless blower ensures stable thermal profiles during peak processing loads, maintaining system longevity and preventing thermal throttling.
Model Number: MG75090V1-C060-S9A
Brand: SUNON
Product Type: Blower Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.40A
Power: 2.0W
Rated Speed: 3800 RPM
Bearing Type: MagLev (Magnetic Levitation)
Max. Air Flow: 11.0 CFM (18.7 m³/h / 0.31 m³/min)
Max. Static Pressure: 12.5 mmH₂O (122.6 Pa / 0.49 inH₂O)
Dimensions: 75 x 75 x 9 mm
Weight: 45g
Life Expectancy: 50,000 Hours at 40°C
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 4-Pin Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Auto Restart, Polarity Protection
Certifications: CE, TUV, UL
MG75090V1-C060-S9A Applications
1. Dell Alienware 17 R4/R5 Chassis: Direct replacement fan designed to overcome the high system impedance of multi-heatpipe cooling arrays in 17-inch gaming notebooks.
2. Ultra-Thin Thermal Modules: Low-profile centrifugal design provides concentrated airflow for localized heat dissipation where axial fans lack the necessary static pressure.
