Description

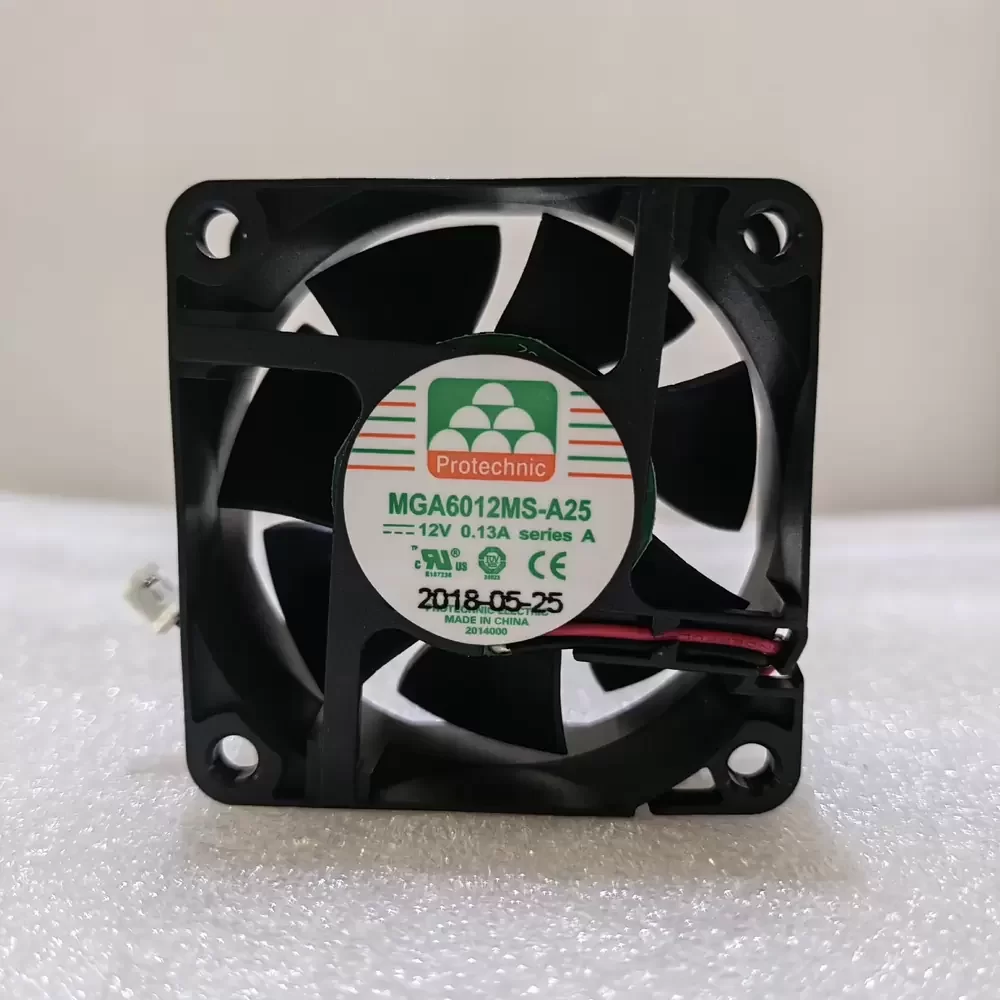

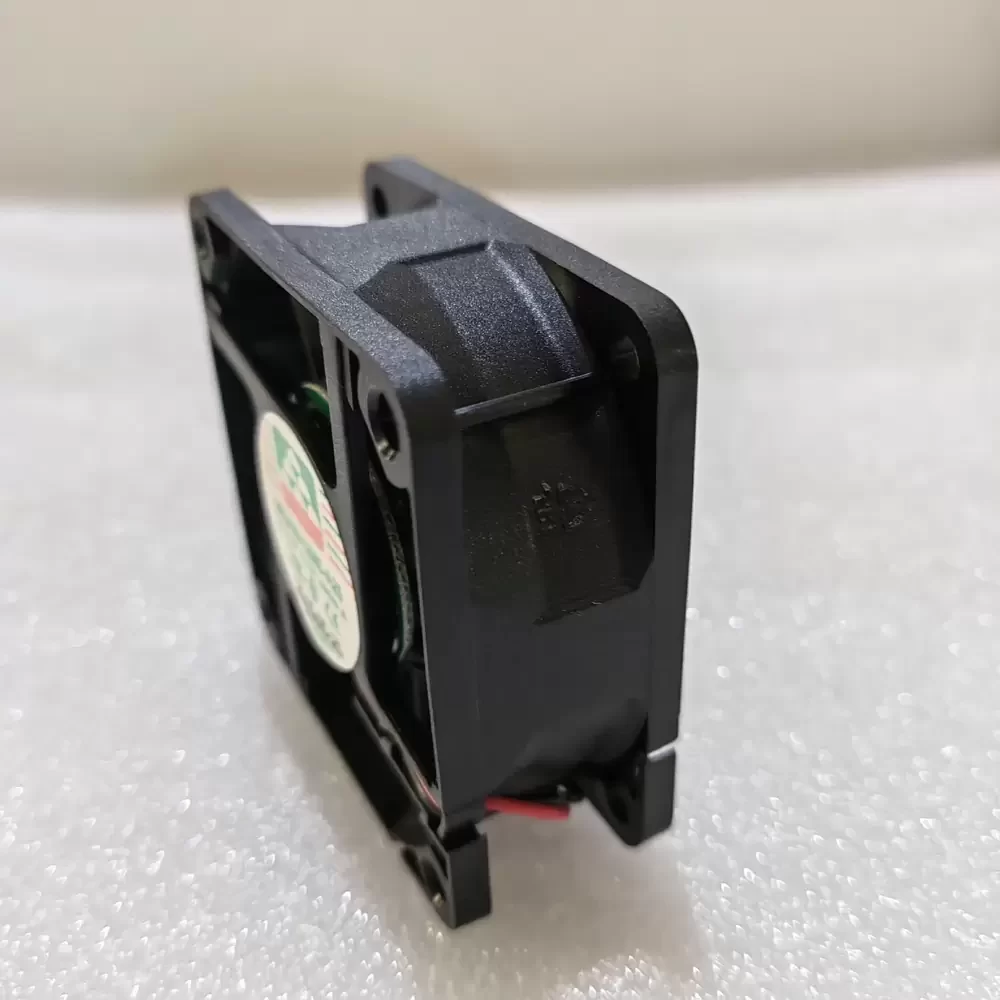

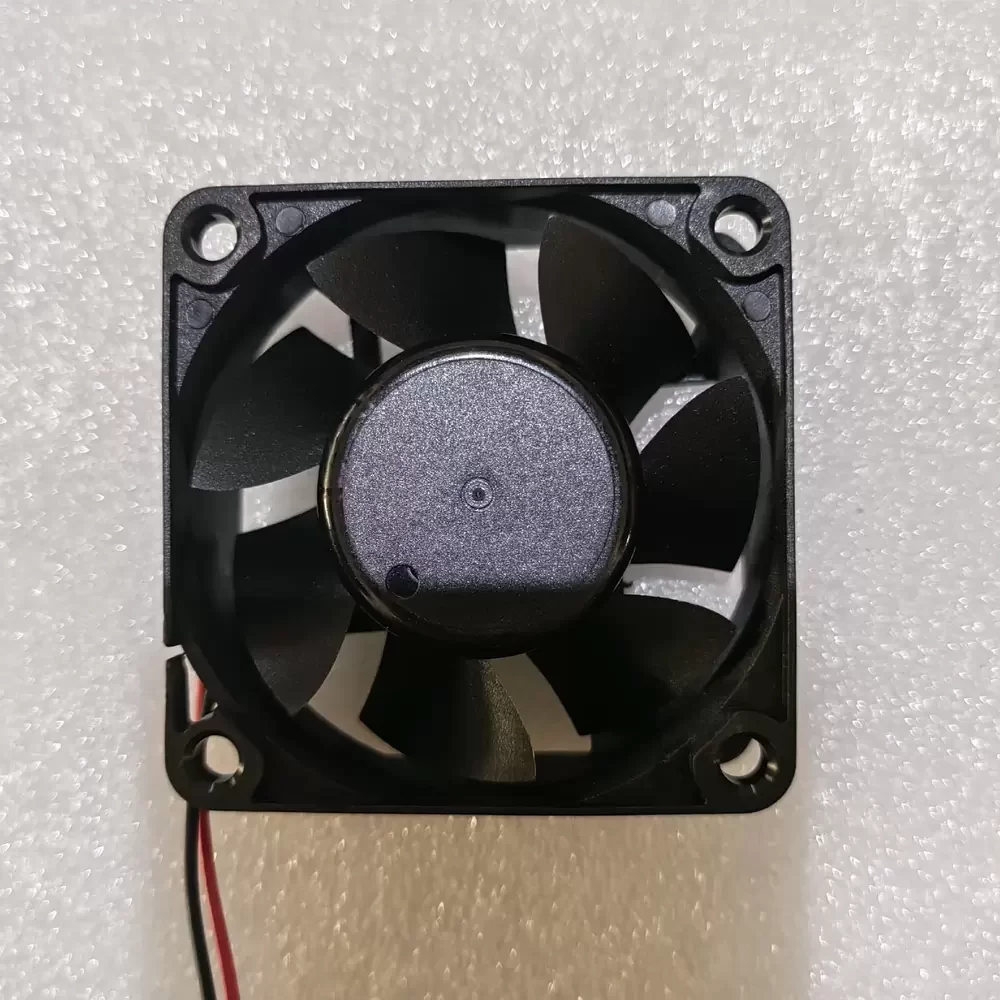

The Magic MGA6012MS-A25 is a precision-engineered DC axial fan designed for thermal management in compact electronic enclosures and heating applications. Utilizing a durable sleeve bearing architecture, this unit balances operational longevity with acoustic efficiency, making it suitable for noise-sensitive environments. The rotor assembly features an optimized impeller geometry to maximize static pressure while maintaining consistent airflow, ensuring effective heat dissipation in high-impedance systems. Constructed with UL94V-0 rated thermoplastic, the frame ensures structural rigidity and thermal stability under continuous load conditions, minimizing vibration and resonance.
Model Number: MGA6012MS-A25
Brand: Magic (Magic Precision Inc.)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Rated Speed: 3800 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 20.5 CFM (34.8 m³/h / 0.58 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.3 Pa / 0.15 inH₂O)
Dimensions: 60x60x25mm
Noise Level: 28.5 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 30,000 Hours at 40°C
Weight: 55 g
Motor Type: Brushless DC
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
The MGA6012MS-A25 is specifically engineered for integration into compact heating units, power supply cooling, and small-scale industrial automation equipment. Its profile makes it ideal for heater blowers where consistent airflow is required to distribute warmth effectively without generating excessive noise. Additionally, the MGA6012MS-A25 serves reliably in telecommunications chassis and network switchgear, providing critical thermal regulation to prevent component overheating in continuous-duty cycles.
