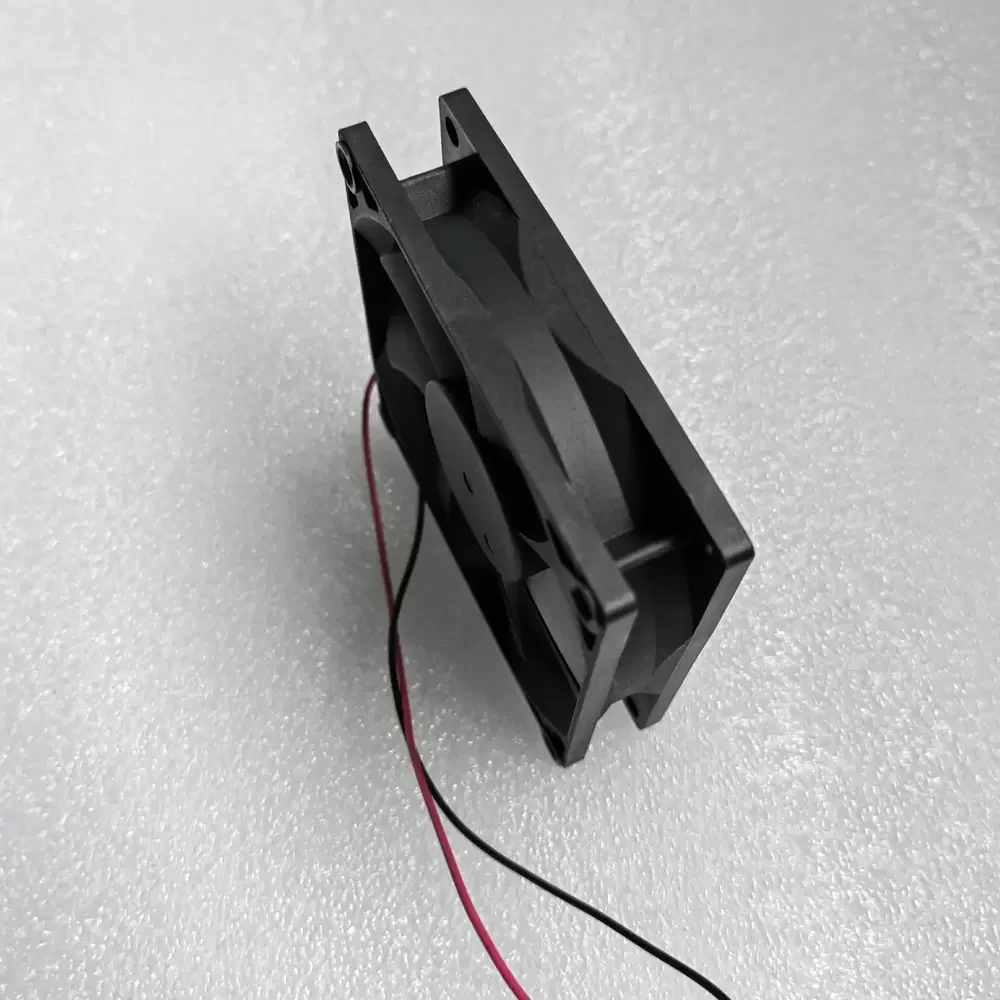

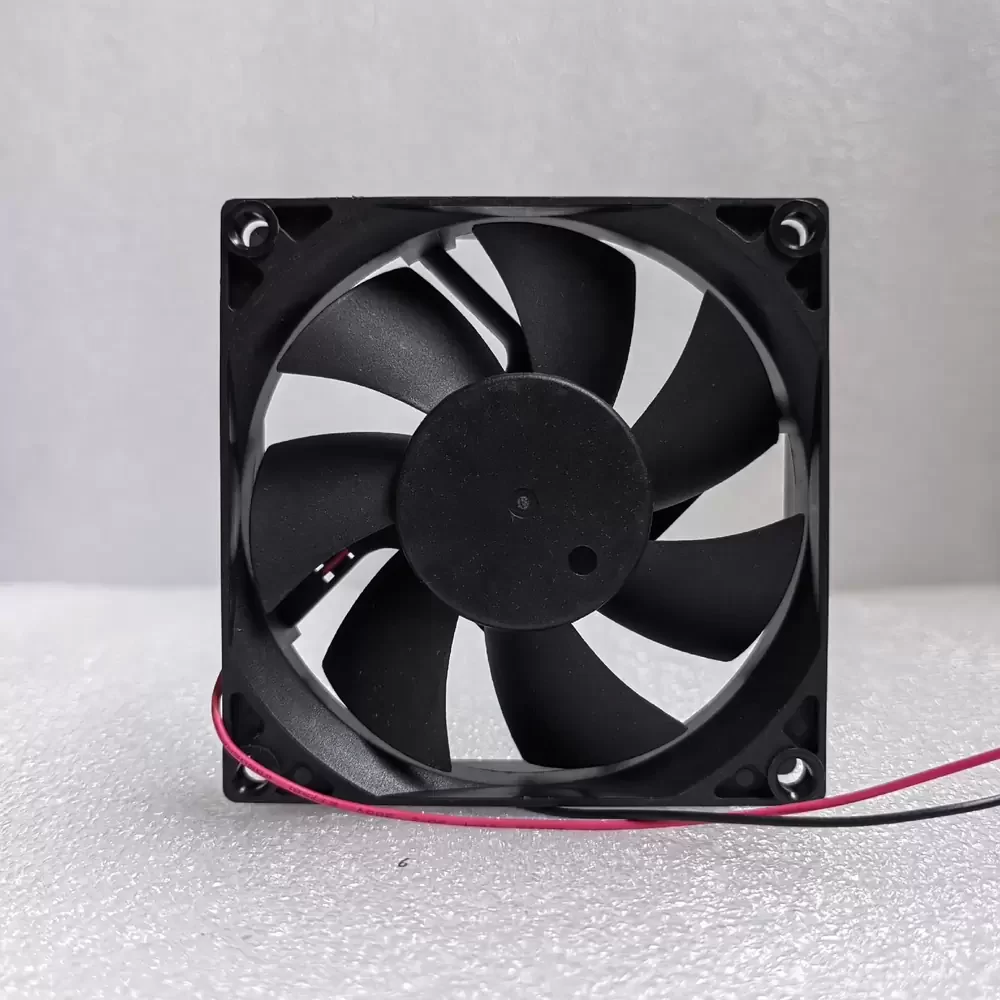

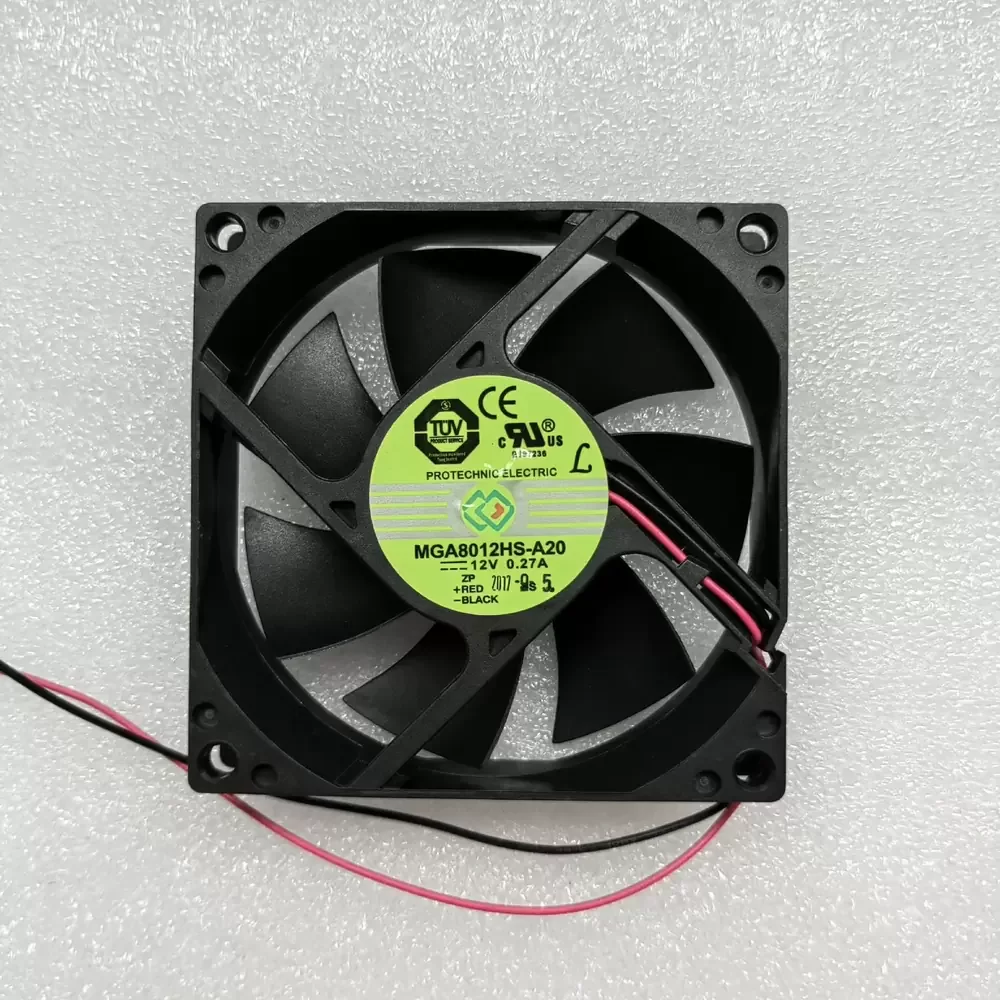

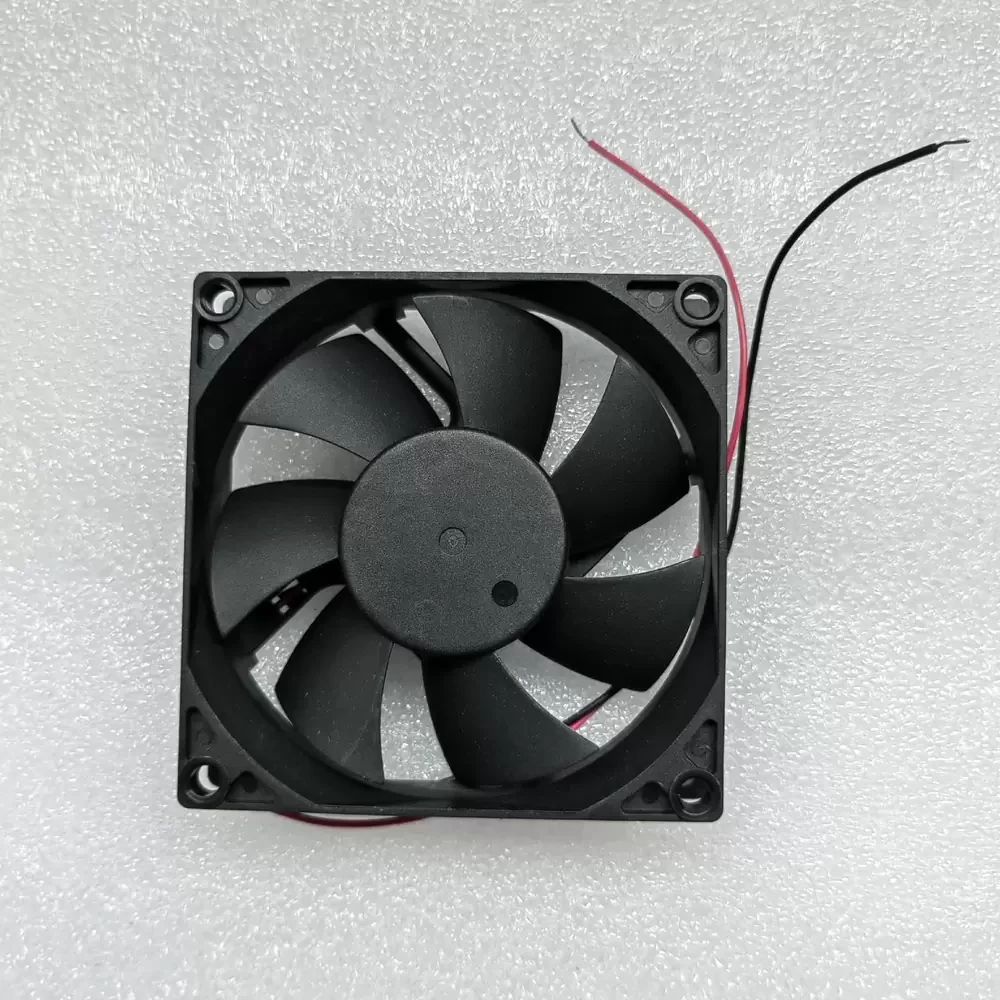

MGA8012HS-A20 MAGIC 12V 0.27A High Speed DC Axial Cooling Fan

Description

The MAGIC MGA8012HS-A20 is a high-performance DC axial fan engineered for precision thermal management in compact industrial environments. Designed with a slim 20mm profile and a high-speed motor, this unit delivers a superior balance of airflow and static pressure, making it an optimal choice for densely packed electronic enclosures and power conversion systems.

Manufacturer: MAGIC (Protechnic Electric)
Model Number: MGA8012HS-A20
Product Type: DC Axial Cooling Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.27A
Input Power: 3.24W
Nominal Speed: 3800 RPM
Max. Air Flow: 41.50 CFM (70.51 m³/h / 1.17 m³/min)
Max. Static Pressure: 4.80 mmH₂O (47.07 Pa / 0.19 inH₂O)
Bearing System: Sleeve Bearing
Noise Level: 36.0 dBA
Dimensions: 80 x 80 x 20 mm
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 2-Wire Lead
Weight: 75g
Operating Temperature: -10°C to +70°C

This high-efficiency cooling fan is primarily deployed in critical power electronics applications where space is limited but heat dissipation demands are high. The MGA8012HS-A20 is specifically recommended for variable frequency drives (VFDs), industrial inverters, and switch-mode power supplies. Its streamlined aerodynamic blade design ensures consistent air intake and exhaust, effectively lowering the operating temperature of internal semiconductor components in server racks and automation control panels to prevent thermal degradation.
