Description

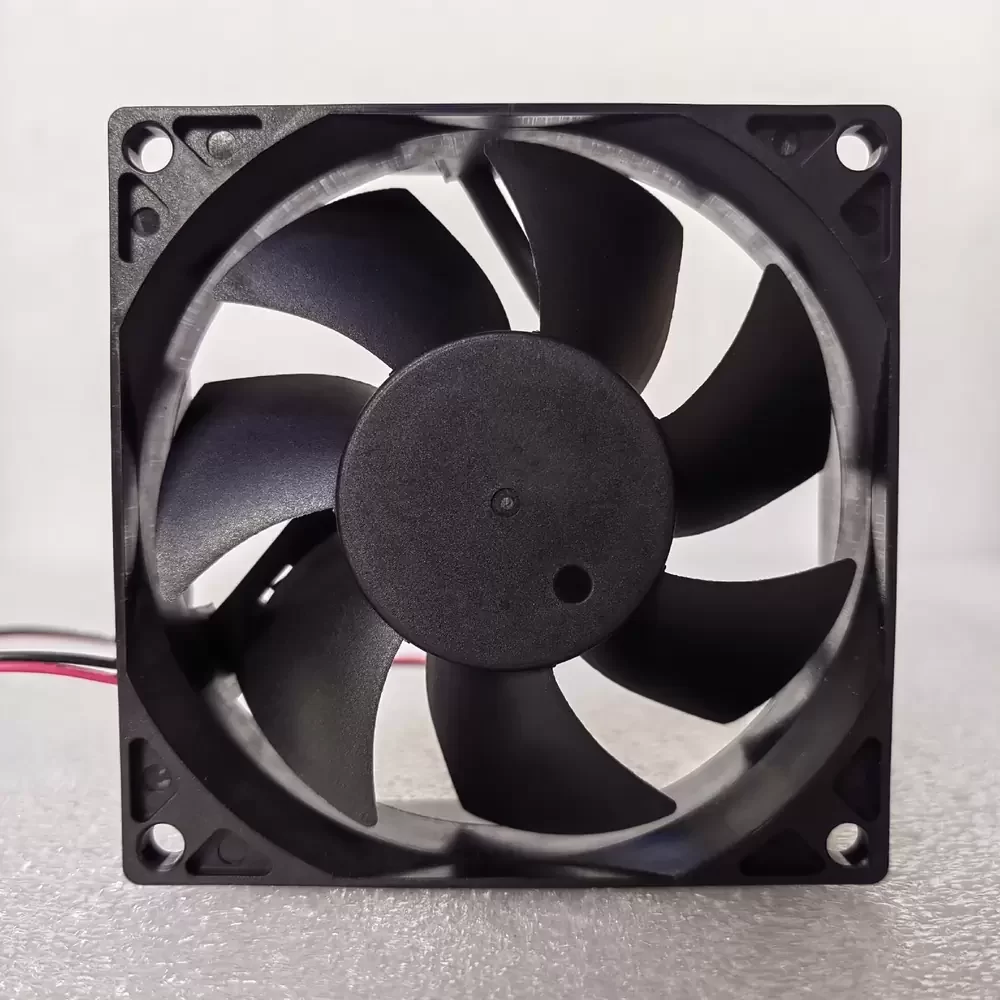

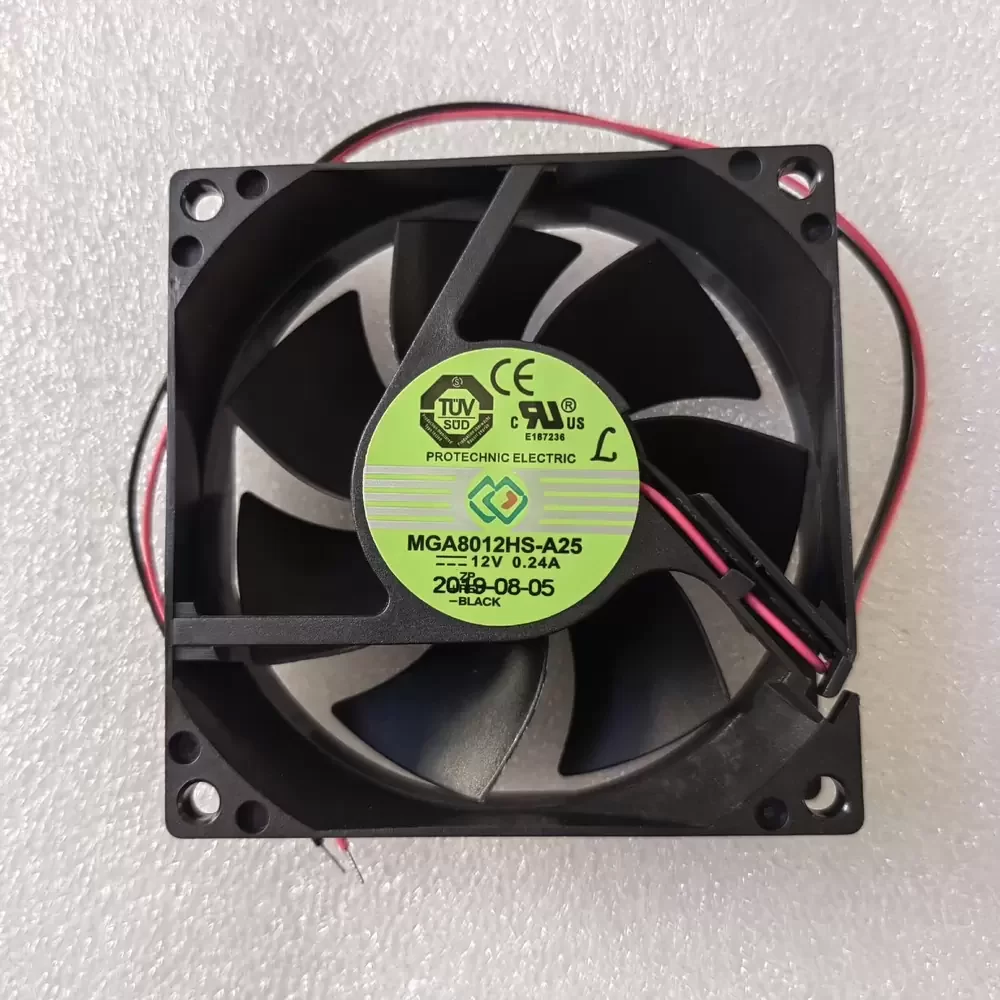

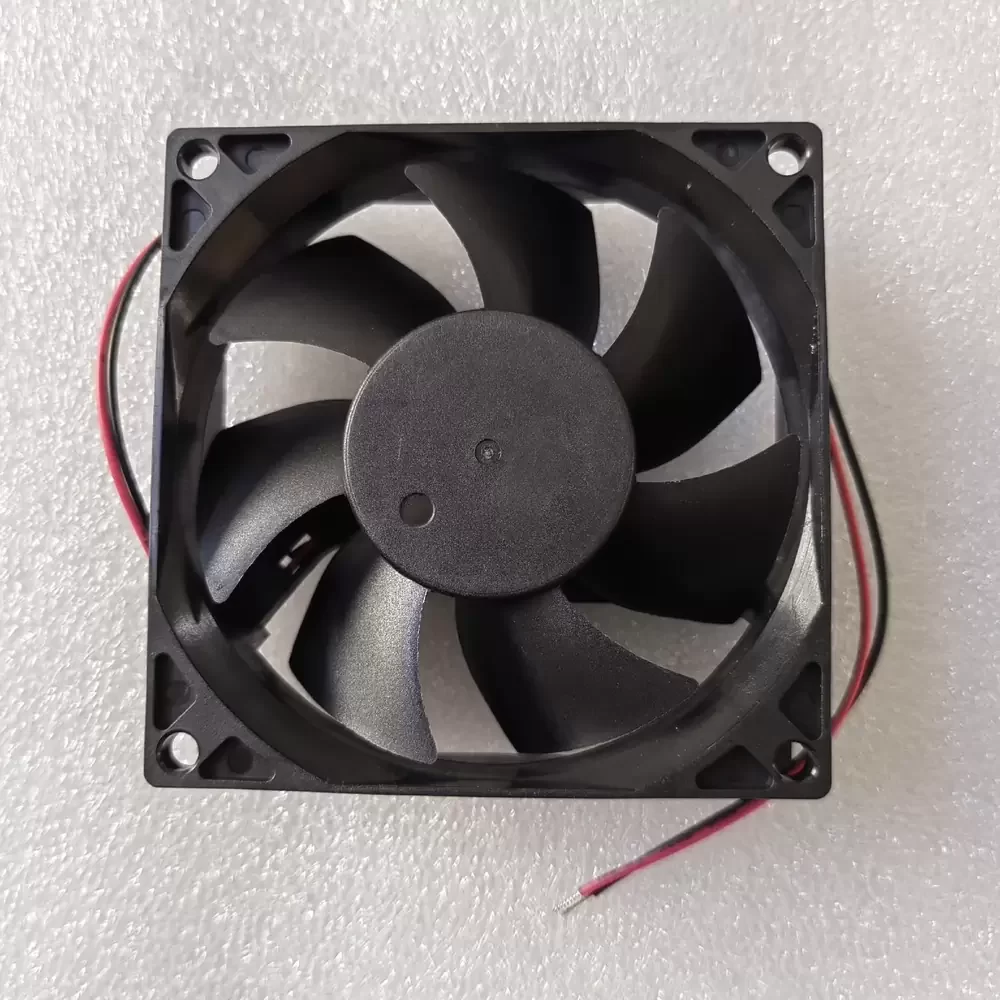

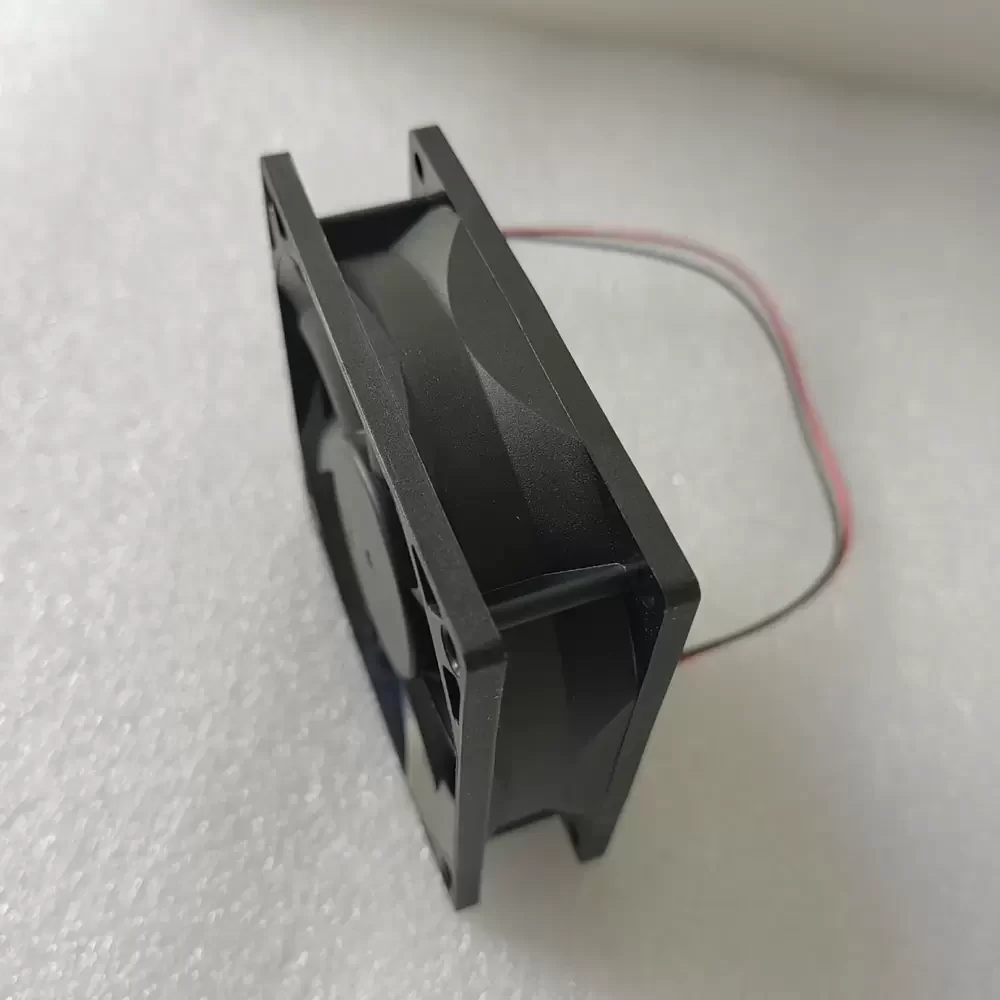

The MAGIC (Protechnic Electric) MGA8012HS-A25 is a high-performance DC axial fan designed for critical thermal management in consumer electronics and industrial appliances. Featuring a standard 80mm frame and a durable sleeve bearing system, this model delivers a robust balance of airflow and static pressure. Engineered for continuous operation, it runs on a nominal 12V DC supply with a current draw of 0.24A, making it an energy-efficient solution for heat-sensitive equipment.
Manufacturer: MAGIC (Protechnic Electric)
Model Number: MGA8012HS-A25
Product Type: DC Axial Fan
Rated Voltage: 12V DC
Operating Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.24 A
Input Power: 2.88 W
Nominal Speed: 3200 RPM
Max. Air Flow: 40.15 CFM (68.21 m³/h / 1.14 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.36 Pa / 0.15 inH₂O)
Bearing Type: Sleeve Bearing
Noise Level: 34.0 dB(A)
Dimensions: 80 x 80 x 25 mm
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Leads
Weight: 86 g
Operating Temperature: -10°C to +70°C
Life Expectancy: 30,000 Hours at 40°C
The MGA8012HS-A25 is specifically optimized for applications requiring consistent air exchange in confined spaces. It is extensively used in clothes dryers to facilitate moisture removal and maintain safe operating temperatures for internal motors and heating elements. Furthermore, this model is a standard component in multimedia projectors, where it effectively dissipates the intense heat generated by projection lamps and optical engines, preventing thermal throttling and ensuring uninterrupted visual performance.
