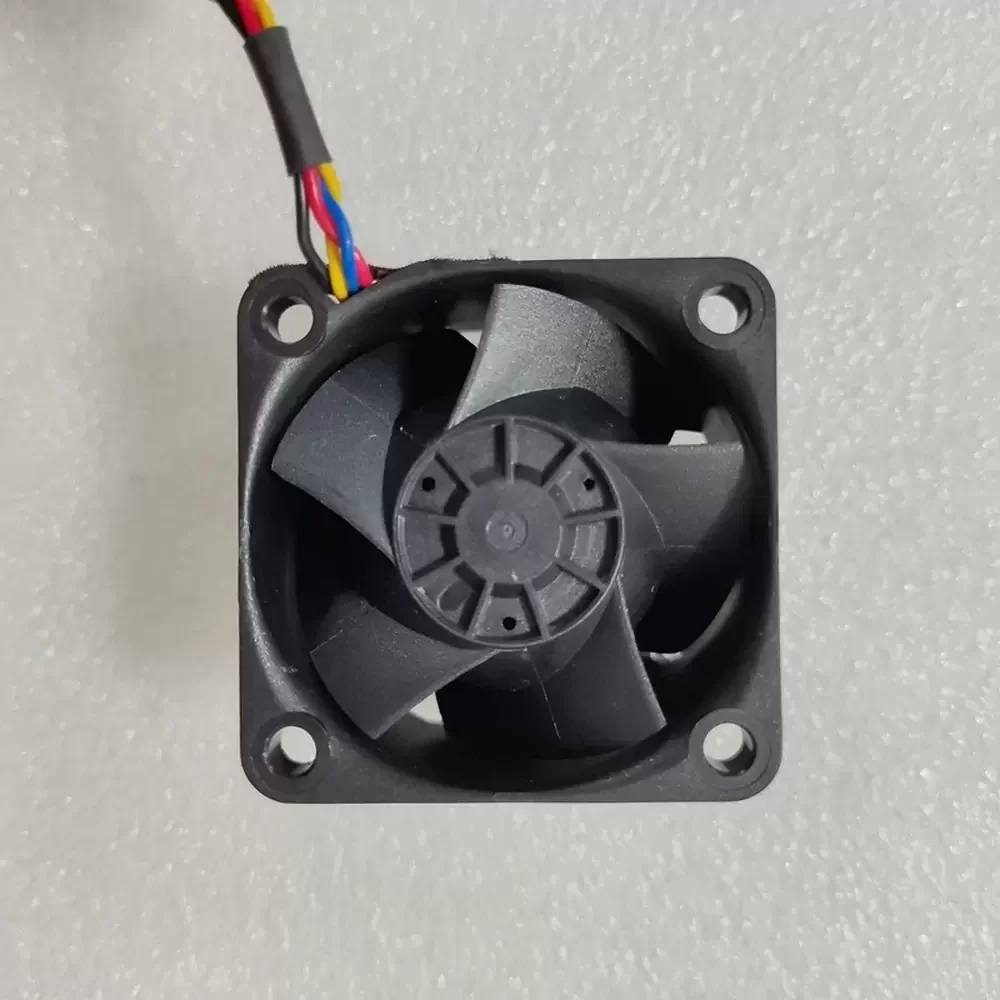

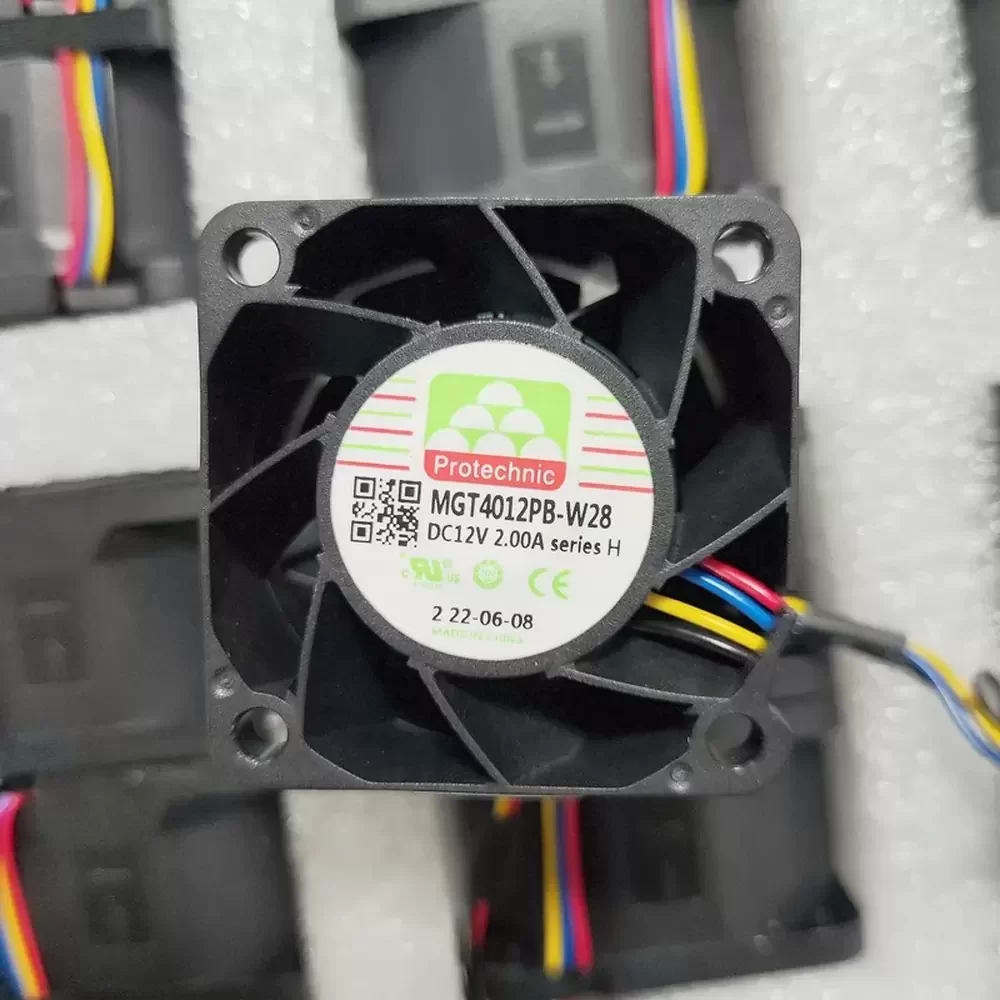

MGT4012PB-W28H Protechnic 12VDC 2.00A 40x40x28mm Cooling Fan

Description

Protechnic MGT4012PB-W28H is a 40 x 40 x 28 mm high-performance axial fan operating at 12 VDC with a 2.00 A rated current. The unit features a dual ball bearing assembly and a 4-wire interface providing PWM speed control and tachometer signal output. The frame and impeller are manufactured from UL 94V-0 rated PBT thermoplastic, housing a high-torque motor designed for maximum static pressure and airflow efficiency.

MGT4012PB-W28H Specifications
Model: MGT4012PB-W28H
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 2.00 A
Rated Power: 24.0 W
Rated Speed: 25,000 RPM
Bearing Type: Dual Ball Bearing

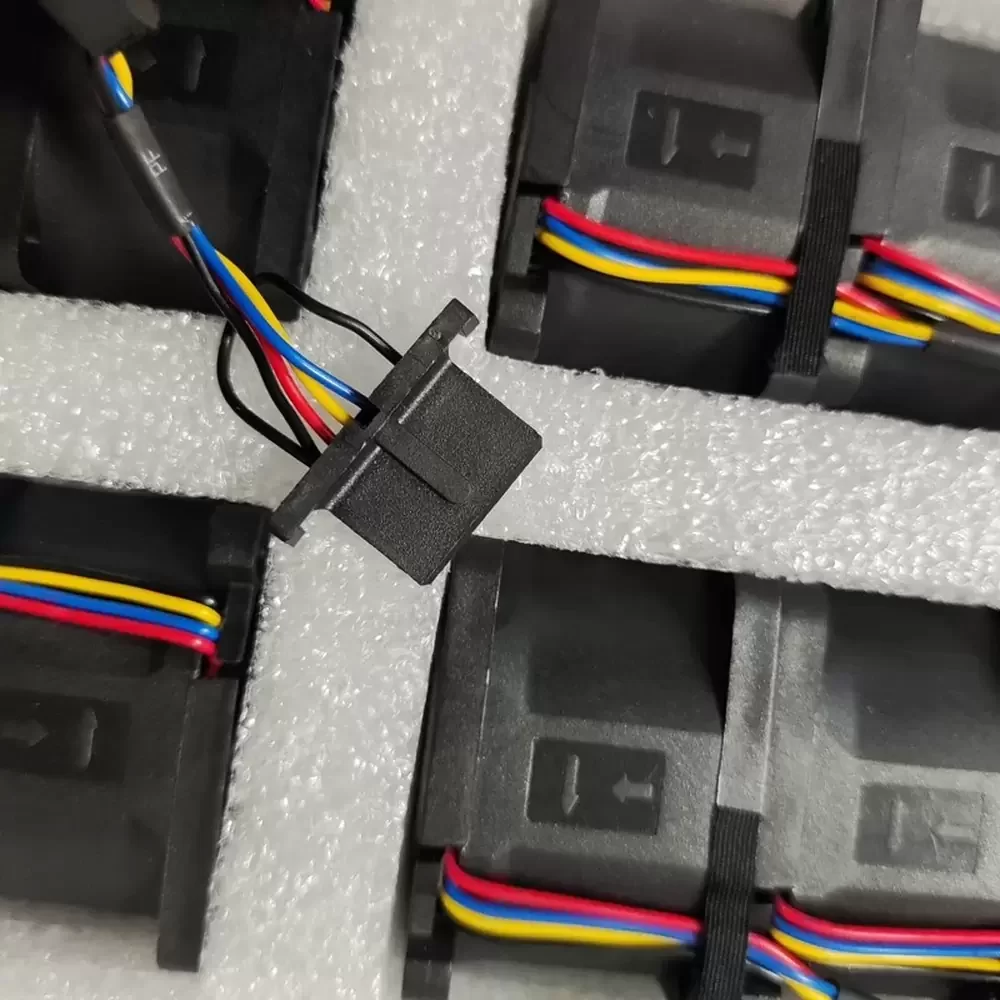

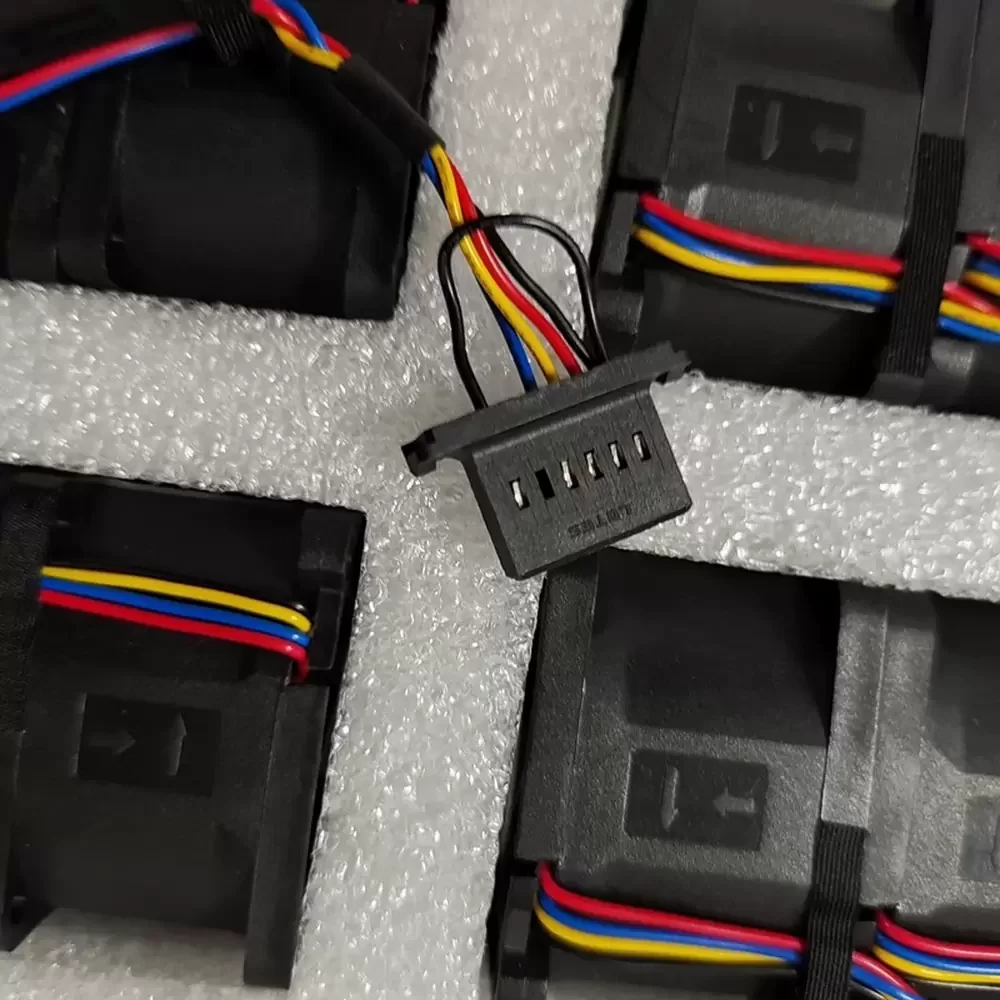

Interface: 4-wire (Red: +, Black: -, Yellow: Tach, Blue: PWM)
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 52 g

MGT4012PB-W28H Applications
Primary applications include integration into 1U/2U rackmount server enclosures, high-density network switches, and industrial power conversion systems. Deployed within CNC control modules and telecommunications base station cooling systems requiring high-pressure thermal management.
