Description
The Magic MGT4012YB-W28 is a high-density DC Axial Fan engineered for critical thermal management in compact electronic enclosures. Featuring a robust Double Ball Bearing architecture, this unit is designed to withstand continuous operation while minimizing frictional wear and thermal impedance. The 40x40x28mm frame houses a high-torque DC brushless motor capable of delivering significant static pressure, making it ideal for overcoming system resistance in tightly packed components. Its 4-wire configuration enables precise Pulse Width Modulation (PWM) speed control, allowing for dynamic adjustment of airflow to balance cooling efficiency with acoustic performance, ensuring structural rigidity and operational reliability in demanding industrial environments.

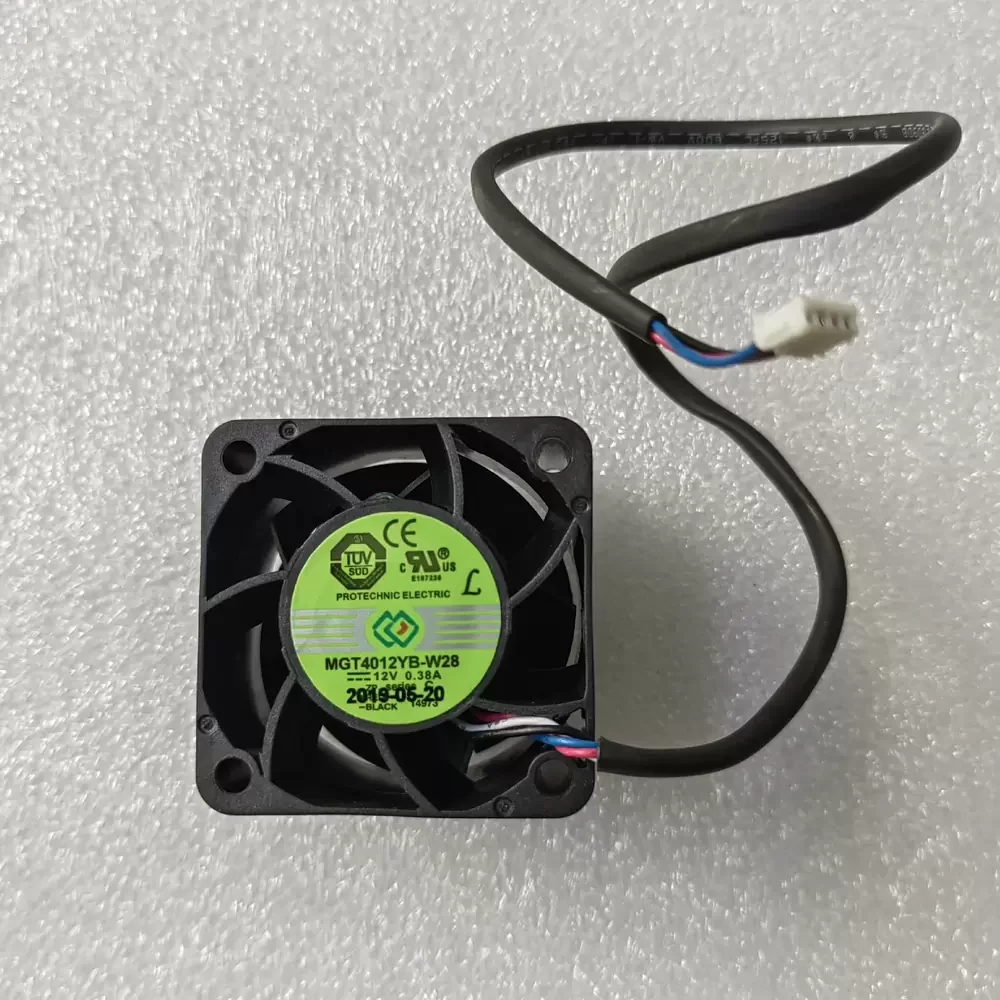

Model Number: MGT4012YB-W28
Brand: Magic Technology (Protechnic)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.38 A
Power: 4.56 W
Rated Speed: 13000 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 24.5 CFM (41.6 m³/h / 0.69 m³/min)
Max. Static Pressure: 22.5 mmH₂O (220 Pa / 0.88 inH₂O)

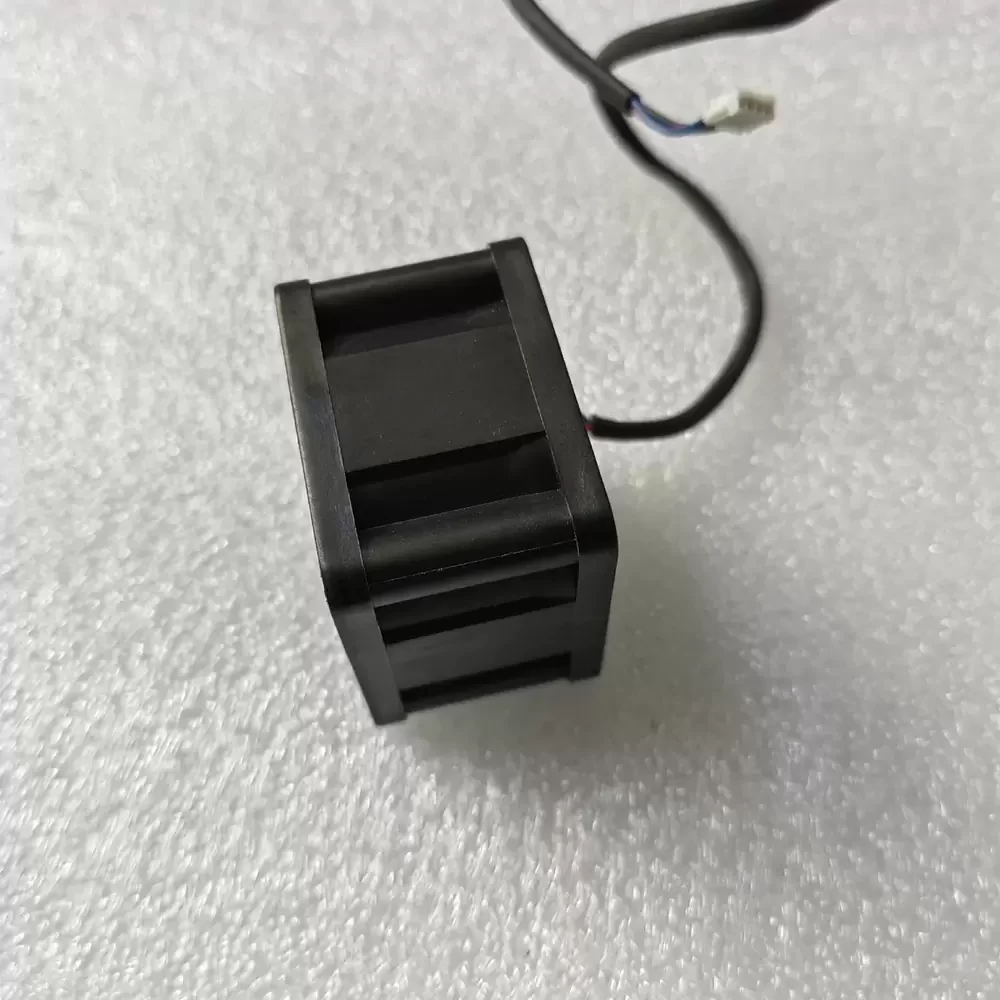

Dimensions: 40 x 40 x 28 mm
Weight: 48 g
Life Expectancy: 70,000 Hours @ 40°C
Termination: 4-Wire Lead with 4-Pin Connector
Speed Control: PWM (Pulse Width Modulation)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
The MGT4012YB-W28 is specifically optimized for high-heat dissipation scenarios such as power amplifiers and 1U server chassis where space is at a premium. Its high static pressure capabilities allow the MGT4012YB-W28 to effectively force air through dense heatsinks and restricted ventilation paths found in network switches and industrial automation equipment. This model is also suitable for precision medical devices and telecommunications gear requiring consistent, high-velocity airflow to maintain component stability.
