Description

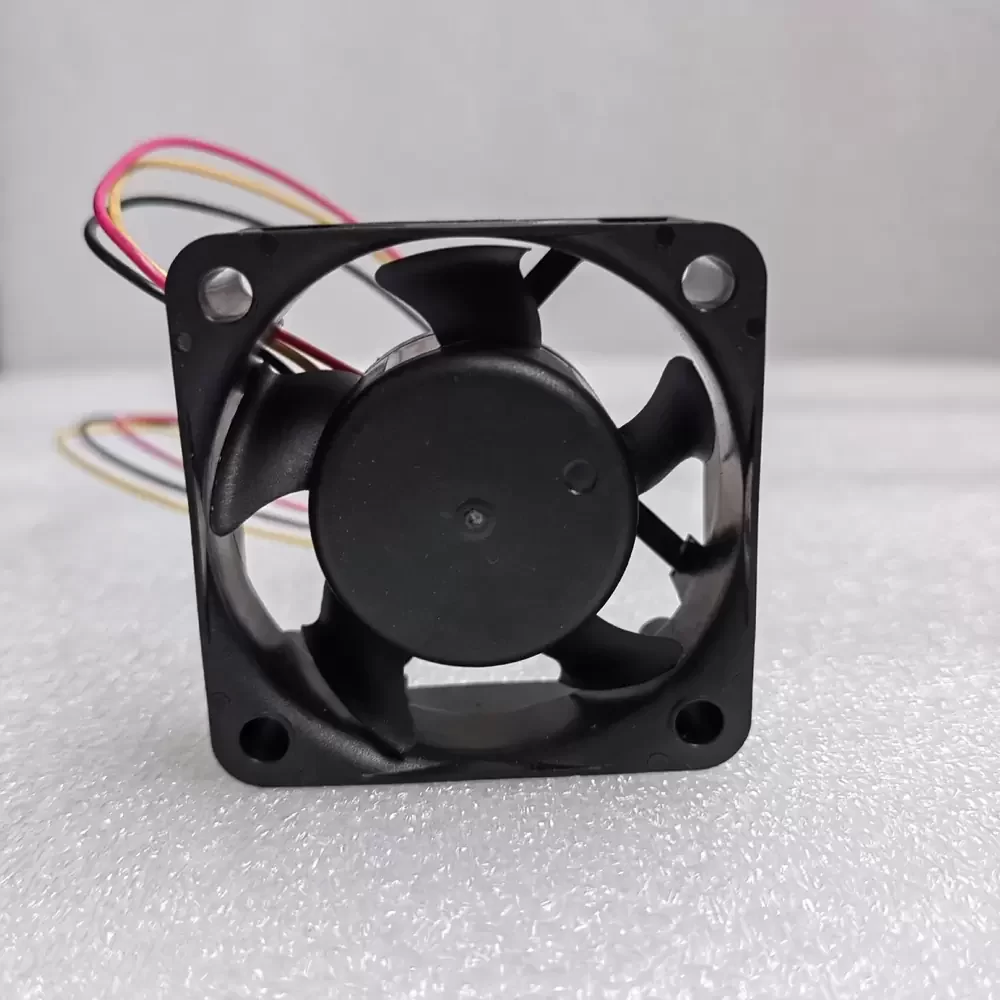

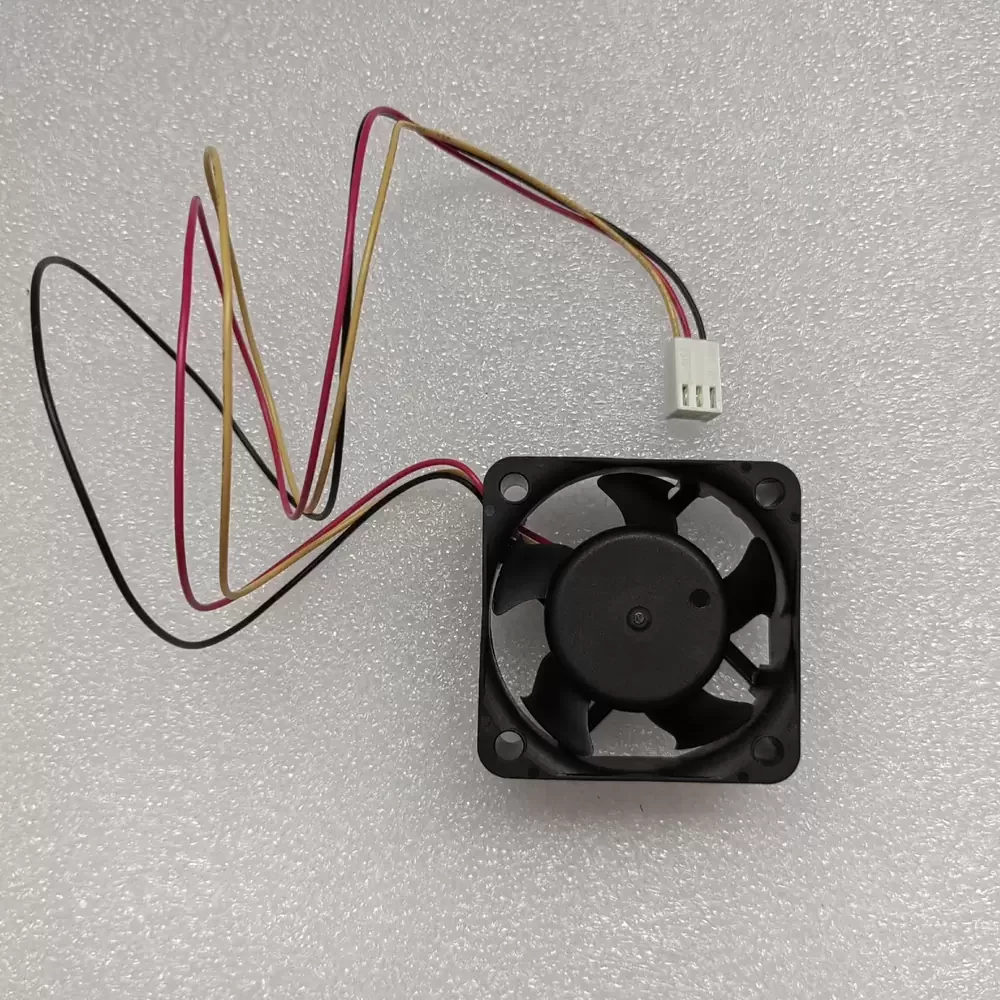

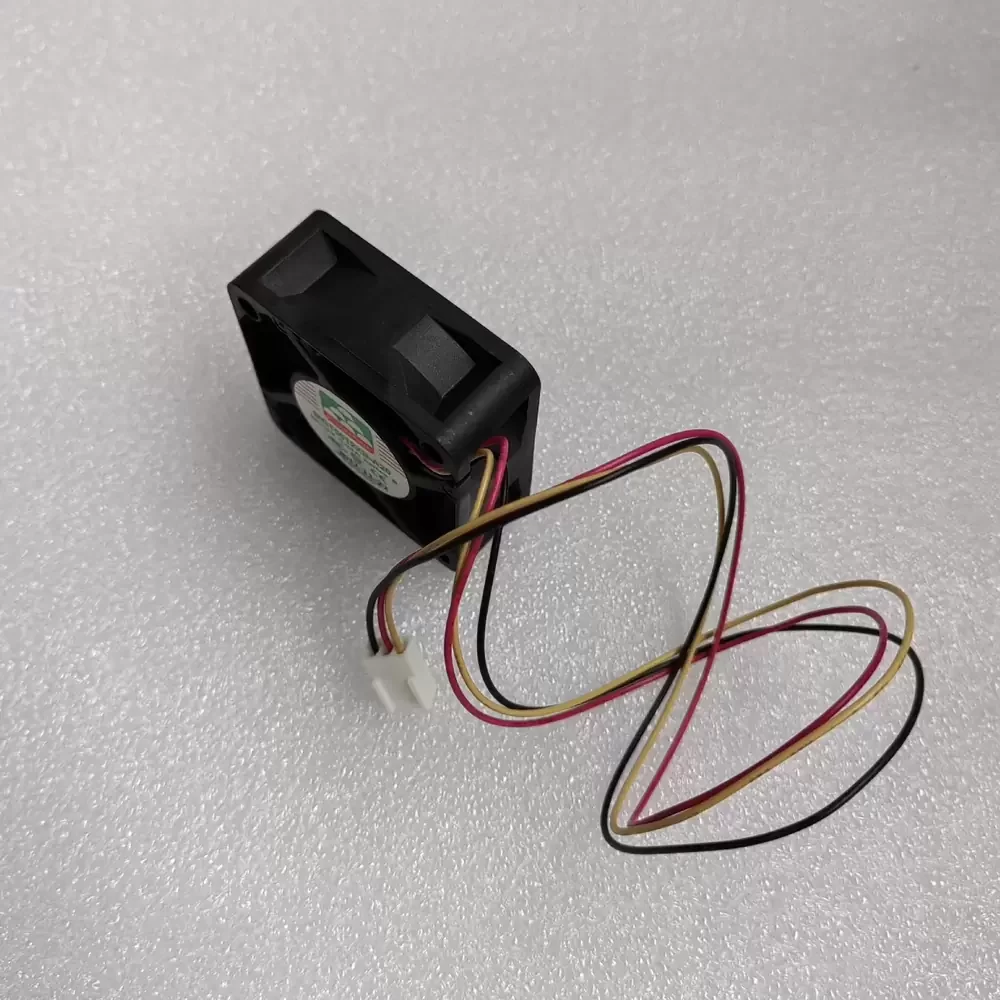

The Magic MGT5012XB-A20 is a DC Axial Fan engineered for critical thermal management in high-density electronic enclosures. Utilizing advanced brushless DC motor technology paired with a precision-machined Dual Ball Bearing architecture, this unit delivers exceptional rotational stability and reduced friction coefficients, significantly extending operational service life. The aerodynamic impeller design is optimized to minimize turbulence while maximizing static pressure capabilities, ensuring efficient heat dissipation through dense fin stacks. Constructed with high-rigidity PBT thermoplastic, the frame offers superior structural integrity and vibration damping, making it an ideal solution for industrial environments requiring low thermal impedance and continuous duty reliability.

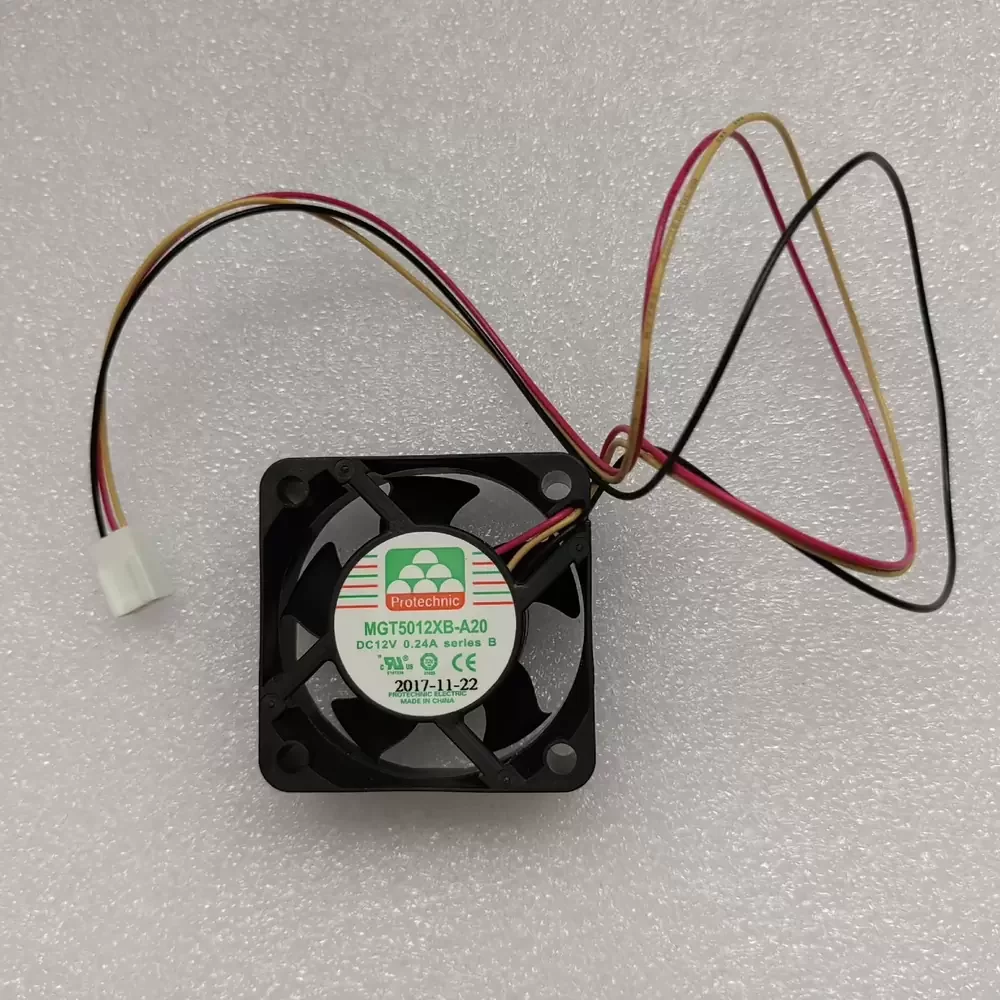

Model Number: MGT5012XB-A20
Brand: Magic (Protechnic Electric)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.24 A
Power Consumption: 2.88 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 12.5 CFM (21.24 m³/h / 0.35 m³/min)
Max. Static Pressure: 3.50 mmH₂O (34.32 Pa / 0.14 inH₂O)
Dimensions: 50x50x12mm
Weight: 25 g
Noise Level: 34.0 dBA
Life Expectancy: 70,000 Hours @ 40°C
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 2-Wire Lead
Ingress Protection: IP40
Safety Certifications: CE, UL, TUV
The MGT5012XB-A20 is specifically designed for integration into compact chassis and server cabinets where space is at a premium but airflow cannot be compromised. Its robust thermal profile makes it suitable for network switches, industrial automation controllers, and medical instrumentation cooling. Engineers frequently specify the MGT5012XB-A20 for telecommunications equipment and power supply units, relying on its high static pressure to overcome the resistance of dust filters and tightly packed components.
