Description

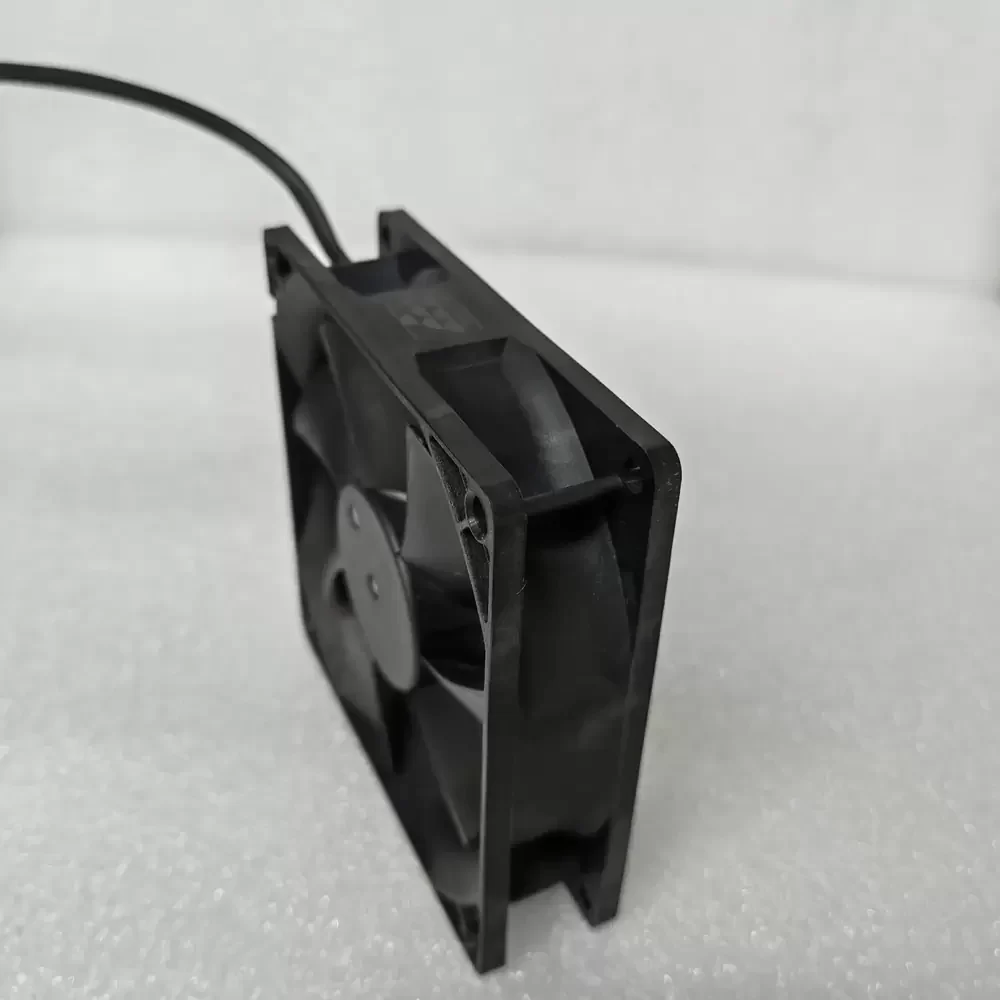

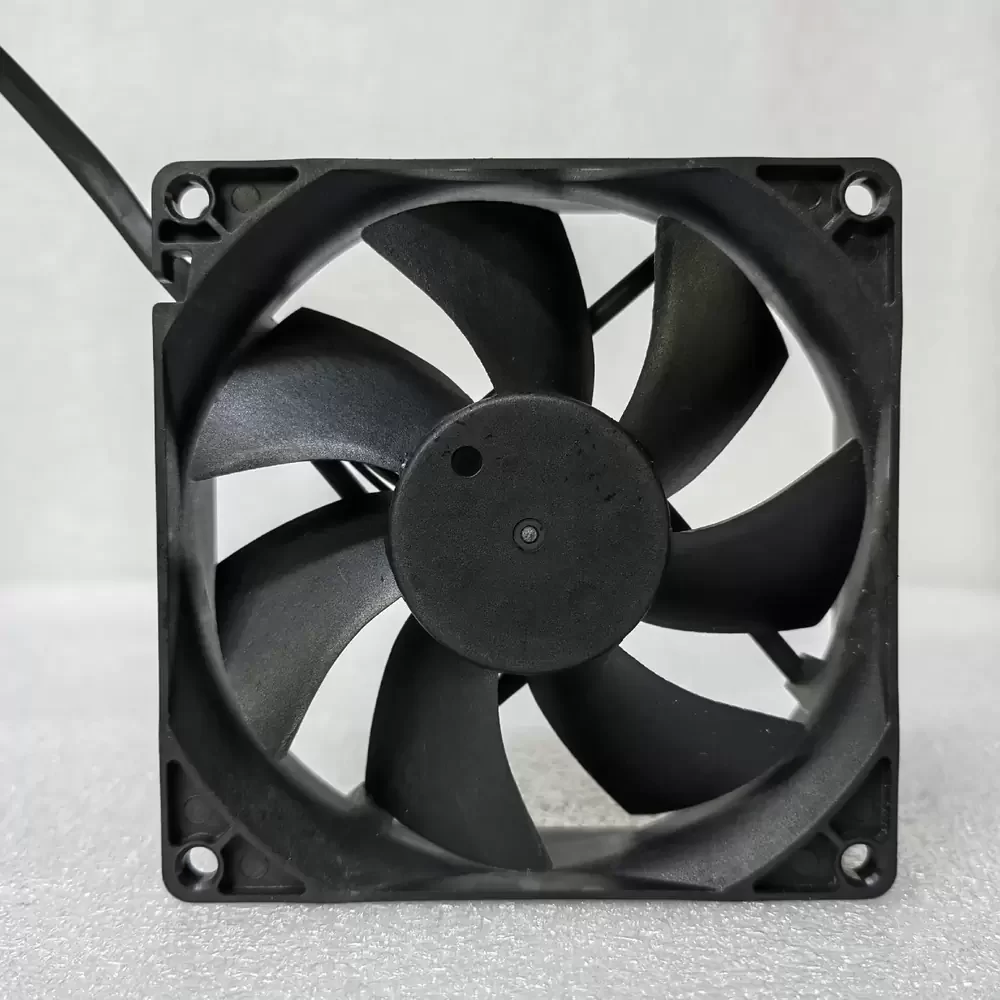

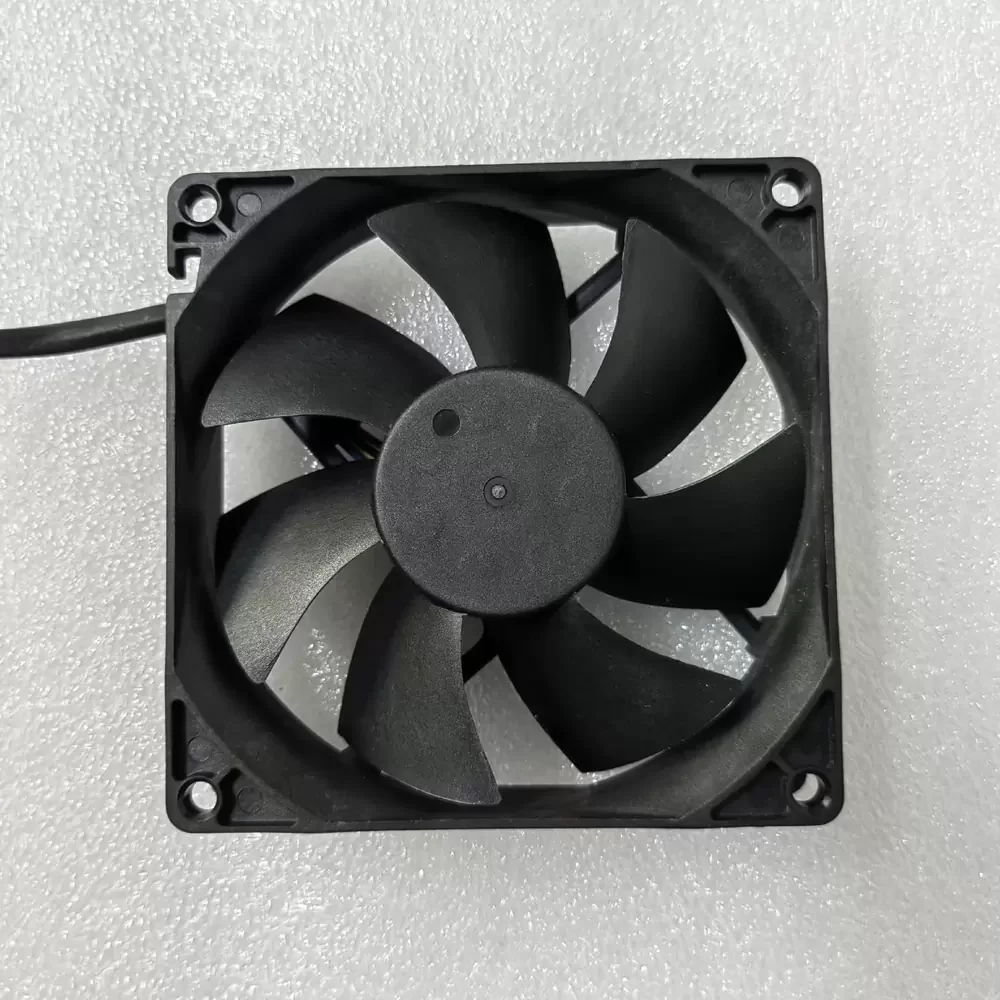

The Magic MGT9212UR-W25 is a precision-engineered Axial Fan designed to mitigate thermal impedance in high-density electronic enclosures. Featuring a robust DC motor architecture, this unit ensures optimal airflow efficiency while maintaining structural rigidity under continuous operation. The aerodynamic blade geometry is calibrated to maximize static pressure delivery, making it suitable for demanding industrial chassis environments. By leveraging advanced bearing technology, the MGT9212UR-W25 achieves a balance between operational longevity and acoustic performance, critical for stabilizing sensitive server racks and automation cabinets against heat-induced degradation.

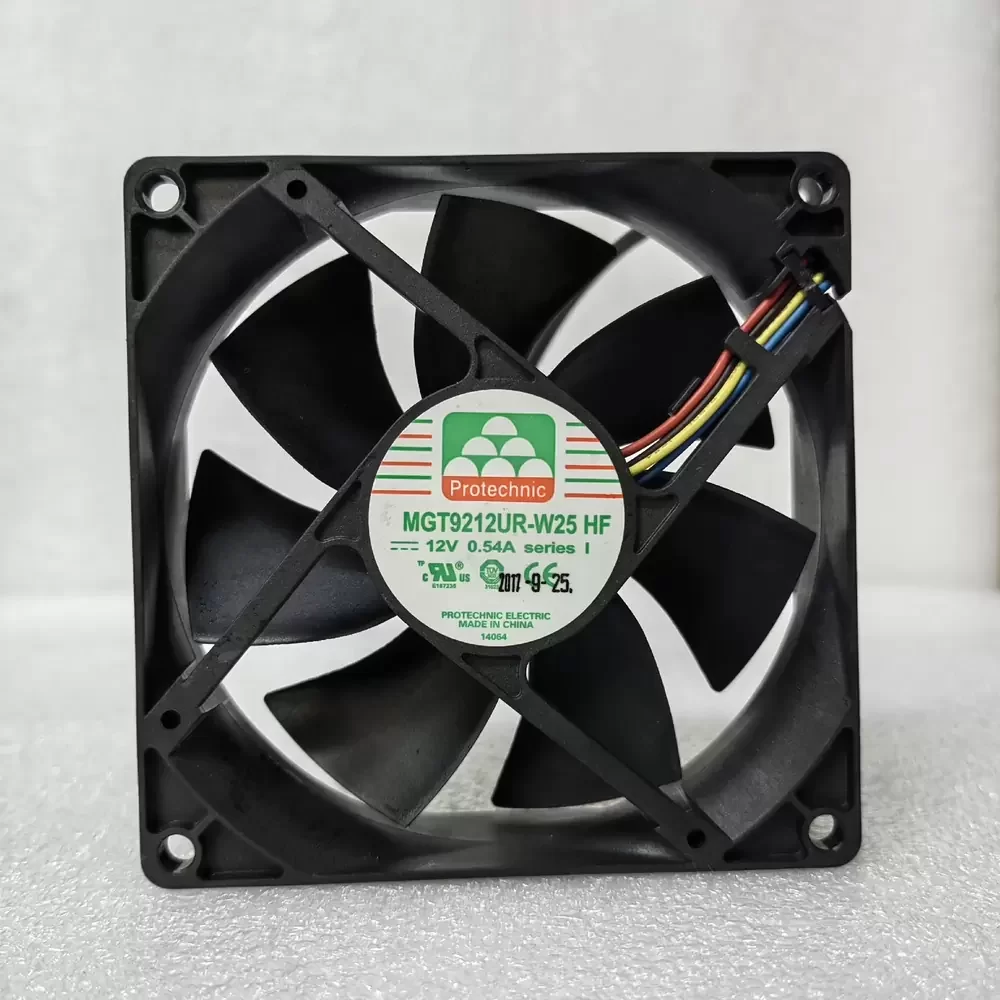

Model Number: MGT9212UR-W25
Brand: Magic (Magic Precision Inc.)
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.54 A
Power: 6.48 W
Rated Speed: 3800 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 72.5 CFM (123.1 m³/h / 2.05 m³/min)
Max. Static Pressure: 7.2 mmH₂O (70.6 Pa / 0.28 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 43.5 dB(A)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP20
Insulation Class: Class A
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 2 Lead Wires (Red+, Black-)
Mounting Orientation: Any
Certifications: CE, UL, TUV
Protection: Locked Rotor Protection, Reverse Polarity Protection
The MGT9212UR-W25 is engineered for deployment in mission-critical thermal management systems, specifically within industrial server racks and telecommunication chassis. Its high-static pressure profile makes it ideal for forced convection in CNC control units and power supply banks where component density restricts natural airflow. Integrators frequently select the MGT9212UR-W25 for automation cabinets and medical instrumentation, relying on its consistent thermal throughput to prevent system failure in continuous-duty cycles.
