Description

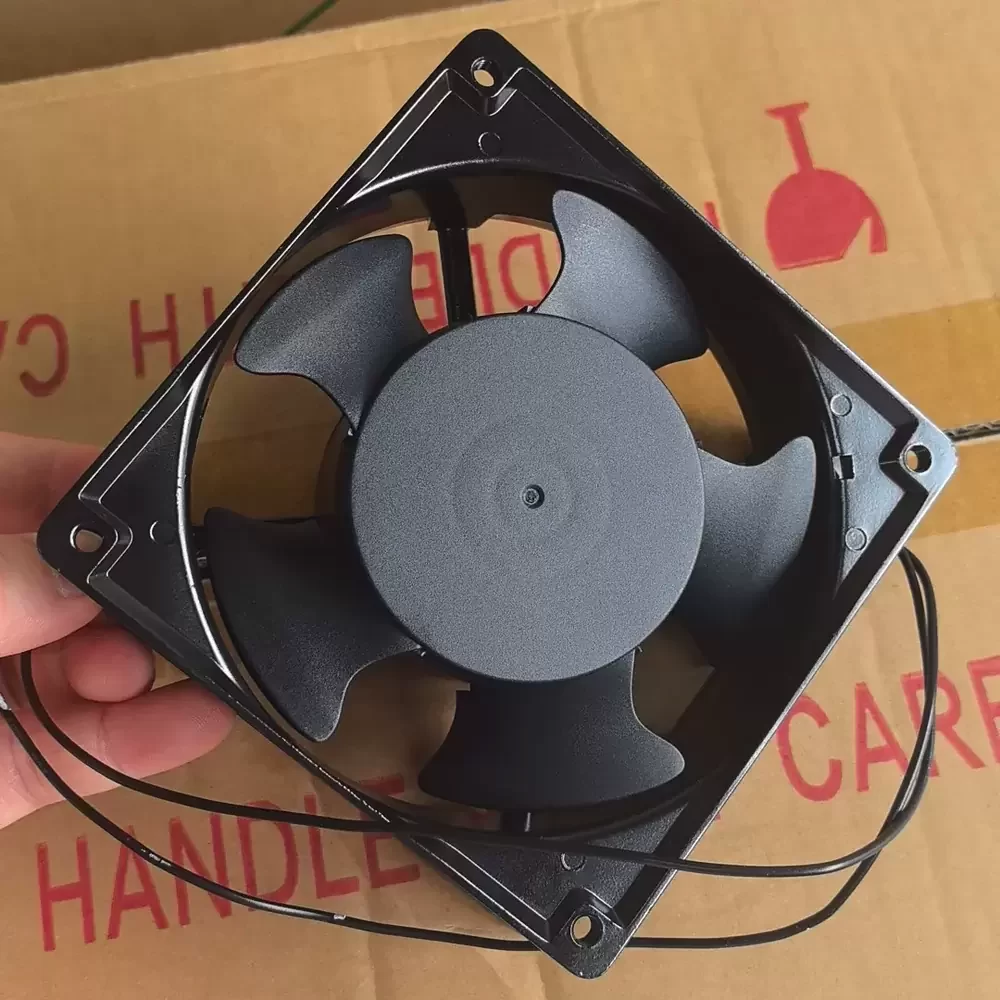

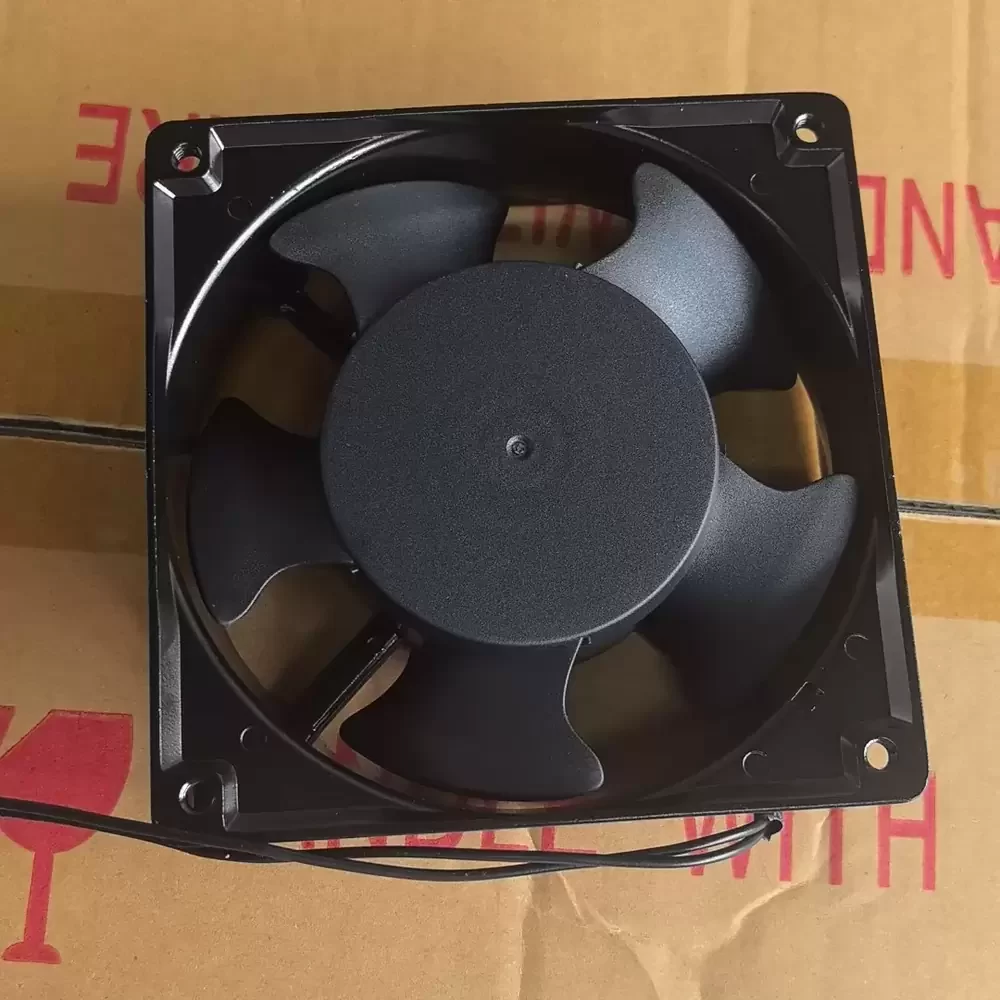

The Minquan MQ12038HBL2 is a robust AC axial fan engineered for demanding industrial thermal management. Utilizing a durable ball bearing architecture, this unit ensures prolonged operational stability under continuous loads. The aerodynamic profile features a die-cast aluminum frame providing superior structural rigidity and thermal dissipation, paired with precision-molded thermoplastic impellers to optimize airflow dynamics. Designed for high-impedance environments, the motor assembly minimizes thermal impedance while maintaining consistent rotational velocity, making it an ideal solution for critical electronic enclosure ventilation and machinery cooling applications requiring reliable heat extraction.
Model Number: MQ12038HBL2
Brand: Minquan
Product Type: AC Axial Fan
Rated Voltage: 220 VAC
Frequency: 50/60 Hz
Rated Current: 0.14 A
Power Input: 30.8 W
Rated Speed: 2550 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h / 2.69 m³/min)
Max. Static Pressure: 0.32 inH₂O (8.13 mmH₂O / 79.7 Pa)
Dimensions: 120x120x38mm
Weight: 530 g
Frame Material: Aluminum Die-Cast
Blade Material: Thermoplastic PBT (UL94V-0)
Noise Level: 44 dBA
Life Expectancy: 50,000 Hours at 25°C
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires
Ingress Protection: IP20
Insulation Class: Class B
Mounting Orientation: Any
The MQ12038HBL2 is specifically calibrated for high-density industrial environments such as server racks, telecommunications cabinets, and automated manufacturing control panels. Its robust aluminum construction allows the MQ12038HBL2 to withstand the rigors of CNC machinery cooling and power supply ventilation, ensuring critical components remain within safe thermal operating limits during continuous duty cycles.
