Description

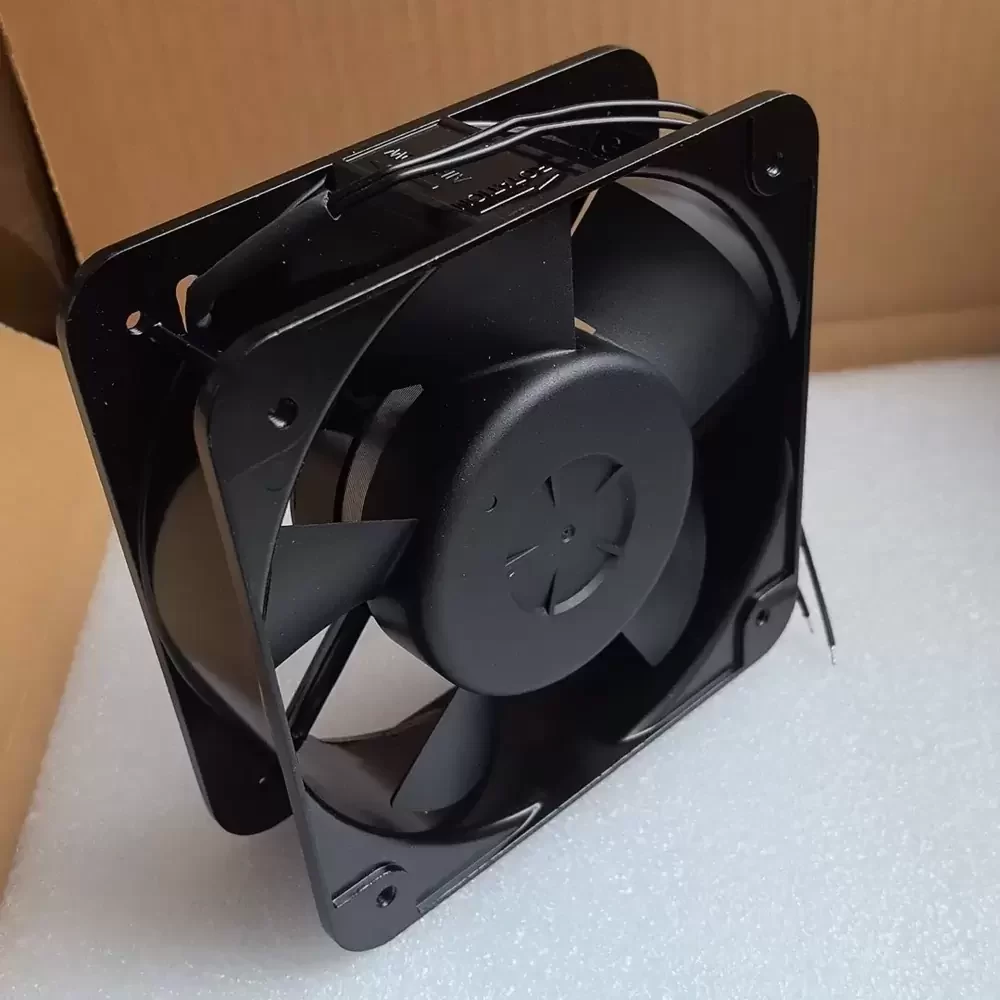

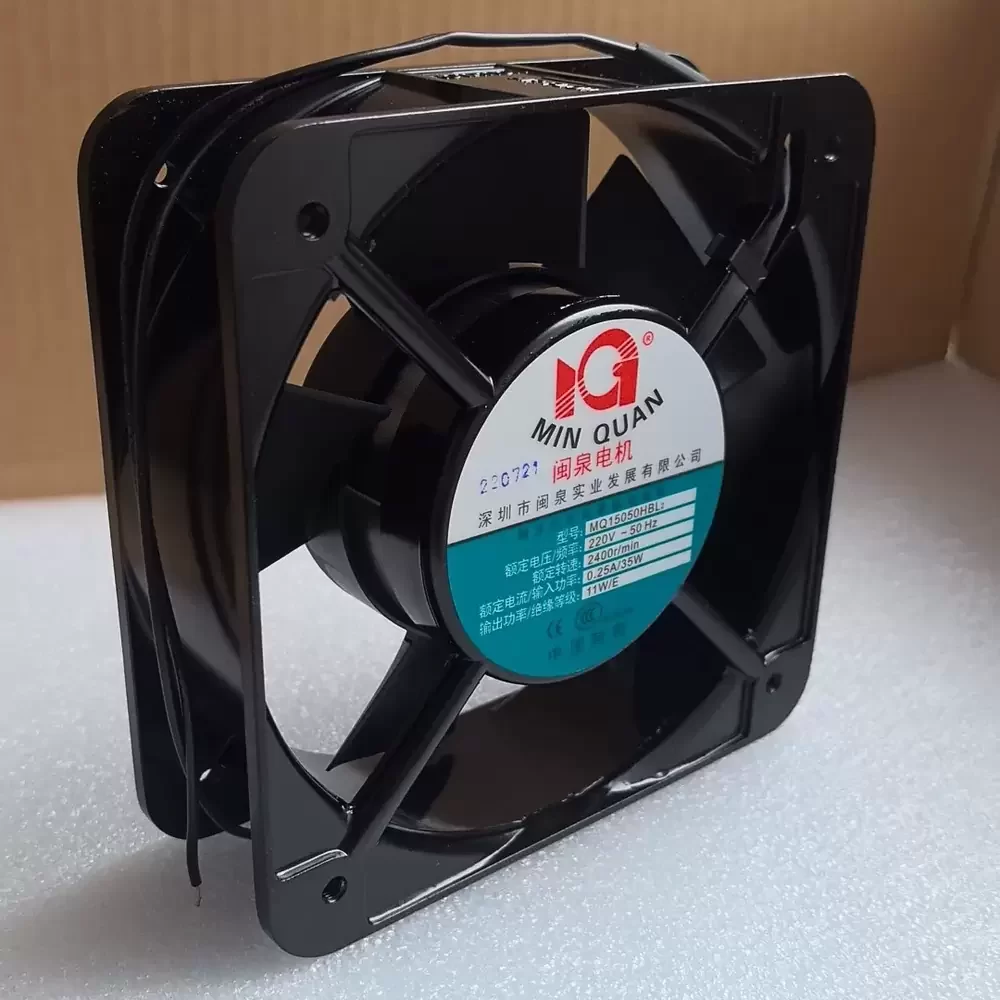

The Minquan MQ15050HBL2 is a heavy-duty AC Axial Fan engineered for critical thermal management in industrial environments. Featuring a precision-balanced induction motor assembly and a durable Ball Bearing architecture, this unit ensures consistent operational stability and minimized thermal impedance over extended duty cycles. The aerodynamic profile is housed within a rugged die-cast aluminum frame, providing exceptional structural rigidity and effective heat dissipation. Designed for 220VAC systems, it delivers high-volume airflow through specifically contoured thermoplastic blades, making it an ideal solution for overcoming high system resistance in densely populated electrical enclosures and machinery.
Model Number: MQ15050HBL2
Brand: Minquan Electric
Product Type: AC Axial Fan
Rated Voltage: 220/240 VAC
Frequency: 50/60 Hz
Rated Current: 0.25 A
Power: 35 W
Rated Speed: 2400 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 190.0 CFM (322.8 m³/h / 5.38 m³/min)
Max. Static Pressure: 14.2 mmH₂O (139.2 Pa / 0.56 inH₂O)
Dimensions: 150 x 150 x 50 mm
Weight: 0.82 kg
Housing Material: Die-Cast Aluminum
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: > 500MΩ
Dielectric Strength: 1500VAC for 1 Min
Life Expectancy: 50,000 Hours @ 40°C
Mounting Orientation: Any
Ingress Protection: IP20
Motor Type: Capacitor-Run Induction Motor
The MQ15050HBL2 is specifically calibrated for demanding industrial applications requiring reliable forced air cooling. Commonly deployed in server cabinet ventilation systems, CNC machinery control panels, and large-scale power supply units, the MQ15050HBL2 effectively mitigates heat buildup in enclosed spaces. Its robust construction makes it suitable for factory automation equipment, welding machines, and telecommunications infrastructure where continuous, high-volume airflow is paramount for component longevity and system reliability.
