Description

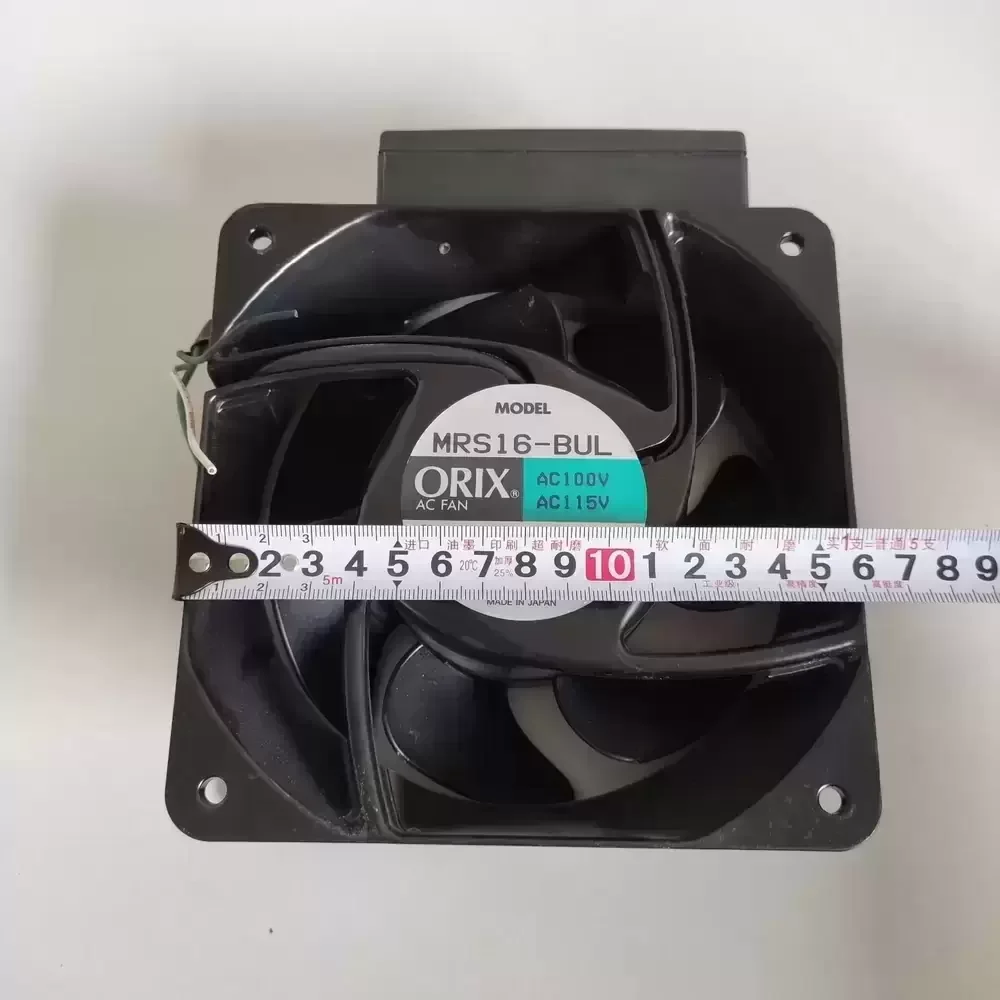

The ORIX MRS16-BUL is a robust AC Axial Fan engineered for high-demand industrial cooling applications requiring substantial volumetric airflow. Utilizing a precision-wound single-phase induction motor, this unit delivers exceptional thermal management capabilities through its optimized aerodynamic impeller design. The chassis is constructed from die-cast aluminum for maximum structural rigidity, ensuring stability under continuous operation while minimizing vibration-induced noise. Featuring high-grade ball bearings, the MRS16-BUL offers reduced friction and extended service life, effectively lowering the thermal impedance of enclosed electronic systems and power distribution units. Its design prioritizes reliability in fluctuating electrical environments typical of heavy automation sectors, incorporating integrated alarm circuitry for operational monitoring.
Model Number: MRS16-BUL
Brand: ORIX (Oriental Motor)
Product Type: AC Axial Fan
Rated Voltage: 100V / 115V AC
Frequency: 50 / 60 Hz
Voltage Range: 90V – 126V AC
Input Power: 43W / 40W
Rated Current: 0.55A / 0.48A
Rated Speed: 2800 / 3250 RPM
Bearing Type: High-Precision Ball Bearing
Max. Air Flow: 230 CFM (6.5 m³/min / 390 m³/h)
Max. Static Pressure: 17.0 mmH₂O (167 Pa / 0.67 inH₂O)
Dimensions: 160mm x 160mm x 62mm
Weight: 1.4 kg
Life Expectancy: 25,000 Hours (at 60°C)
Noise Level: 57 / 61 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Glass Fiber Reinforced)
Ingress Protection: IP20
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Termination: Lead Wires (3-Wire with Alarm)
Motor Protection: Thermal Impedance Protected
Feature: Low Speed Alarm Sensor
Dielectric Strength: 1500 VAC for 1 minute
Insulation Resistance: 100 MΩ min. at 500 VDC
Mounting Orientation: Vertical or Horizontal
Certifications: UL, CSA, EN/IEC
The MRS16-BUL is frequently deployed in large-scale industrial control cabinets and power supply units where heat dissipation is critical for component longevity. Its high airflow capacity makes the MRS16-BUL ideal for ventilating server racks, telecommunication enclosures, and heavy-duty CNC machinery control systems. Additionally, this model serves effectively in heat exchangers and refrigeration units requiring consistent AC-powered air movement with active failure monitoring.
