NPI45B30 581CC OVAL 8L/min 13.7MPa Rc3/8 Valve Position Indicator

Description

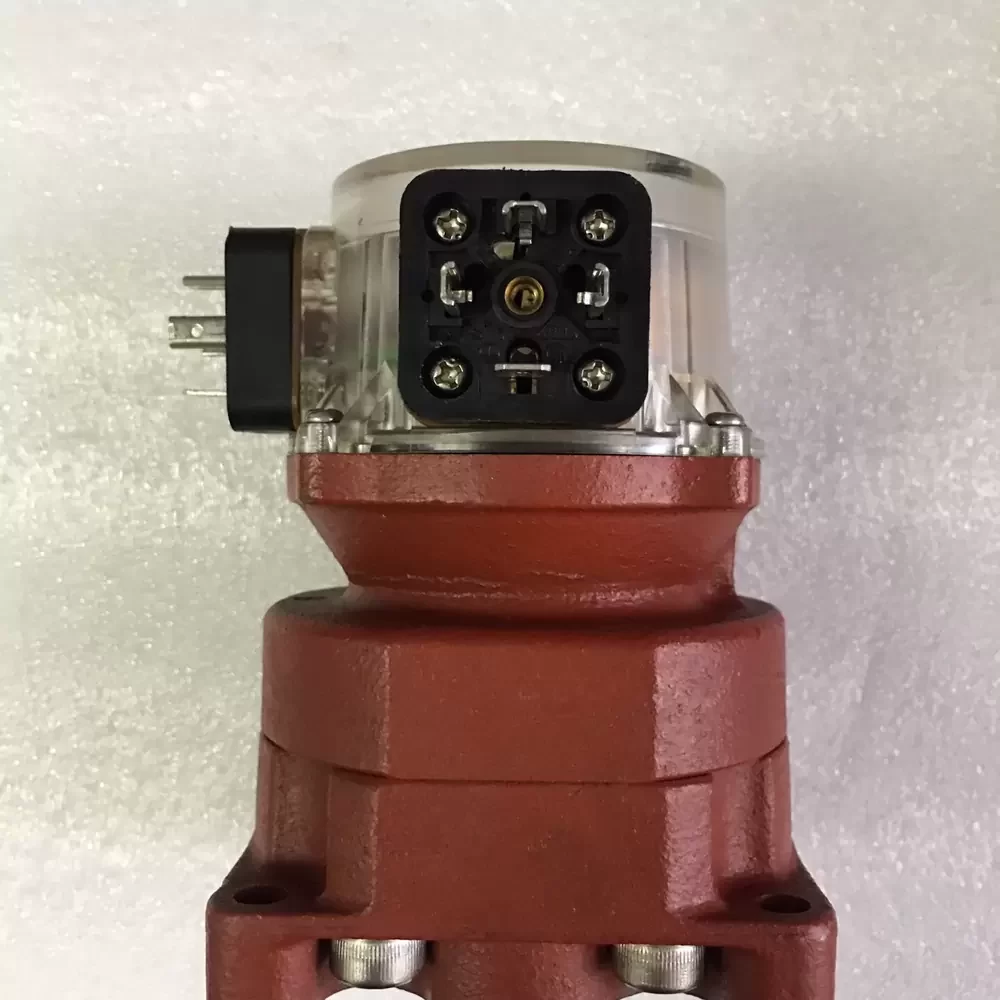

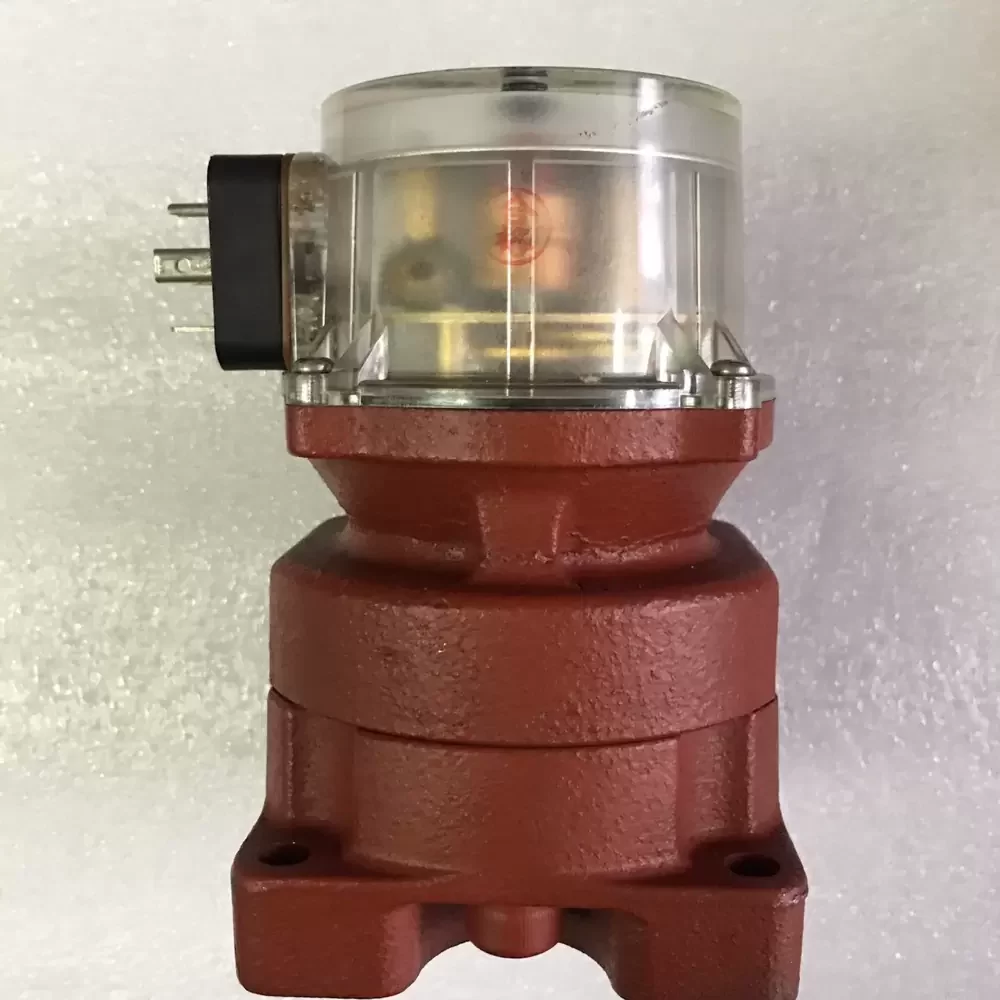

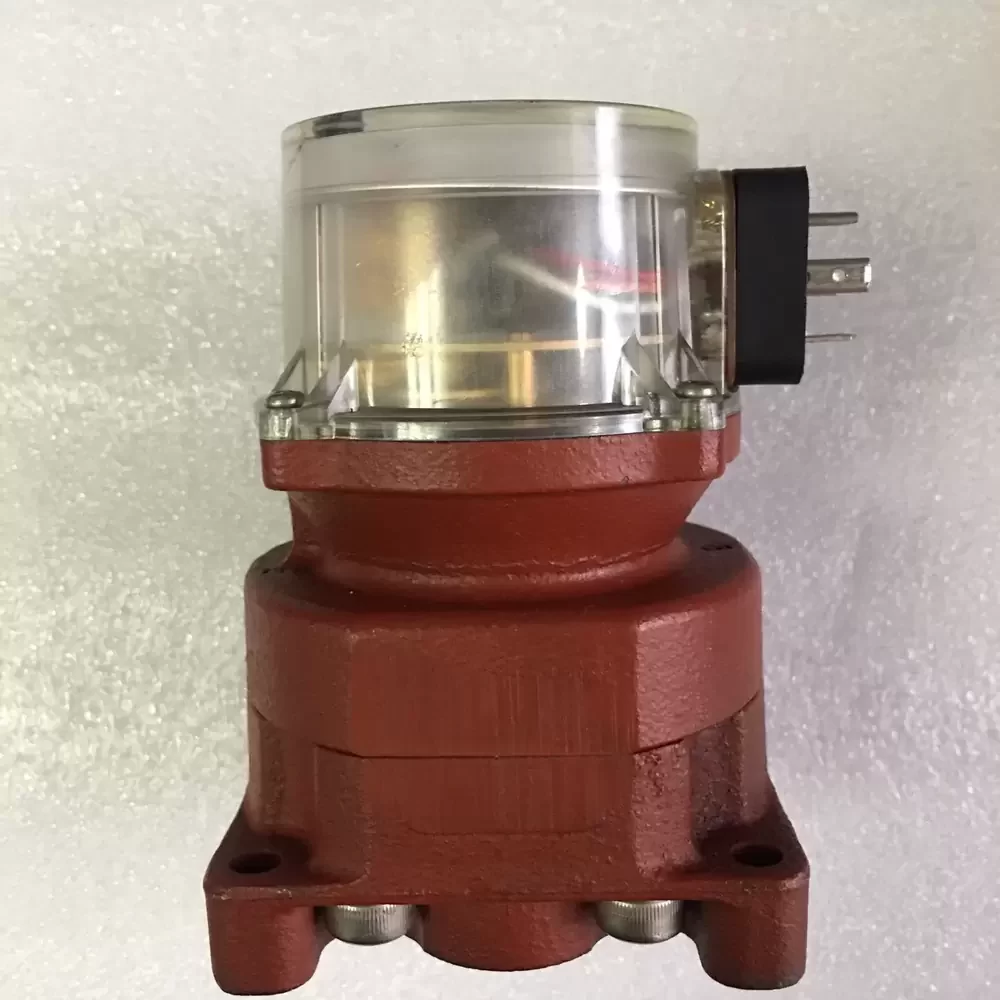

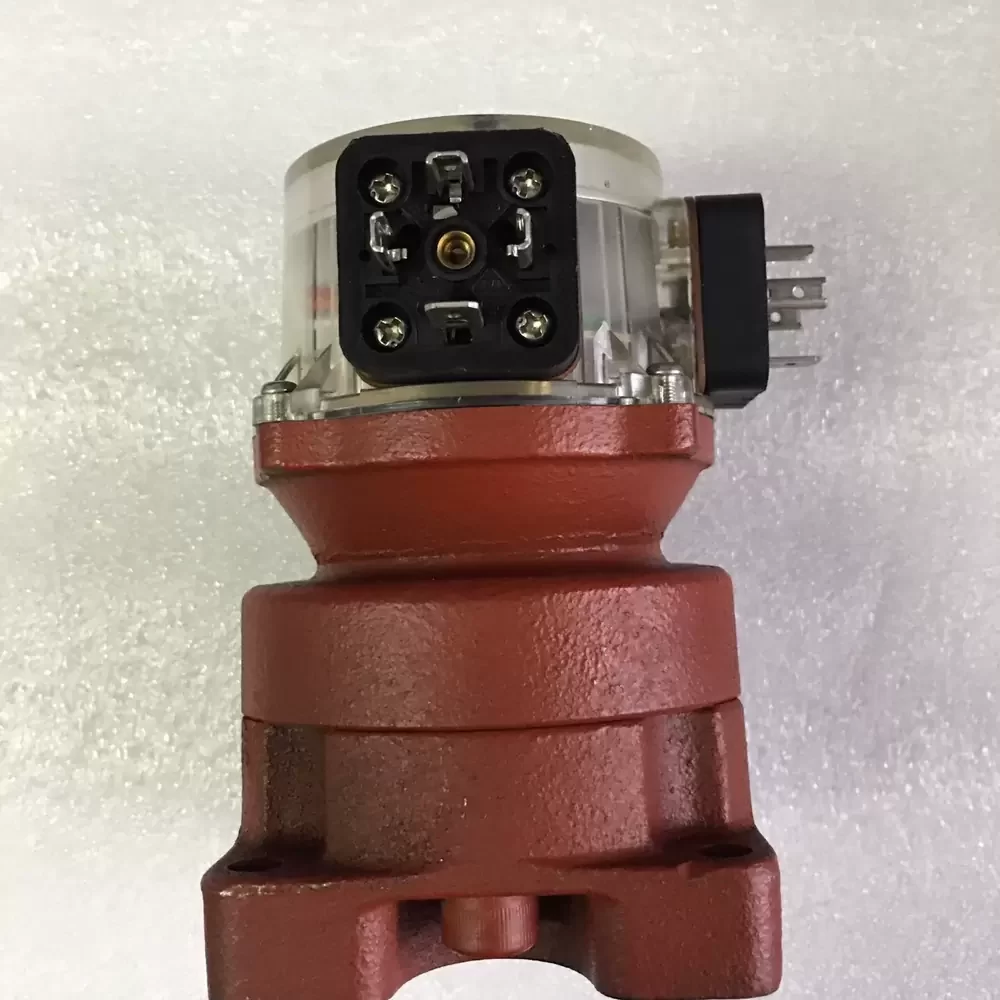

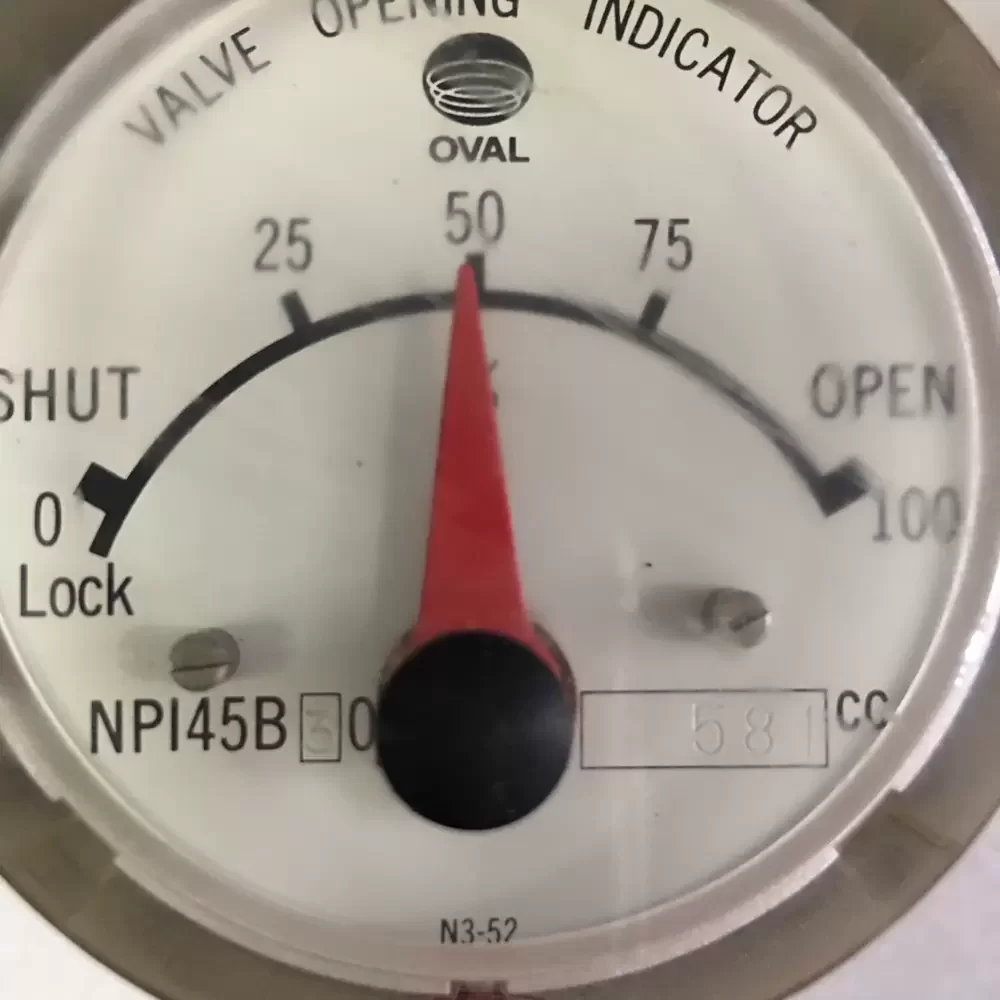

OVAL NPI45B30 581CC is a compact valve position indicator featuring an 8 L/min maximum flow capacity and a 13.7 MPa maximum operating pressure. The device utilizes a positive displacement mechanism with dual non-circular rotors to measure the volume of hydraulic oil delivered to valve actuators. Constructed with an FC250 cast iron body and a magnetic coupling, it integrates a 581CC transmitter assembly providing both potentiometer and microswitch outputs. The unit includes a slip friction clutch and a mechanical pointer for local status monitoring.

NPI45B30 581CC Specifications
Model: NPI45B30 581CC
Brand: OVAL
Category: Valve Position Indicator
Flow Range: 0.083 to 8 L/min
Maximum Operating Pressure: 13.7 MPa
Flow Accuracy: ±0.3 % of reading
Indication Accuracy: 0 to +3 %
Operating Temperature: -10 to +80 °C
Body Material: FC250 Cast Iron

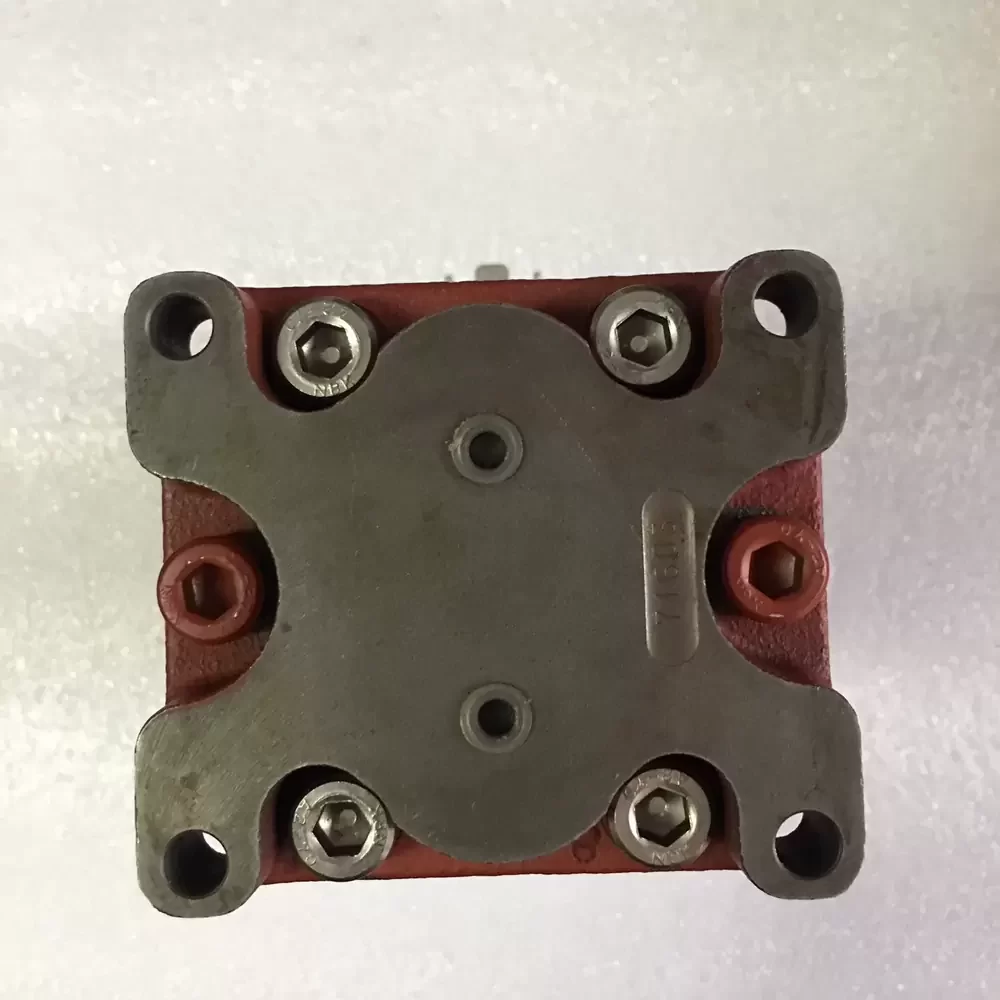

Connection Type: Rc 3/8 Screw
Output Signal: Potentiometer and 2 Microswitches
Applicable Fluid: Hydraulic Oil
Applicable Cylinder Volume: 0.05 to 10 L
Weight: 2.2 kg
Transmission Length: 1 km maximum
Enclosure: Non-explosionproof

NPI45B30 581CC Applications
Primary applications include integration into hydraulic control systems for oil tanker loading/off-loading valves and marine ballast systems. Deployed within offshore pipeline networks and engine room hydraulic circuits to provide precise remote and local valve status monitoring.
