Description

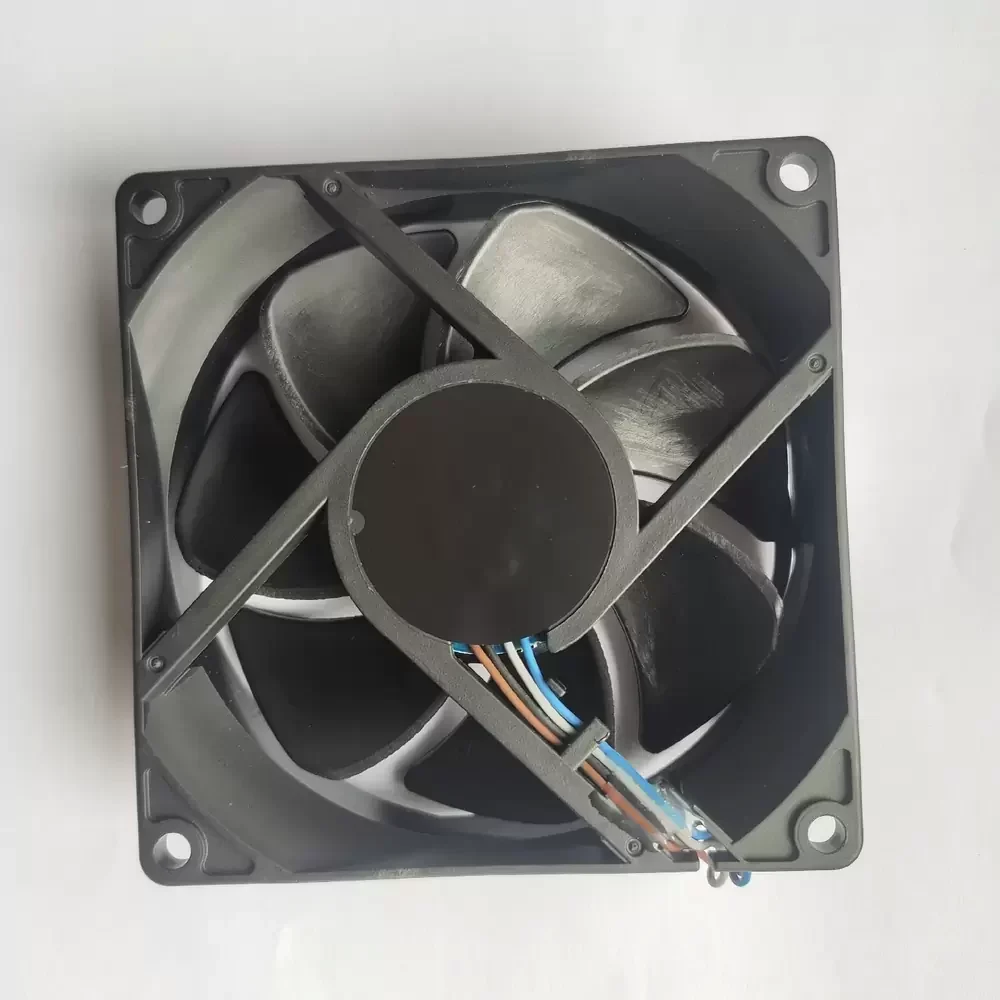

The SUNON PF92251V3-D060-S99 is a precisely engineered axial fan designed for critical thermal management in high-density projection equipment and industrial electronics. This fan utilizes SUNON’s proprietary MagLev (magnetic levitation) motor technology and Vapo bearing system, eliminating physical contact between the shaft and bearings, significantly reducing friction, vibration, and noise while extending lifespan. Its aerodynamic impeller design optimizes static pressure output, ensuring efficient airflow through the dense heat sinks in the optical engine. With its robust structural rigidity and low thermal resistance, this 12VDC cooling solution remains stable even under continuous load, making it ideal for sensitive electronic environments requiring consistent high-performance cooling to ensure optimal operating temperatures.

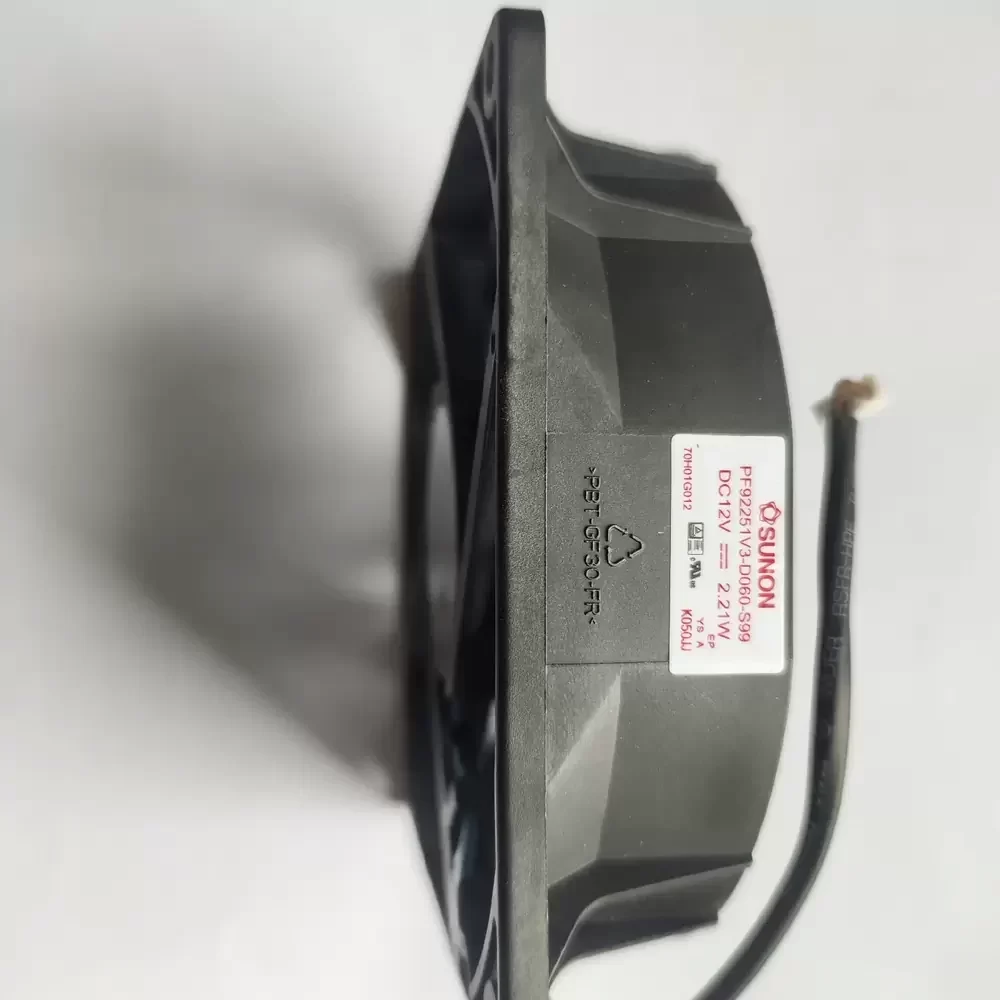

Model: PF92251V3-D060-S99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 6.0-13.8VDC
Power Consumption: 2.21W
Rated Current: 0.18A
Rated Speed: 3900RPM
Bearing Type: Magnetic Levitation Bearing
Maximum Airflow: 65.0CFM (110.4m³/h)
Static Pressure: 0.25 inH₂O (62.2 Pa)
Dimensions: 92mm x 92mm x 25mm
Noise Level: 40.0 dBA
Lifespan: 60,000 hours at 40°C
Frame Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Wiring Method: 4-wire lead (PWM/Tachometer)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection Rating: IP5X (Dustproof)
Safety Certifications: UL, CUR, TUV, CE
Motor Protection: Automatic Restart/Polarity Protection
Weight: 99g
This cooling unit is designed for high-performance projection systems and is a direct replacement for the PF92251V3-D060-S99 in Optoma X502, W502, and W512 series projectors. The fan effectively dissipates heat generated by high-lumen lamps and DLP chips, preventing overheating and shutdown during long presentations. In addition to projection equipment, the PF92251V3-D060-S99 is also suitable for applications requiring reliable, high-static pressure airflow to overcome ventilation path restrictions, such as compact server enclosures, industrial automation control panels, and telecommunications cabinets.
