Description

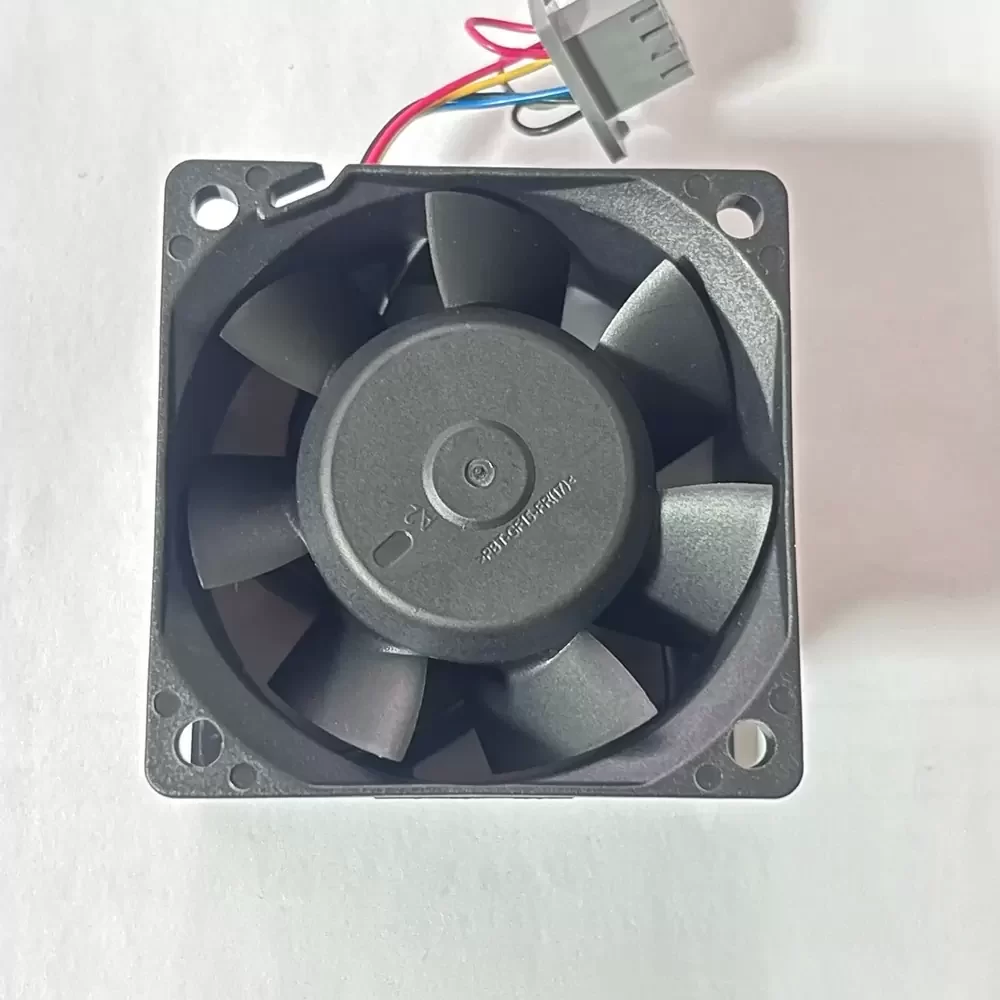

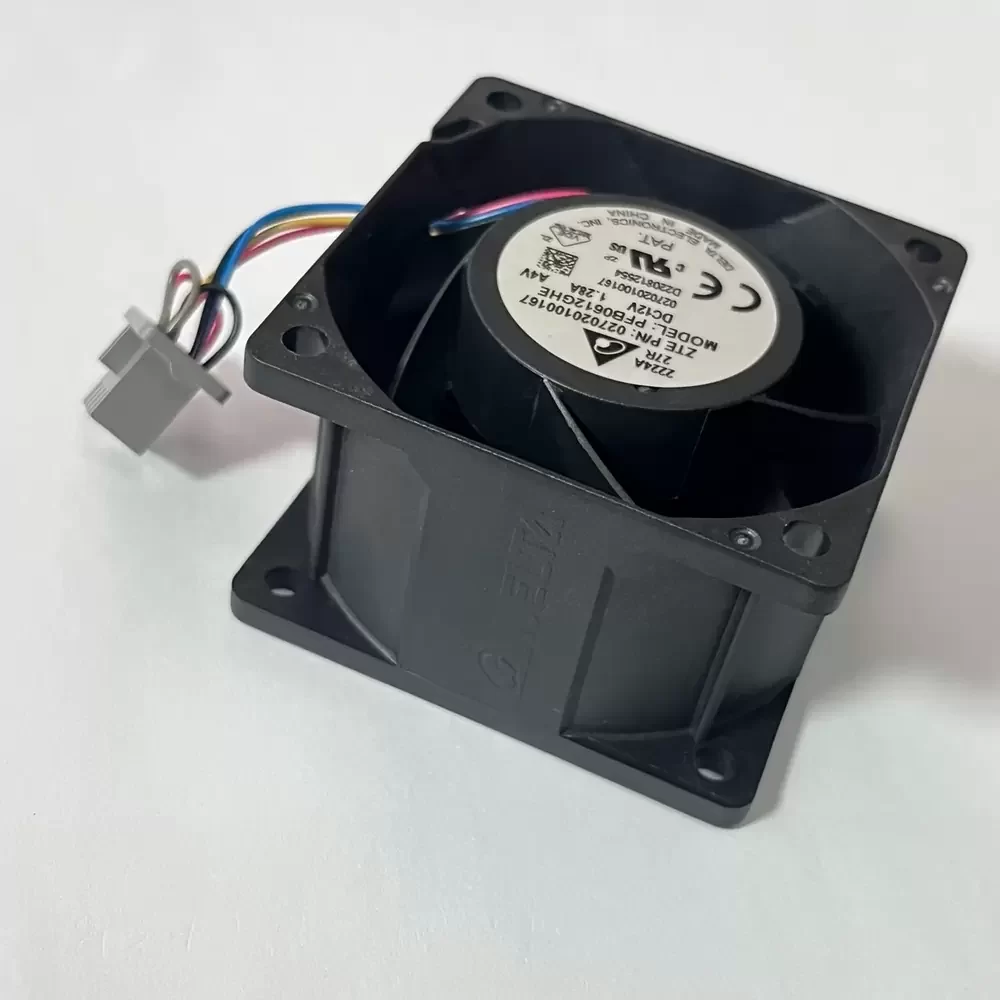

The Delta PFB0612GHE-A4V is a high-performance DC Axial Fan engineered for mission-critical thermal management in high-impedance environments. Utilizing an advanced Brushless DC motor architecture coupled with a precision dual ball bearing system, this unit ensures exceptional longevity and rotational stability under continuous load. The aerodynamic profile features a specialized impeller design optimized to deliver substantial static pressure, effectively overcoming thermal impedance in dense server chassis and industrial enclosures. Constructed with UL94V-0 rated thermoplastic, the frame offers superior structural rigidity and vibration damping, making it an ideal solution for demanding cooling requirements where reliability is paramount.
Model Number: PFB0612GHE-A4V
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.28 A
Power: 15.36 W
Rated Speed: 10000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 54.05 CFM (91.83 m³/h / 1.53 m³/min)
Max. Static Pressure: 26.25 mmH₂O (257.4 Pa / 1.033 inH₂O)
Dimensions: 60 x 60 x 38 mm
Weight: 130 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 57.5 dBA
Speed Control: PWM (Pulse Width Modulation)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)

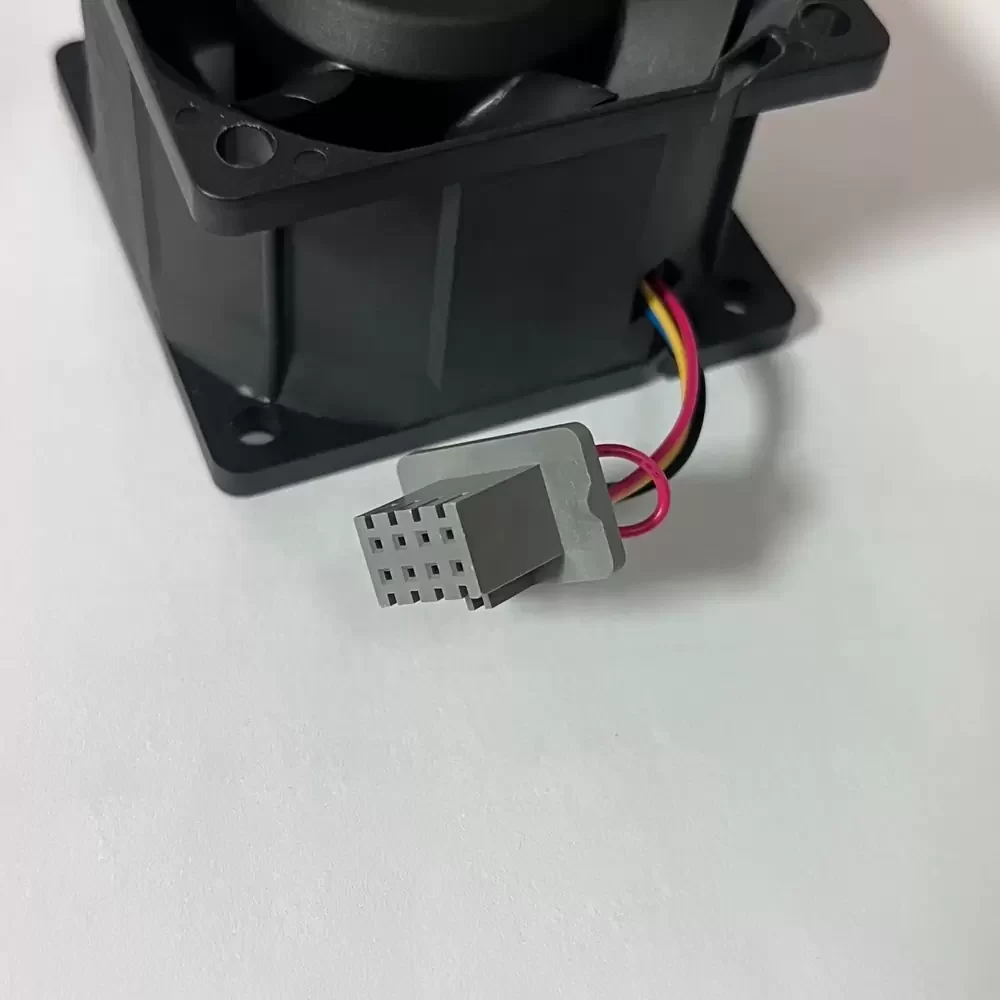

Termination: 4-Wire Leads
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
Designed for high-density electronic environments, the PFB0612GHE-A4V excels in applications requiring aggressive airflow to dissipate heat from tightly packed components. This model is frequently deployed in rack-mount server chassis, telecommunication base stations, and cryptocurrency mining rigs where maintaining optimal operating temperatures is critical for system stability. The high static pressure capabilities of the PFB0612GHE-A4V allow it to force air through restrictive heatsinks and dust filters, ensuring consistent thermal performance in industrial automation equipment and power supply units.
