Description

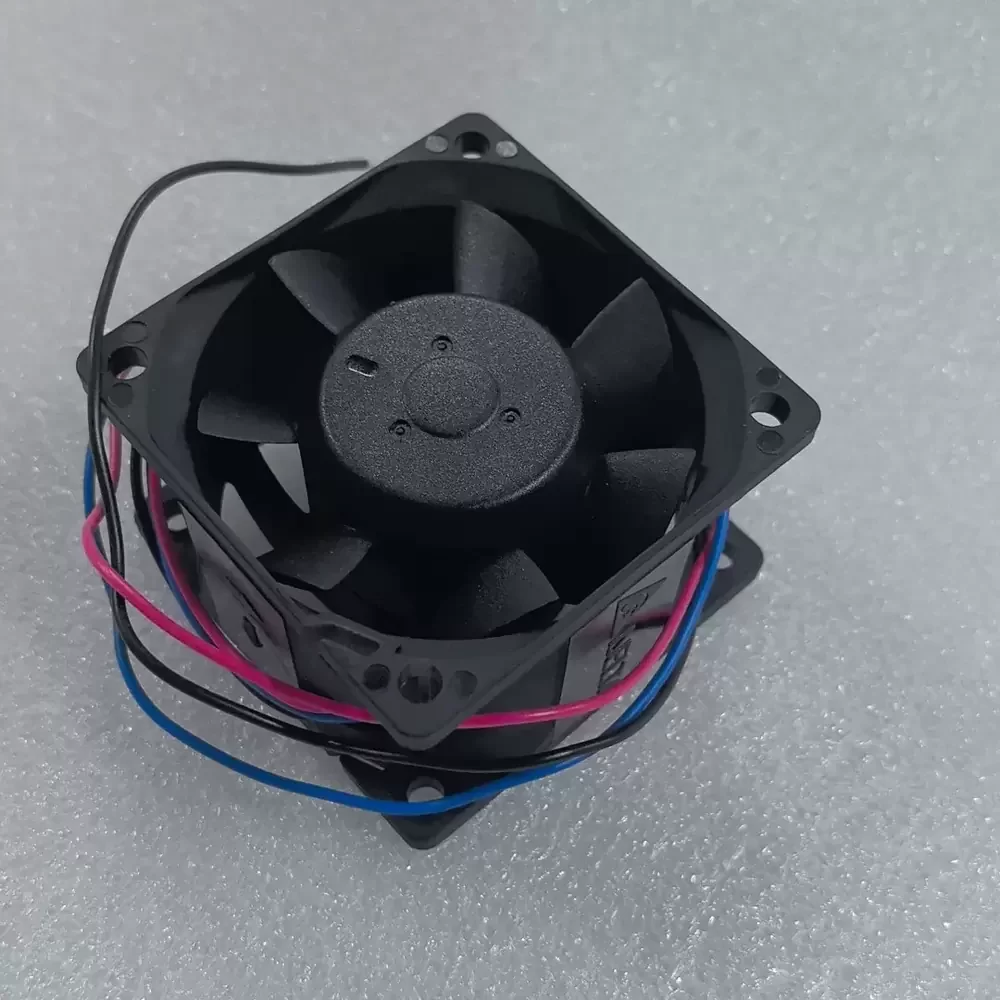

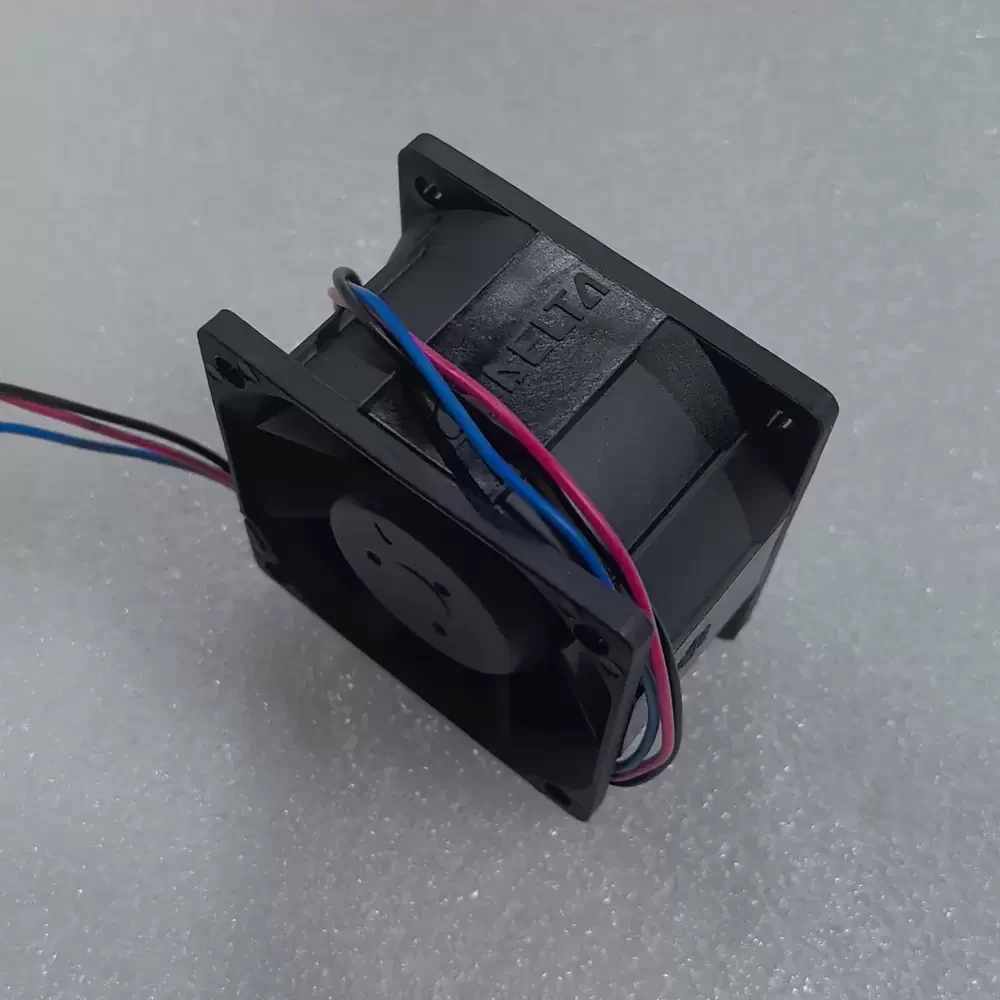

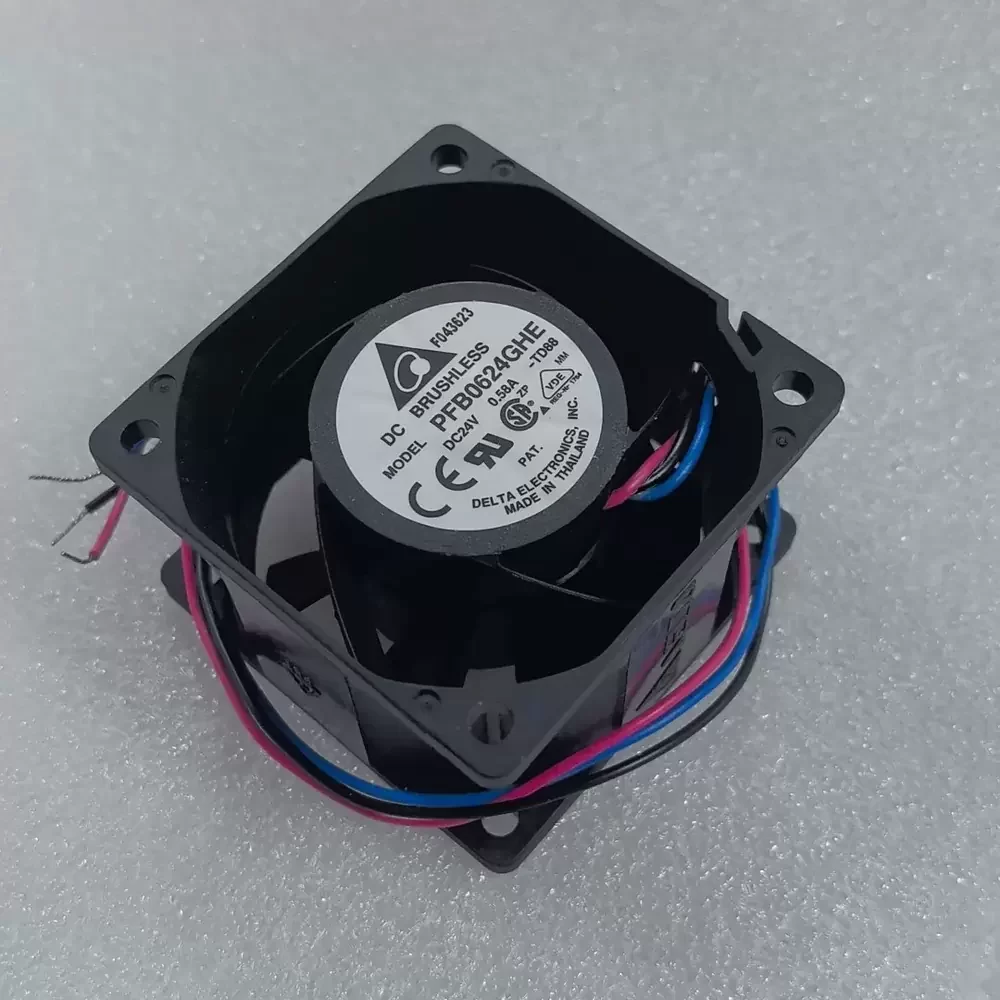

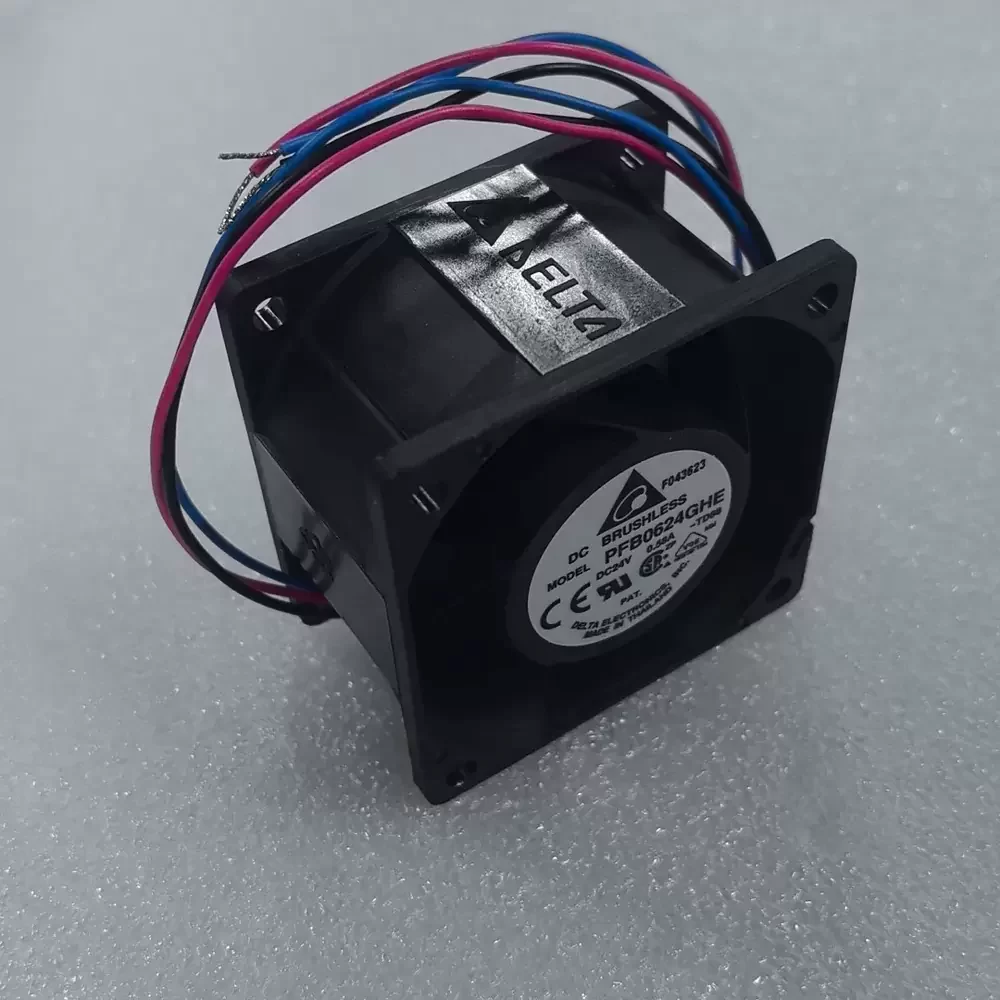

The Delta PFB0624GHE-TD88 is a high-static pressure Axial Fan engineered for demanding thermal management in industrial inverters and power electronics. Utilizing advanced DC brushless motor technology paired with a precision double ball bearing architecture, this unit ensures exceptional structural rigidity and prolonged operational lifespan under continuous load. The aerodynamic impeller design optimizes airflow efficiency while minimizing thermal impedance, making it a critical component for maintaining system stability. Its robust construction features a 3-wire configuration with an alarm signal output, providing real-time status monitoring to prevent thermal runaway in mission-critical hardware.
Model Number: PFB0624GHE-TD88
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.58 A
Input Power: 13.92 W
Rated Speed: 9000 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 55.23 CFM (93.84 m³/h / 1.56 m³/min)
Max. Static Pressure: 21.5 mmH₂O (210.8 Pa / 0.85 inH₂O)
Dimensions: 60x60x38mm
Weight: 130 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 54.0 dB-A
Termination: 3-Wire Leads with Connector
Output Signal: Alarm Signal (RD)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Ingress Protection: IP20
Origin: Thailand
Designed primarily for industrial frequency inverters, the PFB0624GHE-TD88 serves as a vital cooling solution for power conversion modules and server rack enclosures. Its compact 60mm form factor allows for integration into high-density electronic assemblies where space is limited but heat dissipation requirements are severe. Operators of CNC machinery and telecommunications equipment rely on the PFB0624GHE-TD88 to sustain optimal operating temperatures, ensuring equipment reliability during extended duty cycles in manufacturing environments.
