Description

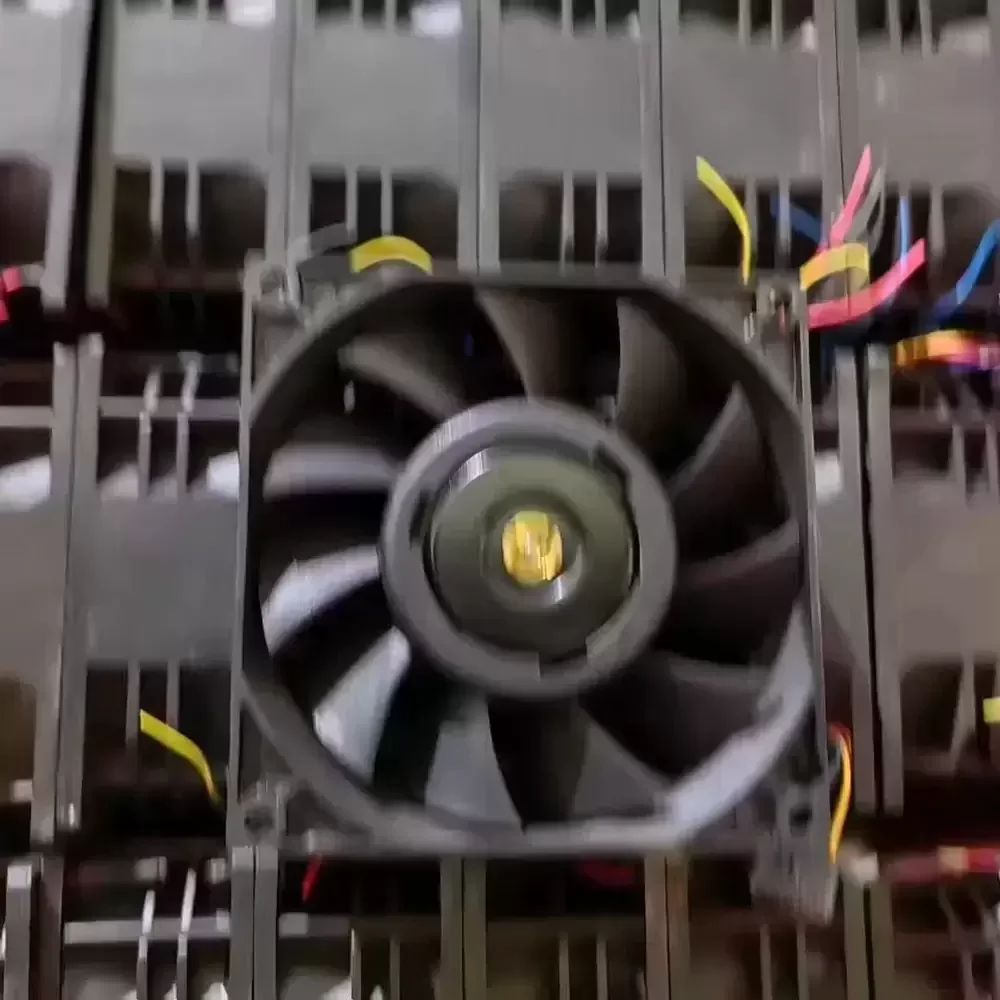

The Delta PFC0912DE-9F59 is a high-performance industrial axial fan designed to deliver extreme airflow and static pressure for mission-critical thermal management applications. Engineered with Delta’s advanced DC motor technology, this unit features a robust dual ball bearing system that ensures exceptional longevity and rotational stability even under continuous high-speed operation. The 90mm x 38mm form factor allows for a substantial impeller geometry, maximizing air throughput to effectively dissipate heat in high-impedance systems. With a power rating of 4.32A, this fan is capable of generating significant pressure heads, making it suitable for dense electronic enclosures. The integration of a 4-wire interface supports Pulse Width Modulation (PWM) speed control, allowing for dynamic adjustment of cooling performance based on real-time thermal demands.
Model Number: PFC0912DE-9F59
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 8.0 – 13.2 VDC
Rated Current: 4.32 A
Power Consumption: 51.84 W
Rated Speed: 7500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 175.03 CFM (297.3 m³/h / 4.95 m³/min)
Max. Static Pressure: 35.2 mmH₂O (345 Pa / 1.38 inH₂O)
Dimensions: 90mm x 90mm x 38mm
Weight: 250 g
Noise Level: 66.5 dBA
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP51
Safety Certifications: UL, cUL, TUV, CE
The PFC0912DE-9F59 is engineered for demanding applications where standard cooling solutions fail to provide adequate thermal relief. It is extensively utilized in high-density server racks, blade servers, and telecommunications base stations where overcoming system impedance is critical. Additionally, the PFC0912DE-9F59 serves as a vital component in industrial automation setups, CNC machinery control cabinets, and medical diagnostic equipment, ensuring that sensitive electronics operate within safe temperature ranges despite heavy workloads and restricted airflow paths.
