Description

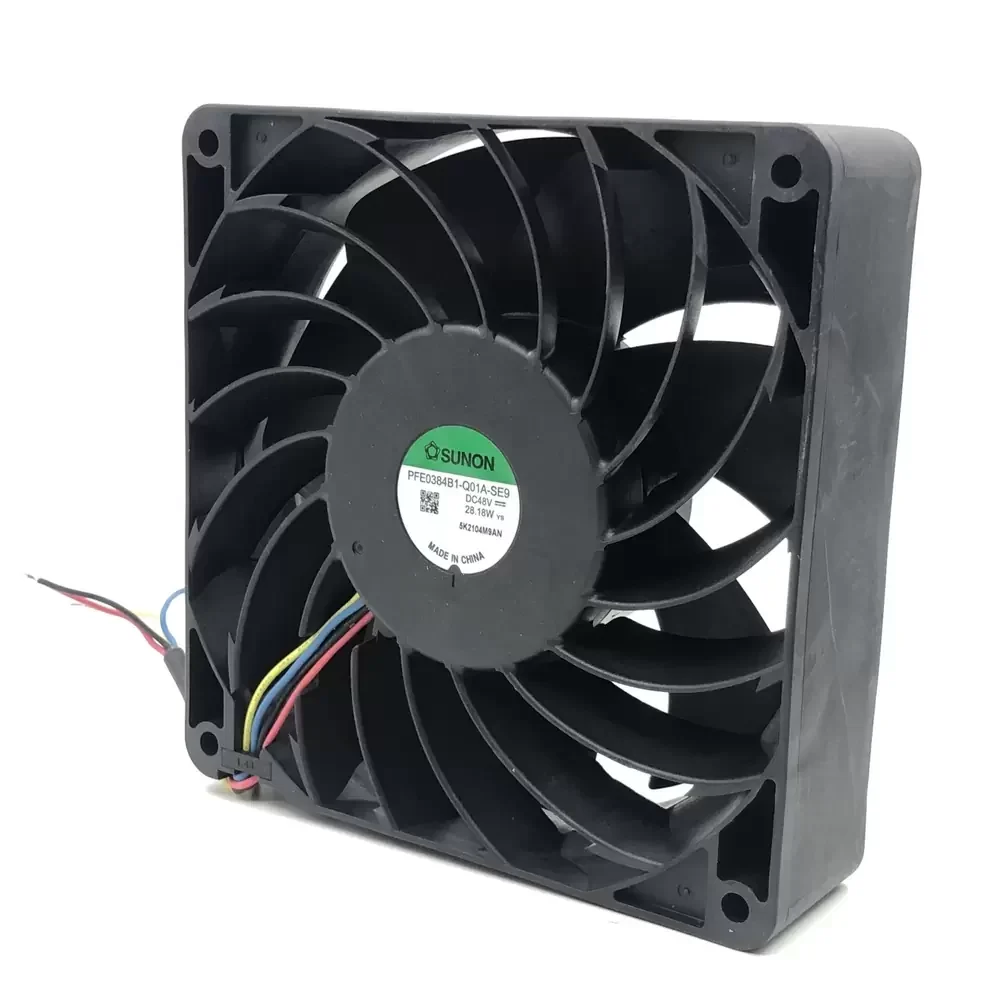

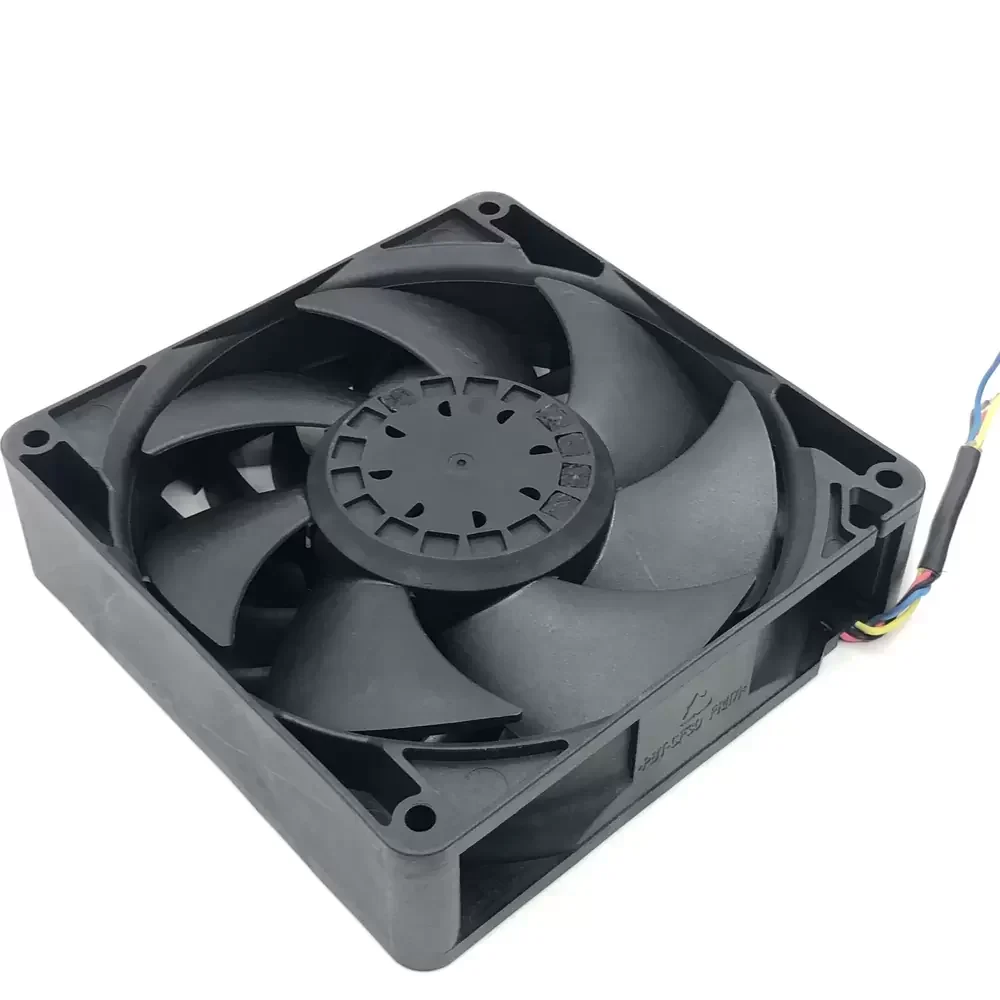

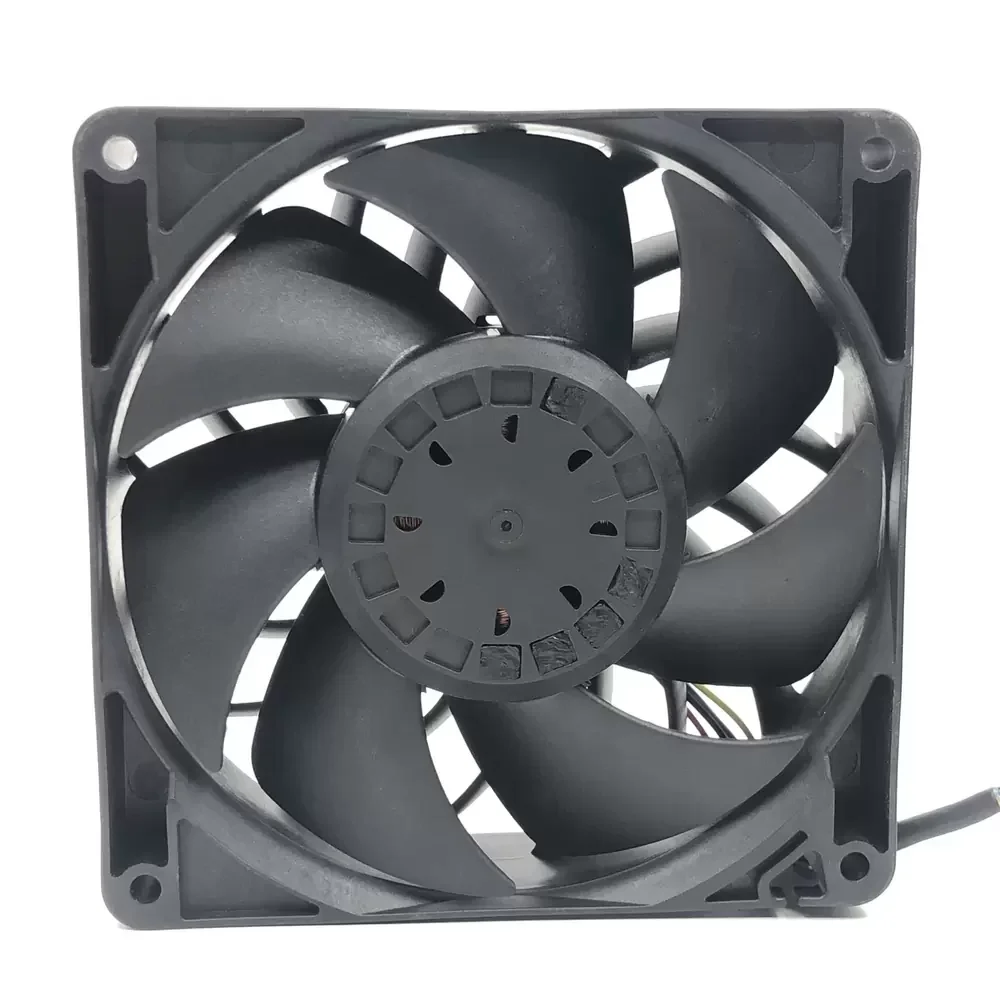

The SUNON PFE0384B1-Q01A-SE9 is a high-performance DC axial fan engineered for mission-critical thermal management in industrial and server environments. Utilizing advanced motor technology and a precision dual ball bearing architecture, this unit delivers exceptional airflow while maintaining structural rigidity under high-speed operation. The aerodynamic impeller design minimizes turbulence, optimizing the thermal impedance profile for dense electronic enclosures. With a robust 48VDC drive system and integrated PWM speed control, it ensures precise thermal regulation and energy efficiency, making it an ideal solution for applications requiring sustained high-static pressure and long-term reliability.
Model Number: PFE0384B1-Q01A-SE9
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 36.0 – 60.0 VDC
Power Input: 28.18 W
Rated Current: 0.59 A
Rated Speed: 6800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 288.0 CFM (489.3 m³/h / 8.15 m³/min)
Max. Static Pressure: 41.9 mmH₂O (410 Pa / 1.65 inH₂O)
Dimensions: 140x140x38mm
Weight: 475 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: 4-Wire (Frequency Generator/Tachometer)
Noise Level: 66.5 dB(A)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP51 (Standard)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 4-Wire Leads
Certifications: UL, CUR, TUV, CE
Motor Protection: Polarity Protection, Locked Rotor Protection
Designed for high-density thermal challenges, the PFE0384B1-Q01A-SE9 is frequently deployed in enterprise-grade server racks and telecommunications base stations where continuous airflow is mandatory. The PFE0384B1-Q01A-SE9 also serves as a critical component in variable frequency drive (VFD) cooling systems and industrial automation cabinets, ensuring sensitive electronics remain within safe operating temperatures during peak loads.
