Description

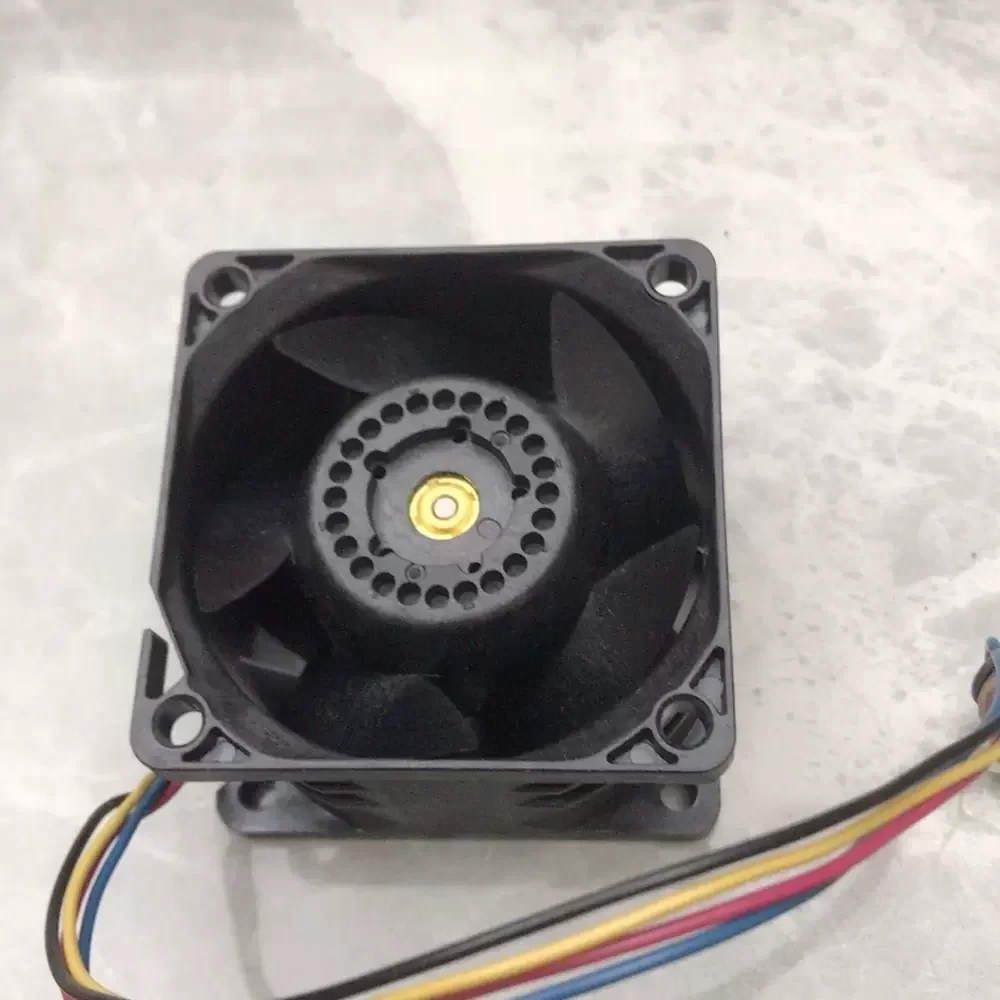

The Delta PFR0648XHE-DXN is a high-performance DC axial fan engineered for applications demanding exceptional static pressure and airflow density. Utilizing advanced brushless DC motor technology coupled with a precision dual ball bearing system, this unit ensures long-term reliability and reduced thermal impedance in high-stress environments. The aerodynamic impeller design is optimized to overcome significant system resistance, making it ideal for densely packed electronic enclosures. Constructed with a rigid thermoplastic frame, the fan maintains structural integrity and minimizes vibration during high-speed operation, providing a robust thermal management solution for industrial-grade equipment.
Model Number: PFR0648XHE-DXN
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 0.75 A
Input Power: 36.0 W
Rated Speed: 14000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 67.85 CFM (115.2 m³/h / 1.92 m³/min)
Max. Static Pressure: 2.85 inH₂O (710 Pa / 72.4 mmH₂O)
Dimensions: 60 x 60 x 38 mm
Noise Level: 66.5 dB-A
Termination: 4-Wire Leads
Speed Control: PWM / Tachometer Output
Ingress Protection: IP Rating Optional
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours @ 40°C
Mounting Orientation: Any
Safety Certifications: UL, cUL, TUV, CE
Designed for critical thermal regulation, the PFR0648XHE-DXN is frequently deployed in high-power variable frequency drives (VFDs) and industrial inverters where heat dissipation is crucial for component longevity. Its high static pressure capabilities make the PFR0648XHE-DXN equally suitable for cooling telecommunications rectifiers, server power supplies, and compact CNC control cabinets that restrict natural airflow.
