Description

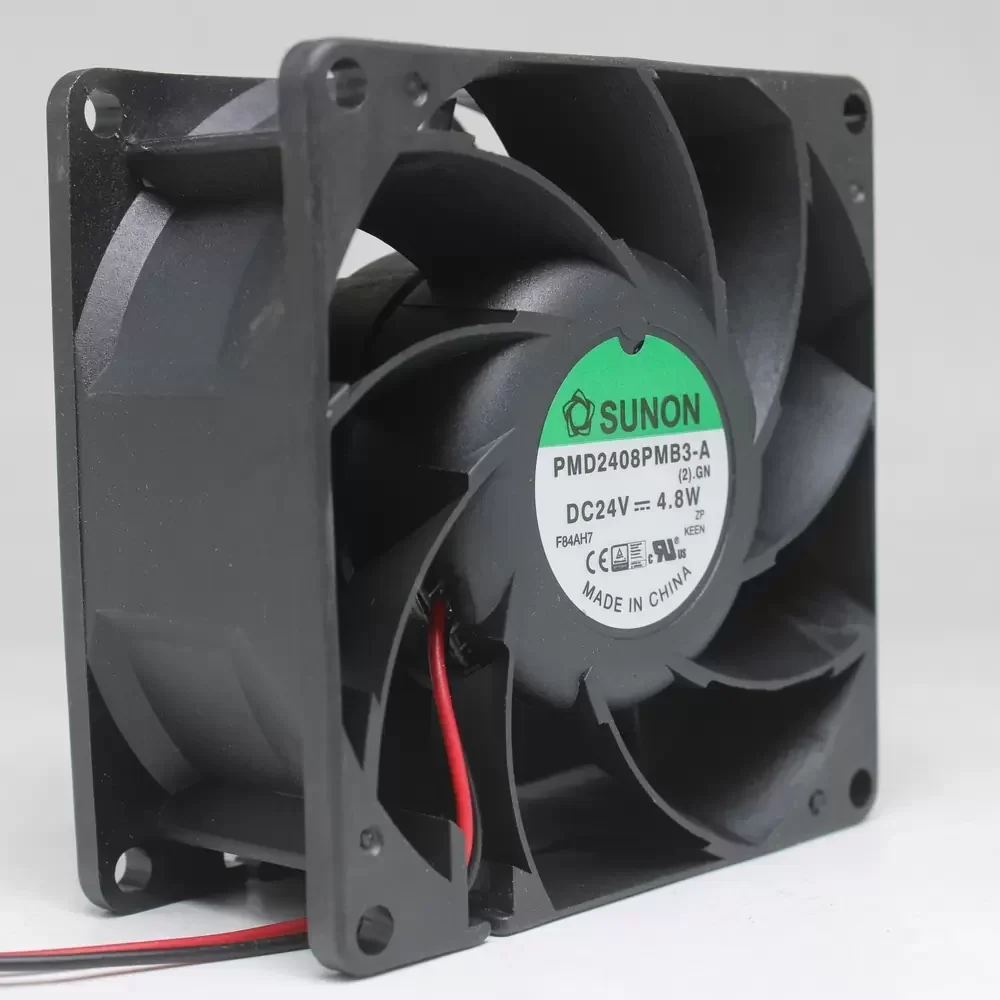

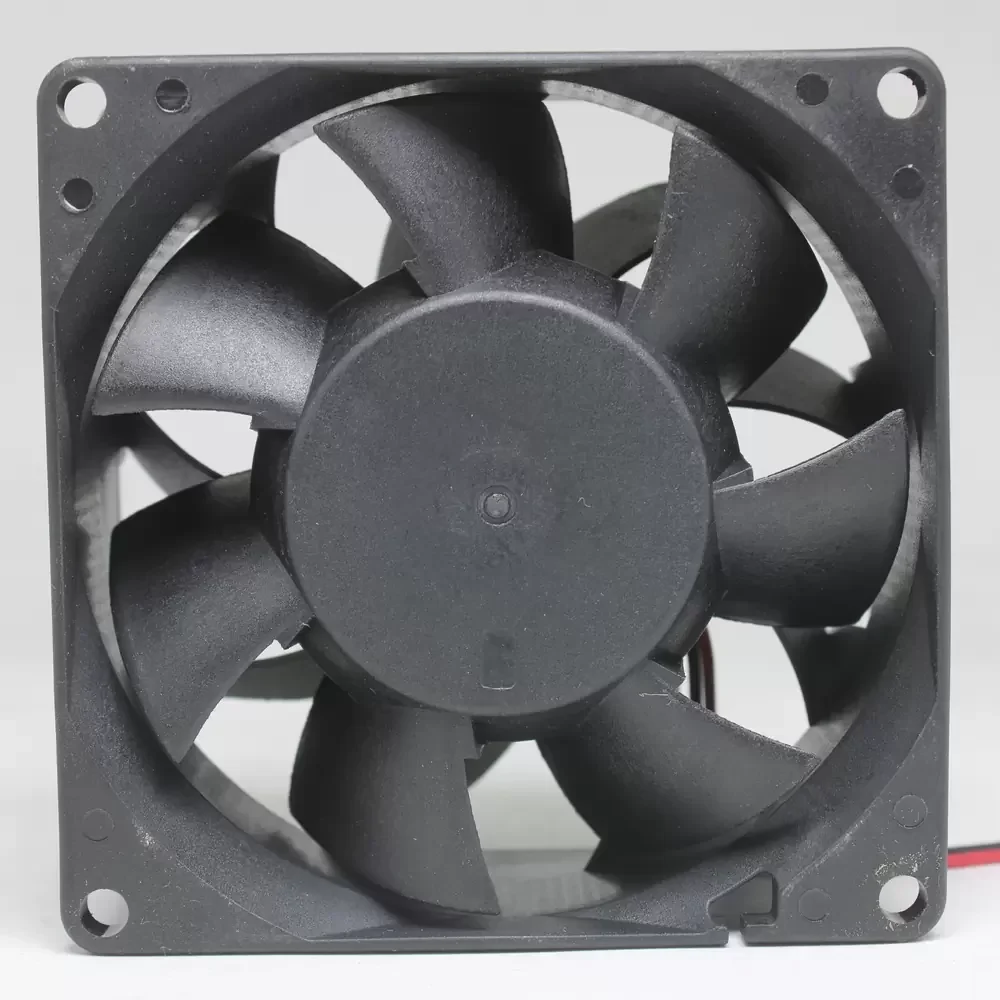

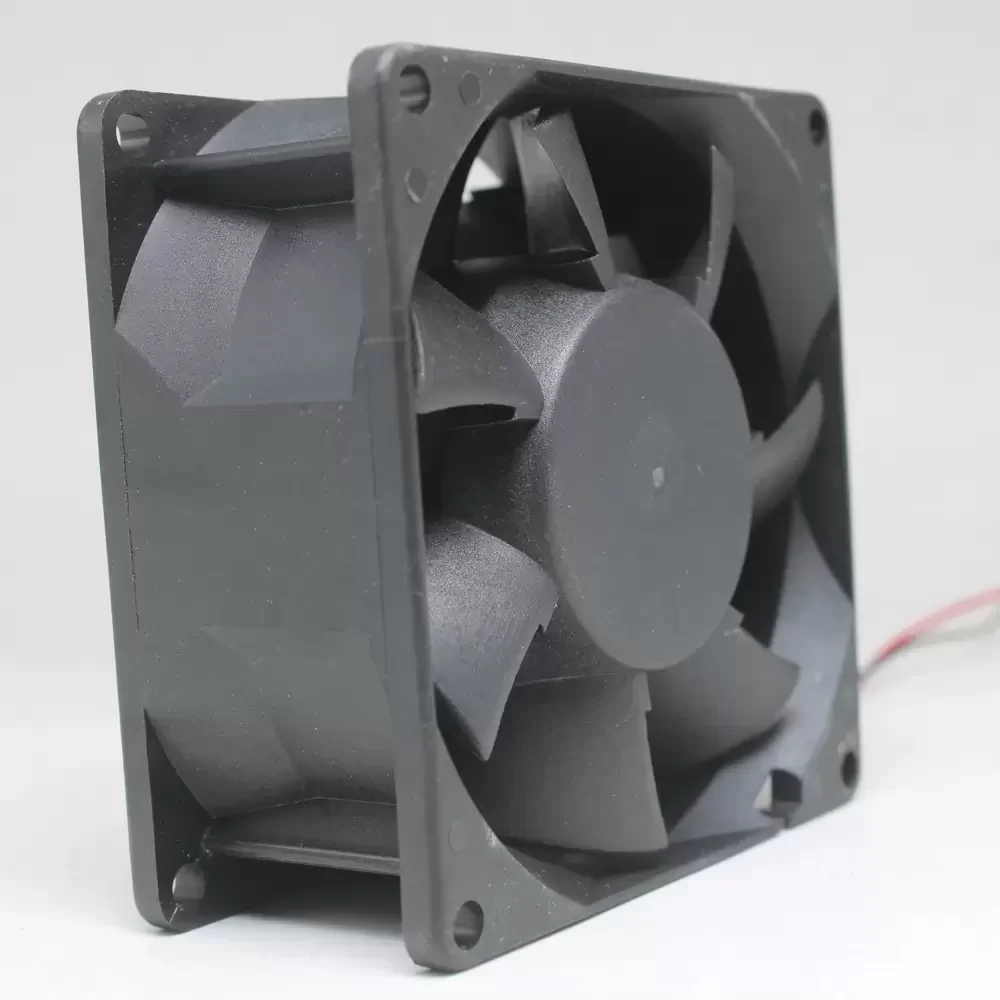

The SUNON PMD2408PMB3.(2).GN is a robust DC Axial Fan engineered for high-reliability thermal management in industrial electronics. Utilizing advanced 2 Ball Bearing technology, this unit ensures prolonged operational stability and reduced friction, significantly enhancing the Mean Time Between Failures (MTBF). The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity under thermal stress. With a rated power of 4.8W, it delivers a balanced performance-to-noise ratio, making it ideal for restricted spaces requiring consistent static pressure. The housing is constructed from durable thermoplastic, offering superior thermal impedance and resistance to environmental factors.
Model Number: PMD2408PMB3.(2).GN
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.20 A
Power Consumption: 4.8 W
Rated Speed: 4200 RPM
Bearing Type: 2 Ball Bearing
Max. Air Flow: 63.2 CFM (107.4 m³/h / 1.79 m³/min)
Max. Static Pressure: 0.36 inH₂O (9.14 mmH₂O / 89.6 Pa)
Dimensions: 80x80x38mm
Weight: 175 g
Noise Level: 43.3 dBA
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Termination: Lead Wires (UL1007, 24AWG)
Safety Certifications: UL, CUR, TUV, CE
Motor Protection: Auto Restart, Polarity Protection
Dielectric Strength: 500VAC for 1 Minute
Insulation Resistance: 10M Ohms at 500VDC
Designed specifically for demanding industrial environments, the SUNON PMD2408PMB3.(2).GN excels in cooling frequency inverters and variable frequency drives (VFDs) where consistent heat dissipation is critical. Its compact 80mm form factor allows for seamless integration into server racks, telecommunication cabinets, and power supply units. The high static pressure capabilities of the PMD2408PMB3.(2).GN ensure effective airflow through dense component arrays and heatsinks, preventing thermal throttling in automation equipment and CNC machinery control panels.
