Description

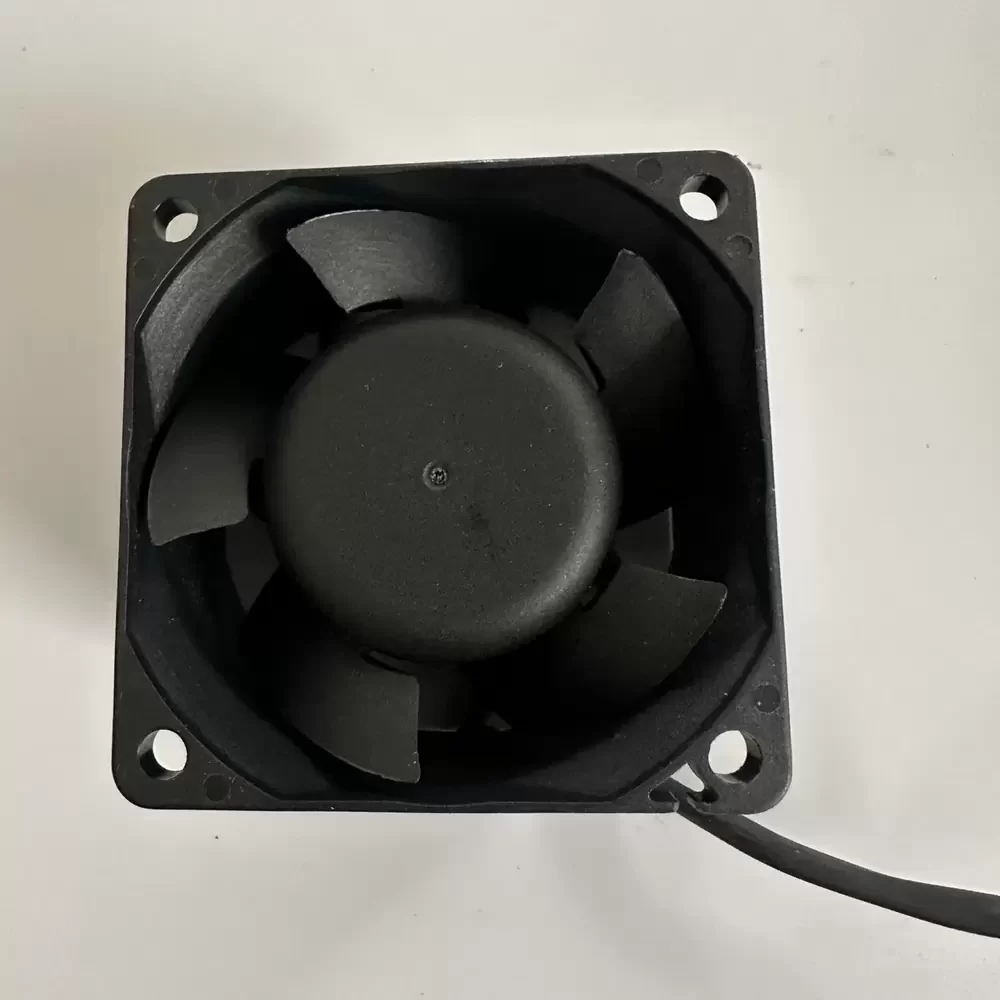

Sunon PSD1206PTBX-A.(2).B3420.F.GN is a 12VDC 60x60x25mm Axial Fan optimized for high-density thermal management in restricted airflow environments. This high-wattage DC fan utilizes a precision-engineered dual ball bearing architecture to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. The aerodynamic impeller design is specifically tuned to deliver a massive 18W of power, translating into exceptional static pressure and airflow metrics required for overcoming high system resistance. With a rated current of 1.5A and high-speed rotation, this unit provides the necessary cooling capacity for mission-critical hardware where standard 60mm fans fail to meet the thermal load requirements.
Model Number: PSD1206PTBX-A.(2).B3420.F.GN
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 1.5 A
Power: 18.0 W
Rated Speed: 12500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 52.5 CFM (89.2 m³/h)
Max. Static Pressure: 1.56 inH₂O (388.5 Pa)
Dimensions: 60 x 60 x 25 mm
Weight: 90 g
Life Expectancy: 70000 Hours at 40°C
Noise Level: 60.0 dB(A)
Speed Control: PWM (Pulse Width Modulation)
Output Signal: Tachometer (Frequency Generator)
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 4 Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Insulation Resistance: 10M ohm at 500 VDC
Protection Features: Auto Restart, Polarity Protection
Certifications: UL, CUR, TUV, CE
PSD1206PTBX-A.(2).B3420.F.GN Applications
1. 1U/2U Server Enclosures: The 18W power profile and high static pressure are engineered to overcome the extreme system impedance found in densely packed rackmount chassis.
2. High-Performance Replacement Fan: Ideal for upgrading stock cooling in ASIC miners or network switches where original components have succumbed to thermal fatigue.
3. Industrial Power Supplies: Provides concentrated forced-air cooling for high-wattage SMPS units requiring rapid heat dissipation within a compact 60mm footprint.
4. Telecommunications Base Stations: The dual ball bearing system ensures reliable vertical or horizontal mounting in ruggedized outdoor cabinets subject to temperature fluctuations.
