Description

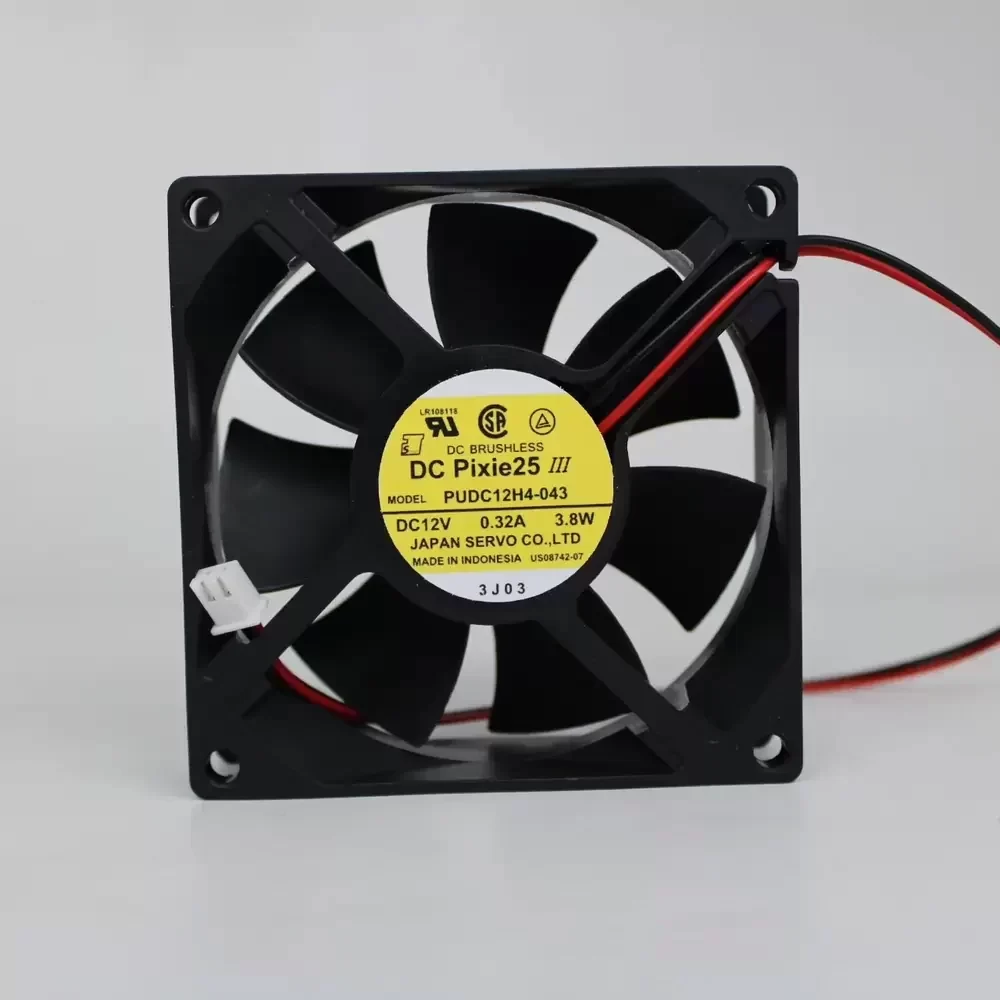

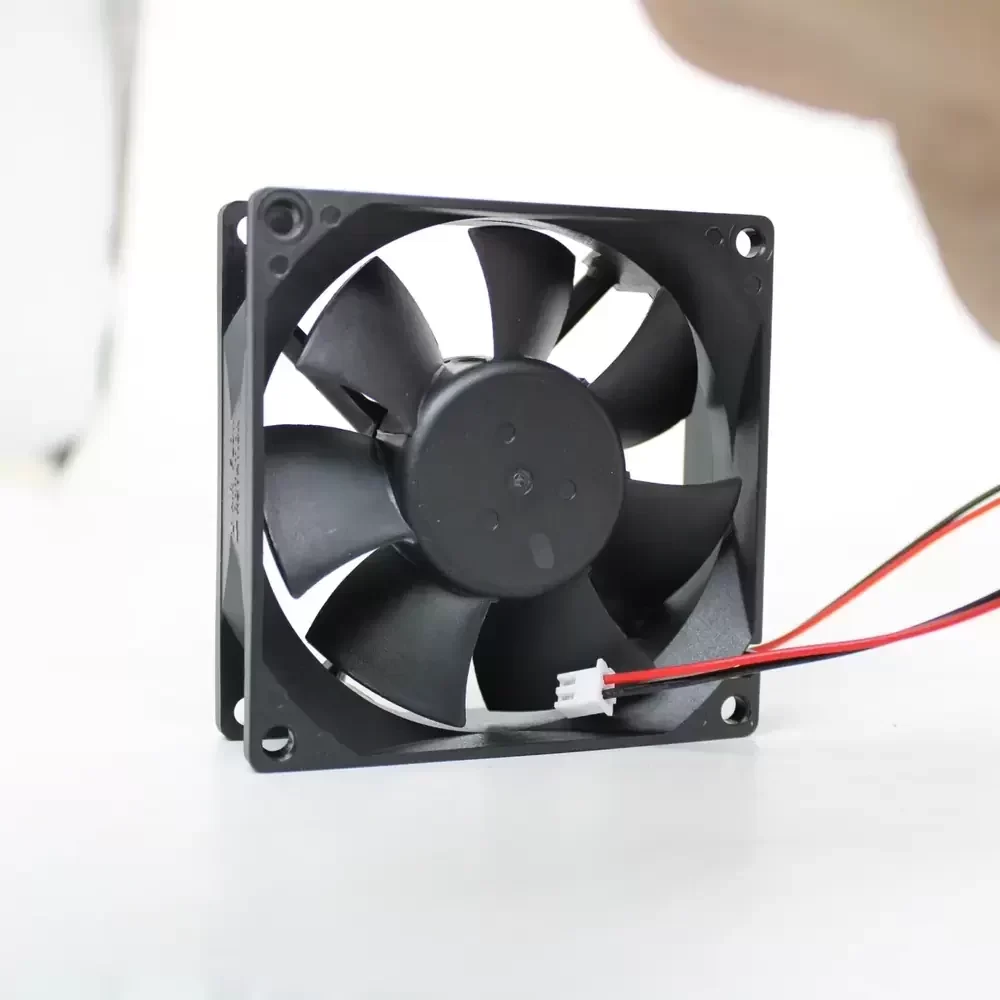

The Japan Servo PUDC12H4-043 is a precision-engineered Axial Fan designed for demanding thermal management applications within the industrial sector. Belonging to the renowned DC Pixie25 III series, this unit features a robust Double Ball Bearing architecture that ensures low thermal impedance and exceptional structural rigidity under continuous operation. The aerodynamic blade design is optimized to deliver high airflow while maintaining acoustic stability, making it a reliable solution for dissipating heat in high-density electronic environments. This 12VDC cooling component is built to withstand rigorous operational cycles, ensuring the longevity and efficiency of critical systems.
Model Number: PUDC12H4-043
Brand: Japan Servo (Nidec)
Product Type: Axial Fan
Series: DC Pixie25 III
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.32 A
Power: 3.8 W
Rated Speed: 3400 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 40.6 CFM (69.0 m³/h / 1.15 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.1 Pa / 0.19 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 95 g
Life Expectancy: 60000 Hours at 40°C
Termination: 3-Wire with Connector
Speed Control: Tachometer Output
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Mounting Orientation: Any
The PUDC12H4-043 is engineered for direct integration into variable frequency drive (VFD) inverters and industrial power supply units where reliable thermal regulation is critical. Additionally, the PUDC12H4-043 is frequently utilized in server rack cooling, CNC machinery control panels, and telecommunications equipment, providing consistent airflow to prevent component overheating in enclosed spaces.
