Description

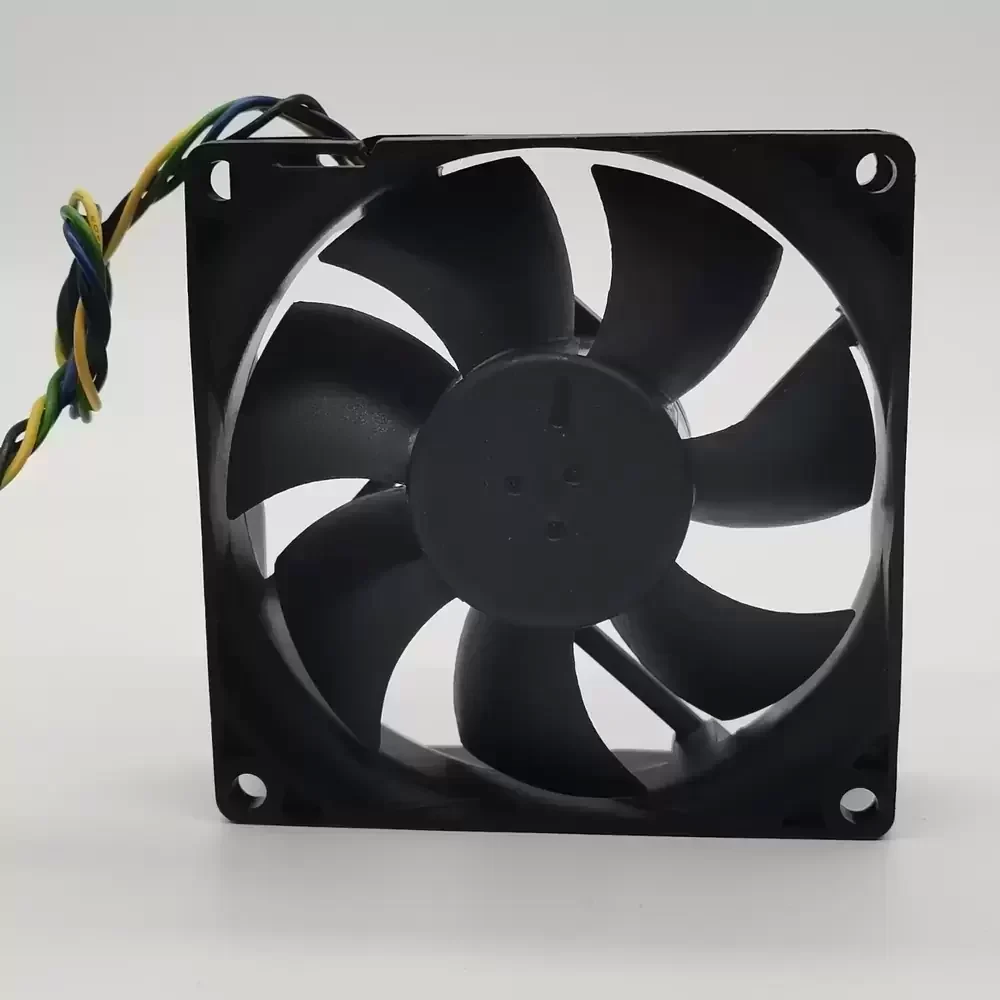

The Foxconn PVA080G12Q-P01-AD is a precision-engineered axial cooling solution designed for high-density thermal management applications. Utilizing advanced hydraulic sealed bearing architecture, this unit minimizes frictional coefficients while extending operational longevity under continuous load. The aerodynamic impeller profile is constructed from reinforced PBT with 30% glass fiber, ensuring exceptional structural rigidity and resistance to deformation at high rotational velocities. Engineered for optimal airflow dynamics, the fan significantly reduces thermal impedance within enclosed chassis environments. Its integrated PWM control circuit allows for dynamic speed modulation, balancing acoustic performance with critical cooling requirements, making it a robust component for industrial and computing systems requiring reliable heat dissipation.
Model Number: PVA080G12Q-P01-AD
Brand: Foxconn
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: Not Specified
Rated Current: 0.65 A
Power Consumption: 7.8 W
Rated Speed: 900 – 4600 RPM ±5%
Bearing Type: Hydraulic Sealed Bearing
Max. Air Flow: 62.5 CFM (106.19 m³/h / 1.77 m³/min)
Min. Air Flow: 19 CFM
Max. Static Pressure: Not Specified
Dimensions: 80 x 80 x 25 mm
Weight: Not Specified
Life Expectancy: Not Specified
Noise Level: 16 – 47 dBA
Speed Control: PWM, Tachometer (Speed Sensor)
Housing Material: Injection Molded PBT + 30% Glass Fiber (UL94V-0)
Impeller Material: Injection Molded PBT + 30% Glass Fiber (UL94V-0)
Termination: 4-Pin Motherboard Connector
Wire Length: 600 mm
The PVA080G12Q-P01-AD is specifically calibrated for integration into high-performance computing environments, including server chassis and workstation cooling arrays where variable airflow is essential. Its robust construction makes it suitable for industrial automation equipment and CNC control units that demand consistent thermal regulation. By utilizing the PVA080G12Q-P01-AD, system integrators can ensure stable operating temperatures for sensitive electronic components, effectively mitigating the risk of thermal throttling in telecommunications hardware and medical instrumentation.
