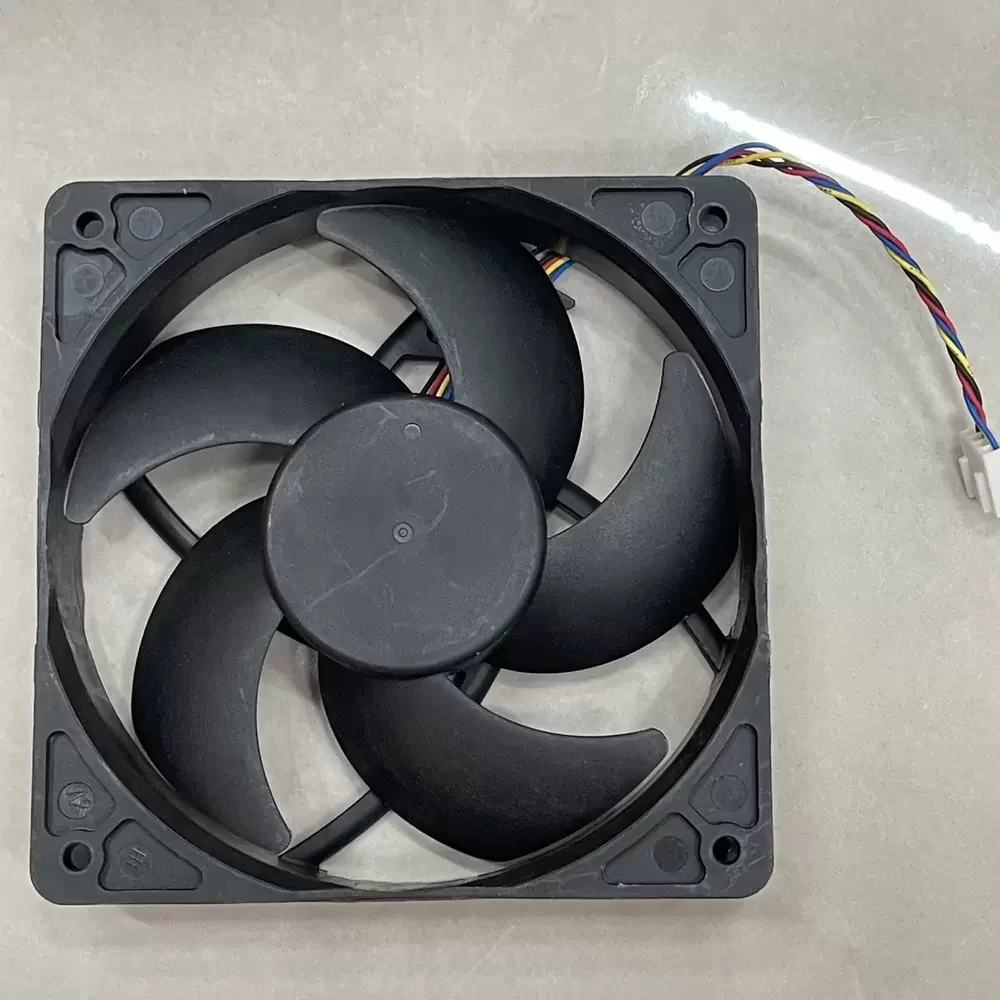

PVA120G12V-P08-EB Foxconn 12VDC 1.2A 120x120x25mm Fan

Description

Foxconn PVA120G12V-P08-EB 120 x 120 x 25 mm 12 VDC 1.2 A axial cooling fan. This high-performance unit incorporates a brushless DC motor architecture paired with a precision dual ball bearing assembly to ensure mechanical stability. The hardware is equipped with a 4-wire interface enabling Pulse Width Modulation (PWM) for variable speed control reaching approximately 6000 RPM. The structural housing and seven-blade impeller are manufactured from UL 94V-0 rated thermoplastic materials.

PVA120G12V-P08-EB Specifications
Model: PVA120G12V-P08-EB
Brand: Foxconn
Category: DC Axial Fan
Nominal Voltage: 12 VDC
Rated Current: 1.2 A
Dimensions: 120 x 120 x 25 mm
Bearing Type: Dual Ball Bearing
Connector Type: 4-pin PWM
Rotational Speed: 6000 RPM
Motor Type: Brushless DC
Frame Material: PBT Plastic
Impeller Material: PBT Plastic
Wire Count: 4-wire
Thermal Management: PWM Speed Control
Input Power: 14.4 W
Operating Voltage Range: 7.0 to 13.8 VDC
Safety Certifications: UL, CE, TUV

PVA120G12V-P08-EB Applications
Primary applications include integration into high-density server chassis, enterprise network switches, and industrial workstation enclosures. Deployed within telecommunications base stations and high-capacity power supply units requiring high-static pressure thermal management.
