Description
The Delta QFR1224GHE-ETP is a high-performance DC axial fan engineered for critical thermal management in industrial environments. Utilizing advanced dual ball bearing architecture, this unit ensures long-term operational stability and reduced frictional heat generation. The aerodynamic impeller design optimizes airflow delivery while maintaining structural rigidity under high-speed rotation. Designed with a robust frame, the QFR1224GHE-ETP effectively mitigates thermal impedance in densely packed enclosures, making it a reliable solution for continuous duty cycles where consistent cooling performance is paramount.

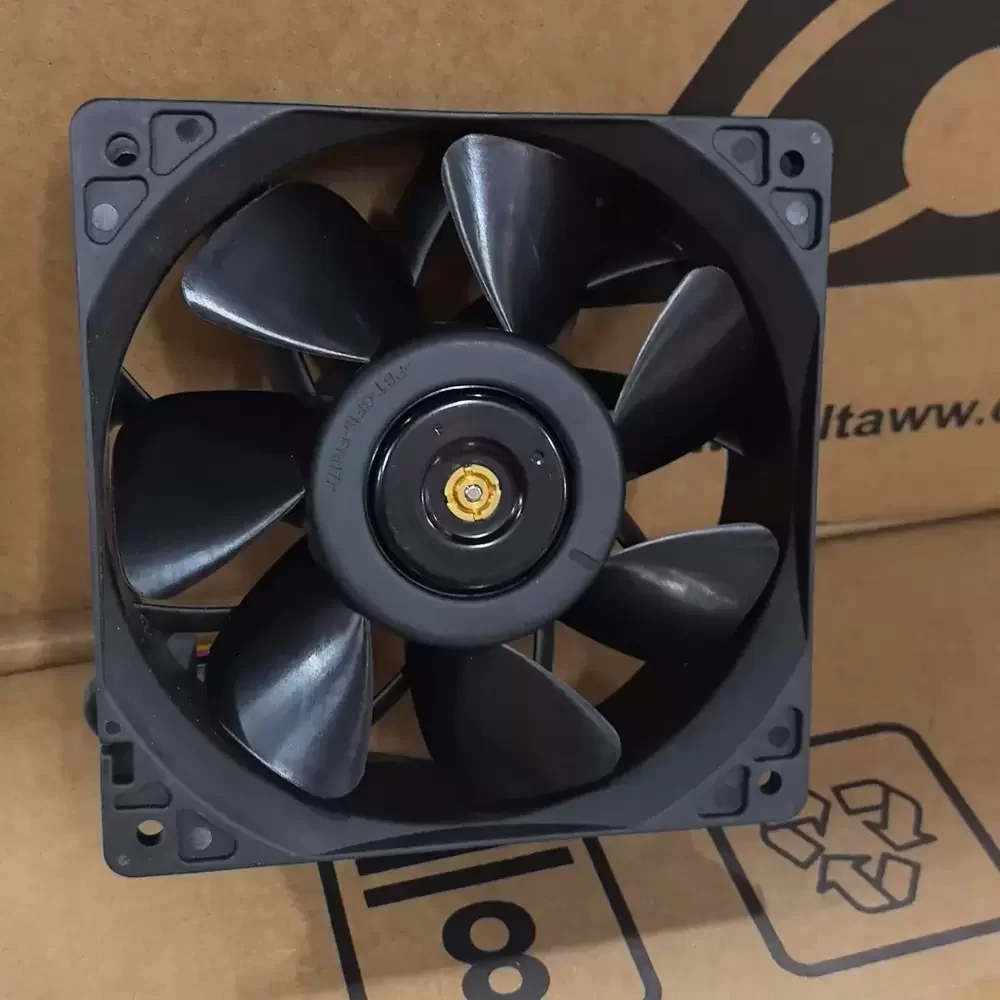

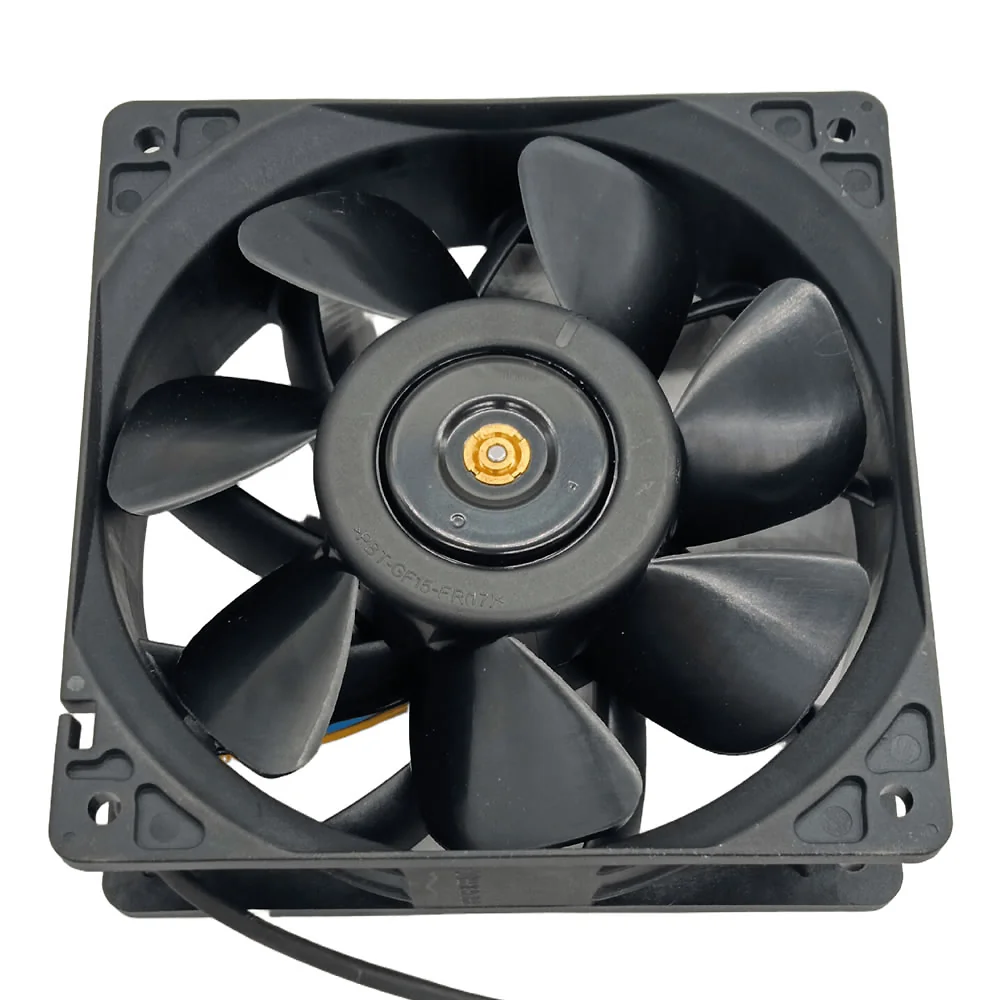

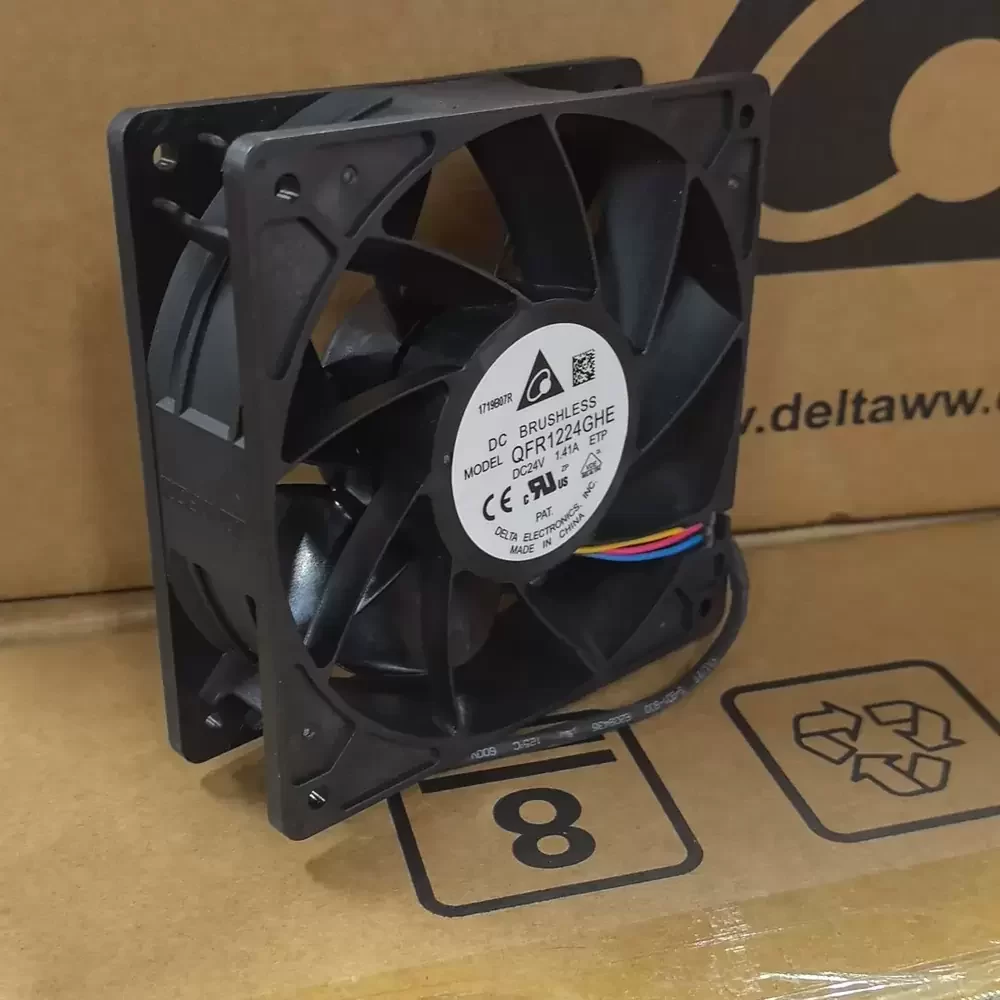

Model Number: QFR1224GHE-ETP
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.41 A
Power Input: 33.84 W
Rated Speed: 6000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 210.38 CFM (357.4 m³/h / 5.95 m³/min)
Max. Static Pressure: 21.50 mmH₂O (210.8 Pa / 0.846 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 330 g
Noise Level: 64.0 dB-A
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: 4-Wire Leads
Speed Control: PWM Control / Tachometer Output
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Ingress Protection: IP55 (Optional configuration)
Safety Protection: Locked Rotor Protection, Polarity Protection
This cooling solution is specifically calibrated for high-demand applications such as variable frequency drives (VFDs), enterprise server racks, and industrial chassis cooling. The QFR1224GHE-ETP excels in environments requiring rapid heat dissipation to prevent component throttling. Additionally, the QFR1224GHE-ETP is suitable for telecommunications equipment and precision medical devices where reliable airflow is critical for system integrity and longevity.
