Description

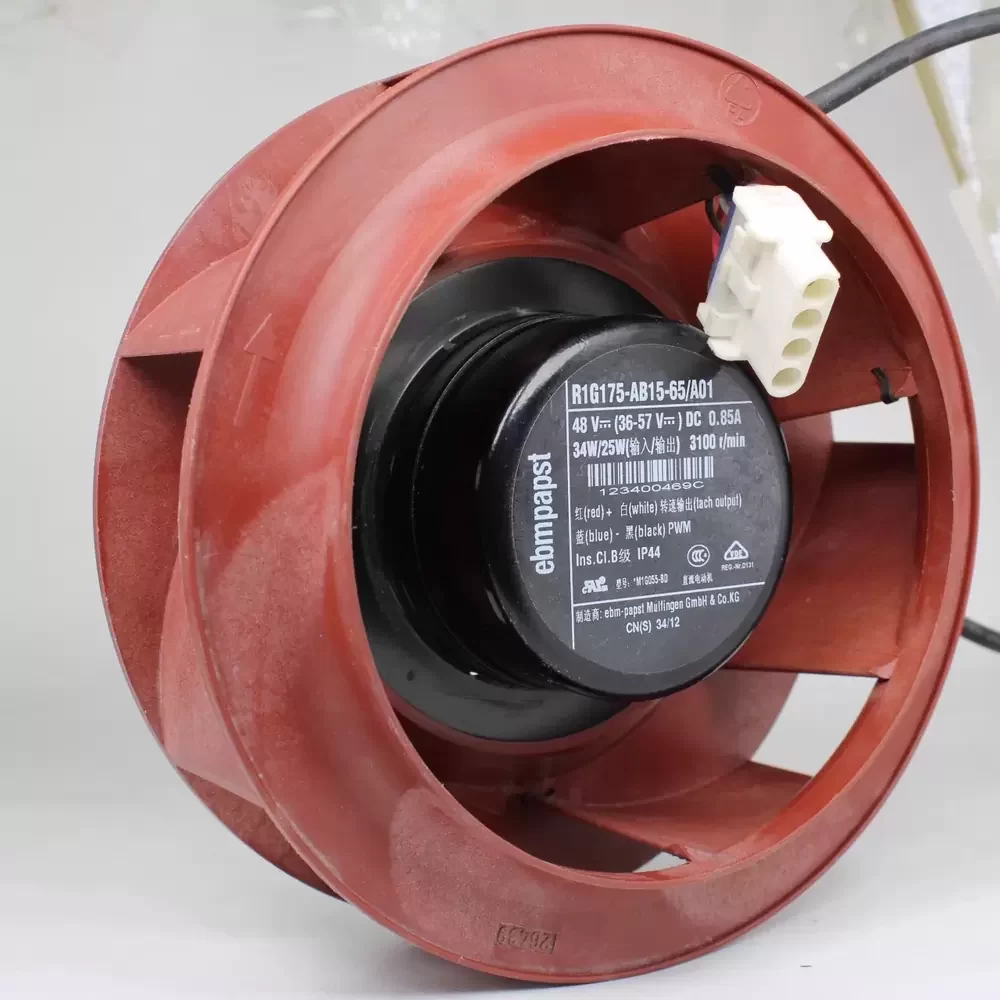

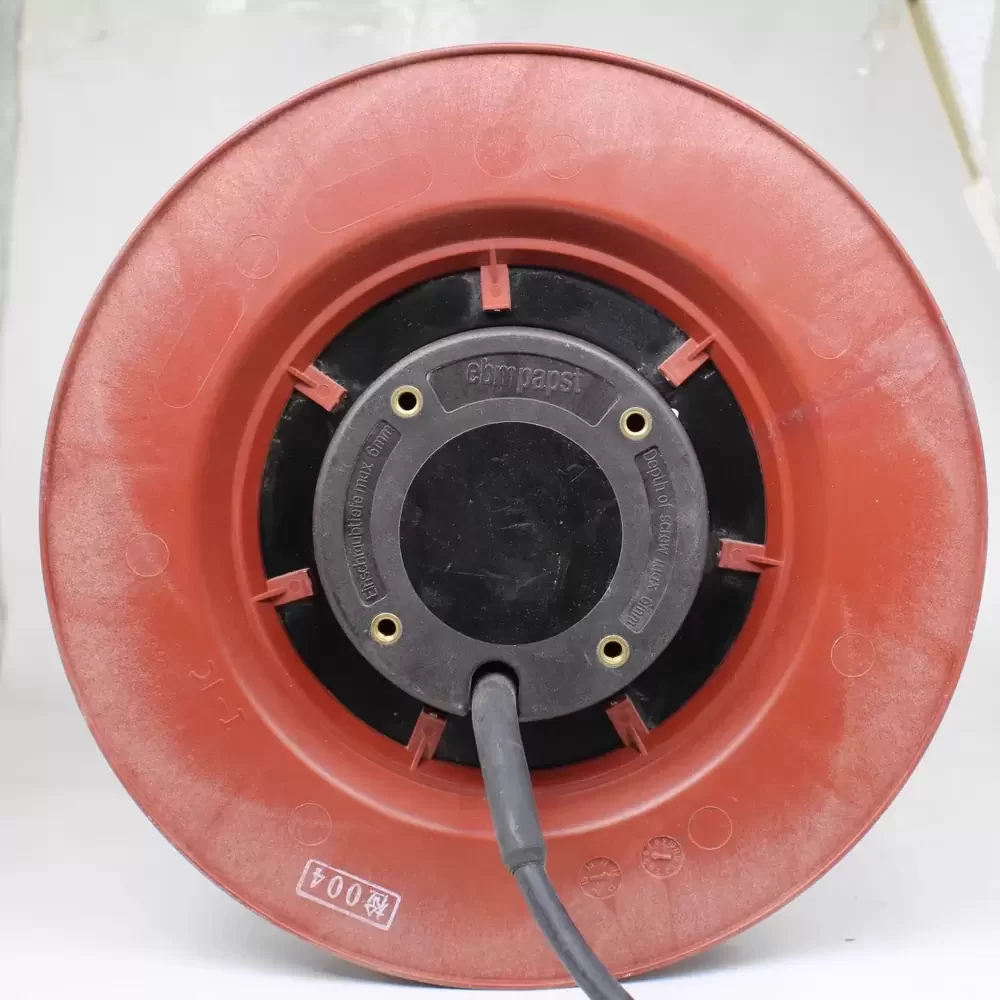

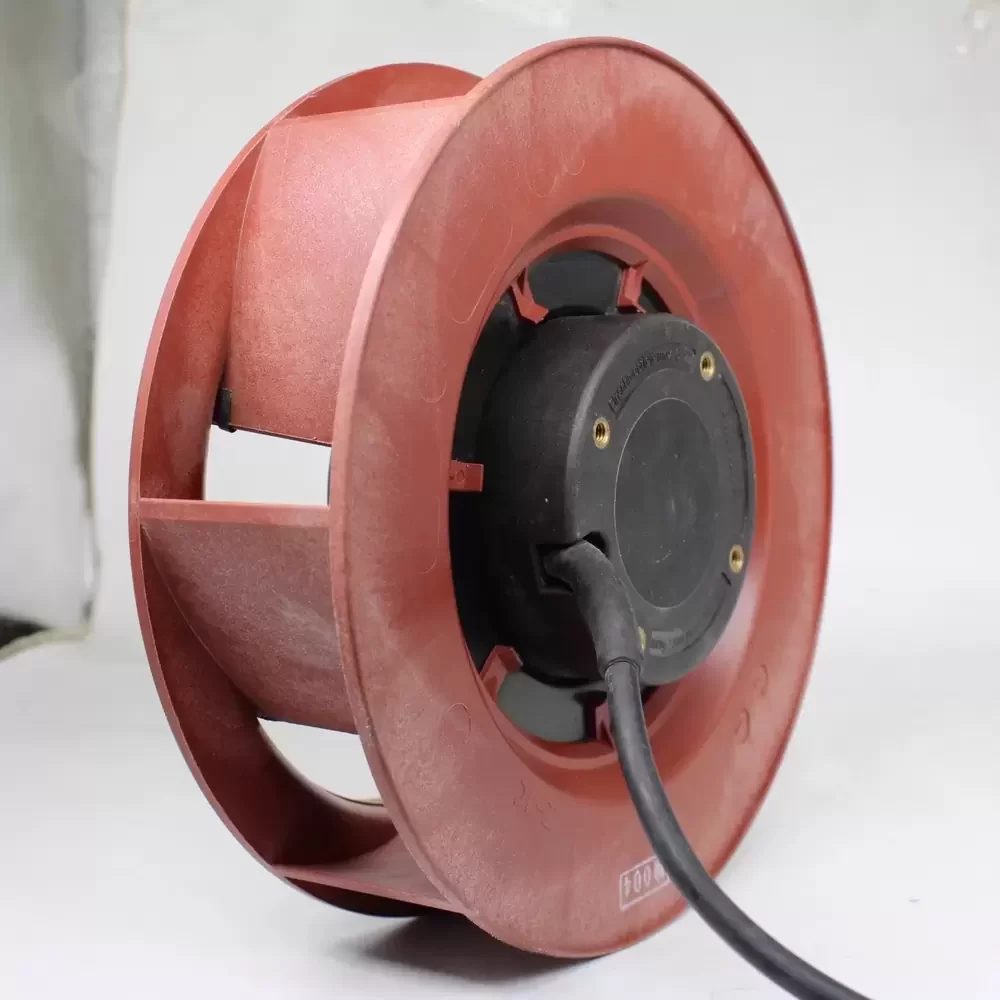

The ebmpapst R1G175-AB15-65/A01 is a high-efficiency backward curved centrifugal fan engineered for precision thermal management in industrial environments. Utilizing advanced EC motor technology, this unit delivers superior aerodynamic performance with reduced power consumption compared to traditional AC counterparts. The impeller features a robust composite construction designed to minimize structural resonance and optimize airflow dynamics. Equipped with maintenance-free ball bearings, the motor ensures long-term reliability and low thermal impedance under continuous operation. Its integrated electronics provide precise speed control via PWM, making it ideal for systems requiring adaptive cooling strategies and high static pressure capabilities.

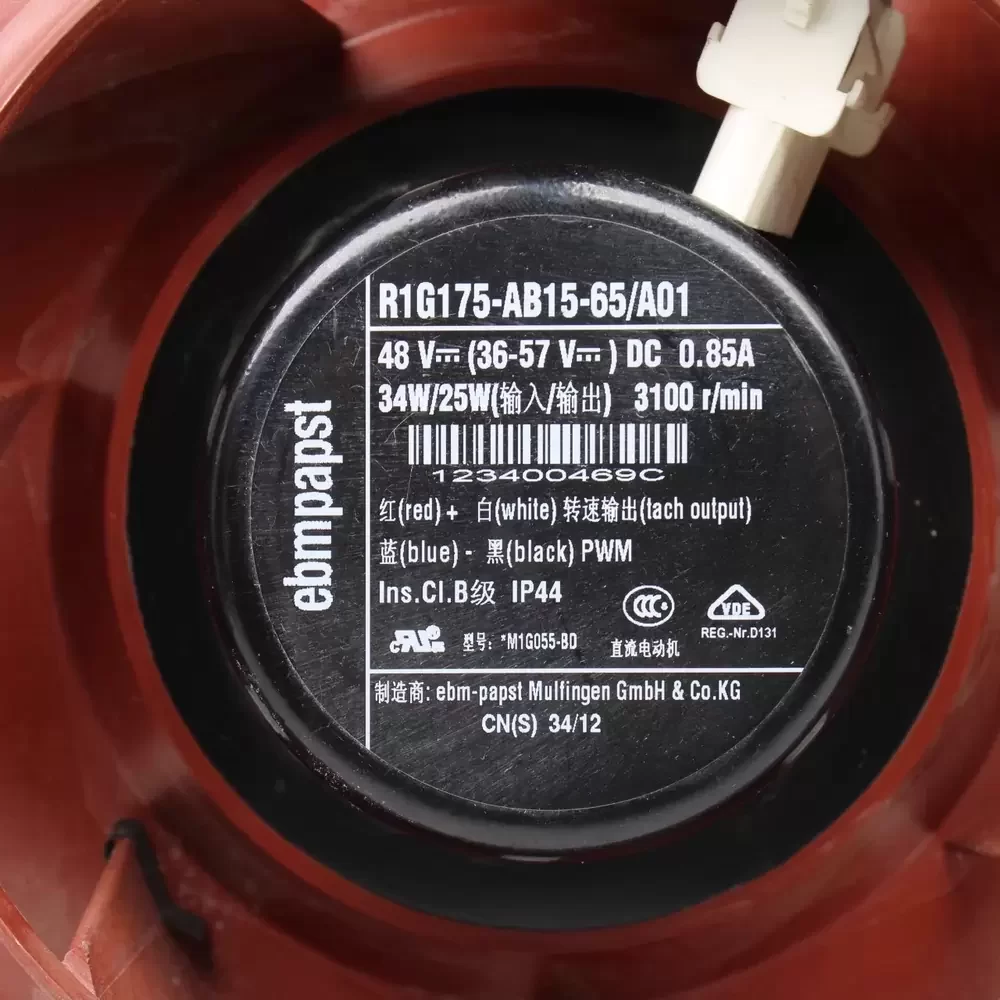

Model Number: R1G175-AB15-65/A01
Brand: ebmpapst
Product Type: Backward Curved Centrifugal Fan
Motor Technology: EC (Electronically Commutated)
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 57.0 VDC
Power Consumption: 34 W
Rated Speed: 3100 RPM
Rated Current: 0.85 A
Max. Air Flow: 329.6 CFM (560 m³/h / 9.33 m³/min)
Max. Static Pressure: 1.52 inH₂O (380 Pa)
Impeller Diameter: 175 mm
Bearing Type: Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Ingress Protection: IP44
Noise Level: 65 dBA
Operating Temperature: -20°C to +60°C
Life Expectancy: 50,000 Hours (L10 at 40°C)
Impeller Material: PA Plastic (Fiberglass Reinforced)
Housing Material: Die-Cast Aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Motor Protection: Reverse Polarity, Locked Rotor Protection
Weight: 0.75 kg
Compliance: CE, UL, CSA, VDE
This centrifugal fan is specifically calibrated for high-density electronic cooling applications, including telecommunications infrastructure and server cabinets. The R1G175-AB15-65/A01 excels in variable frequency drive (VFD) inverters where consistent airflow is critical for component longevity. Additionally, the R1G175-AB15-65/A01 is frequently utilized in medical instrumentation and industrial automation control panels, providing reliable thermal dissipation in enclosed spaces with high ingress protection requirements.
