Description

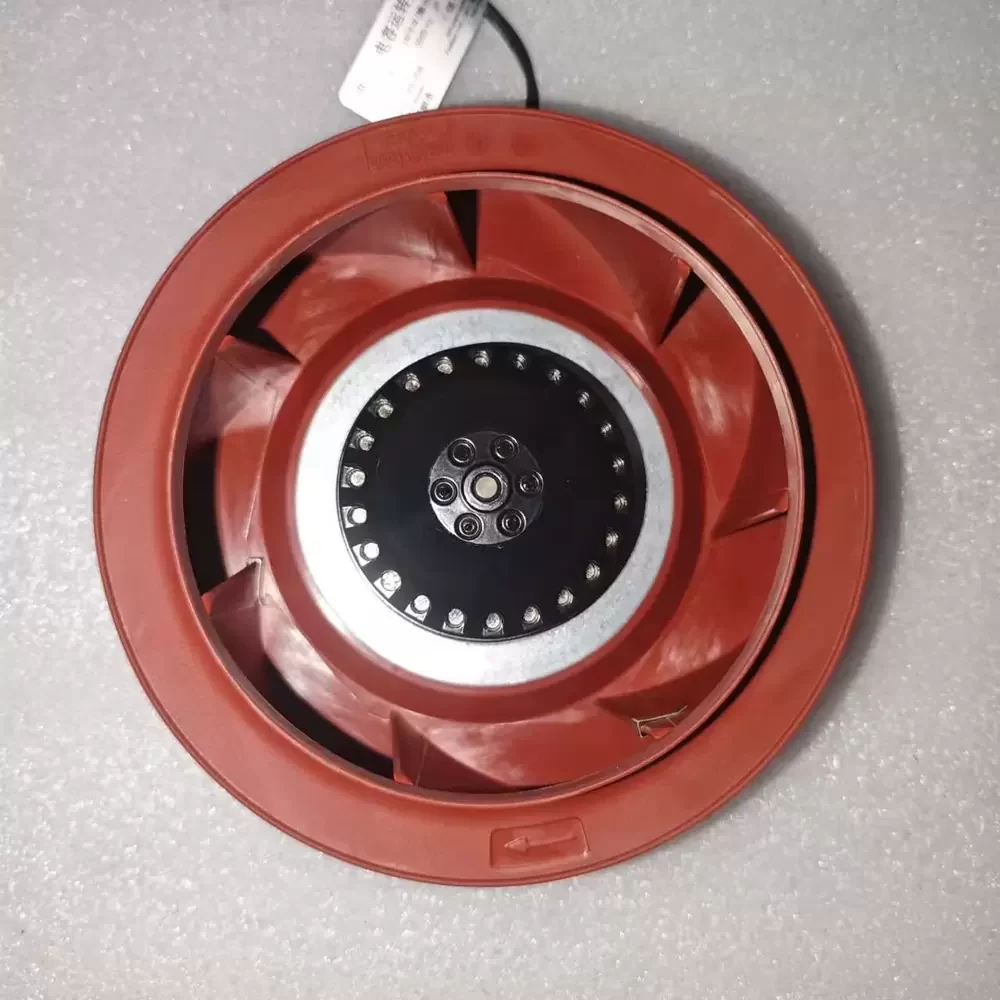

The ebm-papst R2E175-AR70-05 is a precision-engineered AC centrifugal fan designed for high-efficiency thermal management in compact industrial assemblies. Featuring a backward-curved motorized impeller, this unit integrates the external rotor motor M2E068-BF to optimize aerodynamic performance while minimizing structural footprint. The system utilizes maintenance-free ball bearings to ensure long-term reliability and reduced thermal impedance under continuous operation. Constructed with a glass-fiber reinforced PA6 plastic impeller and galvanized steel support, it delivers superior structural rigidity and vibration resistance. This 230VAC cooling solution is specifically calibrated for applications requiring high static pressure and consistent airflow, ensuring optimal heat dissipation in demanding environments.
Model Number: R2E175-AR70-05
Brand: ebm-papst
Product Type: Motorized Impeller / Centrifugal Fan
Motor Type: AC External Rotor Motor (M2E068-BF)
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.27 / 0.34 A
Power Input: 60 / 75 W
Rated Speed: 2600 / 2900 RPM
Capacitor: 2.0 µF / 400 VDB
Max. Air Flow: 335.5 CFM (570 m³/h)
Max. Static Pressure: 380 Pa
Bearing Type: Ball Bearing
Impeller Diameter: 175mm
Impeller Material: PA Plastic (Glass-fiber reinforced)
Insulation Class: B
Ingress Protection: IP44
Motor Protection: Thermal Overload Protector (TOP) wired internally
Operating Temperature: -25°C to +60°C
Weight: 1.3 kg
Compliance: CE, CCC, EAC
Direction of Rotation: Clockwise, seen on rotor
Mounting Orientation: Shaft horizontal or rotor on bottom
Phase: 1~
The R2E175-AR70-05 is engineered for critical ventilation tasks within industrial automation and telecommunications infrastructure. Frequently deployed in control cabinet cooling, variable frequency drive (VFD) ventilation, and precision air conditioning units, the R2E175-AR70-05 ensures component longevity by maintaining optimal operating temperatures. Its compact motorized impeller design makes it ideal for inline duct fans, clean room filtration systems, and heat exchangers where space is limited but high pressure is required.
