Description

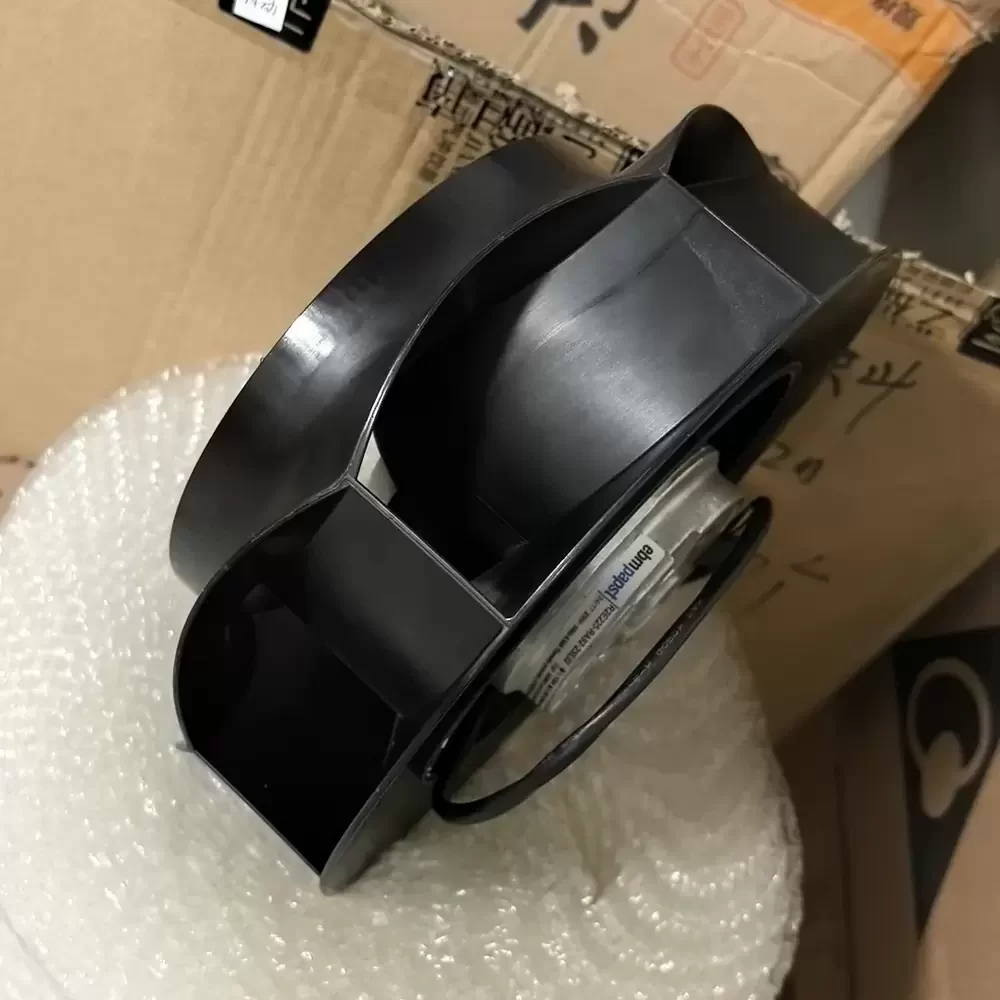

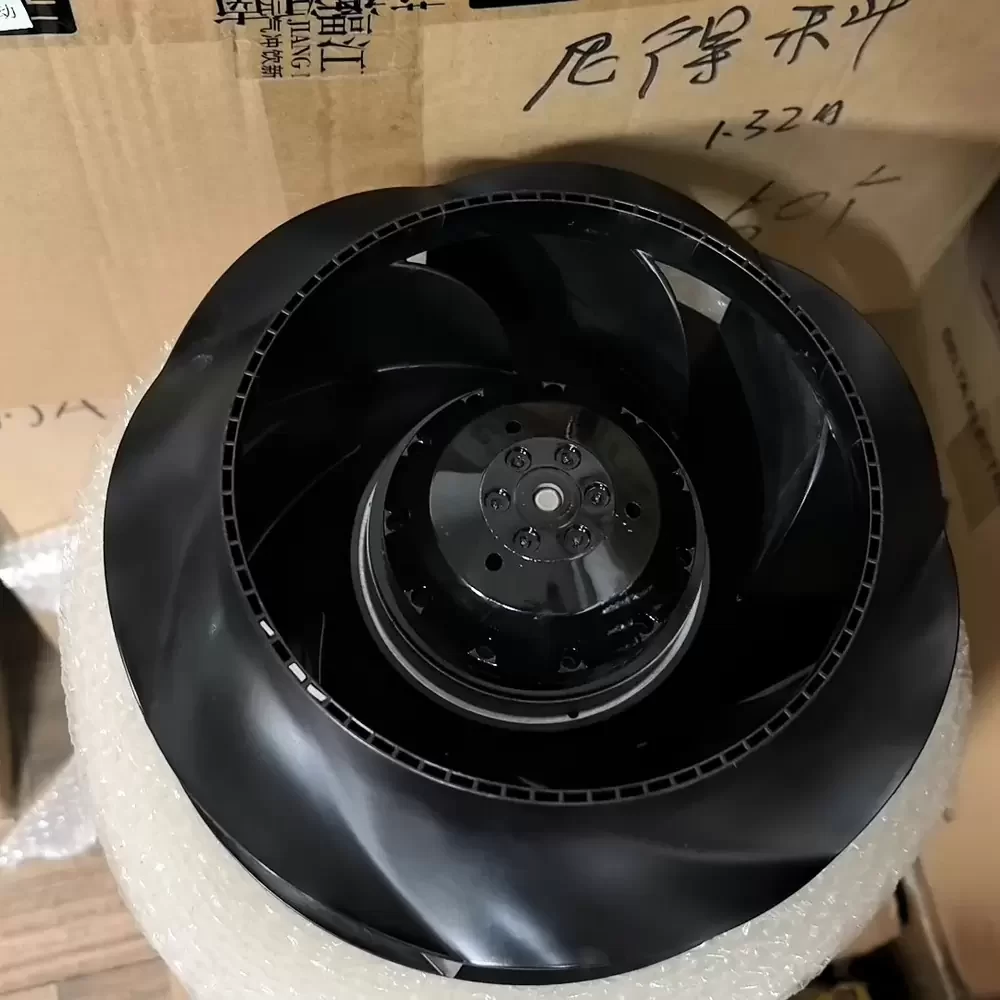

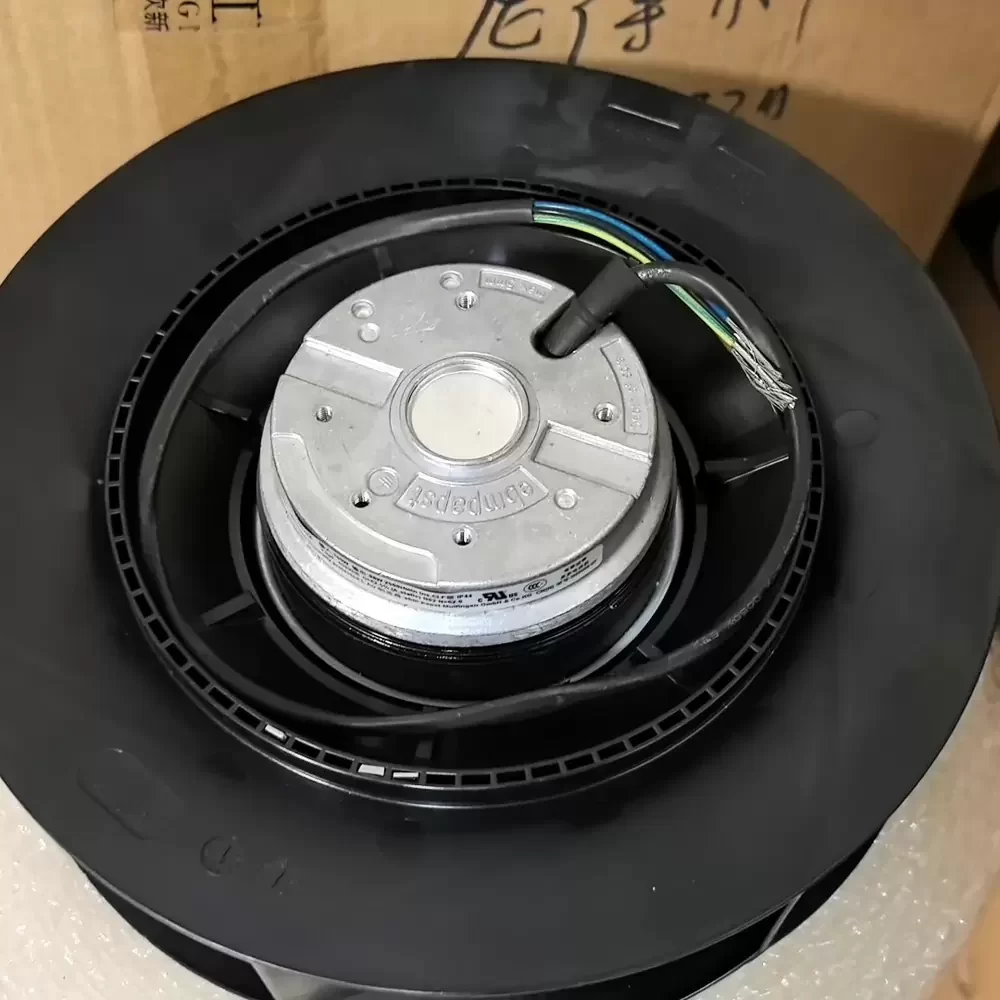

The ebmpapst R2E225-RA92-23/L02 is a precision-engineered Backward Curved Centrifugal Fan designed for high-efficiency thermal management in demanding industrial environments. Utilizing an external rotor motor configuration (M2E068-DF), this unit integrates the impeller directly onto the rotor, optimizing structural rigidity and reducing overall depth for compact integration. The aerodynamic profile of the glass-fiber reinforced plastic blades minimizes turbulence and noise generation while maintaining high static pressure capabilities. Engineered with robust ball bearings and advanced thermal impedance characteristics, this fan ensures reliable continuous operation under significant load, making it suitable for critical ventilation systems requiring consistent airflow performance and longevity.
Model Number: R2E225-RA92-23/L02
Brand: ebmpapst
Product Type: Backward Curved Centrifugal Fan
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.68 A
Power Consumption: 155 W
Rated Speed: 2500 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 765 CFM (1300 m³/h)
Max. Static Pressure: 2.33 inH₂O (580 Pa)
Impeller Diameter: 225mm
Weight: 2.3 kg
Motor Type: M2E068-DF
Capacitor: 3.5 µF / 400 VDB
Impeller Material: PA Plastic (Glass-fiber reinforced)
Housing Material: Die-cast aluminum
Insulation Class: Class F
Ingress Protection: IP44
Operating Temperature: -25°C to +60°C
Mounting Orientation: Any
Direction of Rotation: Clockwise, seen on rotor
Motor Protection: Thermal overload protector (TOP) wired internally
Approvals: CE, CCC
This high-performance air movement solution is frequently deployed in cabinet cooling, inline duct fans, and industrial ventilation systems. The R2E225-RA92-23/L02 excels in applications such as variable frequency drive (VFD) cooling and heat exchanger systems where space is limited but high pressure is required. Additionally, the R2E225-RA92-23/L02 is utilized in cleanroom filtration units and telecom base stations, ensuring critical components remain within optimal operating temperature ranges to prevent thermal shutdown.
