Description

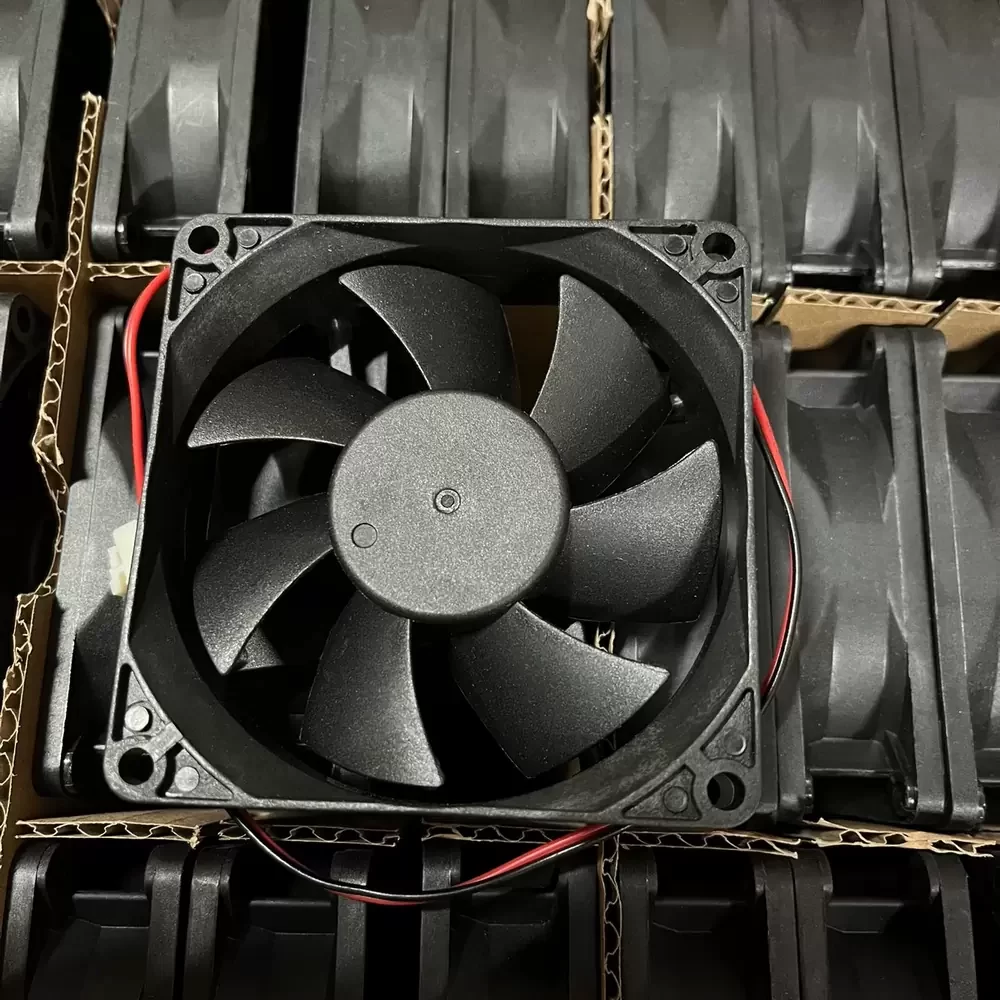

The RUN CHENG DA RCD8025H24S is a precision-engineered Axial Fan designed for efficient thermal management in industrial electronics and power conversion systems. This unit features a robust 24VDC motor architecture optimized for consistent airflow delivery and reduced thermal impedance. Constructed with a durable thermoplastic frame, the fan ensures structural rigidity while minimizing vibration during operation. The aerodynamic impeller design balances static pressure with volumetric flow, making it suitable for continuous duty cycles. Its sleeve bearing system provides a cost-effective solution for stable rotational performance in controlled environments, ensuring reliable heat dissipation for sensitive components.
Model Number: RCD8025H24S
Brand: RUN CHENG DA
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Power: 3.60 W
Rated Speed: 3300 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 42.0 CFM (71.3 m³/h / 1.19 m³/min)
Max. Static Pressure: 5.8 mmH₂O (56.8 Pa / 0.23 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 85 g
Life Expectancy: 30,000 Hours @ 25°C
Noise Level: 34 dBA
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: Lead wires (300mm)
Number of Blades: 7
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Vertical or Horizontal
Ingress Protection: IP20
The RCD8025H24S is engineered for critical cooling applications requiring reliable heat dissipation within compact enclosures. It is frequently utilized in variable frequency drives (VFDs) and power inverters where maintaining optimal operating temperatures is essential for component longevity. Additionally, the RCD8025H24S serves effectively in server rack ventilation systems, industrial automation control panels, and telecommunications equipment. Its standard 80mm form factor allows for seamless integration into power supply units and CNC machinery, ensuring consistent airflow in space-constrained industrial environments.
