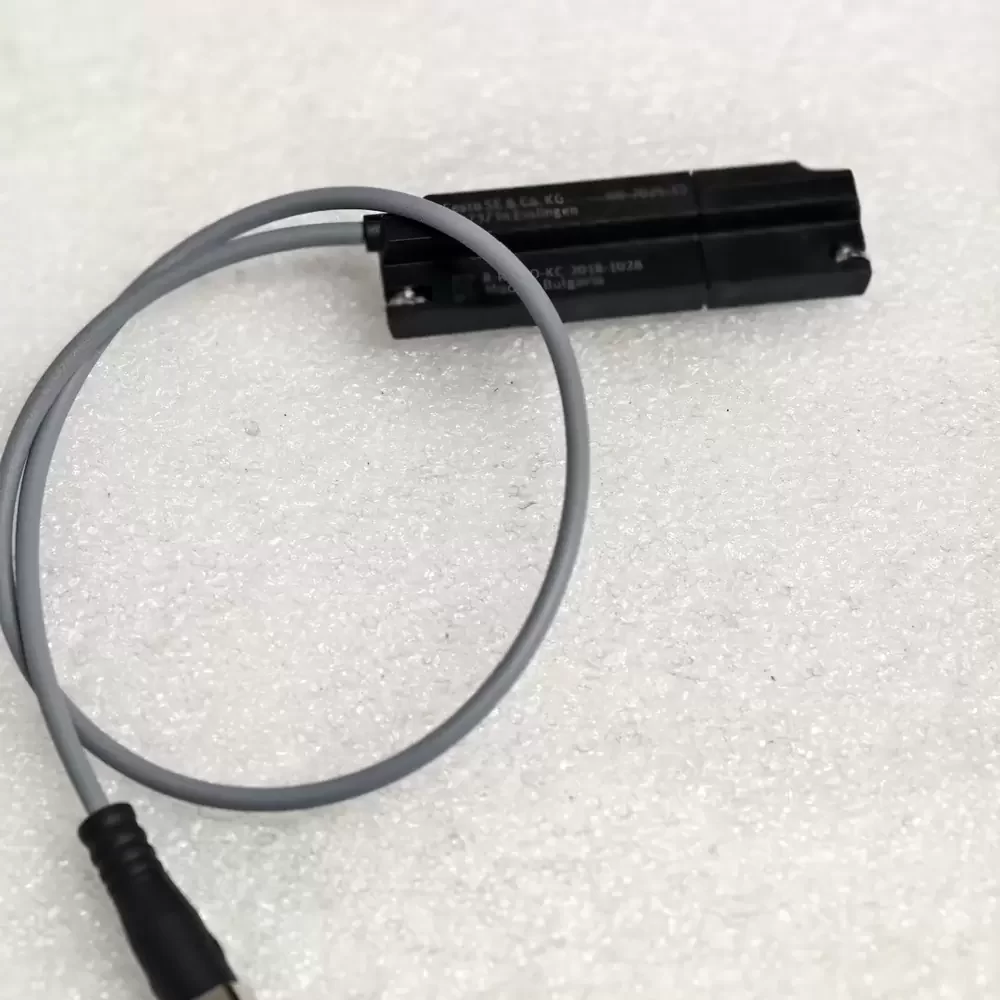

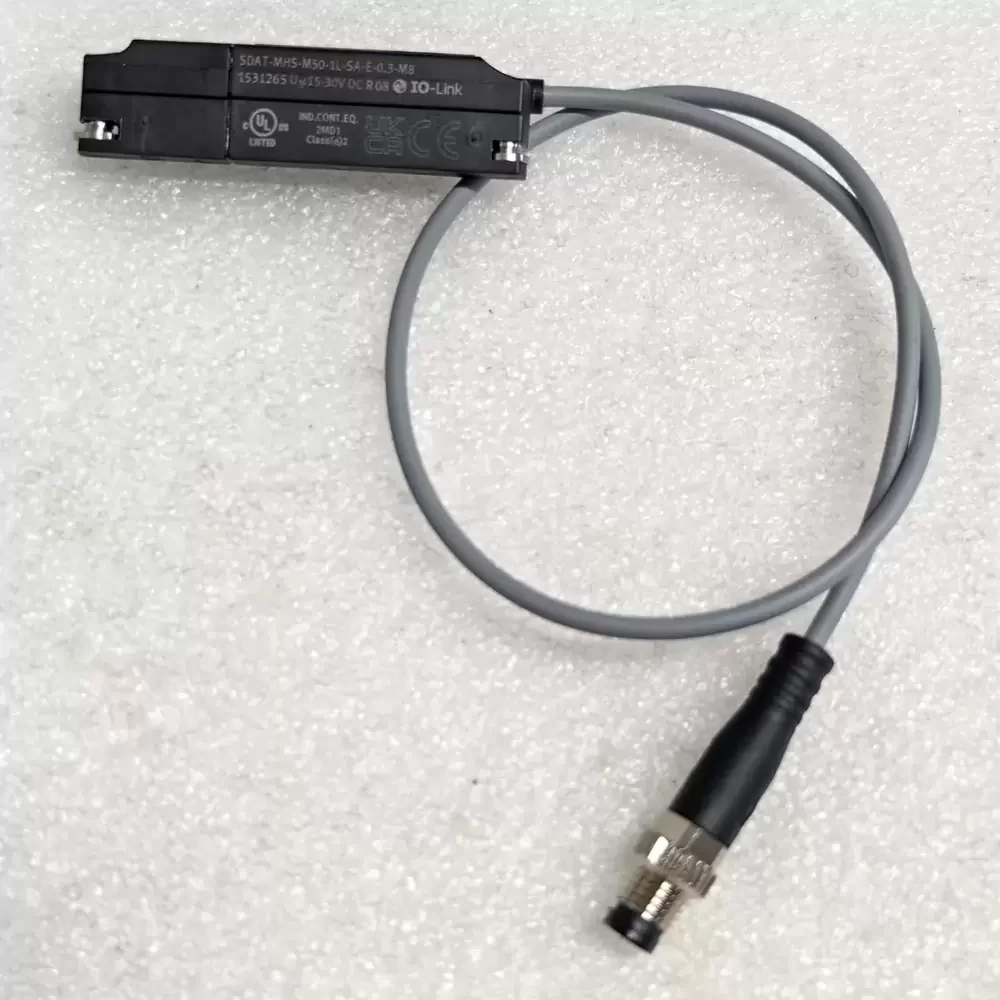

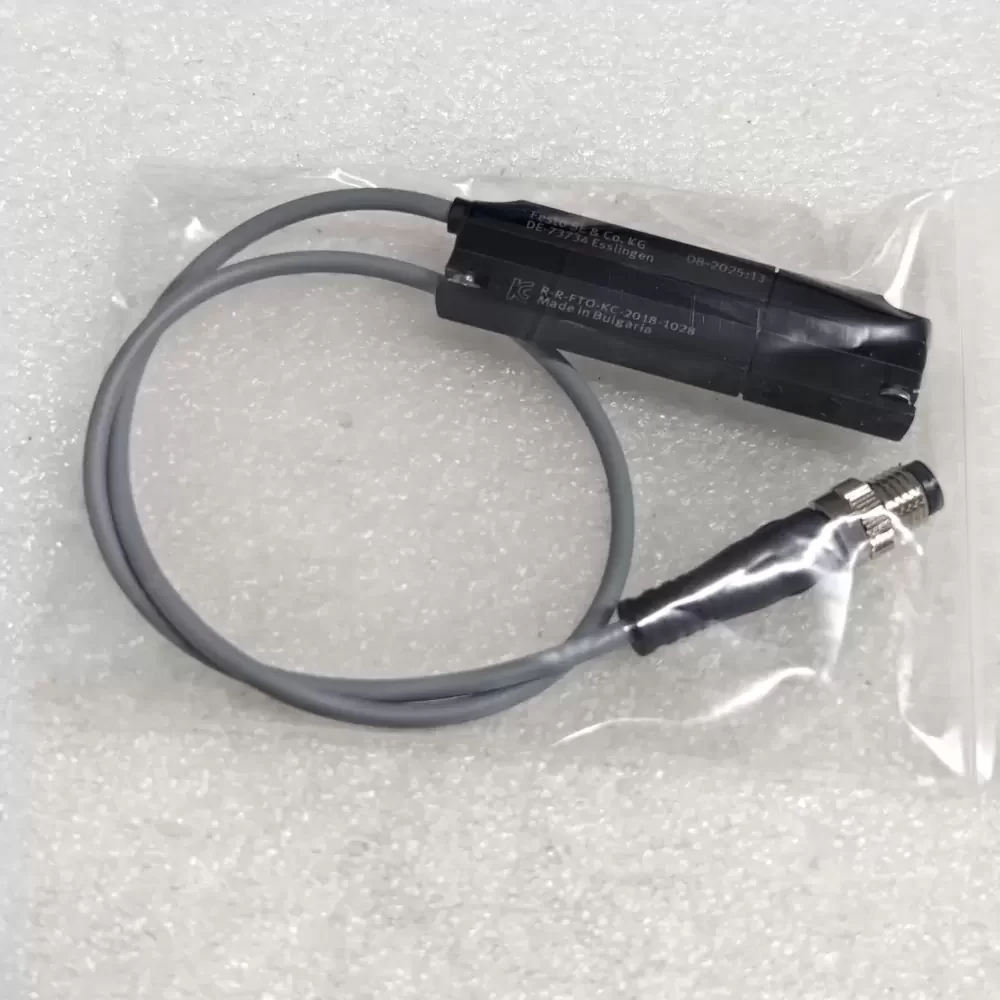

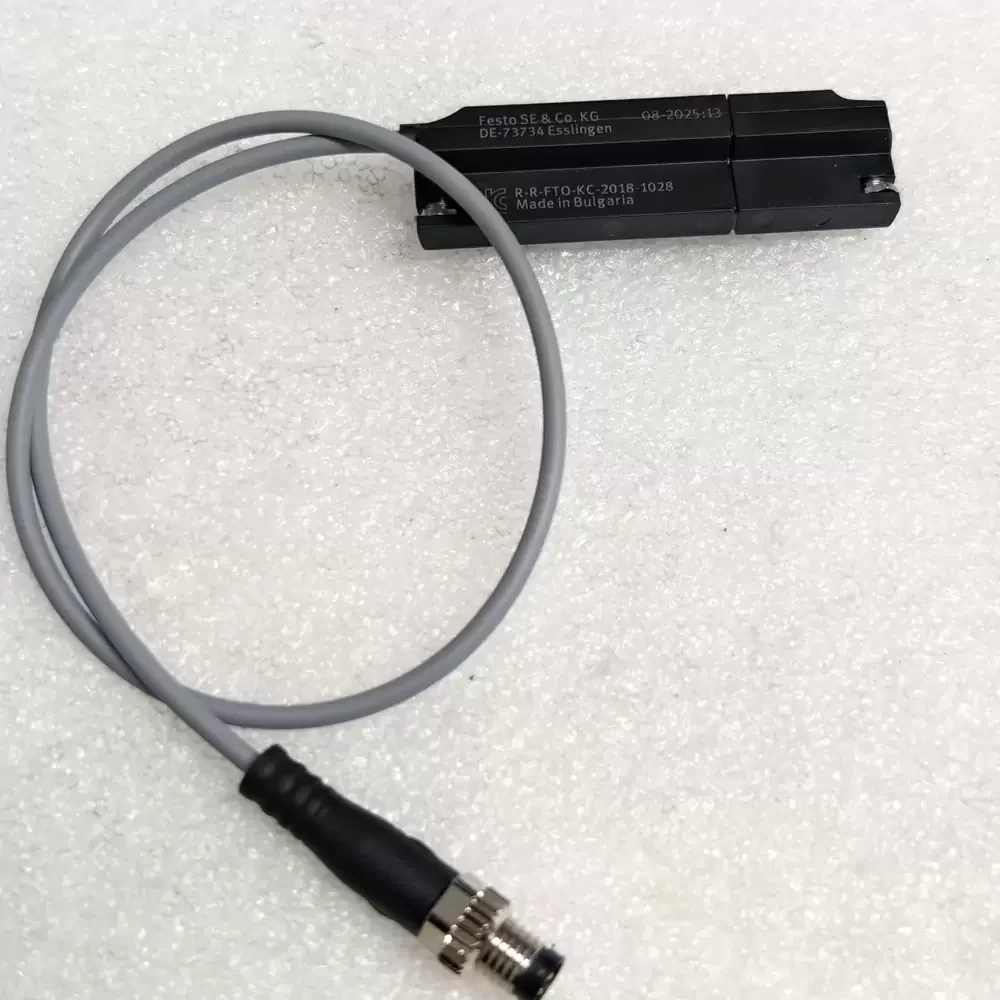

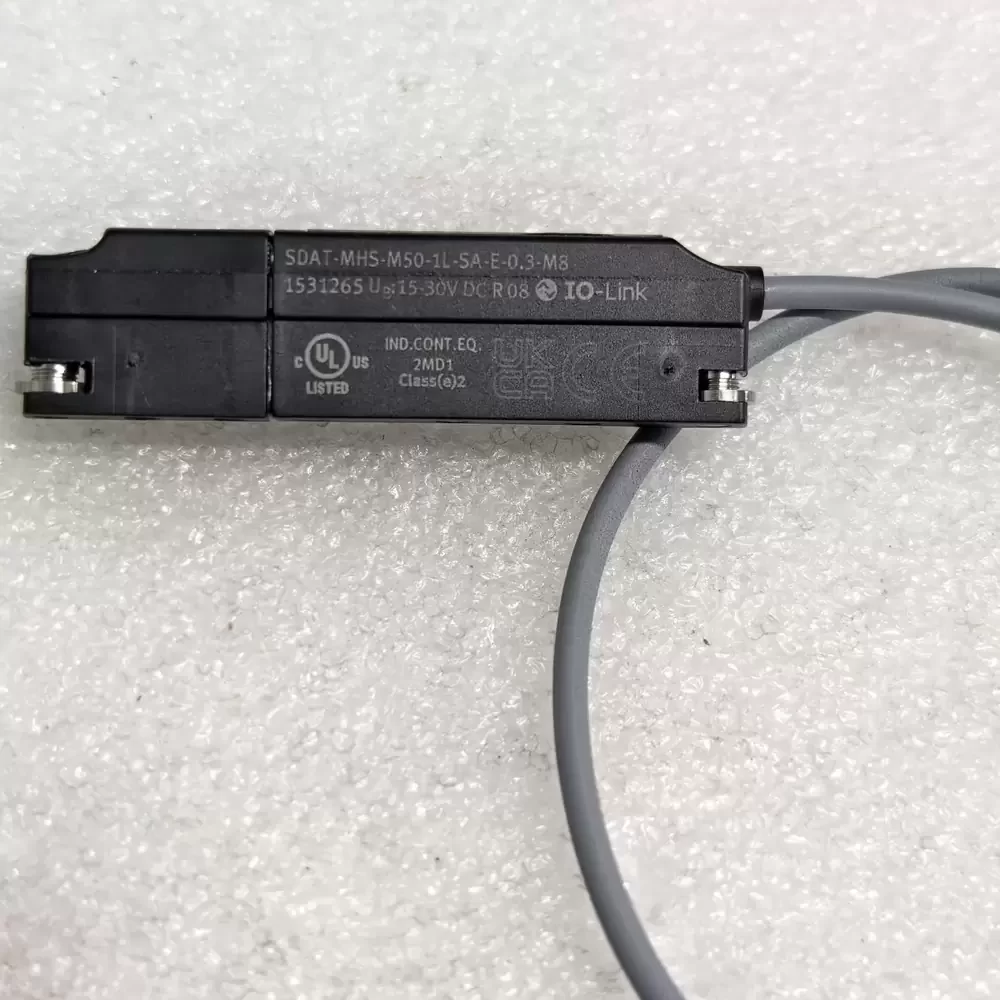

SDAT-MHS-M50-1L-SA-E-0.3-M8 Festo 50mm 4-20mA M8 Position Transmitter

Description

Festo SDAT-MHS-M50-1L-SA-E-0.3-M8 is a T-slot compatible position transmitter featuring a 50 mm sensing range, 4-20 mA analog output, and a 0.3 m cable with an M8 4-pin connector. The unit operates on a 15 to 30 V DC supply and utilizes a Hall-effect sensor principle to provide continuous position feedback. Constructed with a reinforced polyamide and high-alloy stainless steel housing, it achieves IP65 and IP68 protection ratings. The internal electronics support IO-Link communication and provide a typical repetition accuracy of 0.1 mm.

SDAT-MHS-M50-1L-SA-E-0.3-M8 Specifications
Model Number: SDAT-MHS-M50-1L-SA-E-0.3-M8
Part Number: 1531265
Brand: Festo
Product Category: Position Transmitter
Measuring Principle: Magnetic Hall
Sensing Range: 50 mm
Analog Output: 4 – 20 mA
Switching Output: PNP
Switching Element Function: N/C or N/O contact, switchable
Operating Voltage: 15 to 30 V DC
Nominal Operating Voltage: 24 V DC
Electrical Connection: M8x1, 4-pin, A-coded, Cable with plug
Cable Length: 0.3 m
Communication Interface: IO-Link, I-Port
IO-Link Protocol Version: Device V 1.1
IO-Link Communication Mode: COM3 (230.4 kBaud)
Displacement Resolution: 0.05 mm
Repetition Accuracy: 0.1 mm
Typical Linearity Error: ±0.25 mm
Max. Travel Speed: 3 m/s
Max. Output Current: 100 mA
Max. Switching Capacity DC: 2.7 W
Voltage Drop: 2.5 V
Max. Load Resistance Current Output: 500 Ohm
Protection Class: IP65, IP68
Ambient Temperature: -25 to 70 °C
Housing Material: PA-reinforced, High-alloy stainless steel, Wrought aluminium alloy
Mounting Type: Inserted into T-slot from above

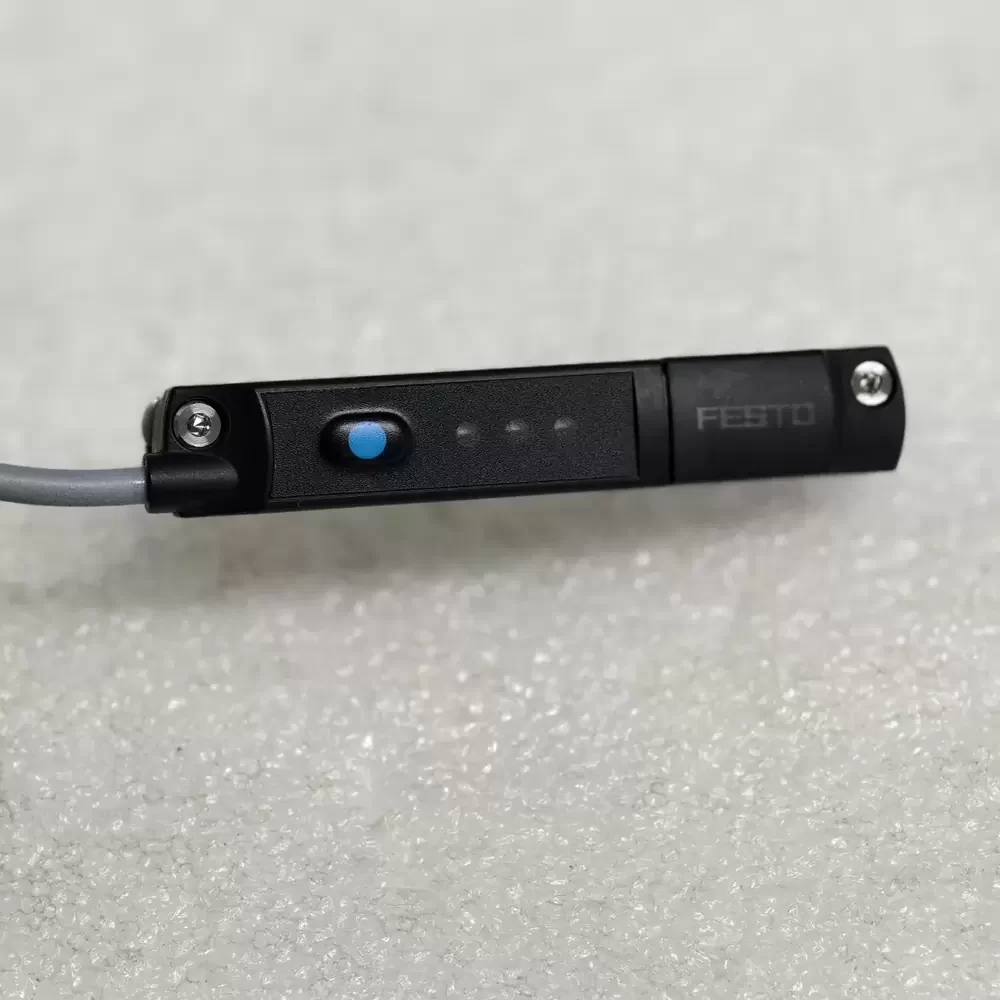

Status Indicators: Green LED (Ready), Yellow LED (Status), Red LED (Out of range)
Certifications: RCM, c UL us Listed (OL), CE, UKCA

SDAT-MHS-M50-1L-SA-E-0.3-M8 Applications
Primary applications include integration into pneumatic cylinder stroke monitoring systems, automated assembly lines, and robotic end-effector positioning. Deployed within material handling sorters and CNC clamping verification units to provide precise feedback for closed-loop control.
