Description

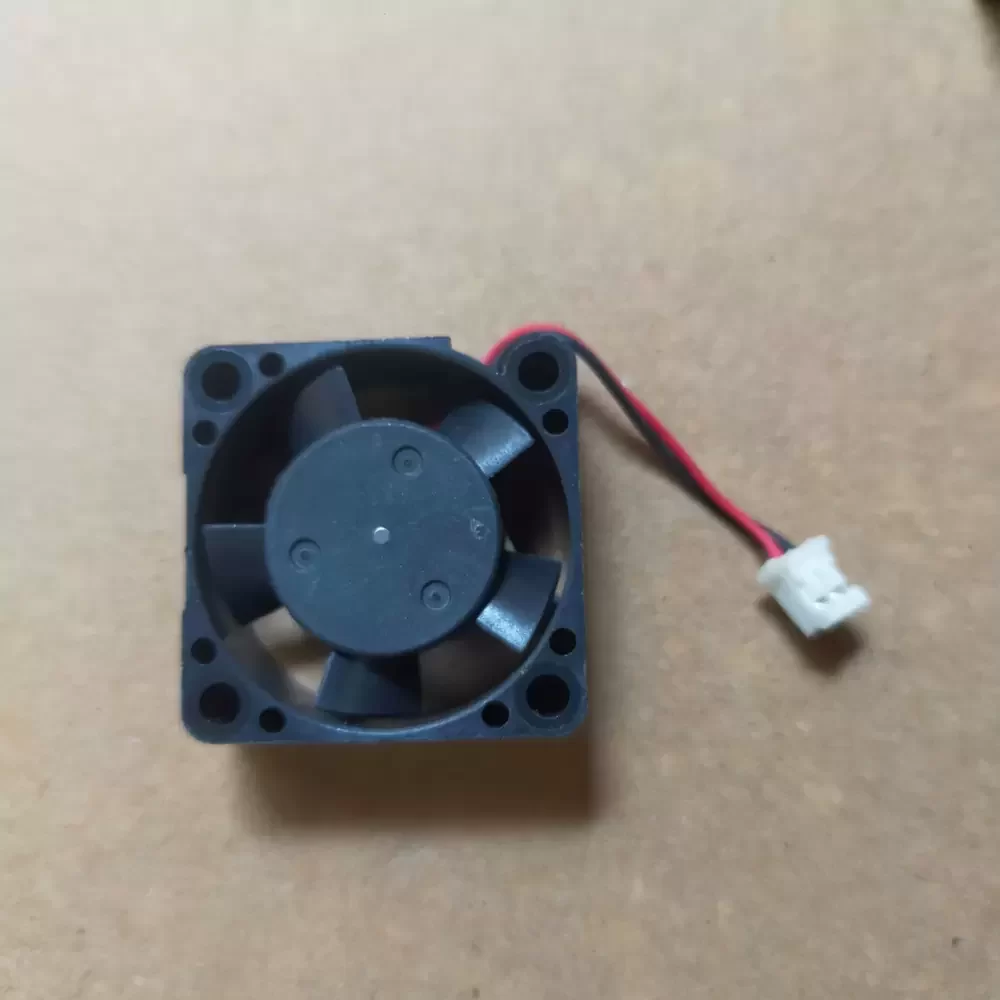

The SEPA SF30C-12 is a compact DC Axial Fan engineered for precision thermal management in space-constrained electronic assemblies. Utilizing an advanced aerodynamic impeller design, this unit optimizes airflow while maintaining a low acoustic profile, characterized by its minimal current draw of 0.06A. The construction features a durable PBT housing that ensures structural rigidity and resistance to thermal deformation. Designed with a reliable bearing architecture, the fan delivers consistent performance, effectively reducing thermal impedance in sensitive components. Its 12VDC operation and standardized dimensions make it an ideal solution for maintaining operational stability in industrial and consumer electronics.
Model Number: SF30C-12
Brand: SEPA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.06 A
Power Input: 0.72 W
Rated Speed: 7700 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 3.2 CFM (5.4 m³/h / 0.09 m³/min)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa / 0.08 inH₂O)
Dimensions: 30x30x12mm
Noise Level: 21 dB(A)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +60°C
Storage Temperature: -30°C to +70°C
Life Expectancy: 30,000 Hours at 40°C
Weight: 8 g
The SF30C-12 is specifically designed for applications requiring efficient heat dissipation within compact enclosures, such as chipset cooling, DVR systems, and portable instrumentation. Its small footprint allows for integration into tight spaces where airflow is critical for component longevity. Engineers frequently select the SF30C-12 for medical handheld devices and telecommunications equipment where low noise and reliability are paramount. The consistent airflow provided by the SF30C-12 ensures that sensitive microprocessors remain within safe operating temperature ranges.
