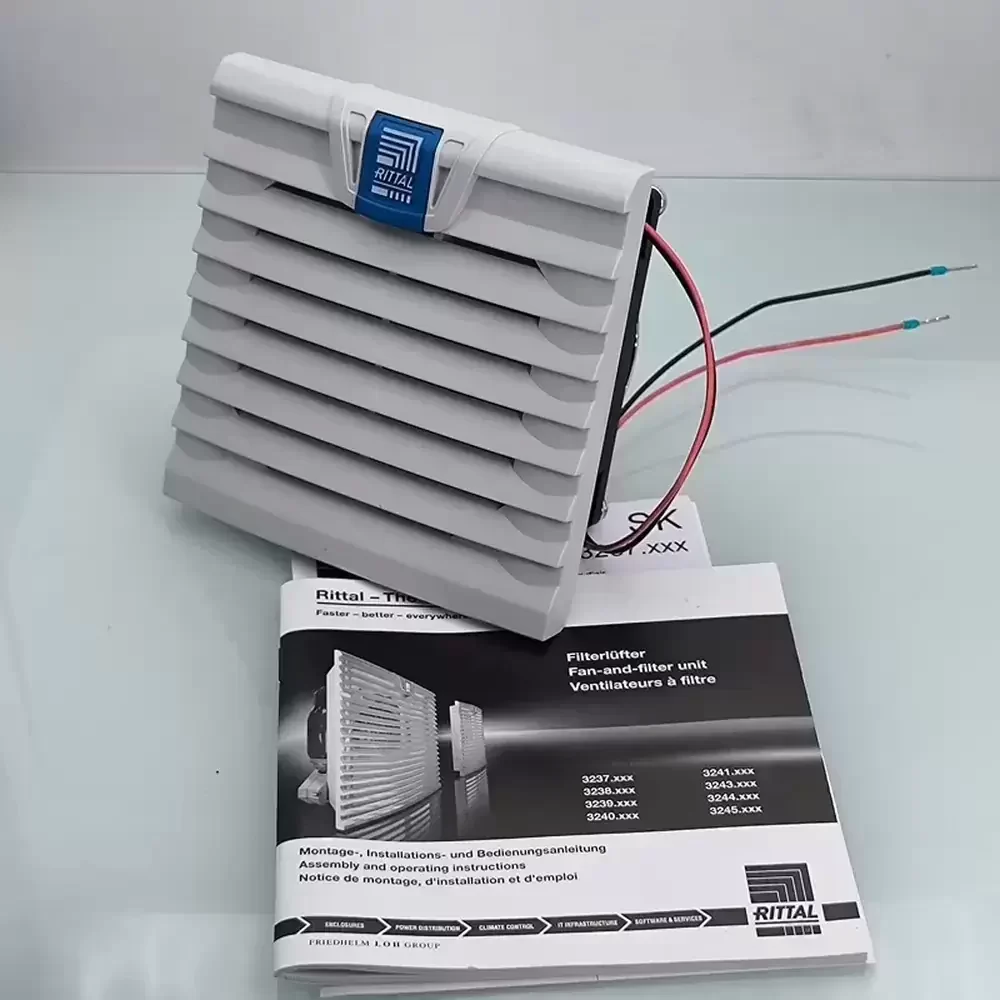

The Rittal SK 3237.124 is a precision-engineered TopTherm Fan-and-filter unit designed for optimal thermal management in industrial enclosures. Utilizing advanced diagonal fan technology, this 24VDC unit ensures stable pressure build-up and consistent airflow to mitigate thermal impedance within high-density component layouts. The housing features a tool-free assembly mechanism with a sophisticated latching system, ensuring structural rigidity and rapid installation. Engineered with high-quality ABS material, the SK 3237.124 maintains an IP54 protection rating, effectively shielding sensitive electronics from dust and particulate ingress while delivering energy-efficient cooling performance.
Model Number: SK 3237.124
Brand: Rittal
Product Type: TopTherm Fan-and-filter Unit
Rated Voltage: 24 VDC
Rated Current: 0.12 A
Rated Power: 3.0 W
Max. Air Flow (Unimpeded): 20 m³/h (11.8 CFM)
Air Flow (With Filter): 15 m³/h
Dimensions (W x H): 148.5 x 148.5 mm
Installation Depth: 58.5 mm
Mounting Cut-out: 124 x 124 mm
Noise Level: 38 dB(A)
Bearing Type: Ball Bearing
Ingress Protection: IP54 (Standard)
Operating Temperature: -15°C to +55°C
Storage Temperature: -30°C to +70°C
Material: ABS (Fire resistance to UL 94-5VA)
Color: RAL 7035 (Light Grey)
Weight: 0.34 kg
Life Expectancy: 60,000 h (at 25°C)
Connection: 2 single wires (length approx. 300 mm)
Pre-fuse: Miniature circuit-breaker/fuse: 2 A
The SK 3237.124 is specifically engineered for climate control in small to medium-sized industrial enclosures and server racks where heat dissipation is critical for component longevity. Commonly deployed in automation control panels, telecommunications infrastructure, and CNC machinery interfaces, this unit ensures reliable air exchange to prevent hotspots. The SK 3237.124 facilitates rapid maintenance through its tool-free filter replacement system, making it an ideal solution for continuous-duty manufacturing environments and IT data closets requiring consistent thermal regulation.
