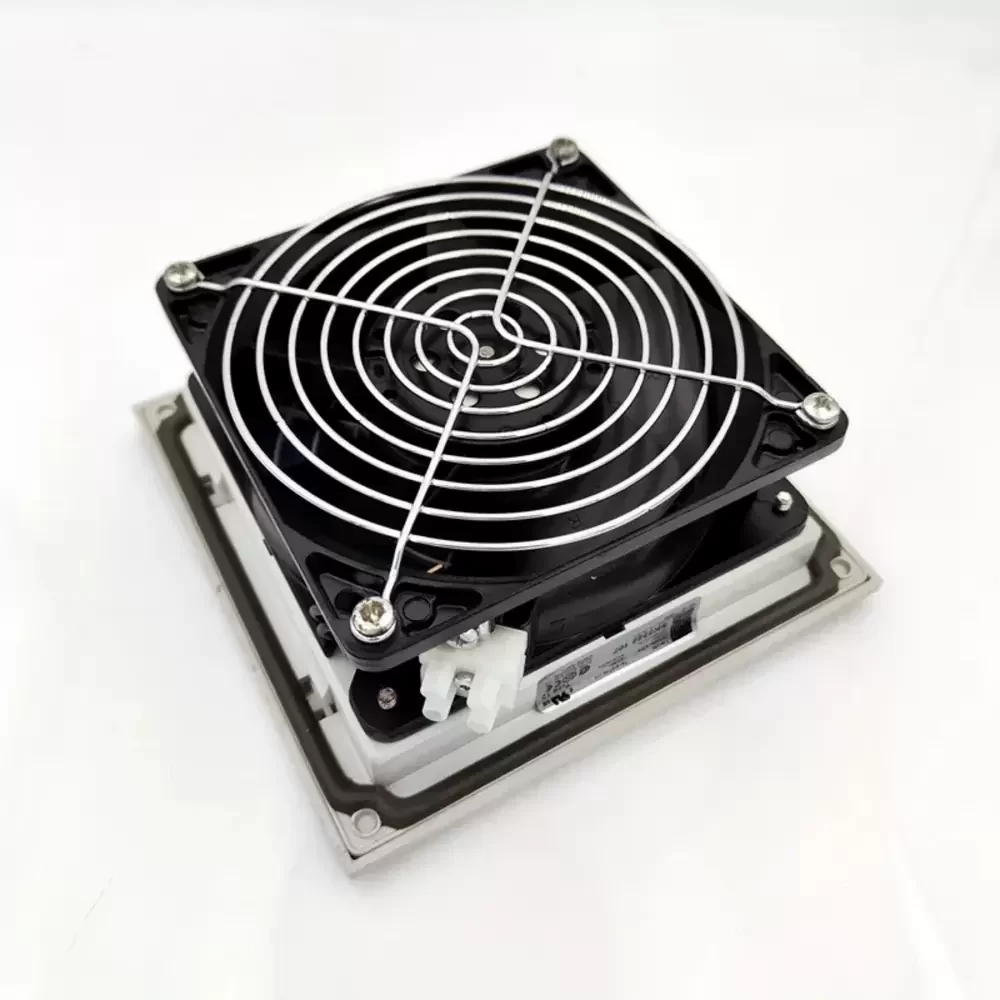

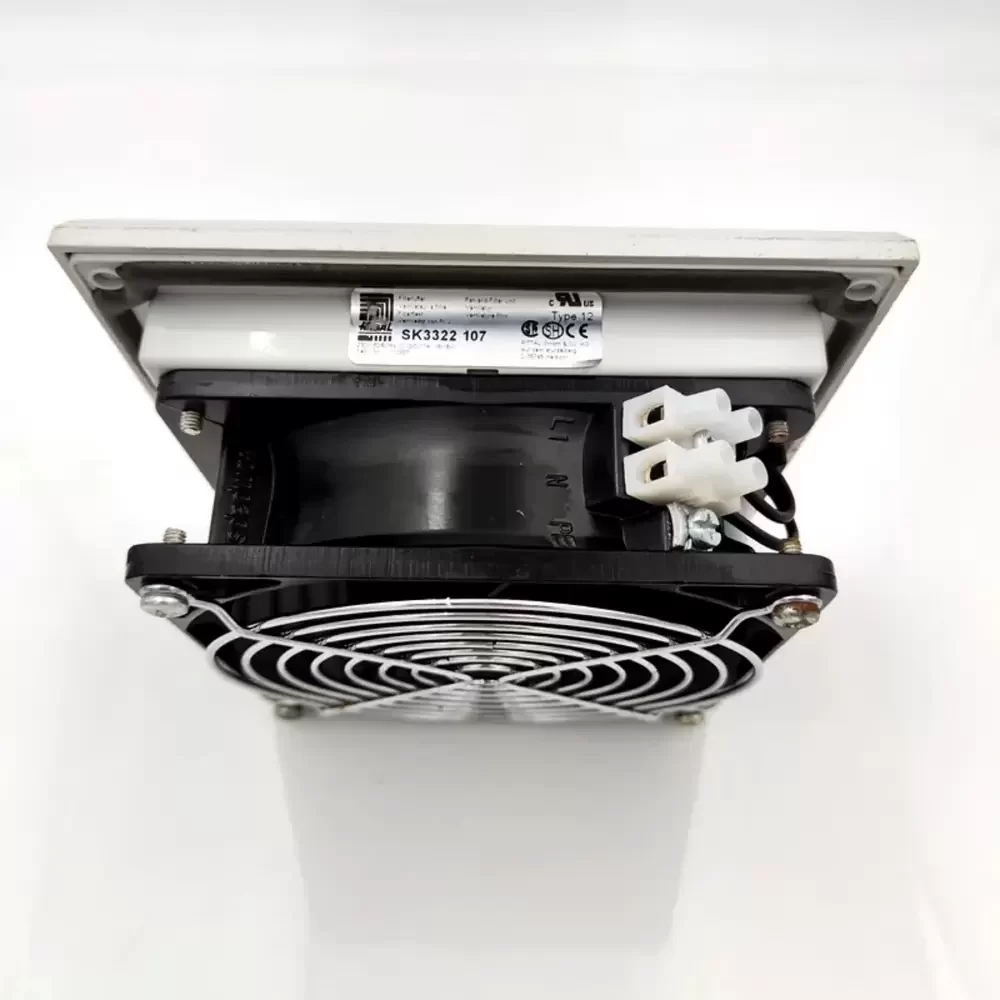

SK3322.107 Rittal 230VAC 148.5×148.5mm Fan-and-Filter Unit

Description

Rittal SK3322.107 is a 230VAC 148.5×148.5mm Axial Fan-and-Filter Unit optimized for thermal management in high-density electrical enclosures. This industrial-grade cooling solution utilizes an ebmpapst motor assembly featuring a robust AC external rotor design and high-precision bearing architecture to ensure long-term structural rigidity. The unit is engineered to minimize thermal impedance within control cabinets by providing consistent laminar airflow through a specialized filter medium. Operating at 19W with a rated current of 12mA at 50Hz, this fan-and-filter unit maintains critical internal temperatures while offering scalable ingress protection up to IP56 with optional accessories. Its aerodynamic housing is designed for rapid tool-free installation, ensuring efficient heat dissipation in demanding industrial environments.

Model Number: SK 3322.107
Brand: Rittal
Product Type: Fan-and-Filter Unit
Rated Voltage: 230 VAC
Voltage Frequency: 50 / 60 Hz
Rated Current: 12 mA (50 Hz) / 11 mA (60 Hz)
Power Consumption: 19 W (50 Hz) / 18 W (60 Hz)
Dimensions: 148.5 x 148.5 mm
Build Depth: 67.5 mm
Required Mounting Cut-out: 124 x 124 mm
Ingress Protection: IP 54 (Standard) / IP 55 (with fine filter mat) / IP 56 (with hose-proof hood)
Operating Temperature: -30 °C to +70 °C
Motor Technology: AC External Rotor (ebmpapst)
EAN: 4028177165373
Supply Includes: Complete unit ready to install including filter mat
Recommended Accessories: Enclosure internal thermostat or speed control

SK3322.107 Applications
1. Industrial Control Cabinets: Ideal as a replacement fan for Rittal TopTherm systems to maintain IP54 integrity while overcoming internal static pressure caused by dense component layouts.
2. Low-Profile VFD Enclosures: The 67.5mm build depth allows for efficient heat extraction in shallow cabinets where space-constrained thermal management is critical.
3. Harsh Environment Electronics: Utilizing the IP56 upgrade path via hose-proof hoods, this unit provides reliable cooling for outdoor telecom or food processing wash-down areas.” areas.

Updated: 2026-03-25 11:42

Additional information

Shipping Weight	1 kg
