SOB963360 Celduc 24-600VAC 35A Dual Phase Solid State Relay

Description

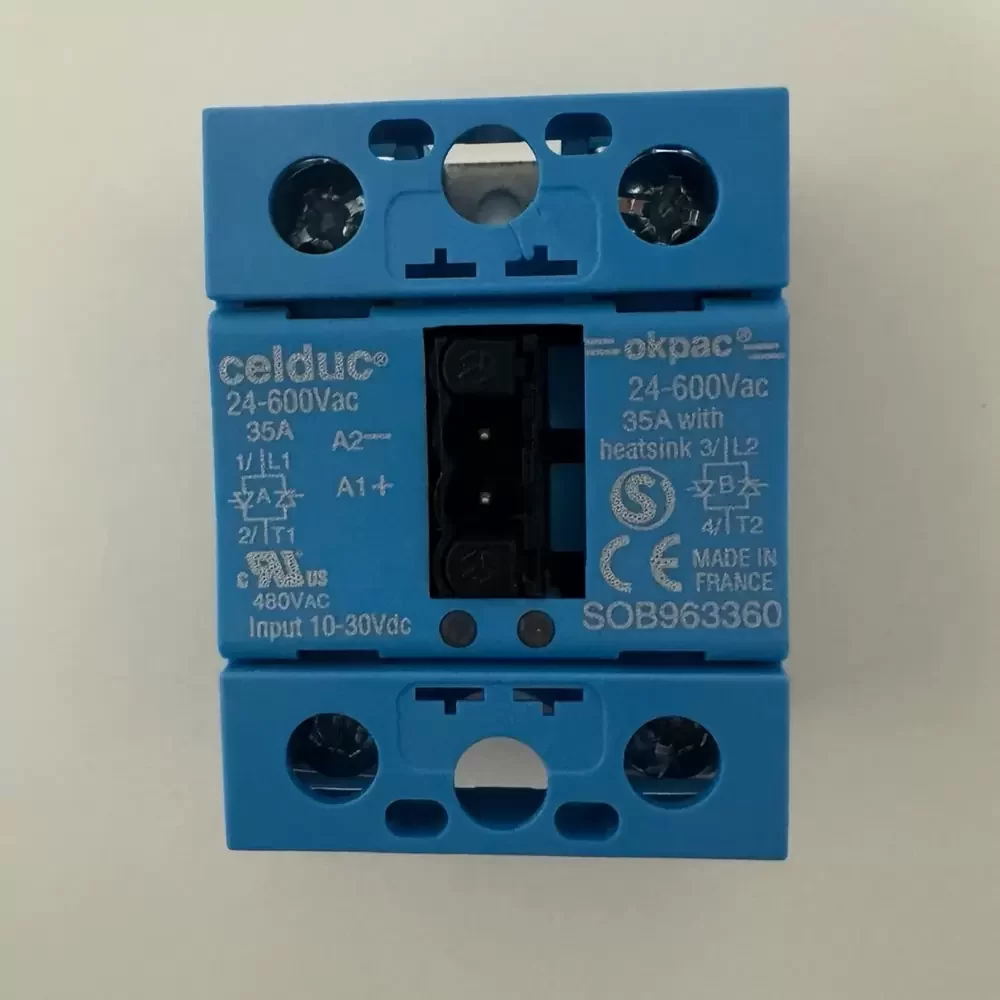

Celduc SOB963360 is a dual-phase solid state relay featuring a 24 to 600 VAC output voltage, 2 x 35 A nominal current capacity, and a 10 to 30 VDC control input. The 80 g unit utilizes a synchronous zero-cross switching mechanism specifically engineered for AC-51 resistive loads. It incorporates a robust plastic housing, integrated LED input status indication, and operates within a thermal range of -40 to 85 °C, complying with IEC/EN60947-4-3 standards.

SOB963360 Specifications

Model Number: SOB963360
Brand: Celduc Relais
Product Category: Dual Power Solid State Relay
Output Voltage Range: 24 to 600 VAC
Output Current: 2 x 35 A
Control Voltage (Input): 10 to 30 VDC
Switching Type: Zero-Cross (Synchronous)
Load Compatibility: AC-51 Resistive Loads
Operating Temperature: -40 to 85 °C
Storage Temperature: -55 to 125 °C
Weight: 80 g
Input LED Indicator: Yes
Certifications: CE, UL/cUL, IEC/EN60947-4-3
Country of Origin: France

SOB963360 Applications

Primary applications include integration into industrial heating control panels, plastic injection molding machines, and commercial packaging equipment. Deployed within multi-zone thermal management systems and high-power resistive load switching circuits requiring dual-phase synchronous operation.
