Description

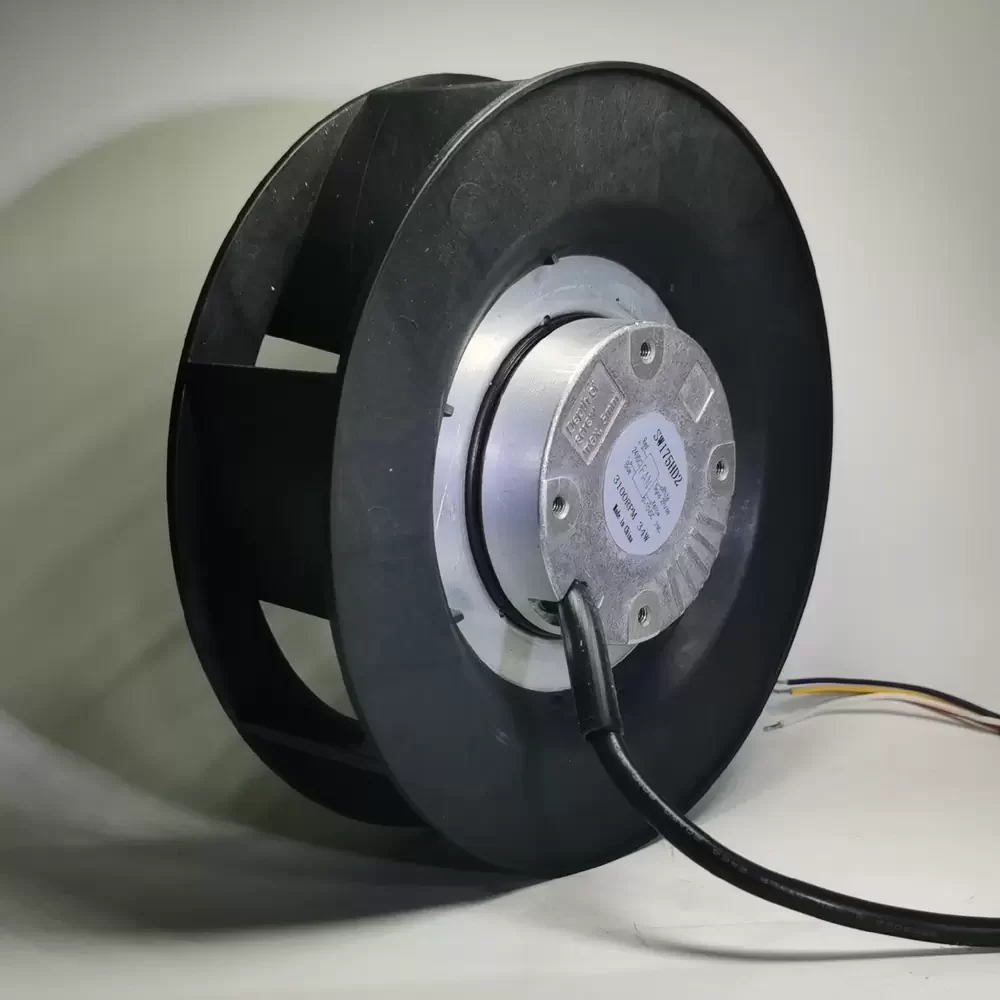

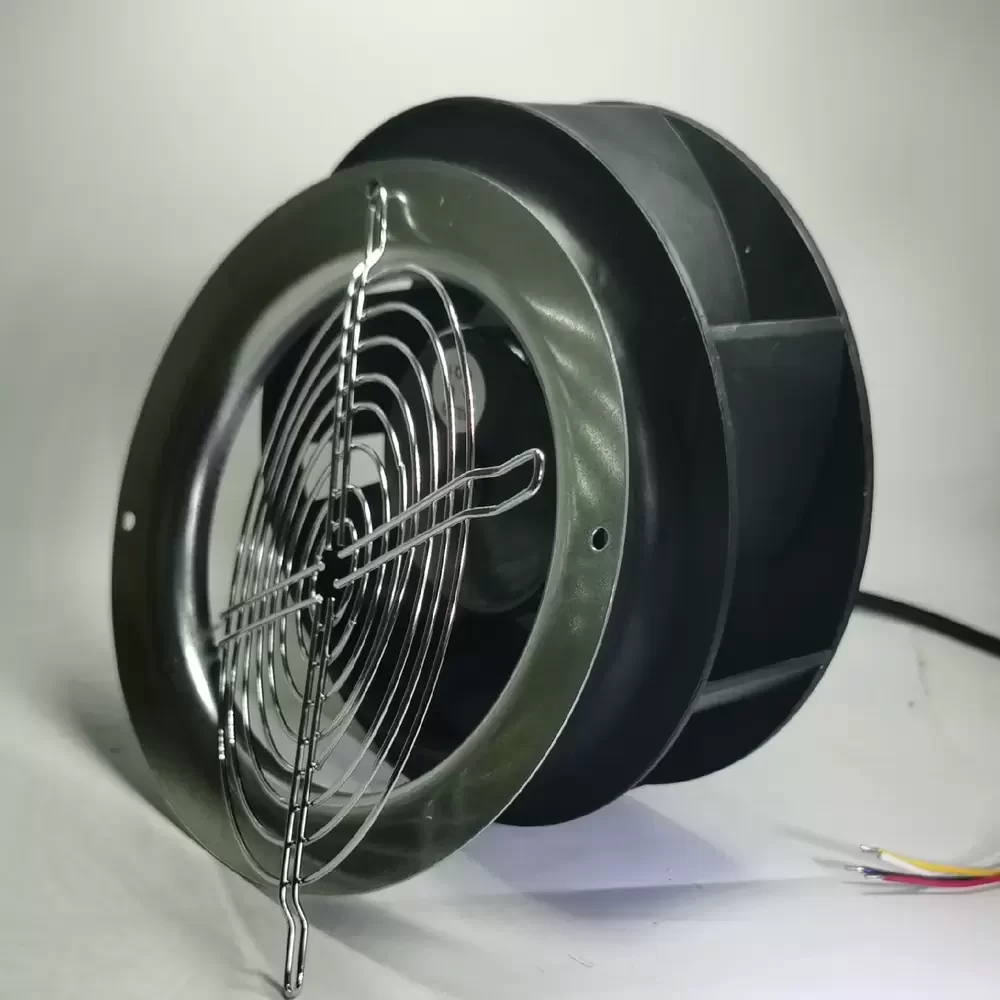

The Sanju SW175HD2 is a precision-engineered forward curved centrifugal fan designed for high-efficiency air movement in restricted spaces. Utilizing an advanced external rotor motor architecture, this unit delivers exceptional torque stability and thermal management under continuous load. The aerodynamic profile features a forward-curved impeller optimized to maximize static pressure while minimizing turbulence-induced noise. Constructed with robust materials to ensure structural rigidity, the SW175HD2 maintains low thermal impedance during operation. Its design integrates seamlessly into industrial filtration and ventilation systems, offering a reliable solution for demanding thermal regulation requirements.

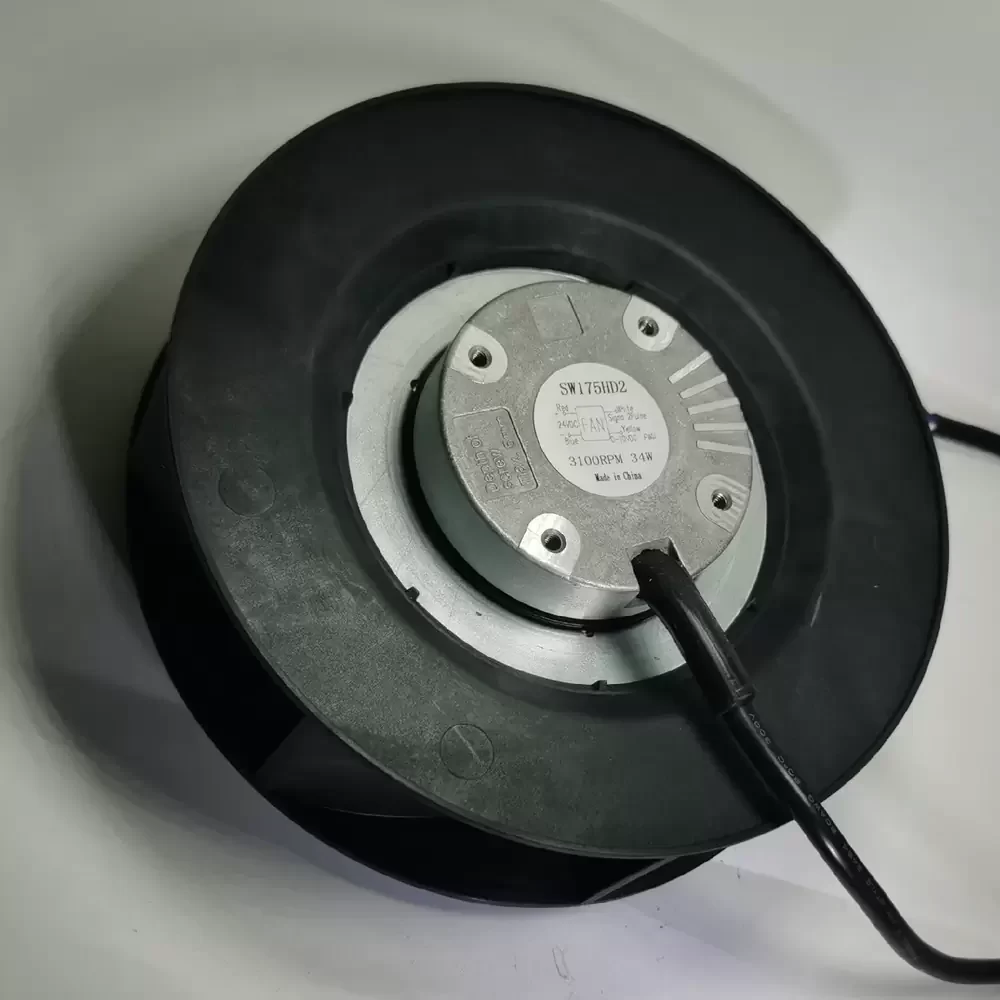

Model Number: SW175HD2
Brand: Sanju
Product Type: Forward Curved Centrifugal Fan
Rated Voltage: 24VDC
Voltage Range: 16.0 – 28.0 VDC
Rated Current: 1.42 A
Power Input: 34 W
Rated Speed: 3100 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 365.0 CFM (620.1 m³/h / 10.33 m³/min)
Max. Static Pressure: 48.5 mmH₂O (475.6 Pa / 1.91 inH₂O)
Dimensions: 175mm Diameter x 69mm Depth
Weight: 1.35 kg
Life Expectancy: 50,000 Hours at 40°C
Motor Type: DC External Rotor Motor
Impeller Material: Galvanized Steel
Housing Material: Die-Cast Aluminum
Insulation Class: Class B
Ingress Protection: IP44
Noise Level: 68 dBA
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +70°C
Speed Control: 0-10V / PWM Control Available
Termination: Lead Wires
Certifications: CE, RoHS, UL
The SW175HD2 is engineered for critical air filtration and ventilation environments requiring consistent static pressure. Frequently integrated into industrial air purifiers and clean room filtration units, this centrifugal blower ensures optimal airflow through dense filter media. The SW175HD2 is also widely utilized in telecommunications cabinet cooling, heat exchanger systems, and electronic equipment ventilation where space is limited but high-pressure airflow is non-negotiable. Its robust design makes it suitable for continuous duty in automated manufacturing equipment and server rack cooling solutions.
