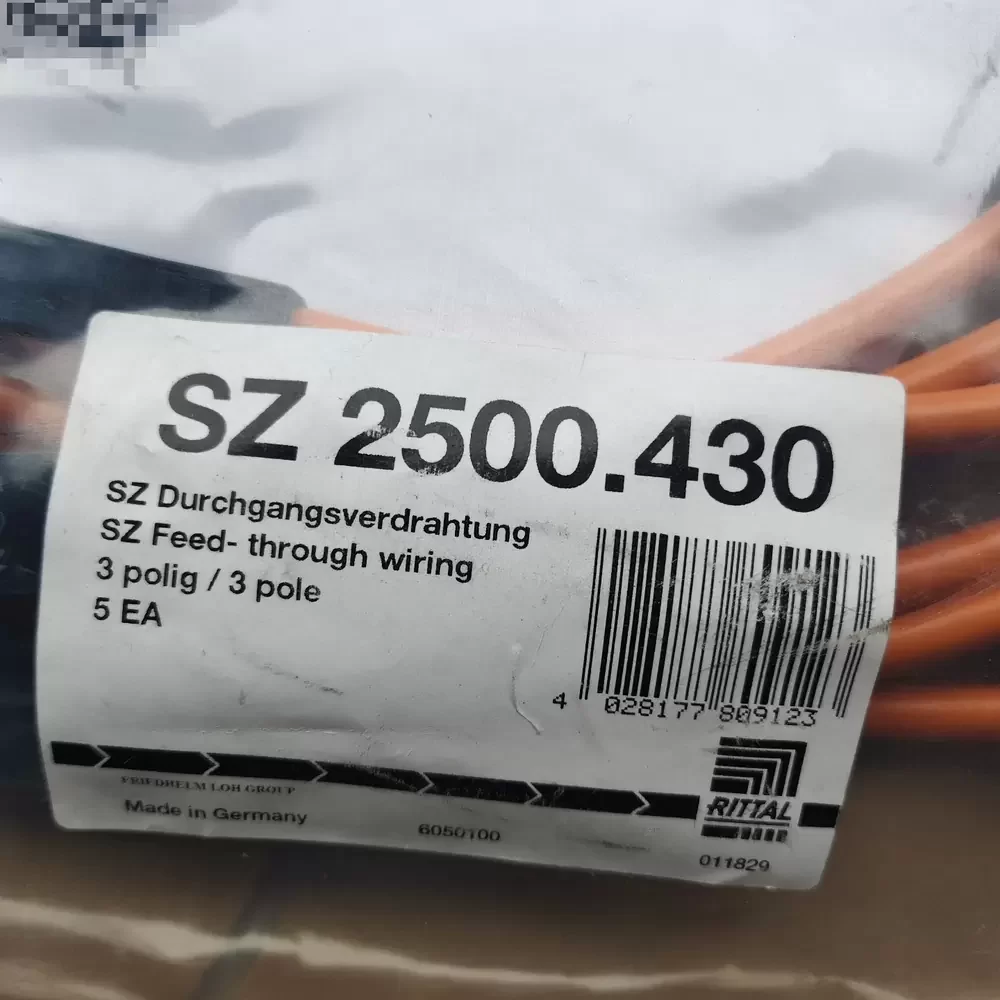

SZ 2500.430 Rittal 100-240VAC 1000mm LED Connection Cable

Description

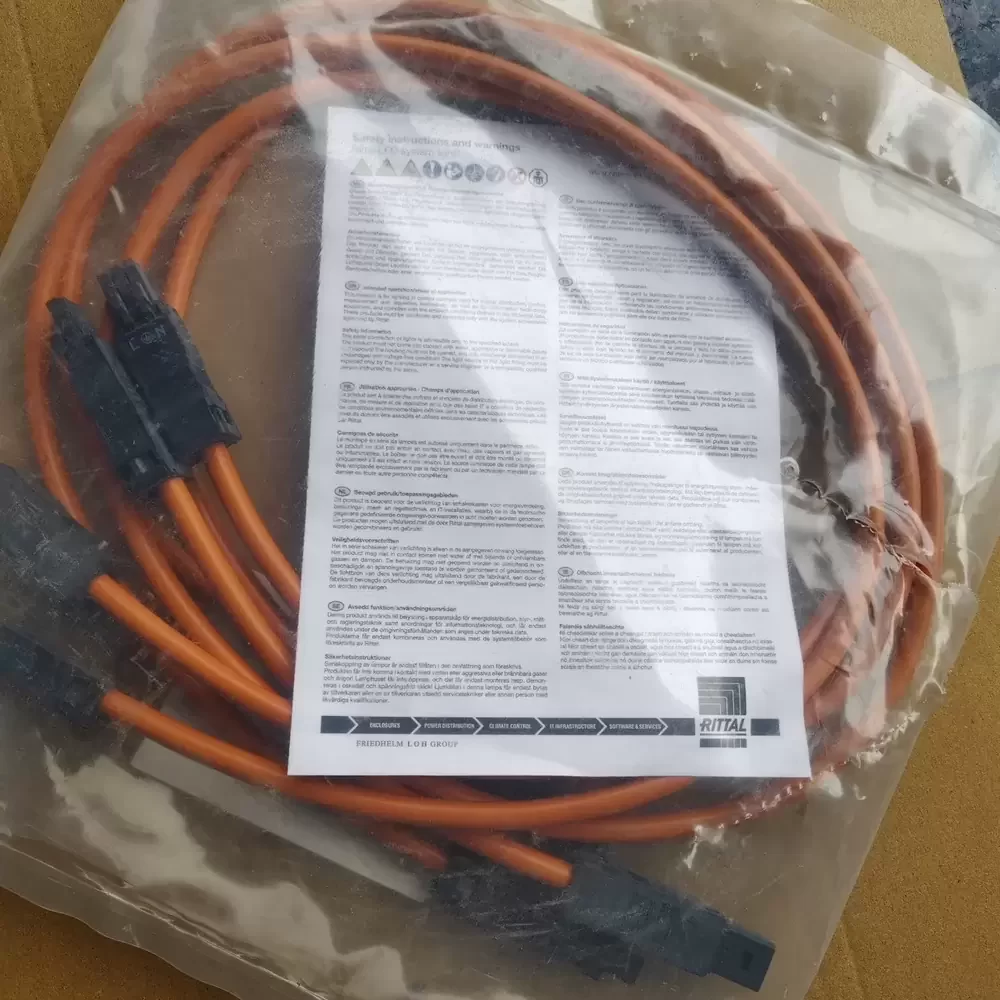

Rittal SZ 2500.430 is a 1 000 mm length connection cable designed for 100 – 240 V AC nominal operating voltage at 50 / 60 Hz. This 3-pole through-wiring component features a 1.5 mm² conductor cross-section and is equipped with both a socket and a connector for serial linkage. The cable is finished in an orange jacket for high visibility and identification within electrical enclosures. Its construction facilitates single-phase power distribution with a net weight of 0.66 kg per unit.

SZ 2500.430 Specifications
Model Number: SZ 2500.430
Brand: Rittal
Category: Connection cable
Version: Through-wiring, 3-pole (with socket and connector)
Rated Operating Voltage: 100 V – 240 V AC
Phase: 1 ~
Frequency: 50 Hz / 60 Hz
Length: 1 000 mm
Cross-section: 1.5 mm²
Color: Orange
Net Weight: 0.66 kg
Gross Weight: 0.664 kg
Packaging Unit: 5 pc(s)
Customs Tariff Number: 85444290
ETIM 9.0: EC001576
ETIM 8.0: EC001576
ECLASS 8.0: 27060402
Approvals: EAC, CE, UKCA

SZ 2500.430 Applications
Primary applications include integration into Rittal LED system light chains within industrial control cabinets and server enclosures. Deployed within modular enclosure systems to enable serial through-wiring of internal illumination units.
