Description

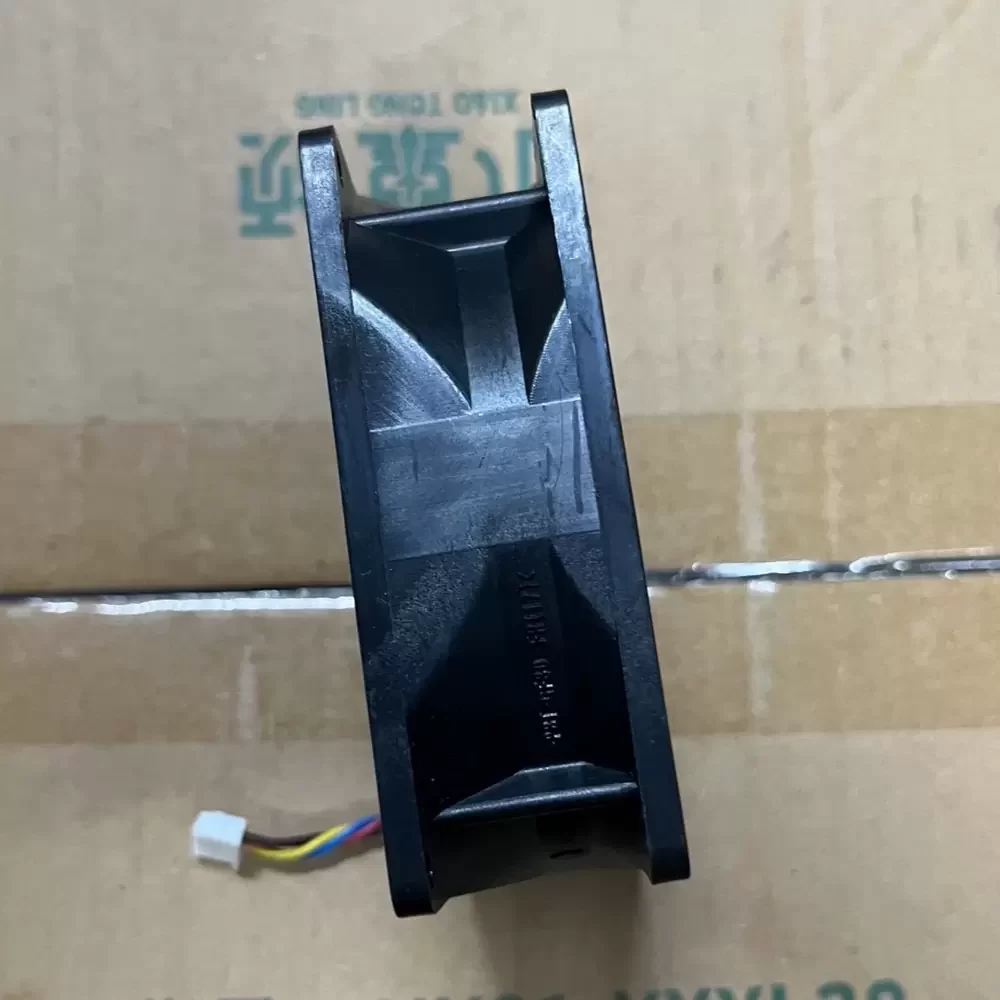

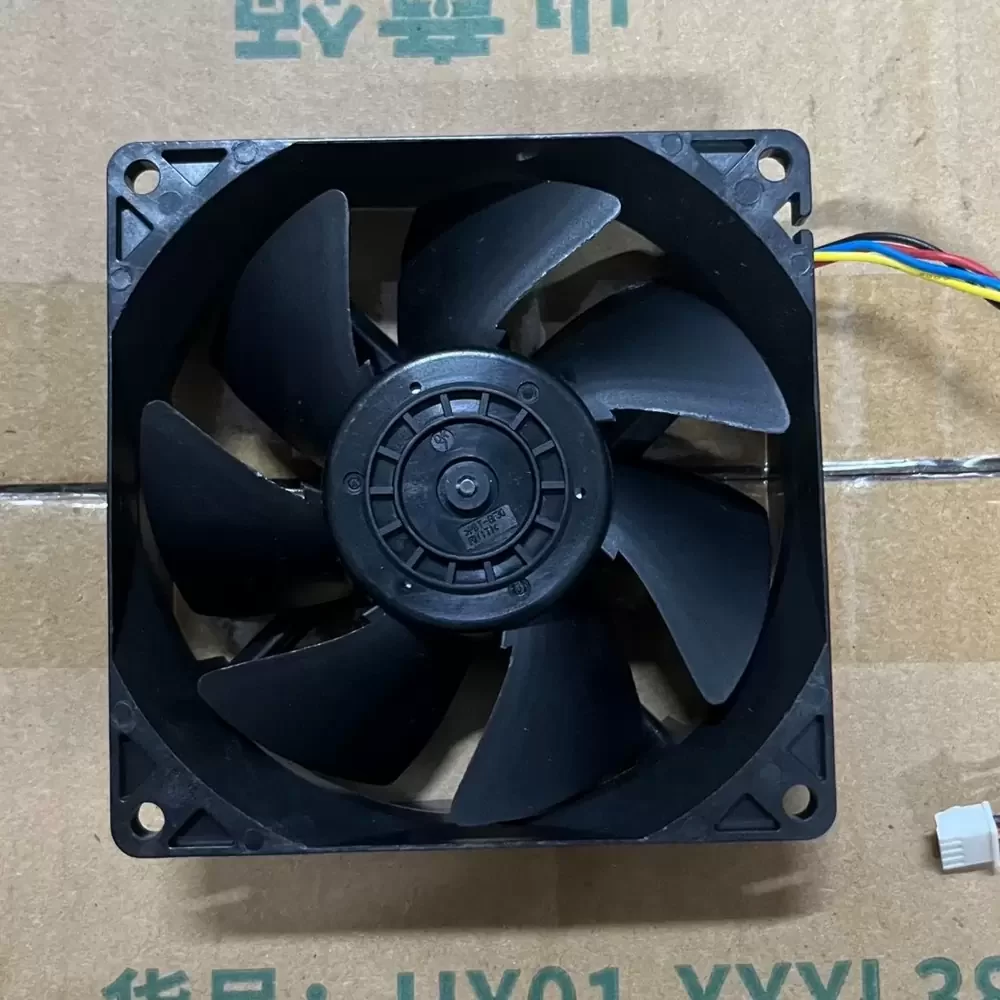

The Nidec T92C24MS2A7-57A191 is a precision-engineered DC Axial Fan designed for high-performance thermal management in industrial and server applications. Utilizing advanced motor technology and a robust bearing architecture, this unit delivers exceptional aerodynamic efficiency while maintaining structural rigidity under continuous operation. The fan features a specialized impeller design that optimizes airflow to minimize thermal impedance within dense electronic enclosures. Engineered for reliability, the T92C24MS2A7-57A191 incorporates a 4-wire configuration, enabling precise speed monitoring and PWM control, ensuring the system adapts dynamically to varying thermal loads while maintaining operational stability.
Model Number: T92C24MS2A7-57A191
Brand: Nidec (Nidec Corporation)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.54 A
Input Power: 12.96 W
Rated Speed: 4300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 92.0 CFM (156.3 m³/h / 2.60 m³/min)
Max. Static Pressure: 14.0 mmH₂O (137.2 Pa / 0.55 inH₂O)
Dimensions: 92 x 92 x 32 mm
Weight: 185 g
Noise Level: 48.5 dB(A)

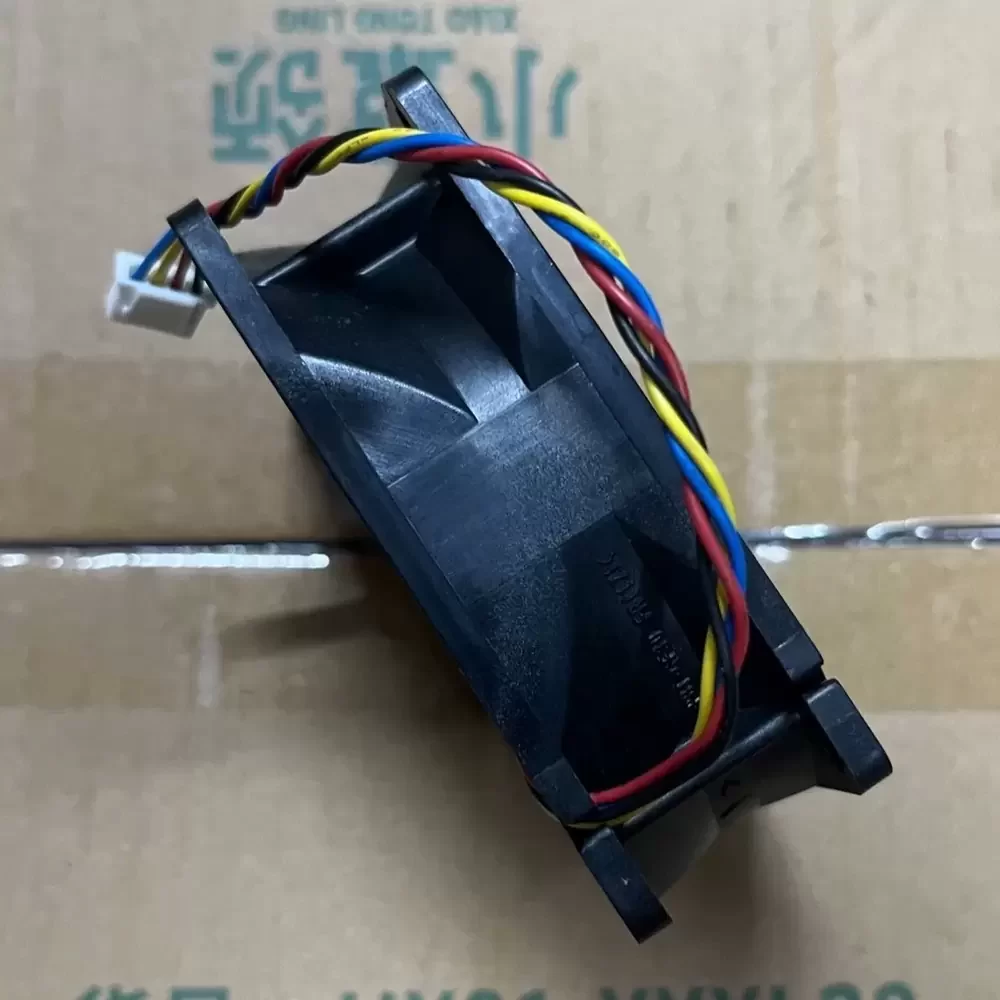

Termination: 4-Wire Leads (Red +, Black -, Yellow Sensor, Blue PWM)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Sensor Output: Tachometer (Frequency Generator)
Protection: Locked Rotor Protection, Reverse Polarity Protection
The T92C24MS2A7-57A191 is widely utilized in mission-critical hardware such as enterprise server racks, telecommunications base stations, and network switches where sustained airflow is mandatory. Additionally, the T92C24MS2A7-57A191 serves as a vital component in industrial automation control panels, CNC machinery, and medical instrumentation, providing efficient heat dissipation to protect sensitive electronic components from thermal throttling and failure.
