Description

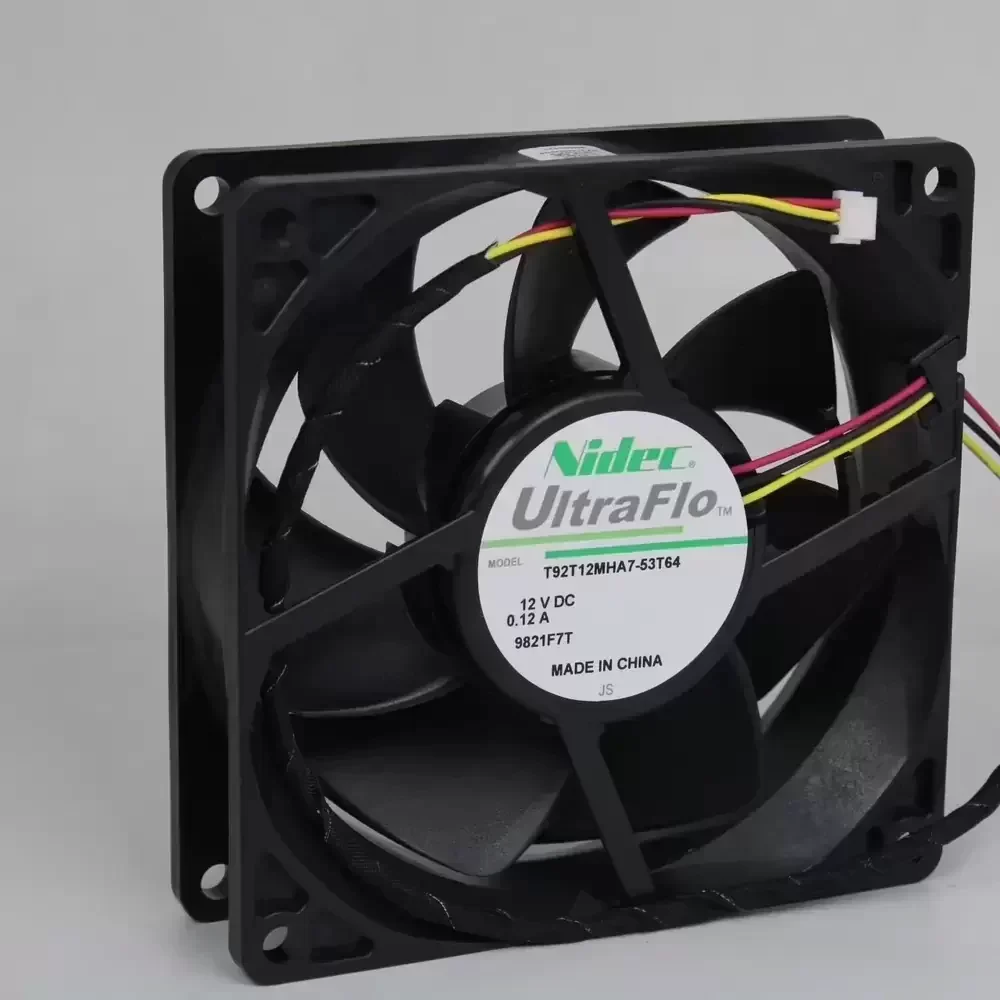

The Nidec T92T12MHA7-53T64 is a precision-engineered DC Axial Fan belonging to the renowned UltraFlo series, specifically optimized for acoustic-sensitive applications such as multimedia projection and audio-visual equipment. Utilizing advanced Nidec Bearing Revolution (NBR) technology, this unit minimizes frictional coefficients and vibrational resonance, ensuring exceptional structural rigidity and prolonged operational stability. The aerodynamic impeller design reduces turbulence-induced noise while maintaining adequate airflow to lower the thermal impedance of critical components. Engineered with a 3-wire interface, it supports tachometer signal output for real-time speed monitoring, making it an ideal solution for systems requiring active thermal management and feedback loops to maintain optimal operating temperatures.
Model Number: T92T12MHA7-53T64
Brand: Nidec
Series: UltraFlo
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.12 A
Input Power: 1.44 W
Rated Speed: 2200 RPM
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa / 0.08 inH₂O)
Noise Level: 24.5 dB(A)
Bearing Type: NBR (Fluid Dynamic Bearing)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Termination: 3-Wire Lead with Connector
Wire Configuration: Red (+), Black (-), Yellow (Signal)
Speed Control: Tachometer Output (FG Signal)
Housing Material: Polybutylene Terephthalate (PBT) (UL94V-0)
Impeller Material: Polybutylene Terephthalate (PBT) (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 60,000 Hours @ 40°C
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 min
Safety Certifications: UL, CSA, TUV
Designed primarily for noise-critical environments, the T92T12MHA7-53T64 is extensively utilized in high-end multimedia projectors where silent operation is essential to the user experience. The T92T12MHA7-53T64 also finds application in home theater PC (HTPC) builds, medical instrumentation, and compact telecommunications chassis that require reliable airflow without the acoustic penalty of standard industrial fans. Its balanced performance profile ensures efficient heat dissipation for sensitive electronics.
