Description

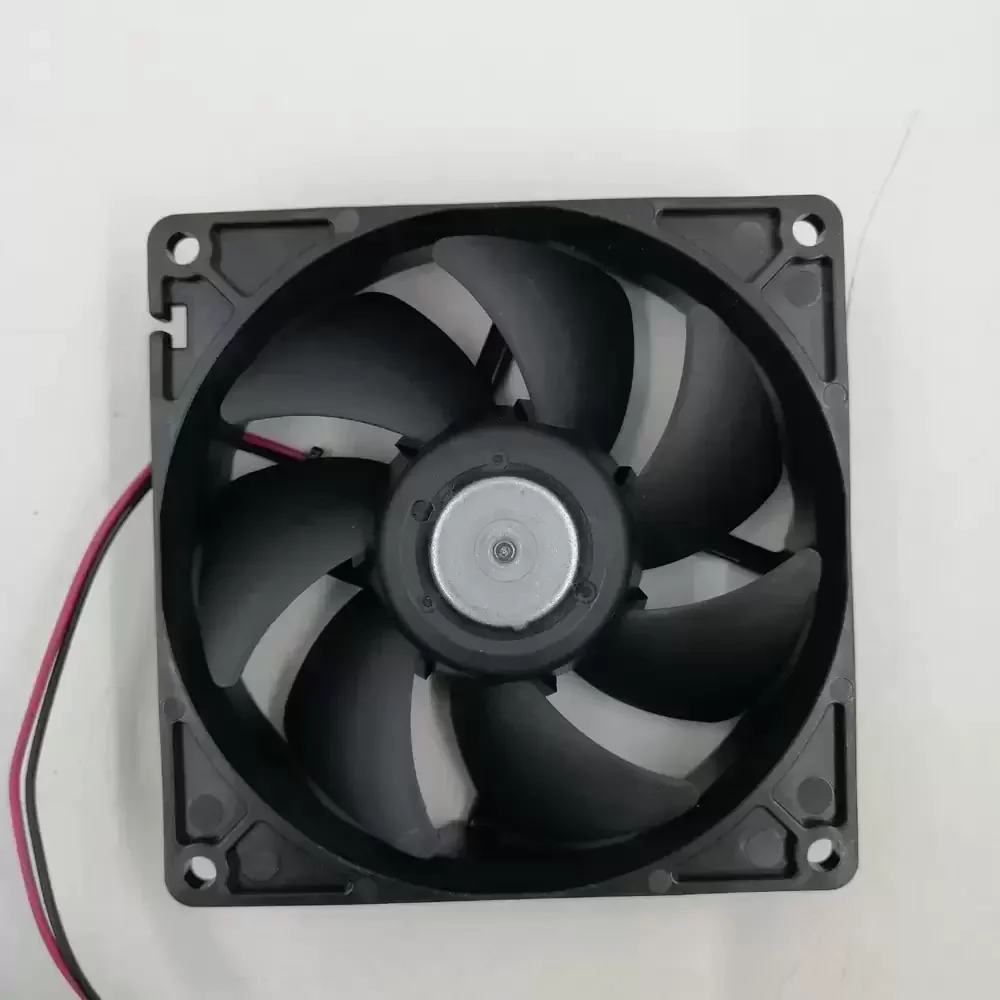

The Nidec T92T12MMA7-51Z32 is a precision-engineered Axial Fan designed for applications requiring a balance between airflow efficiency and acoustic performance. Utilizing advanced Hydraulic Bearing technology, this unit ensures reduced friction and extended operational lifespan compared to standard sleeve bearings. The aerodynamic impeller design minimizes turbulence, thereby lowering thermal impedance within enclosed electronic systems. Built with high structural rigidity, the frame resists vibration-induced stress, making it suitable for continuous duty cycles. The 12VDC motor is optimized for low power consumption while maintaining consistent static pressure delivery, ensuring reliable thermal dissipation in space-constrained environments.
Model Number: T92T12MMA7-51Z32
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.10 A
Power Consumption: 1.20 W
Rated Speed: 2200 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 2.1 mmH₂O (20.6 Pa / 0.08 inH₂O)
Dimensions: 92 x 92 x 25 mm
Noise Level: 24.0 dBA
Termination: 2-Wire Lead
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 40,000 Hours @ 40°C
Weight: 95 g
The T92T12MMA7-51Z32 is engineered for critical thermal management in compact electronic enclosures where noise suppression is a priority. Common deployment scenarios include home theater PC (HTPC) builds, network attached storage (NAS) units, and small-form-factor power supplies. The T92T12MMA7-51Z32 provides reliable airflow for medical instrumentation and telecommunications equipment, ensuring components remain within safe operating temperature ranges without introducing excessive acoustic interference. Its standard form factor allows for seamless integration into legacy industrial control panels and server chassis.
