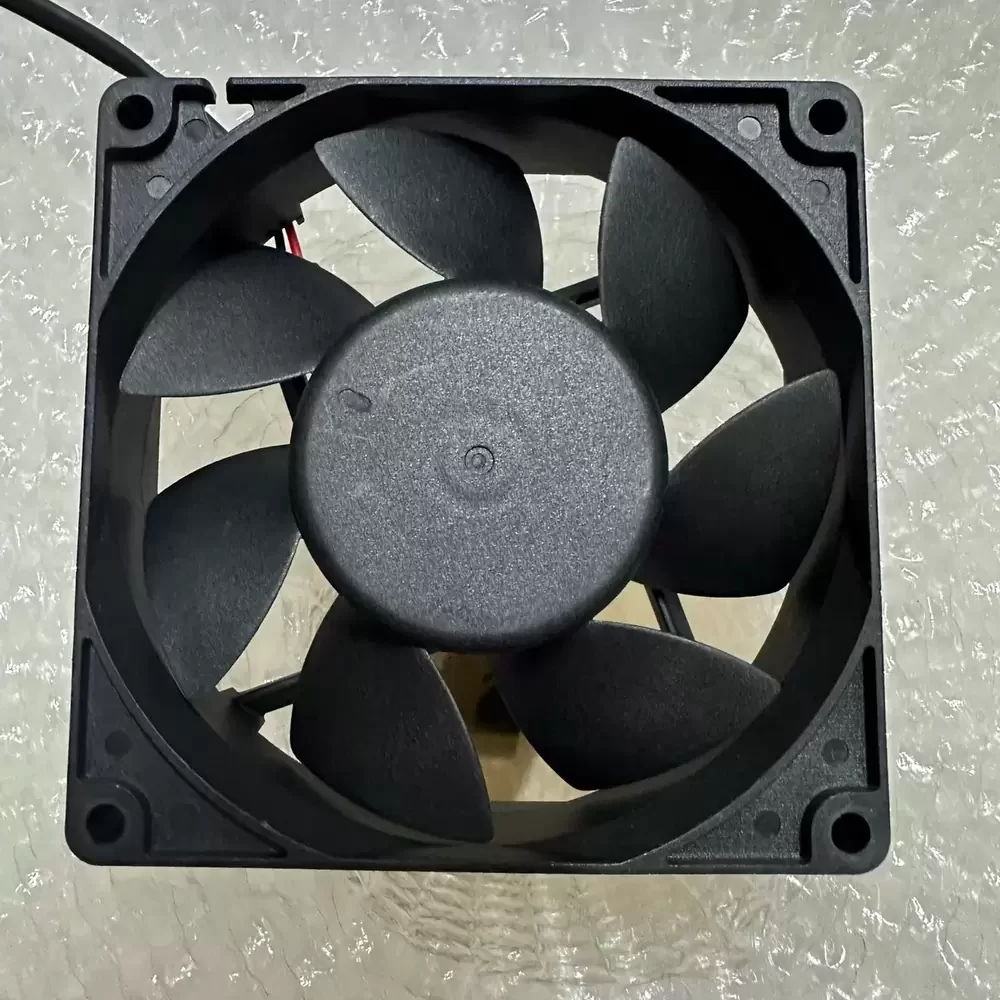

T92T24MS1A7-51 Nidec 24VDC 0.22A 92x92x25mm Axial Fan

Description

Nidec T92T24MS1A7-51 is a 92 x 92 x 25 mm axial cooling fan operating at a nominal 24 VDC with a current draw of 0.22 A. This high-performance unit features a magnetically stabilized bearing system and a seven-blade impeller constructed from UL 94V-0 rated thermoplastic PBT. The fan is designed for continuous duty with an integrated current-limit protection mechanism and a robust square frame for flange mounting.

T92T24MS1A7-51 Specifications
Model: T92T24MS1A7-51
Brand: Nidec
Category: Axial Cooling Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Rated Current: 0.22 A
Input Power: 5.28 W
Rated Speed: 3100 RPM
Airflow: 52.0 CFM
Static Pressure: 45.0 Pa
Noise Level: 32.0 dBA
Bearing Type: Dual Ball Bearing
Termination: 2-wire lead
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 hours at 40 °C
Weight: 120 g
Certifications: UL, CE, RoHS

T92T24MS1A7-51 Applications
Primary applications include integration into Inovance MD380 and MD500 series frequency converters, industrial inverter drive cooling systems, and telecommunications power supply cabinets. Deployed within CNC machine control units and automated server rack thermal management arrays to maintain stable operating temperatures.
