Description

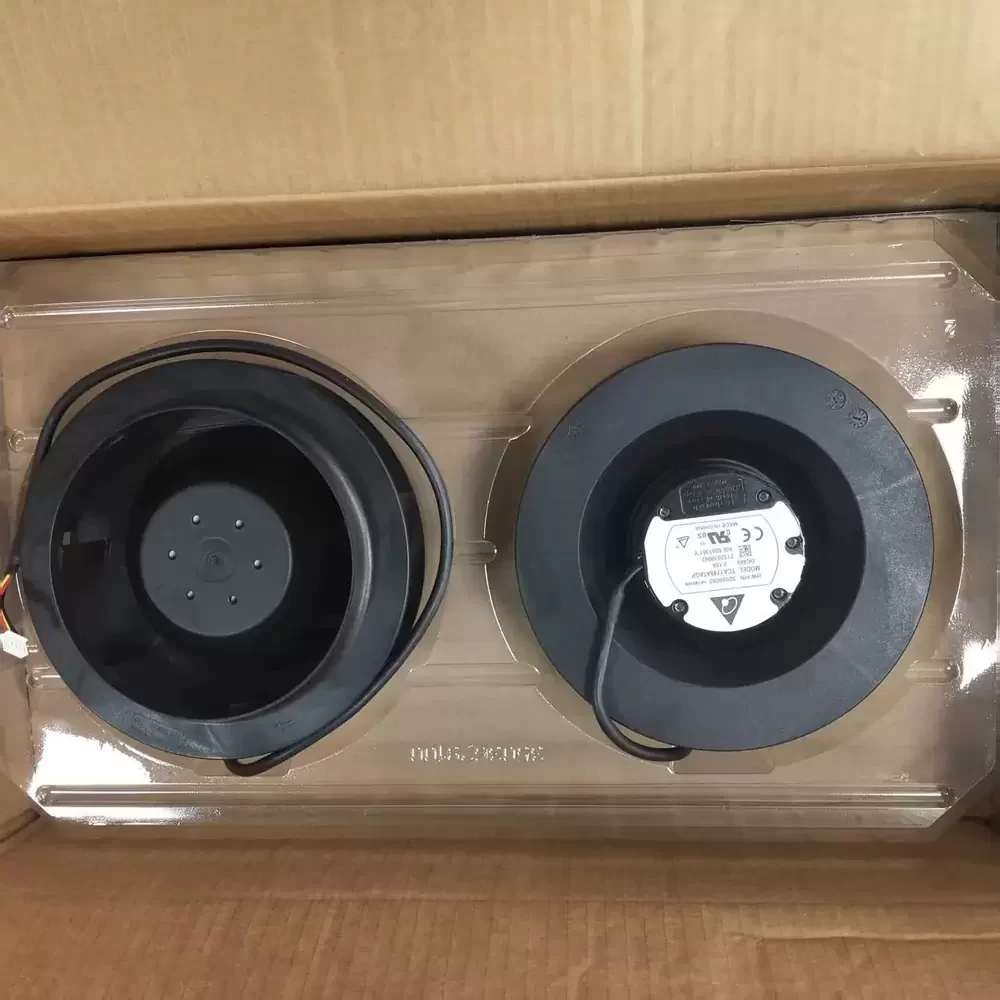

The Delta TCA1748ATAGP is a high-efficiency Centrifugal Fan engineered for mission-critical thermal management in industrial environments. Utilizing advanced DC motor technology and a precision-balanced impeller, this unit optimizes airflow dynamics to minimize thermal impedance within high-density enclosures. The construction features a robust housing that ensures structural rigidity under high-stress operational conditions, making it ideal for continuous duty cycles. Equipped with a reliable bearing system, the TCA1748ATAGP delivers consistent performance while mitigating vibrational noise. Its aerodynamic design focuses on delivering high static pressure, essential for overcoming resistance in tightly packed server racks and industrial control cabinets.
Model Number: TCA1748ATAGP
Brand: Delta Electronics
Product Type: Centrifugal Blower Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 2.10 A
Power Consumption: 100.8 W
Rated Speed: 3800 RPM
Bearing Type: Precision Ball Bearing
Max. Air Flow: 310.5 CFM (527.5 m³/h / 8.79 m³/min)
Max. Static Pressure: 48.5 mmH₂O (475.6 Pa / 1.91 inH₂O)
Dimensions: 175 x 175 x 69 mm
Weight: 1250 g
Life Expectancy: 70,000 Hours (L10 at 40°C)
Speed Control: PWM Speed Control / Tachometer Output
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 64.5 dB(A)
Housing Material: Die-Cast Aluminum / PBT (UL94V-0)

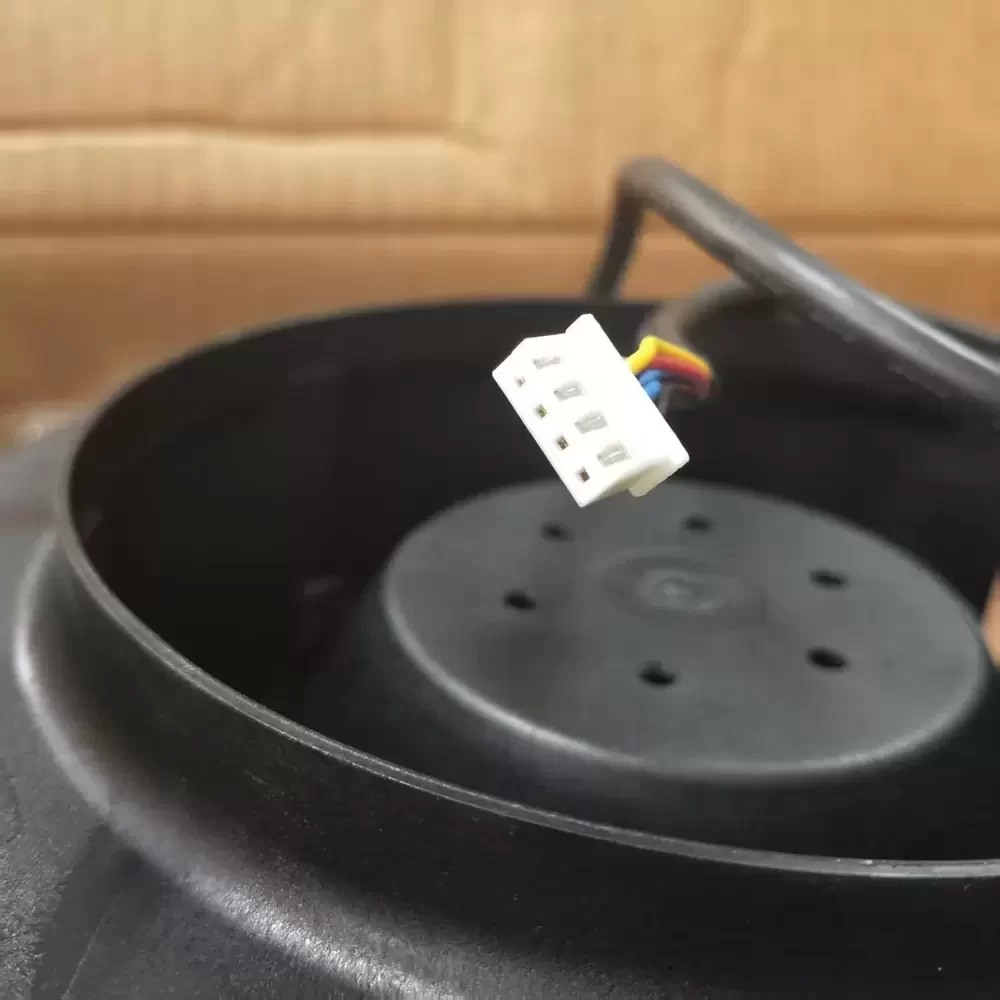

Termination: 4-Wire Leads (Red +, Black -, Blue PWM, Yellow Tach)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Mounting Orientation: Any Orientation
Certifications: UL, cUL, TUV, CE, RoHS
Safety Protection: Locked Rotor Protection, Reverse Polarity Protection
The Delta TCA1748ATAGP is specifically designed for forced-air cooling in restricted spaces such as server racks, telecom base stations, and industrial automation cabinets. By delivering concentrated airflow, the TCA1748ATAGP effectively dissipates heat from sensitive electronic components, ensuring system stability and longevity. This blower is frequently utilized in CNC machinery and power supply units where high static pressure is required to push air through dense heat sinks. Integrating the TCA1748ATAGP into your thermal solution guarantees reliable performance in demanding environmental conditions.
