Description

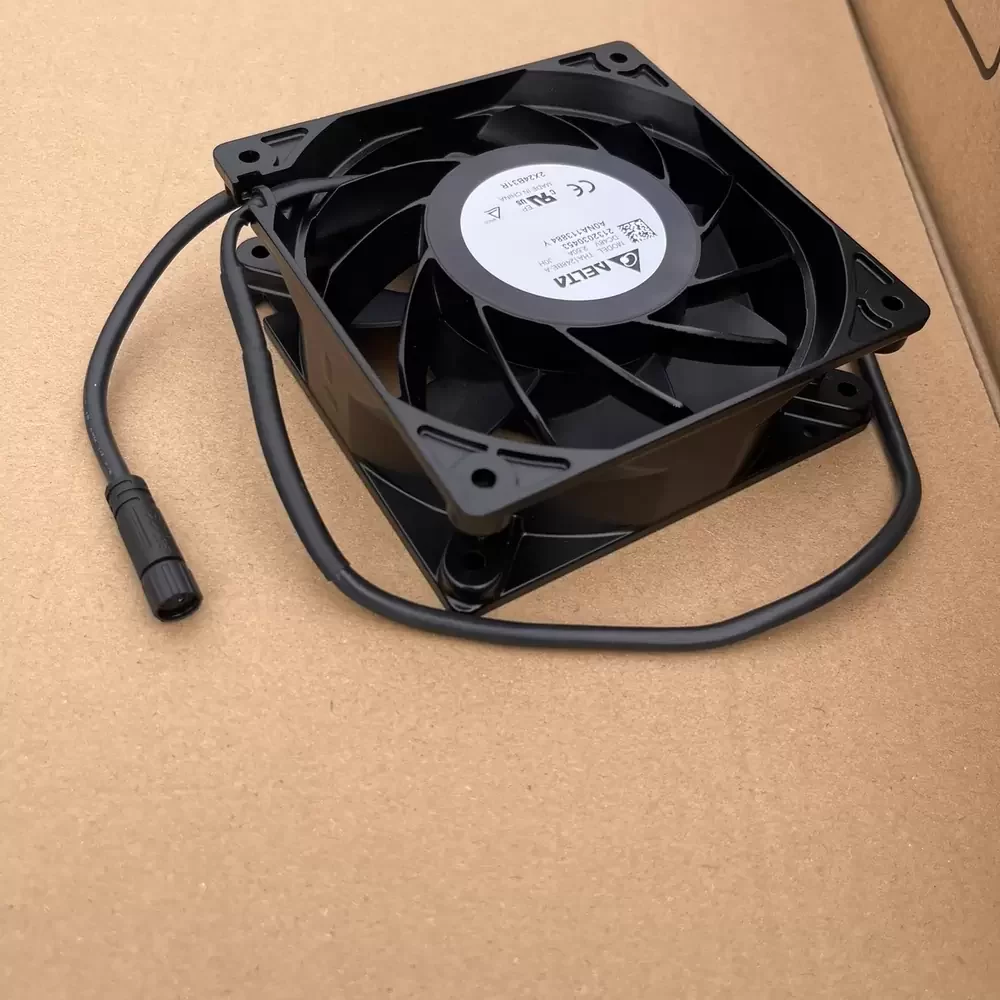

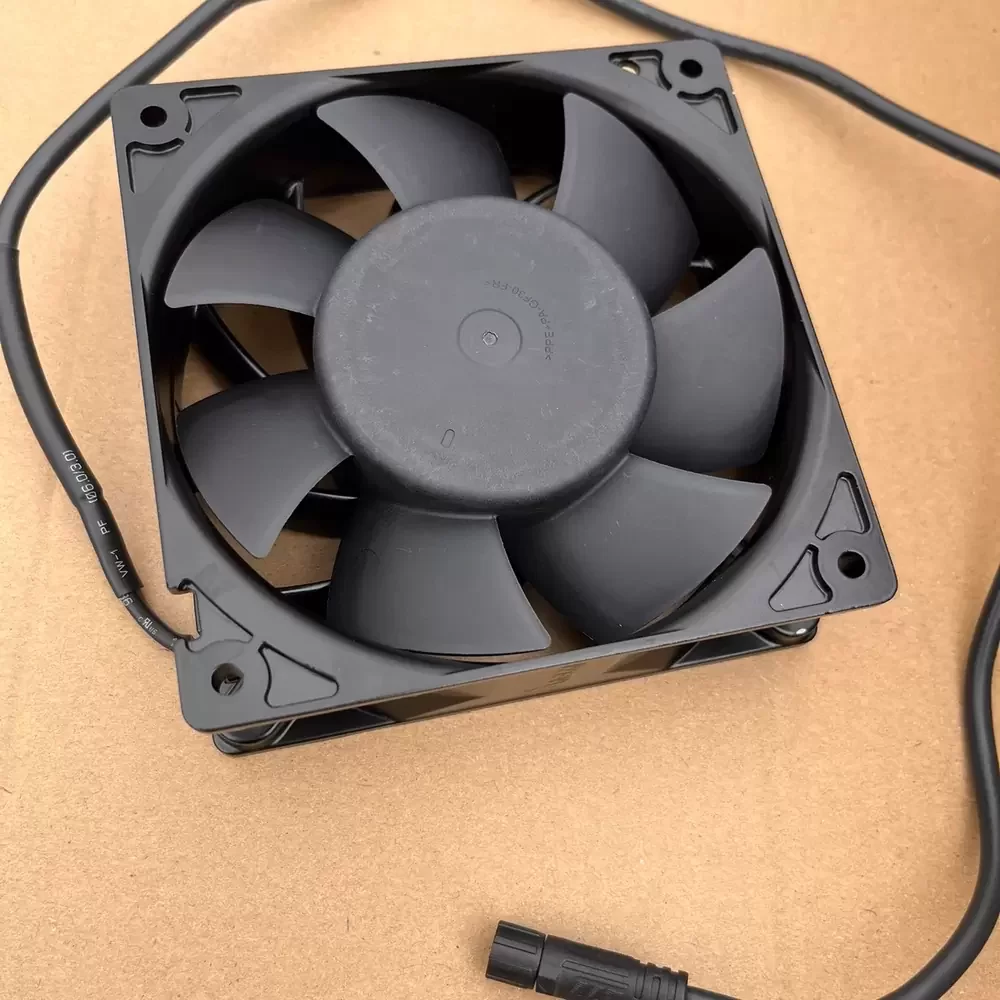

The Delta THA1248BE-AJ0H is a high-performance DC Axial Fan engineered for critical thermal management in demanding industrial and enterprise environments. Featuring a robust die-cast aluminum frame, this unit offers superior structural rigidity and thermal dissipation properties compared to standard plastic alternatives. The motor assembly utilizes advanced stator potting technology to achieve an IP68 ingress protection rating, ensuring operational integrity against dust and water immersion. Aerodynamically designed for high-impedance applications, the impeller delivers exceptional static pressure at a rotational speed of 8100 RPM. Integrated 4-wire PWM speed control allows for precise modulation of airflow, optimizing the balance between thermal performance and acoustic output.
Model Number: THA1248BE-AJ0H
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 75.0 VDC
Rated Current: 2.50 A
Operating Current: 1.15 A (Max 1.27 A)
Power: 120.0 W
Rated Speed: 8100 RPM ±10%
Bearing Type: Ball Bearing
Max. Air Flow: 269.0 CFM (457.0 m³/h / 7.61 m³/min)
Max. Static Pressure: 83.0 mmH₂O (813.9 Pa / 3.27 inH₂O)
Dimensions: 120 x 120 x 38 mm
Noise Level: 74.5 dBA
Frame Material: Die-Cast Aluminum
Ingress Protection: IP68 (Stator Potting)
Speed Control: 4-Wire PWM
Termination: Embedded Card Type Connector
Production Date: 2022
The THA1248BE-AJ0H is specifically designed for high-density server racks and telecommunications infrastructure, serving as a direct replacement component for Huawei and Cisco equipment. Its ruggedized aluminum construction and IP68 rating also make the THA1248BE-AJ0H highly suitable for harsh environment applications, including new energy vehicle thermal systems and agricultural drone modifications, such as the XAG P150 Pro mist cooling units.
