Description
The Delta THB2048CT-FLH is a high-capacity axial fan engineered for critical industrial applications requiring substantial airflow and static pressure. Utilizing advanced DC brushless motor technology paired with a durable dual ball bearing system, this unit ensures operational longevity and reduced thermal impedance in high-density environments. The 200mm frame design incorporates an aerodynamically optimized impeller to maximize air throughput while maintaining structural rigidity under high-speed operation. Designed for heavy-duty cycles, the THB2048CT-FLH delivers exceptional cooling performance, making it an ideal solution for systems demanding rigorous thermal management and reliability.

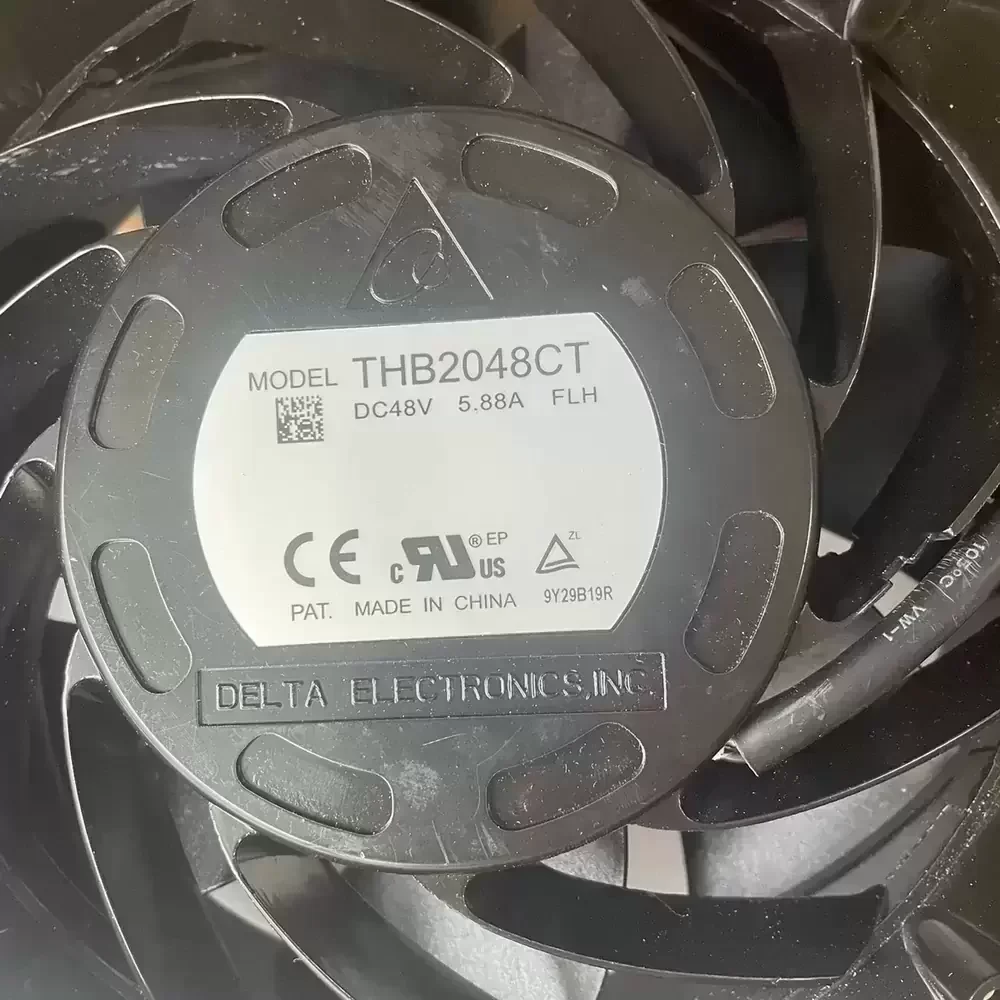

Model Number: THB2048CT-FLH
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 5.88 A
Power Input: 282.24 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 618.5 CFM (1050 m³/h / 17.5 m³/min)
Max. Static Pressure: 4.25 inH₂O (1058 Pa / 107.9 mmH₂O)
Dimensions: 200 x 200 x 70 mm
Weight: 1850 g
Noise Level: 78.5 dB-A
Frame Material: Aluminum Die-Cast
Impeller Material: Reinforced Plastic (UL 94V-0)
Ingress Protection: IP54 (Dust Protected)
Speed Control: PWM Control
Signal Output: Tachometer (Frequency Generator)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Life Expectancy: 70,000 Hours at 40°C
Termination: Lead Wires (UL 1007 AWG 22)
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
The THB2048CT-FLH is specifically deployed in high-demand environments such as enterprise server racks, telecommunications base stations, and industrial automation enclosures where heat dissipation is critical. Engineers frequently select the THB2048CT-FLH for large-scale power supply units, renewable energy inverters, and medical imaging equipment, relying on its robust airflow to prevent thermal throttling in sensitive electronic components.
