Description

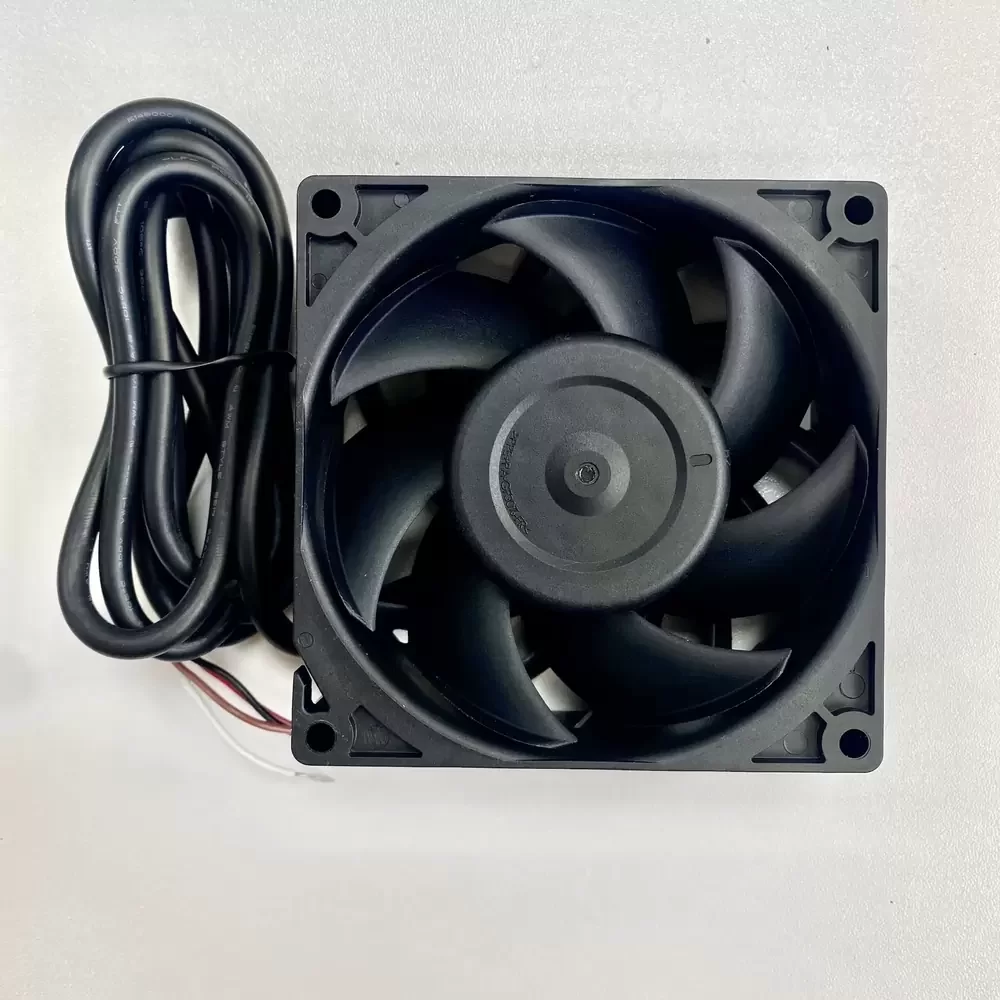

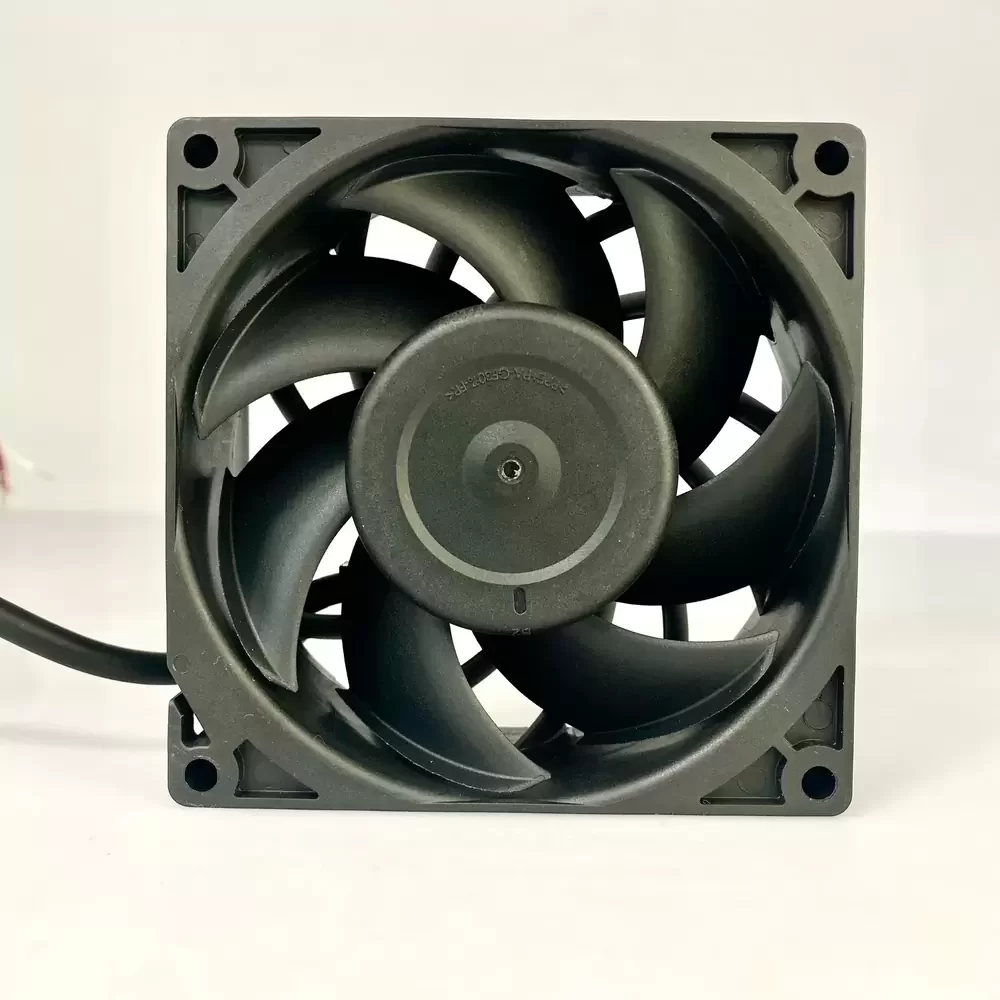

The Delta THD0924HE-00 is a high-performance industrial cooling fan designed for critical thermal management in harsh environments. Featuring a robust IP68 ingress protection rating, this unit is fully waterproof and dustproof, making it capable of withstanding submersion and particulate exposure. With a powerful high-speed motor driven by a 24VDC input, it delivers exceptional airflow and static pressure, regulated via a 4-wire PWM interface for precise speed control and efficiency.
Manufacturer: Delta Electronics
Model Number: THD0924HE-00
Product Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm (9038)
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.80 A
Power Consumption: 43.20 W
Nominal Speed: 9500 RPM
Max. Air Flow: 158.92 CFM (270.0 m³/h / 4.50 m³/min)
Max. Static Pressure: 36.83 mmH₂O (361.2 Pa / 1.45 inH₂O)
Noise Level: 68.5 dB(A)
Bearing Type: Precision Ball Bearing

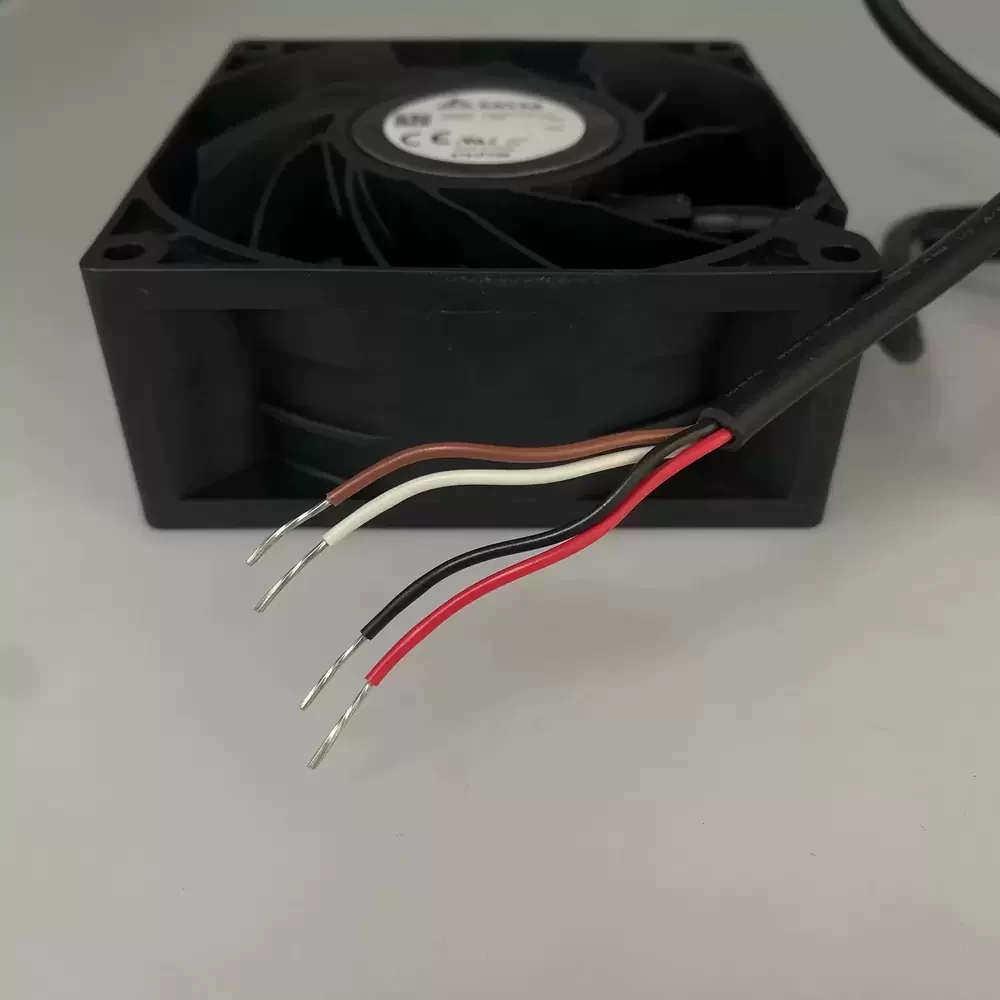

Control Interface: 4-Wire PWM (Pulse Width Modulation)
Ingress Protection: IP68 (Waterproof/Dustproof)
Housing Material: PBT Plastic (UL94V-0)
Life Expectancy: 70,000 Hours at 40°C
Weight: 245 g
This robust cooling solution is specifically engineered for high-density industrial electronics, particularly designated for cooling variable frequency drives (VFDs) and power inverters. The Delta THD0924HE-00 is capable of overcoming high system impedance to dissipate heat effectively from IGBT modules and rectifiers within enclosed cabinets. Its waterproof capabilities allow for reliable operation in outdoor telecommunications gear, CNC machinery, and harsh factory floors where moisture and dust ingress would compromise standard fans, ensuring continuous system stability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
