Description

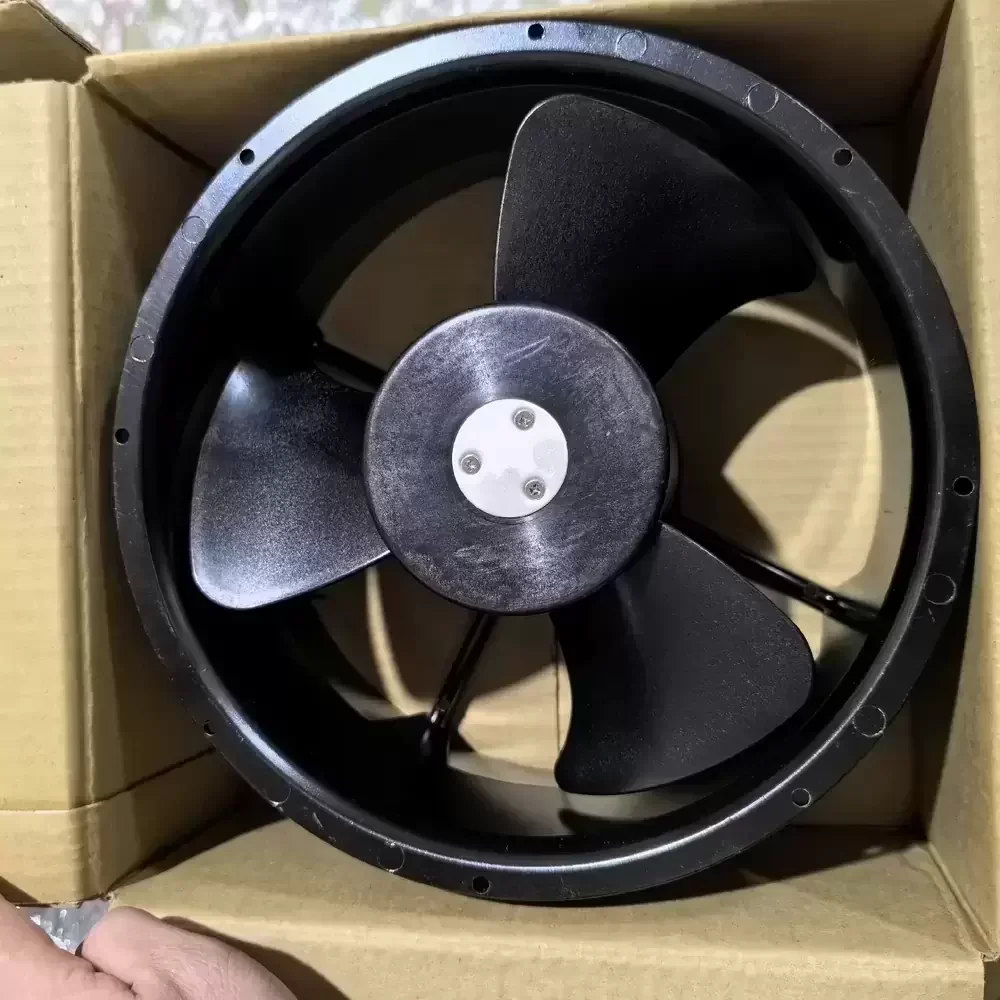

The Fulltech UF-25HC23BTH is a robust AC Axial Fan engineered for high-demand industrial thermal management. Utilizing a permanent split capacitor induction motor and a precision Dual Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous loads. The aerodynamic impeller design optimizes static pressure capabilities while maintaining efficient airflow throughput, significantly reducing thermal impedance in enclosed systems. Housed in a die-cast aluminum frame, the fan offers superior structural rigidity and vibration resistance, making it ideal for harsh environments requiring reliable heat dissipation.
Model Number: UF-25HC23BTH
Brand: Fulltech
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 207 – 253 VAC
Frequency: 50 / 60 Hz
Input Power: 95 / 125 W
Rated Current: 0.45 / 0.55 A
Rated Speed: 2600 / 2900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 883 CFM (1500 m³/h / 25.0 m³/min)
Max. Static Pressure: 22.8 mmH₂O (223 Pa / 0.90 inH₂O)
Dimensions: 254 x 254 x 89 mm
Weight: 2700 g
Life Expectancy: 40,000 Hours at 40°C
Termination: Terminal Type
Housing Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Noise Level: 68 / 72 dB(A)
Motor Protection: Thermal Protected
Safety Certifications: UL, CUL, TUV, CE
The UF-25HC23BTH is specifically designed for large-scale industrial cooling applications where high volume airflow is critical. Common deployments include main control cabinets, heavy-duty server racks, and power distribution units requiring consistent thermal regulation. The UF-25HC23BTH excels in CNC machinery ventilation and heat exchanger systems, ensuring components remain within safe operating temperature ranges to prevent thermal throttling or hardware failure in telecommunications and manufacturing sectors.
