Description

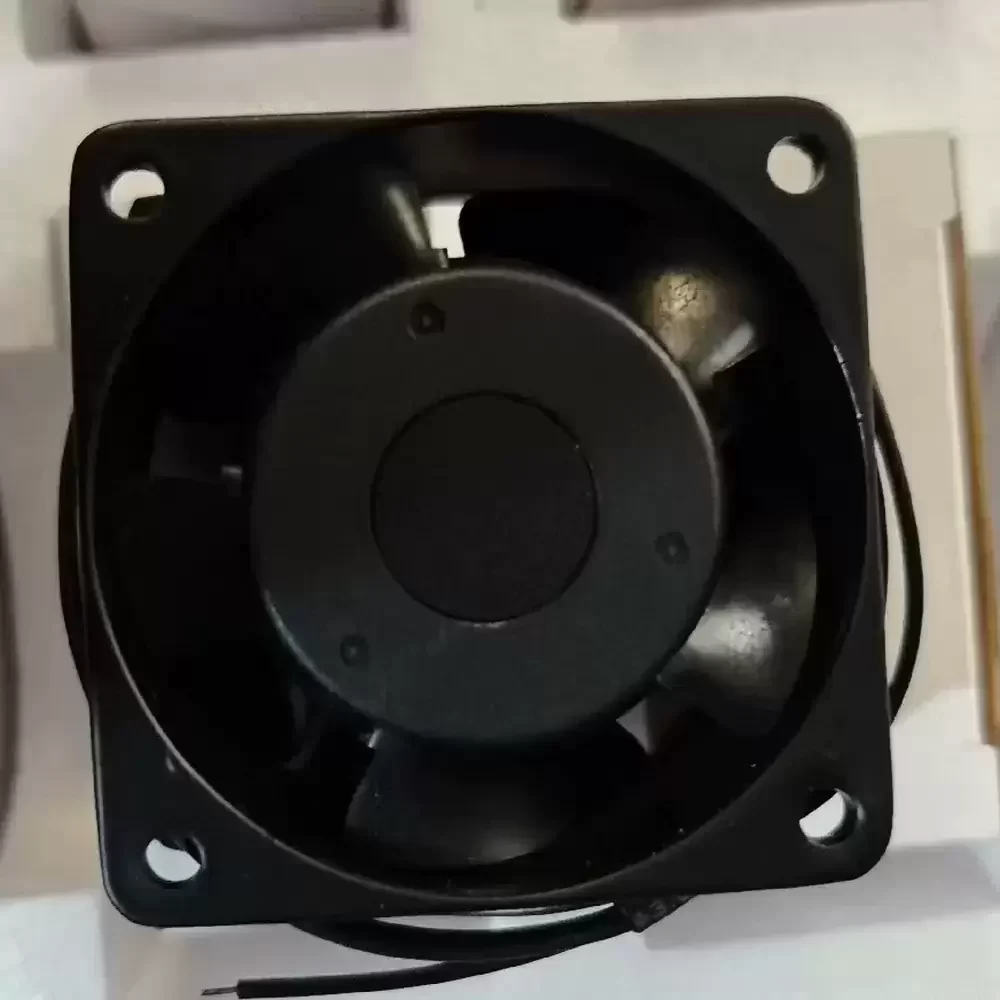

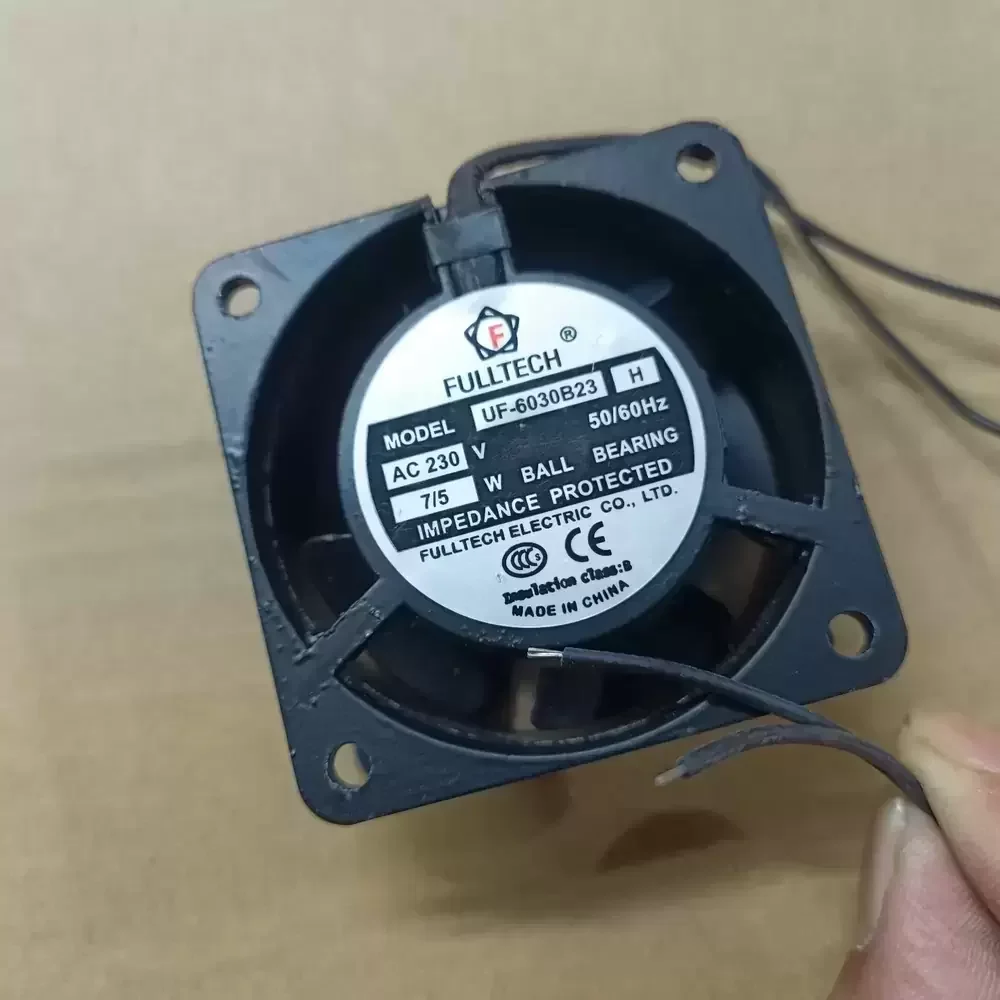

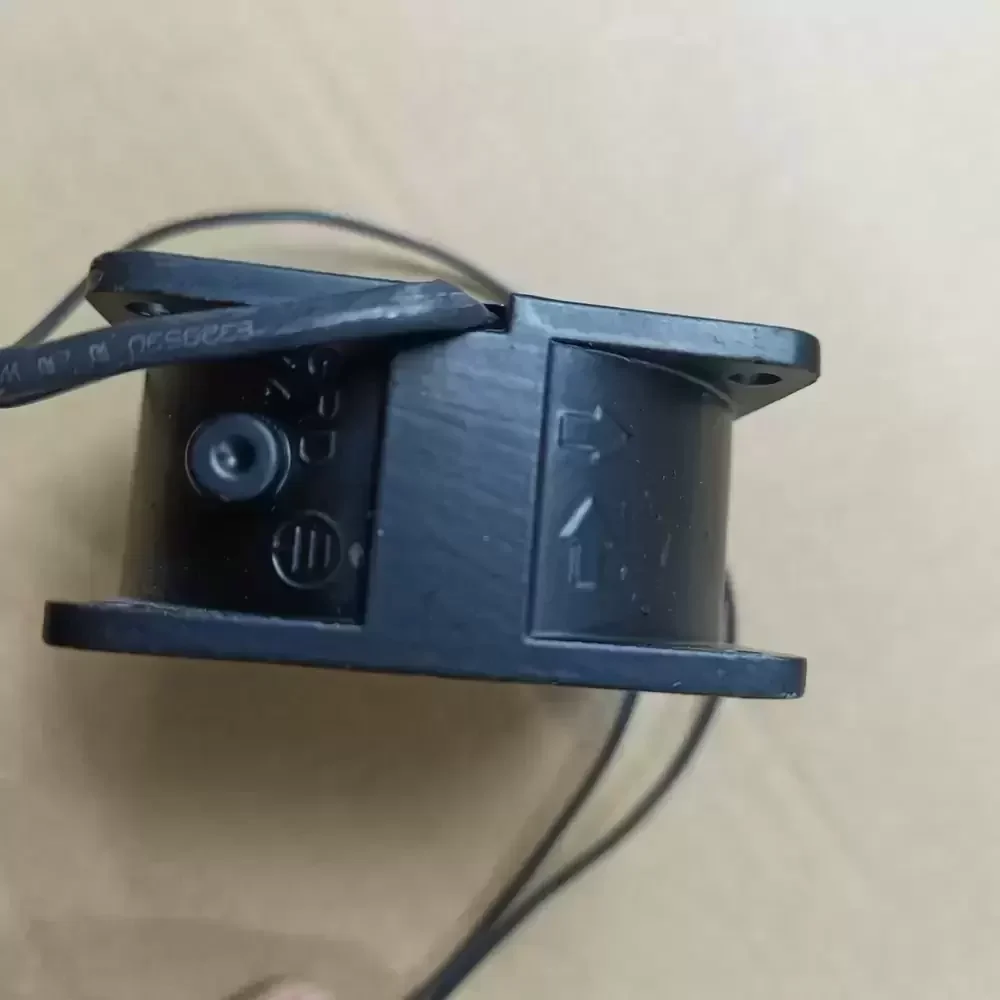

The Fulltech UF-6030B23H is a compact AC axial fan engineered for high-reliability thermal management in constrained industrial environments. This unit utilizes a robust shaded pole induction motor design, optimized for continuous operation across dual frequencies of 50Hz and 60Hz. The fan features a precision dual ball bearing system that significantly reduces frictional coefficients, thereby extending the operational lifespan and maintaining consistent performance under thermal stress. Its aerodynamic impeller geometry is housed within a durable die-cast aluminum frame, providing superior structural rigidity and effective heat dissipation. The UF-6030B23H is designed to minimize thermal impedance in electronic enclosures while adhering to strict safety standards.
Model Number: UF-6030B23H
Brand: Fulltech
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Input Power: 7 / 5 W
Rated Current: 0.05 / 0.04 A
Rated Speed: 2600 / 3100 RPM
Max. Air Flow: 10 / 12 CFM (0.28 / 0.34 m³/min)
Max. Static Pressure: 0.11 / 0.14 inH₂O (2.8 / 3.5 mmH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 60 x 60 x 30 mm
Weight: 160 g
Noise Level: 28 / 31 dB(A)
Housing Material: Die-Cast Aluminum (Black Painted)
Impeller Material: PBT Thermoplastic (UL94V-0)
Motor Type: Shaded Pole Induction Motor
Insulation Resistance: >100M Ohm at 500VDC
Dielectric Strength: 1500VAC for 1 minute
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Life Expectancy: 50,000 hours at 25°C
Termination: Lead Wires (22AWG)
Protection: Impedance Protected
Certifications: UL, cUL, TUV, CE, RoHS
The UF-6030B23H is frequently deployed in critical industrial applications where space is at a premium but reliable airflow is non-negotiable. Common integration points include compact server racks, telecommunications switching gear, and control panels for CNC machinery. The UF-6030B23H is also suitable for medical instrumentation cooling and power supply ventilation, ensuring sensitive components remain within safe operating temperatures. Its robust construction allows the UF-6030B23H to function effectively in factory automation settings where vibration and continuous duty cycles are standard requirements.
