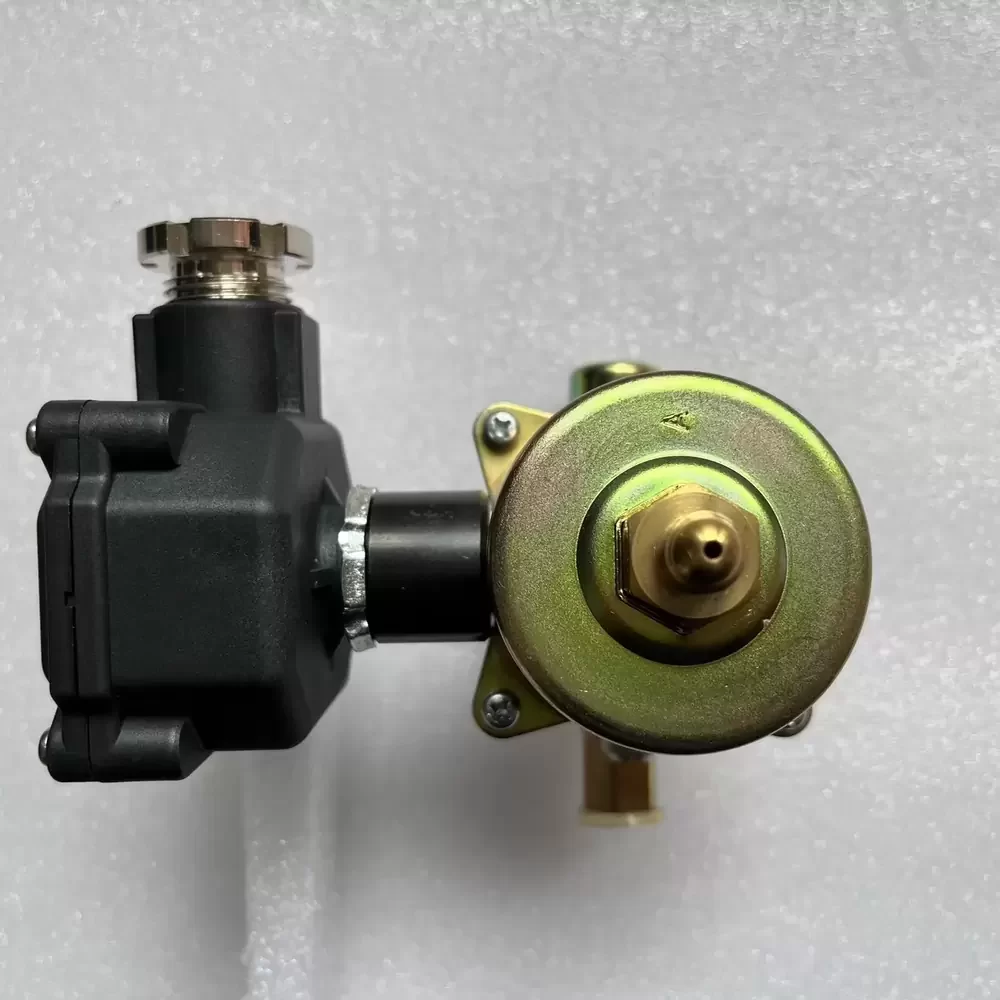

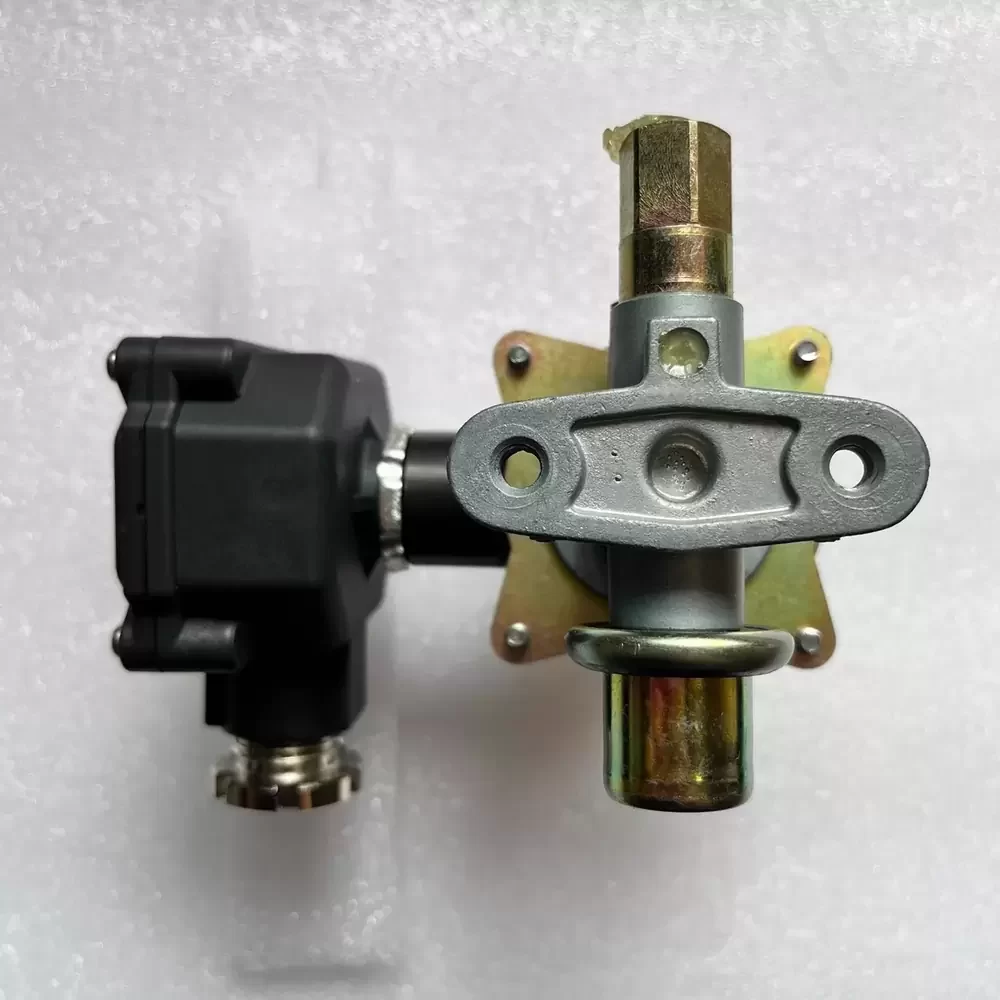

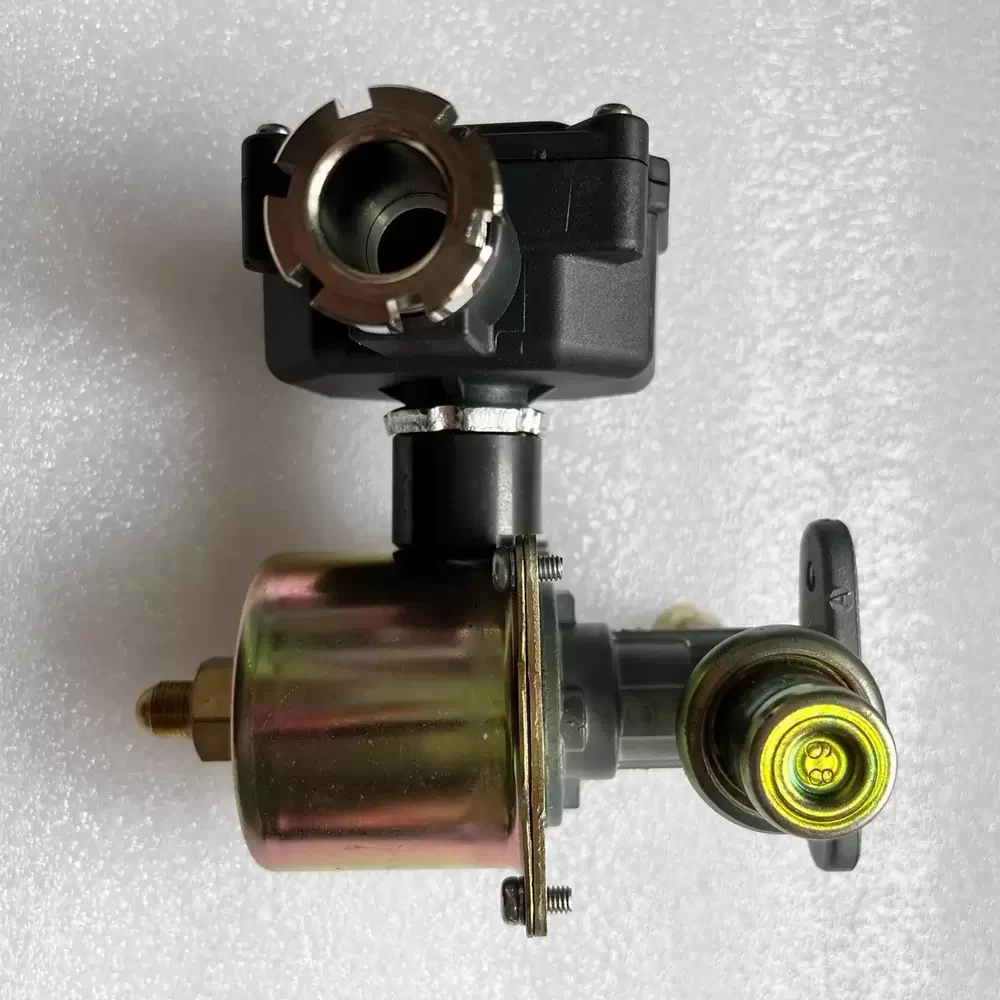

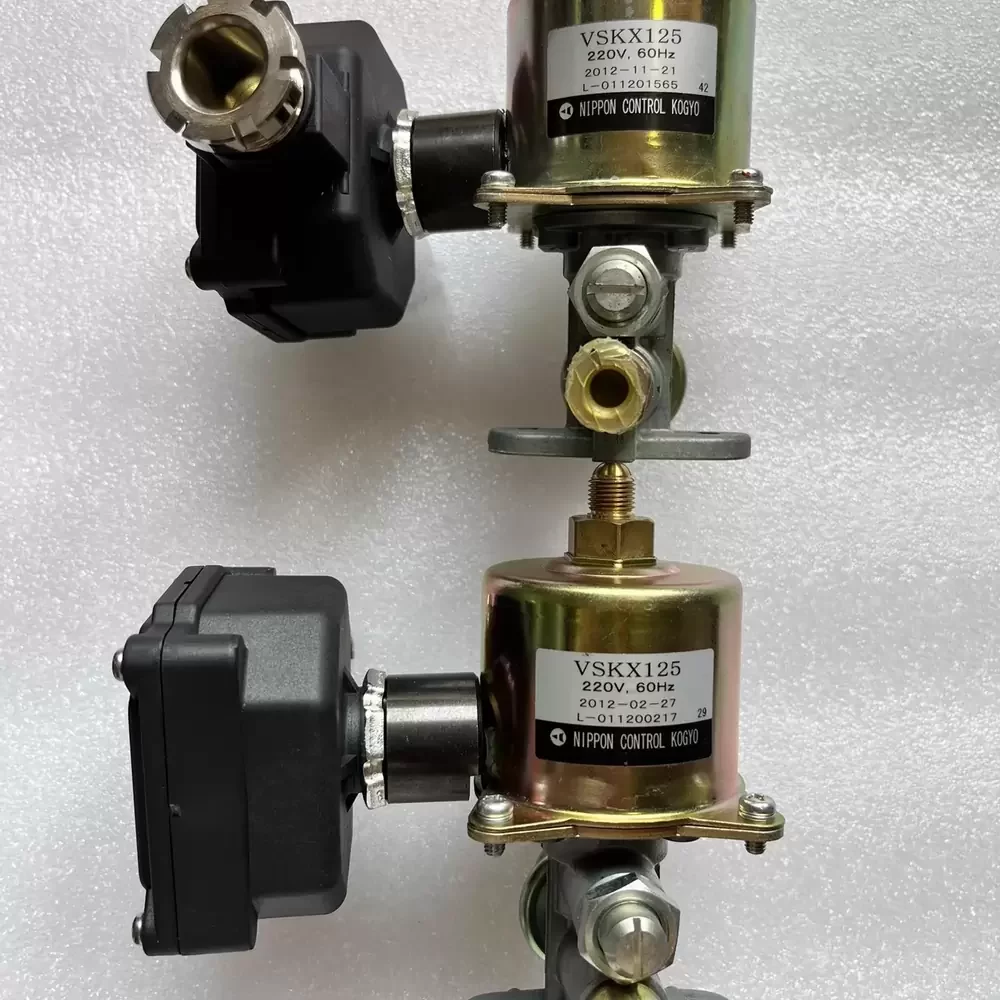

VSKX125 Volcano Nippon Control Kogyo 220V 60Hz Solenoid Oil Pump

Description

The Nippon Control Kogyo VSKX125 is a high-performance, non-capacity type solenoid piston pump engineered for precision oil delivery in industrial combustion systems. This Japanese-manufactured unit features a built-in relief valve for adjustable discharge pressure and an integrated check valve to prevent backflow. Operating via half-wave rectification, it delivers a maximum flow rate of 30L/H at 60Hz with a peak pressure of 1.38MPa. Designed for durability, the pump supports a wide range of fuels including kerosene, light oil, and lubricating oils while maintaining a compact 0.75kg footprint.

VSKX125 Specifications
Model Number: VSKX125
Brand: Nippon Control Kogyo (Volcano)
Category: Non-Capacity Type Solenoid Pump (Pressure Piston Type)
Voltage Rating: 220VAC (Half-wave rectification)
Frequency: 60Hz
Power Consumption: 52VA (Typical)
Max Flow Rate (60Hz): 30 L/H
Max Flow Rate (50Hz): 27 L/H
Max Pressure (60Hz): 1.38 MPa
Max Pressure (50Hz): 1.48 MPa
Adjusting Pressure Method: Relief Valve (Return Valve)
Nozzle Application: 2.5 to 3.5 GPH
Suction Head: -1.0 to +2.0 m
Compatible Fluids: Kerosene, Light Oil, Lubricating Oil, Bio Oil
Operating Temperature: -20 to +40°C (No freezing)
Inlet Connection: Rc1/8
Outlet Connection: G1/8 (SR4)
Installation: 2-M6xP1.0 (40mm pitch)
Check Valve: Integrated
Weight: 0.75 kg
Certifications: RoHS compliant options available

VSKX125 Applications
Fuel delivery for gun-type burners in industrial heaters and boilers, pressurized lubrication for marine machinery, and oil circulation in high-precision thermal management systems.
