Description

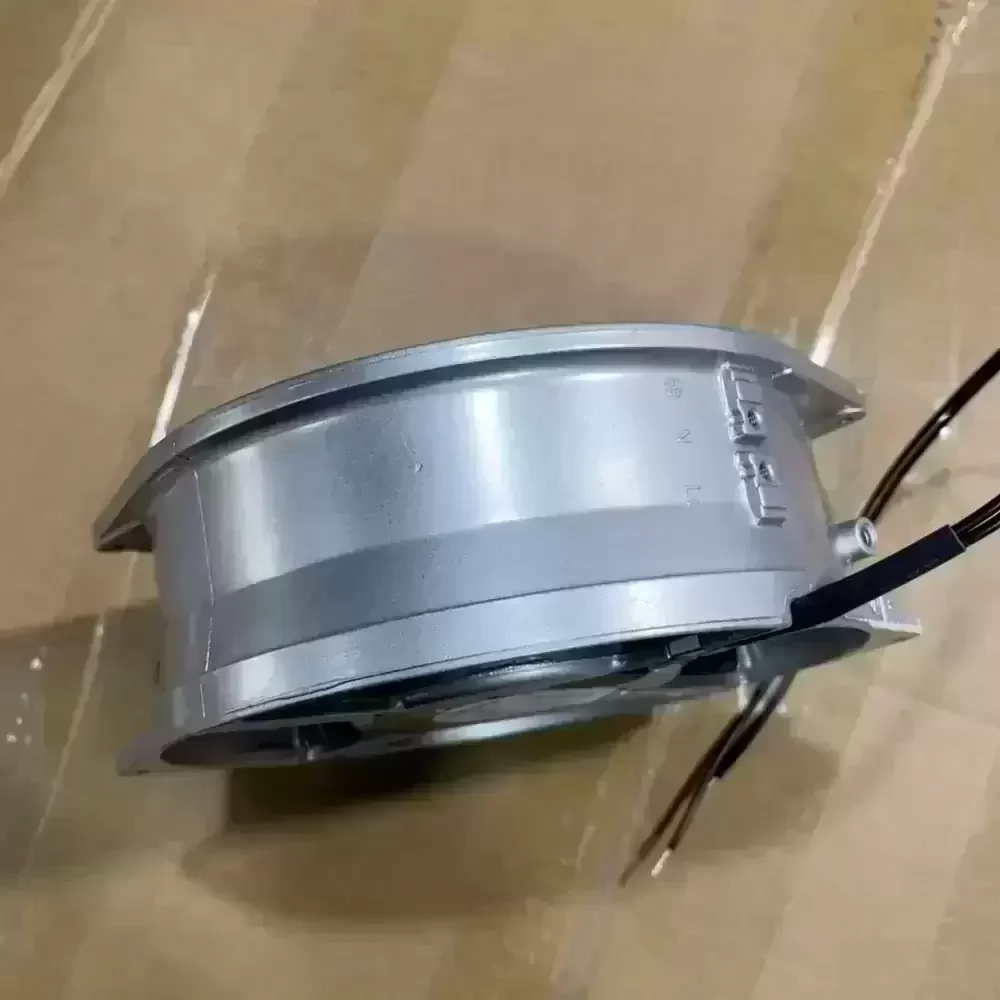

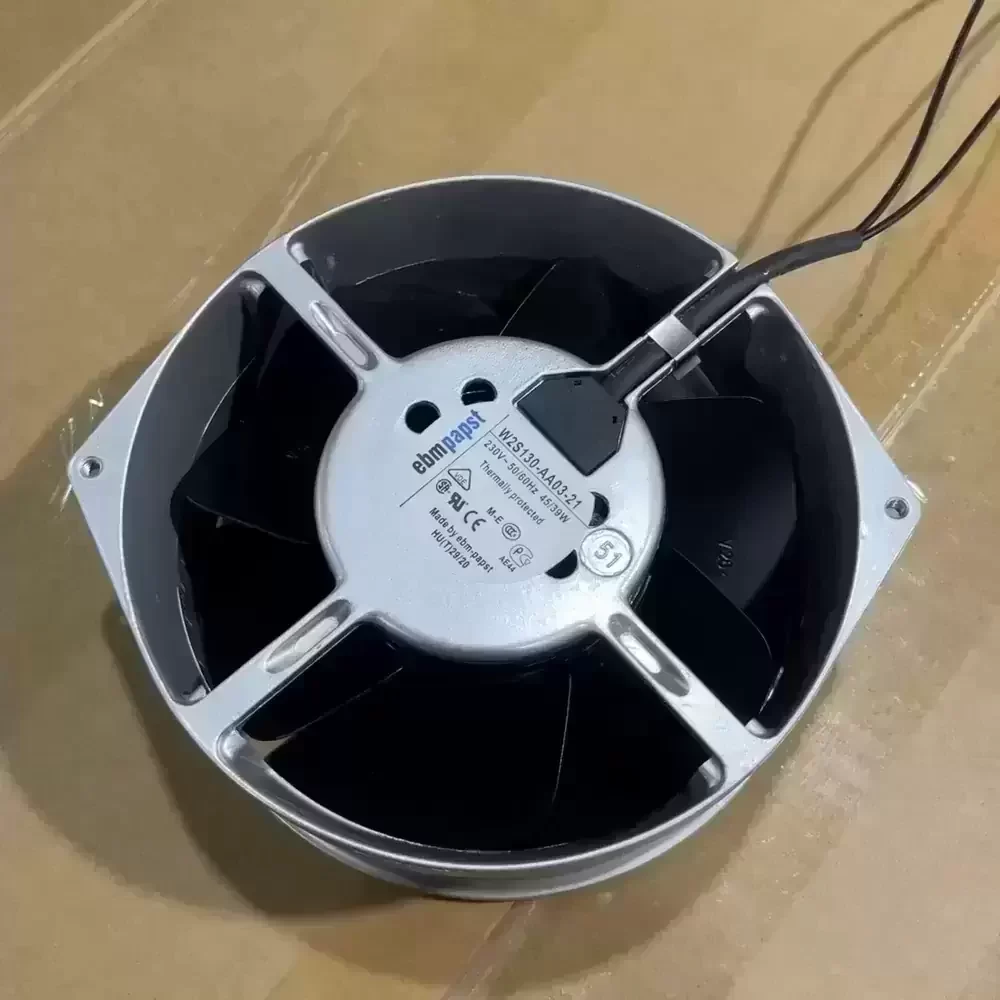

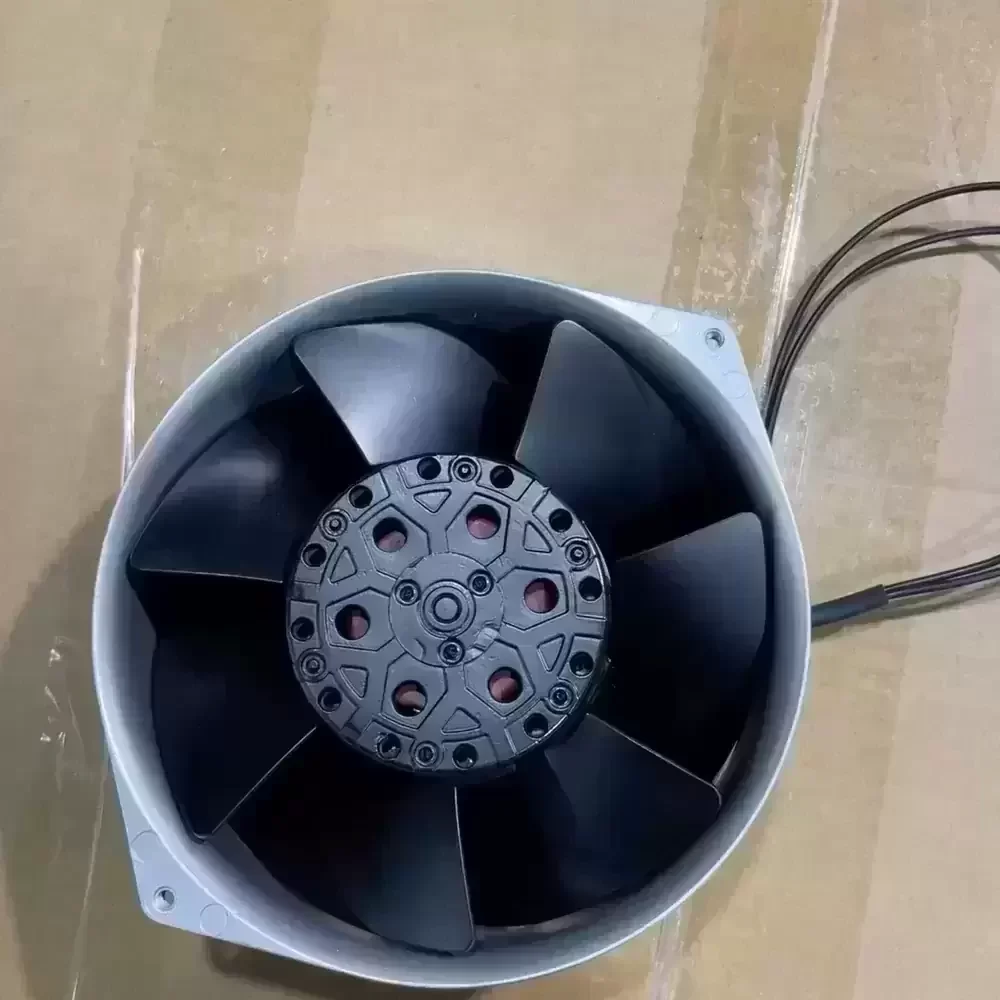

The ebm-papst W2S130-AA03-21 is a robust Tube Axial Fan engineered for demanding industrial thermal management applications. Utilizing an advanced external rotor shaded-pole motor, this unit delivers consistent aerodynamic performance while maintaining optimal thermal impedance levels. The construction features a rugged die-cast aluminum housing paired with precision-balanced blades, ensuring exceptional structural rigidity and vibration damping under continuous operation. Designed with a maintenance-free ball bearing system, the W2S130-AA03-21 offers prolonged service life and reliability in harsh environments, making it a critical component for high-efficiency cooling solutions requiring substantial airflow and static pressure capabilities.

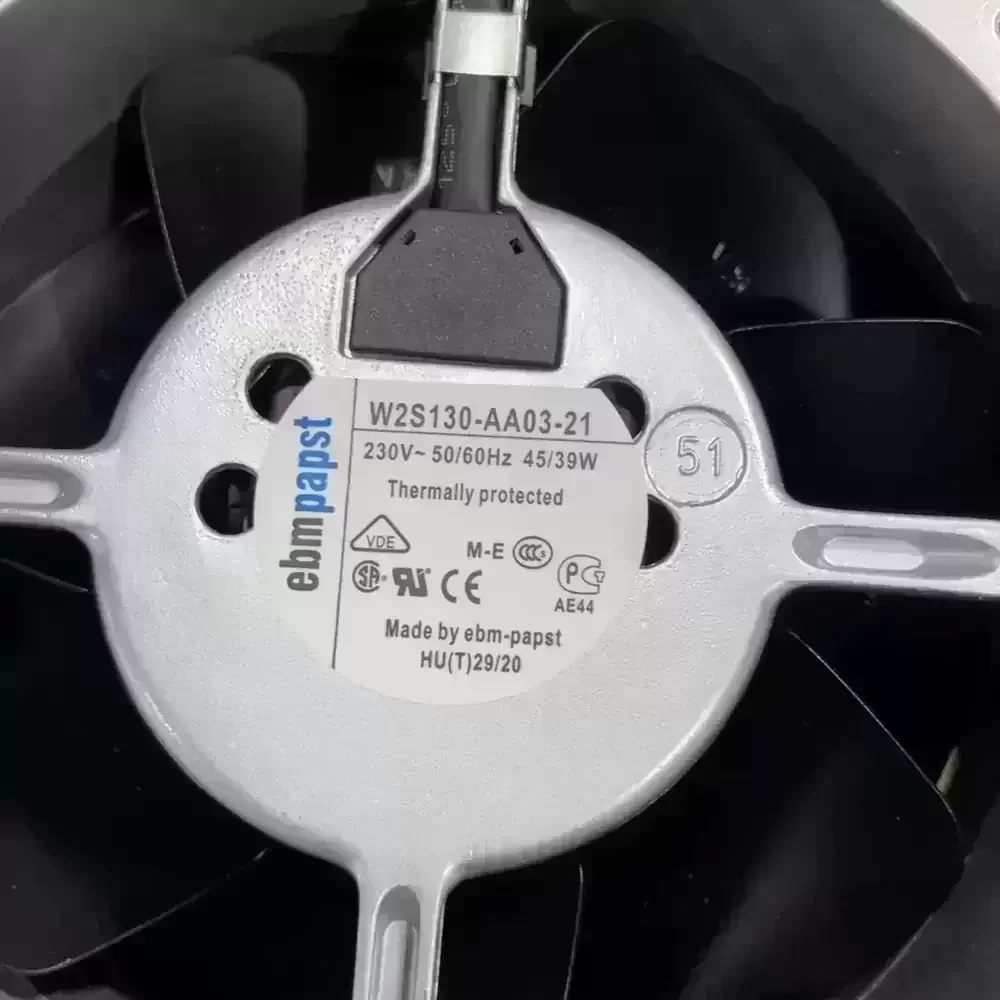

Model Number: W2S130-AA03-21
Brand: ebm-papst
Product Type: Tube Axial Fan
Motor Technology: AC External Rotor Shaded-Pole
Rated Voltage: 230 V AC
Frequency: 50 / 60 Hz
Rated Current: 0.31 / 0.25 A
Power Consumption: 45 / 39 W
Rated Speed: 2800 / 3250 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 191.3 CFM (325 m³/h / 5.41 m³/min)
Max. Static Pressure: 0.32 inH₂O (80 Pa / 8.16 mmH₂O)
Dimensions: 150mm (Diameter) x 55mm (Depth)
Weight: 1.1 kg (2.43 lbs)
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel (Black Coated) / Aluminum
Noise Level: 49 / 53 dB(A)
Operating Temperature: -25°C to +70°C
Insulation Class: B
Ingress Protection: IP20
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Intake over struts
Motor Protection: Impedance Protected
Termination: 2x Flat Plugs 2.8 x 0.5 mm
Mounting Orientation: Any
Certifications: VDE, CSA, UL, CE
Life Expectancy (L10 at 40°C): 60,000 Hours
The W2S130-AA03-21 is frequently integrated into industrial control cabinets, power distribution units, and heavy-duty electronics cooling systems where heat dissipation is paramount. Its robust metal construction makes the W2S130-AA03-21 ideal for welding machines, photovoltaic inverters, and server rack ventilation, ensuring operational stability in environments susceptible to thermal stress.
