Description

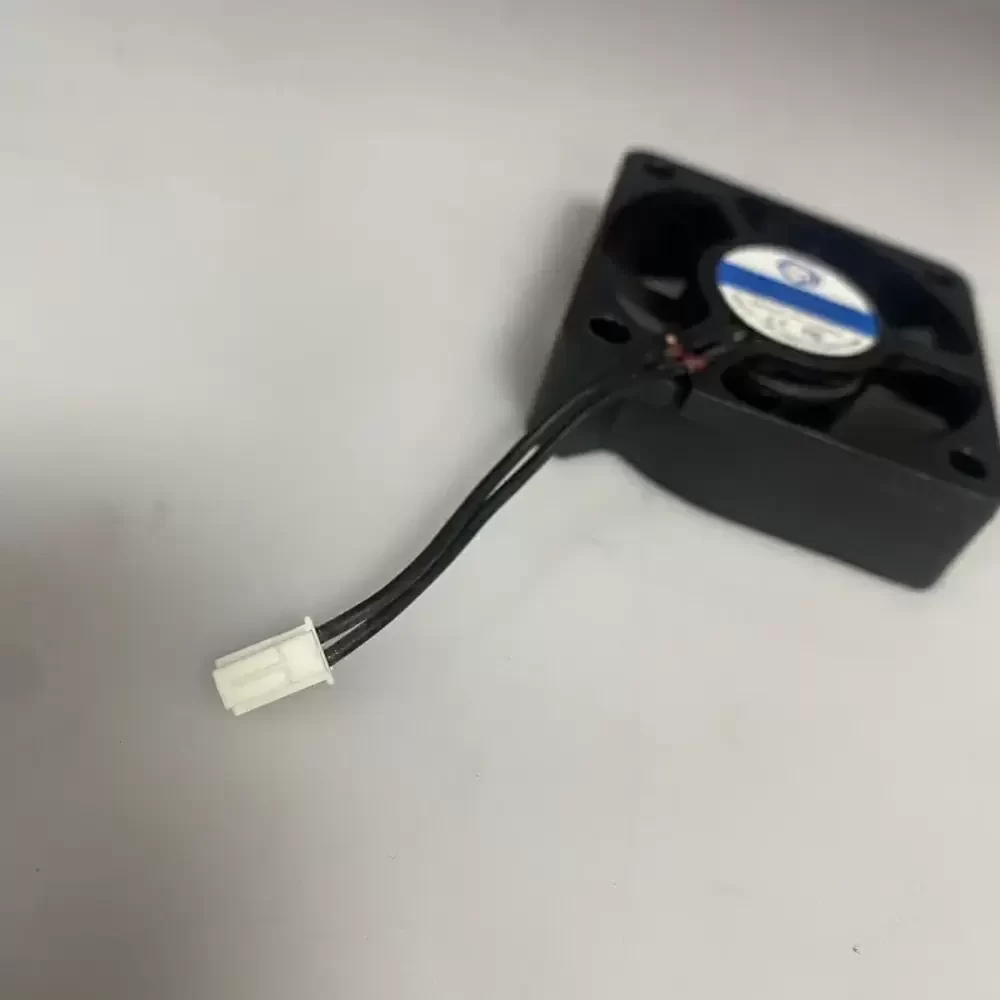

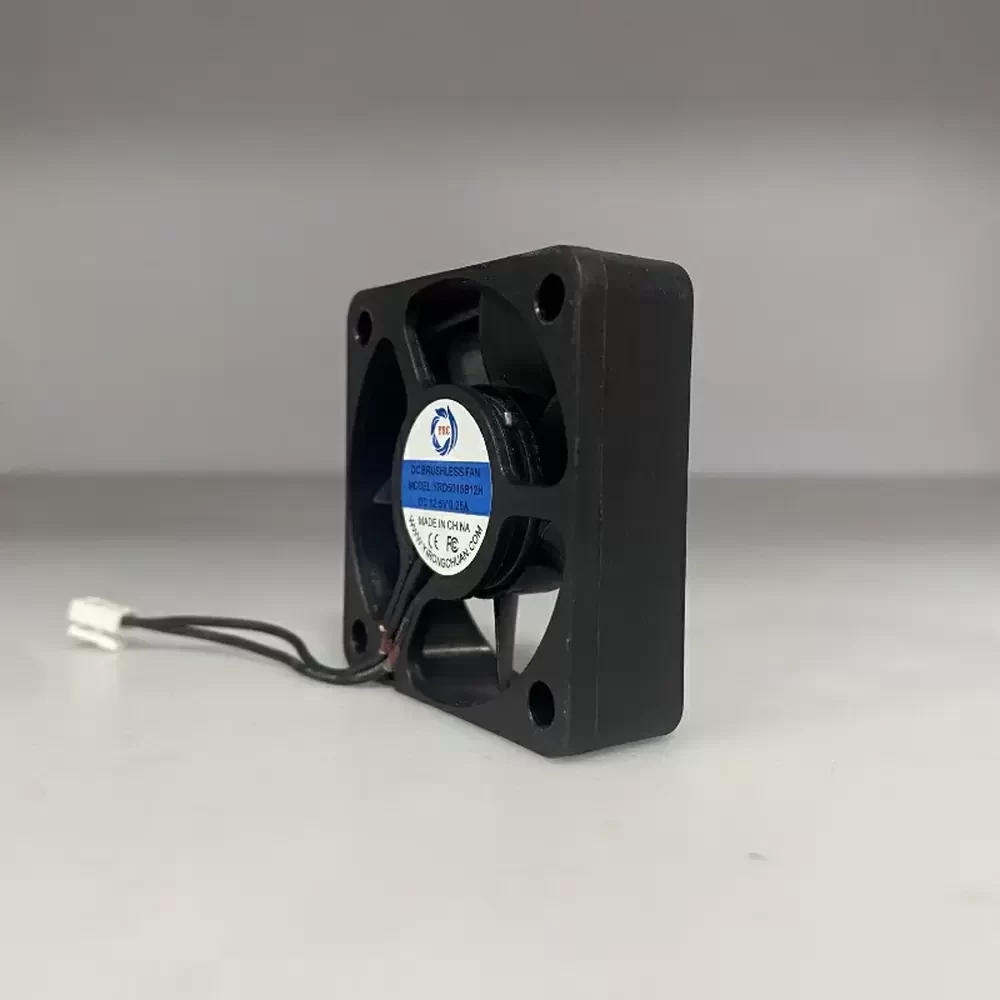

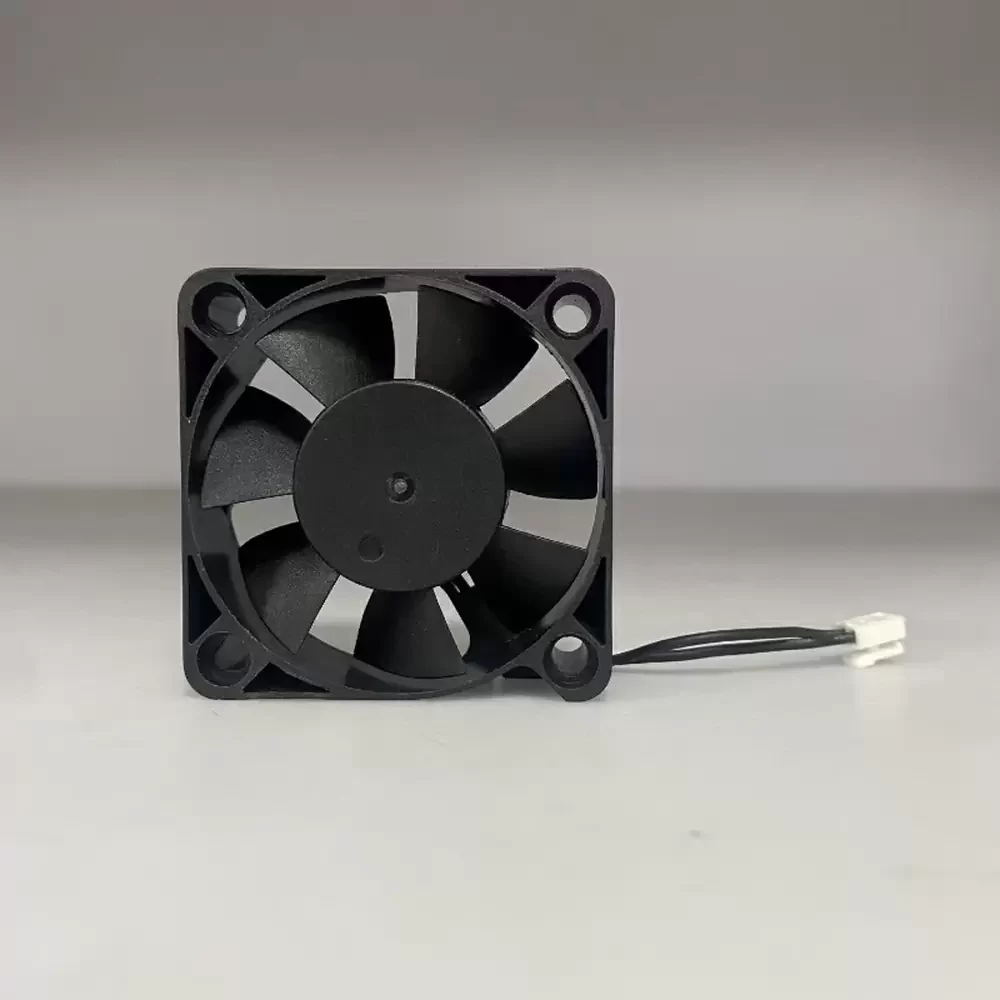

The YRC YRD5015B12H is a Blower Fan engineered for high-efficiency thermal management in space-constrained industrial environments. Utilizing a brushless DC motor architecture, this unit minimizes thermal impedance while maximizing structural rigidity through its reinforced thermoplastic housing. The dual ball bearing system ensures long-term operational stability and reduced friction across varying orientations. Its aerodynamic impeller design is optimized for concentrated airflow, making it ideal for localized cooling requirements. This component is designed to maintain consistent performance under continuous duty cycles, providing a reliable solution for critical electronic systems requiring precise air displacement and pressure.
Model Number: YRD5015B12H
Brand: YRC
Product Type: Blower Fan
Rated Voltage: 12.5VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.25A
Power: 3.125W
Rated Speed: 5000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 4.50 CFM (7.65 m³/h / 0.13 m³/min)
Max. Static Pressure: 12.50 mmH₂O (122.58 Pa / 0.49 inH₂O)
Dimensions: 50x50x15mm
Weight: 25g
Life Expectancy: 70,000 Hours at 40°C
Housing Material: UL94V-0 PBT Plastic
Blade Material: UL94V-0 PBT Plastic
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Mounting Orientation: All Directions
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, RoHS, UL
The YRC YRD5015B12H is specifically designed for integration into compact electronic assemblies such as 3D printers, medical diagnostic equipment, and small-scale server enclosures. In CNC control cabinets, the YRD5015B12H provides essential localized cooling for stepper drivers and power supply modules. Its robust construction also makes it suitable for telecommunications hardware where consistent airflow is required to prevent component degradation.
