Description

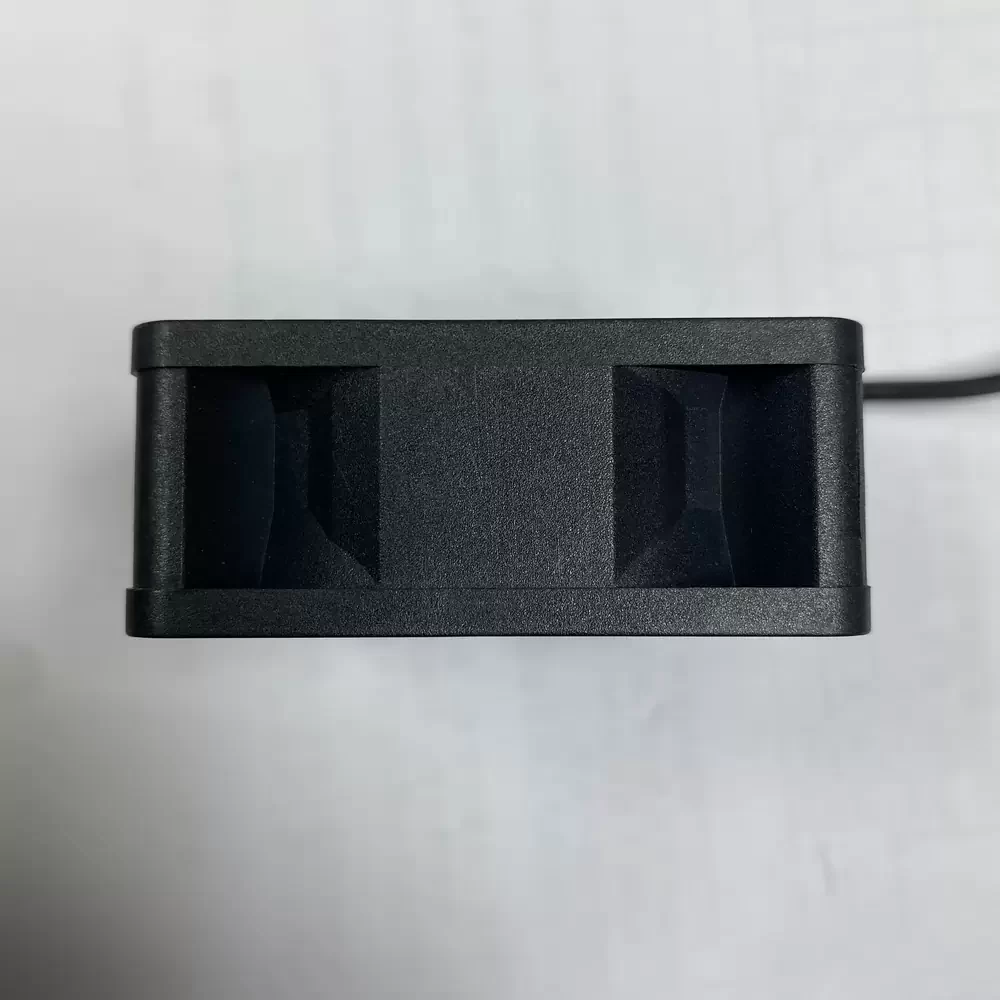

The SNOWFAN YY6025H12B is a robust DC axial fan engineered for demanding industrial environments requiring effective thermal management and ingress protection. This unit features a precision-balanced impeller driven by a high-torque DC motor, ensuring consistent airflow delivery against system impedance. Constructed with a durable dual ball bearing system, the YY6025H12B offers extended operational longevity and superior structural rigidity compared to standard sleeve bearing alternatives. The design incorporates specialized glue-filled potting for enhanced water and moisture resistance, making it highly suitable for harsh operating conditions. Its aerodynamic profile minimizes turbulence while maximizing static pressure, optimizing heat dissipation in compact electronic enclosures and power conversion systems.
Model Number: YY6025H12B
Brand: SNOWFAN
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.55 A
Power Consumption: 6.60 W
Dimensions: 60x60x25mm
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h)
Max. Static Pressure: 0.48 inH₂O (120 Pa)
Rated Speed: 6500 RPM
Noise Level: 42.0 dBA
Protection Features: Waterproof (Glue Filled), Locked Rotor Protection
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 Hours at 40°C
Mounting Orientation: Any
Weight: 65g
The YY6025H12B is specifically calibrated for integration into high-density industrial electronics where moisture resistance and reliability are paramount. Common deployment scenarios include variable frequency drives (VFDs), solar inverters, and industrial automation control cabinets. The YY6025H12B effectively manages thermal loads in CNC machinery power supplies and telecommunications equipment, ensuring component stability during continuous operation. Its compact form factor allows for seamless installation in server racks and compact instrumentation panels requiring forced air convection.
